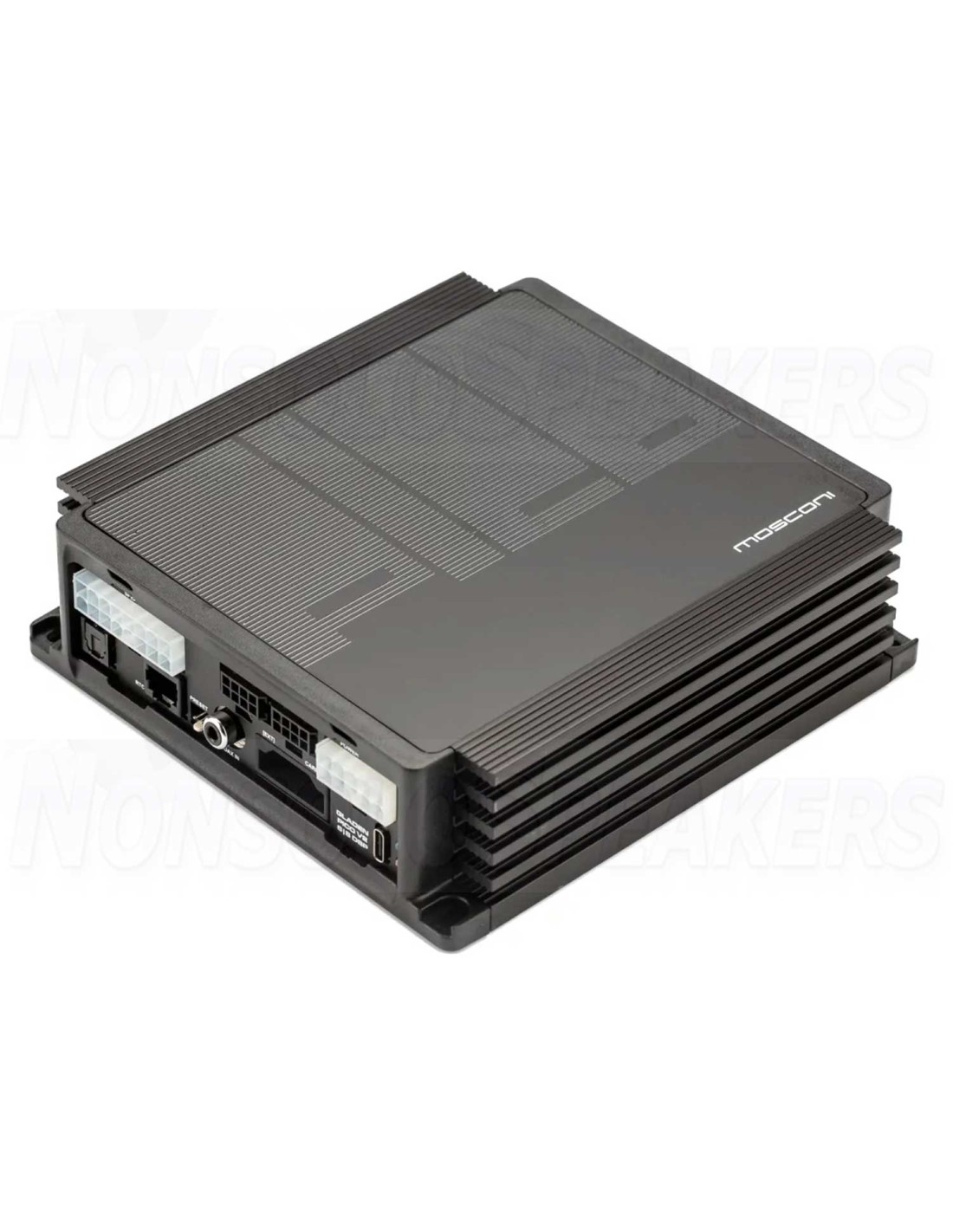

MOSCONI Gladen PICO V2 4|8 DSP Amplifier
4-channel DSP power amplifier with 8-channel DSP - the solution for all OEM applications
With the PICO V2 4|8 DSP, MOSCONI is launching the second generation of PICO 4-channel DSP amplifiers into the car audio market. In addition to improved connectivity, the new PICO boasts enhanced sound performance and greater efficiency.
All connections are now located on one side, and all relevant adjustment switches required for operation in modern vehicles are located under a magnetic housing cover.
Furthermore, all inputs are now high- and low-level capable. All desired DSP settings can now be adjusted via a USB-C port.
Perfect OEM Integration:
Powerful DSP amplifier, optimized for use with the factory radio. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay.
With 4 x 90 watts, the PICO V2 4|8 DSP is ideal for active and semi-active systems, as well as classic front and rear applications.
With two digital inputs (SP-Dif and BT+) and four processed line outs, it is prepared for all future configurations.
.
Technical Specifications:
- 8 x switchable analog inputs (high-level/low-level), Class SB compatible, 2-30V
- 1 x optical digital input (SP-Dif sampling rate 8 kHz – 96 kHz)
- 1 x digital coaxial input (8 kHz – 96 kHz sampling rate)
- 1 x BT port with SP-Dif – TTL (8 kHz – 96 kHz, e.g., for Mos_BTS bt streaming module)
- BT extended digital audio port (BT+)
- (flexible 8 kHz – 384 kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g., for MOS BTS-LD4C BT streaming module or extended analog inputs)
- 912 MHz, 32-bit audio port, 64-bit core
- Double precision 56bit filter calculation
- Sample rate 96kHz
- 3 x 9-band parametric input EQ (de-equalizing), dynamic
- 6 x input delay 0-3 ms / 0.01 ms (de-delay)
- 10 x digital input level controls (signal conditioning)
- Flexible mixer for signal routing
- (Side-separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
- 6 x 30-band or 4 x 30-band + 2 x 15-band group EQ
- (parametric, relative phase remains stable)
- 8 x 10-band output filters
- High-pass / Low-pass / High-shelf / Low-shelf / Notch / All-pass 1st - 4th order / Speaker EQ)
- 8(10) x speaker delay 0-12 ms, 0.01 ms
- 8 x speaker phase switches
- Flexible phase control with calculation tool
- Extensive analysis tools Integrated
- B.A.R.N.I.E. Compatible
- Output power at 4 ohms: 4 x 90 watts (channels 1+2 | 5+6) 2-ohm stable
- Output power at 4 ohms: 2 x 85 watts (channels 1-2) + 230 watts bridged channel (5+6)
- Output power at 4 ohms: 2 x 230 watts (bridged channels 1+2 | 5+6)
- Line Out: 4 x 2 Vrms Line Out outputs
- The channel 3+4 output is a pure bypass of the channel 3+4 input.
- Input voltage:
- 2 Vrms (LL) - 15 Vrms (HL) by default - 30 Vrms (HL)
- Overall efficiency: > 80%
- Auto-on (high level only): Off-BTL
- Dimensions: 150 x 160 x 46 mm
- Weight: 1150 grams
.
What's in the box:
- 1 x Remote Connector (analog, for RTC.2 potentiometer remote control)
- 1 x BT+ control port (MOS-BT3.0 connection (app control), RC-CAN (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C high-res streaming module, Gladiator controller
- Controllable with pilot tone
- 1 x Remote Out, 1 x Remote In, auto-remote with high-level connection
- Connections with MOLEX® plug contacts.
- Very small size w
