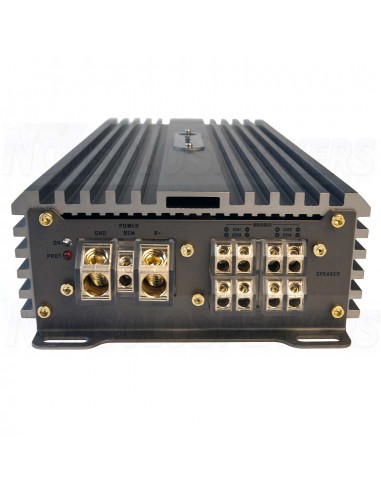

DLS Reference CCi4: 4-channel analog car amplifier with small dimensions.

.

DLS Reference CCi4 parameters:

Class DLS Reference - model series 2019

RMS power: 4x 50/70 W at 4/2 Ohm

RMS power of the bridge: 2x 140 W at 4 Ohm

Frequency range: 10 - 55,000 Hz

Signal/Noise separation: 110 dB

Damping factor: 250

Input sensitivity: 1-4 V

Built-in high-pass filter HPF: 50-500 Hz

Built-in low-pass filter LPF: 50-500 Hz

Variable phase adjustment 0-180°

High-level inputs with automatic switching function

Connection terminals for power wiring o 16 qmm

Fuse: without fuse directly on the amplifier (recommended external fuse 40 A)

Dimensions: 129 x 320 x 54 mm

Price for 1 piece
