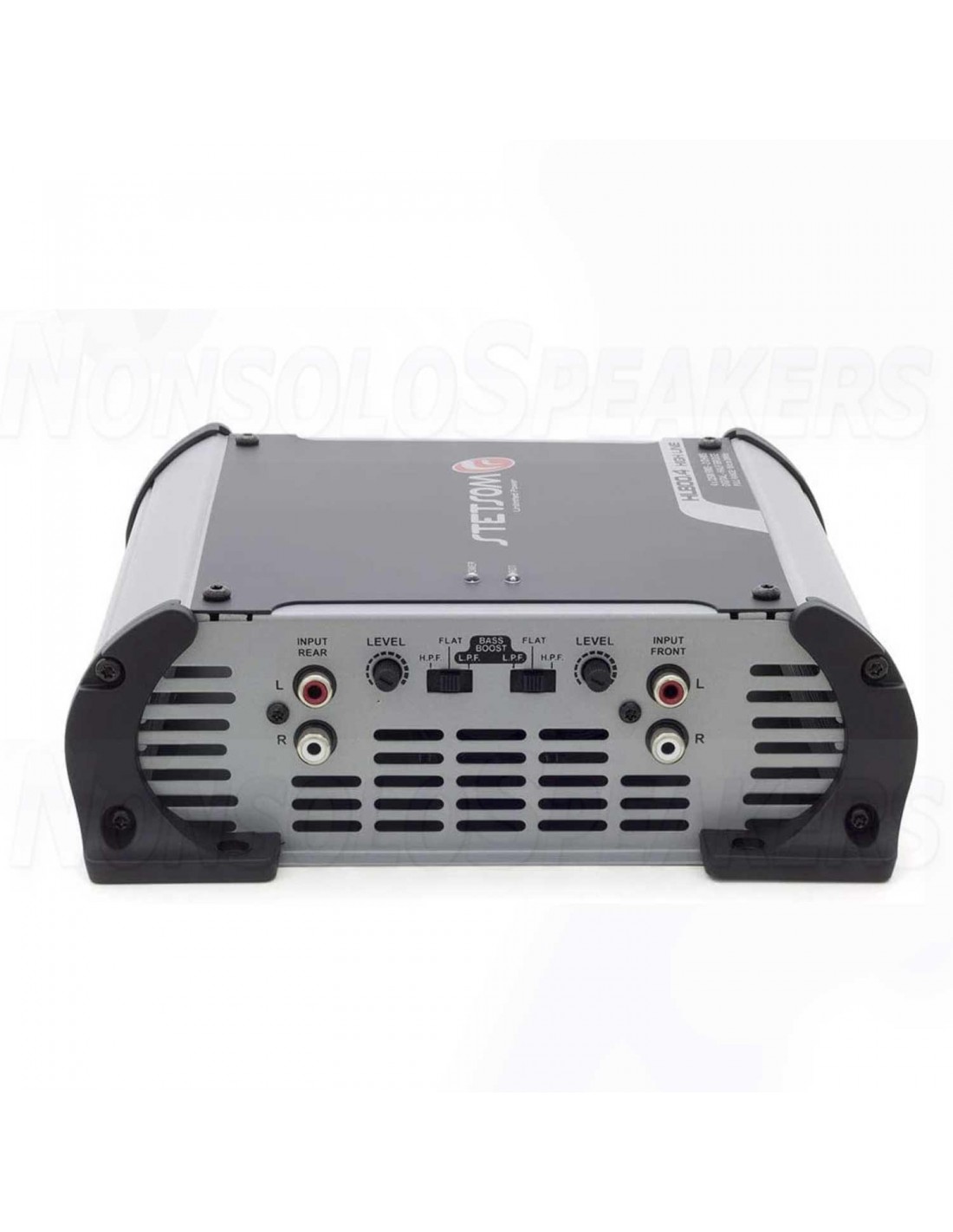

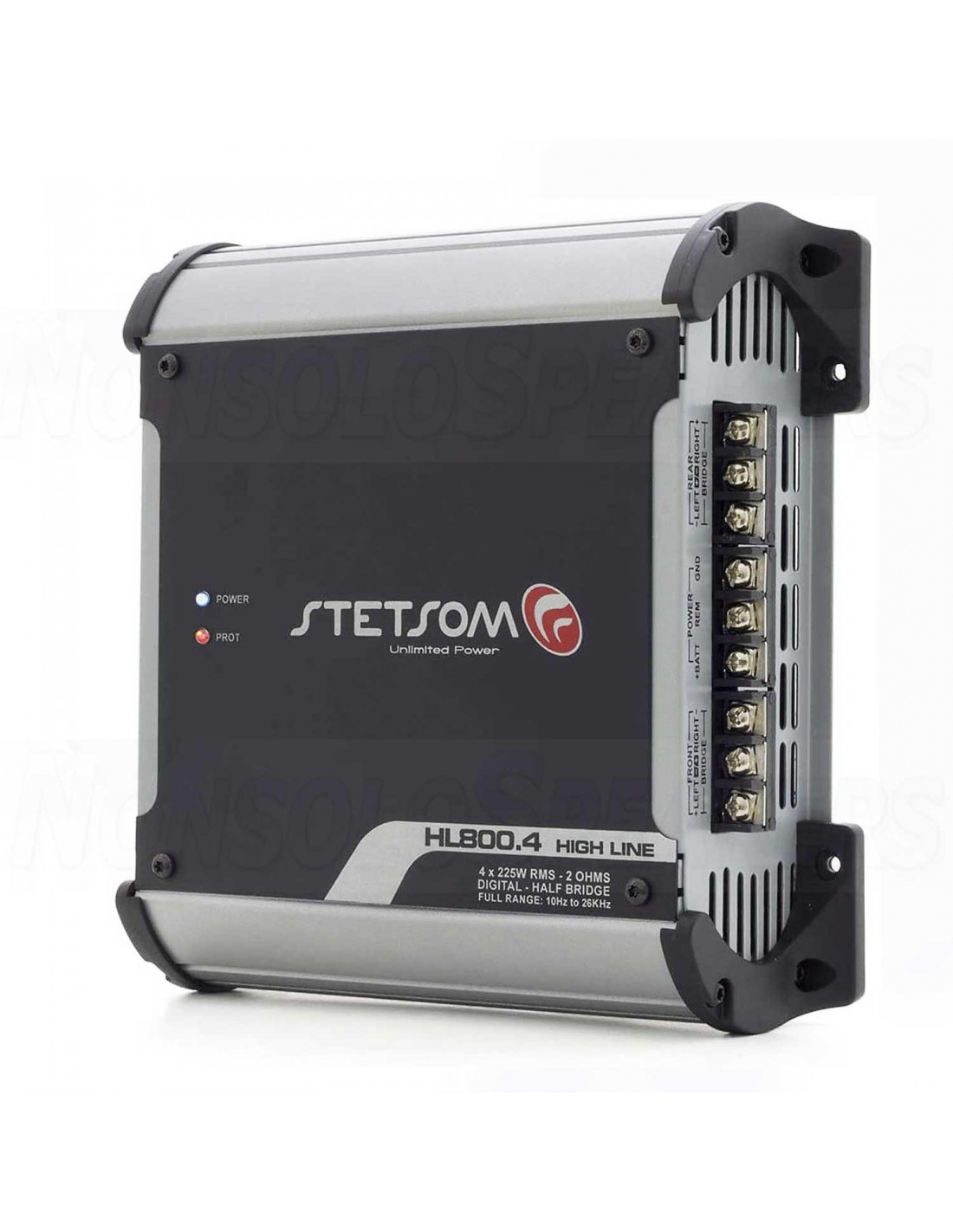

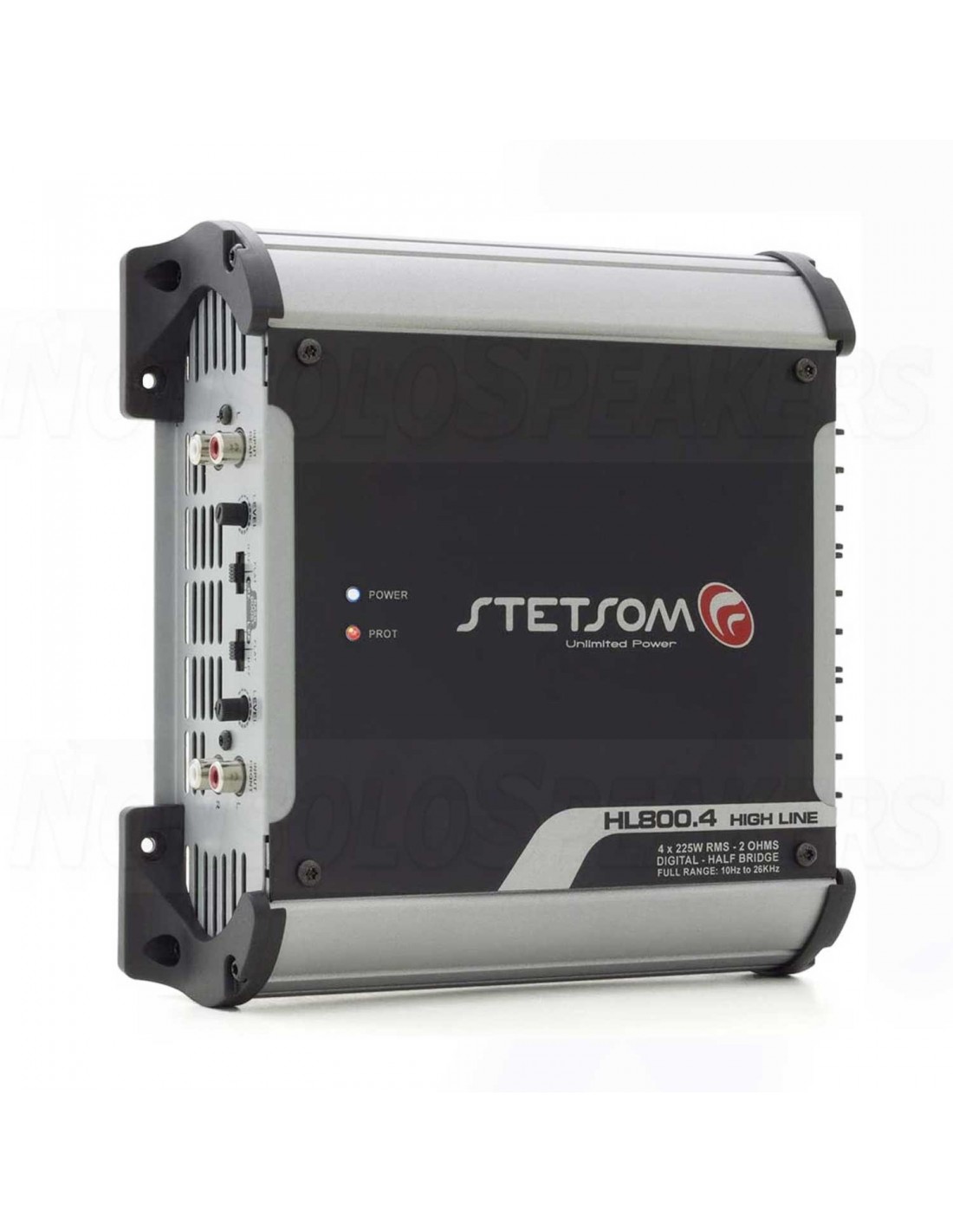

STETSOM HL800.4_1 - DIGITAL AMPLIFIER 4x226W- 1Ohm
Brand | Stetsom |
Channel | 4 |
Analog input | No |
TOSLink Input | No |
Bluetooth Input | No |
Type | Amplifier |
Output Power [W] | 226 |
SPIDF Input | No |
Impedance Output [Ohm] | 1 |
Number of channels 4
RMS power at 1 Ohm 12.6 V 4 x 226 W RMS (STEREO)
RMS power at 2 Ohm 12.6 V 2 x 144 W RMS (STEREO)
RMS power at 1 Ohm 13.8 V 4 x 260 W RMS (STEREO)
2 Ohm RMS power 13.8 V 4 x 204 W RMS (STEREO)
Power @ 12.6 V Bridge 2 ohm 2 x 430 W RMS
Power @ 13.8V Bridge 2 Ohm 2 x 520 W RMS
Supply voltage 9 ~ 15V
Frequency response 20 Hz ~ 22 KHz
Lowover Crossover 90 Hz
High pass Crossover 90 Hz
Signal on noise> 90 dB
Harmonic distortion> 0.4% THD
Input sensitivity 0.2V
Input impedance 15K OHMS
Impedance output STEREO 1 OHM / BRIDGE 2 OHMS
Consumption with Signal Musical 52.5A
Consumption with Signal Bass 105A
Dimensions (H x W x D) 66 x 206 x 206 mm
Weight kg)
1.71 kg
RMS power at 1 Ohm 12.6 V 4 x 226 W RMS (STEREO)
RMS power at 2 Ohm 12.6 V 2 x 144 W RMS (STEREO)
RMS power at 1 Ohm 13.8 V 4 x 260 W RMS (STEREO)
2 Ohm RMS power 13.8 V 4 x 204 W RMS (STEREO)
Power @ 12.6 V Bridge 2 ohm 2 x 430 W RMS
Power @ 13.8V Bridge 2 Ohm 2 x 520 W RMS
Supply voltage 9 ~ 15V
Frequency response 20 Hz ~ 22 KHz
Lowover Crossover 90 Hz
High pass Crossover 90 Hz
Signal on noise> 90 dB
Harmonic distortion> 0.4% THD
Input sensitivity 0.2V
Input impedance 15K OHMS
Impedance output STEREO 1 OHM / BRIDGE 2 OHMS
Consumption with Signal Musical 52.5A
Consumption with Signal Bass 105A
Dimensions (H x W x D) 66 x 206 x 206 mm
Weight kg)
1.71 kg
HL800.4_1
