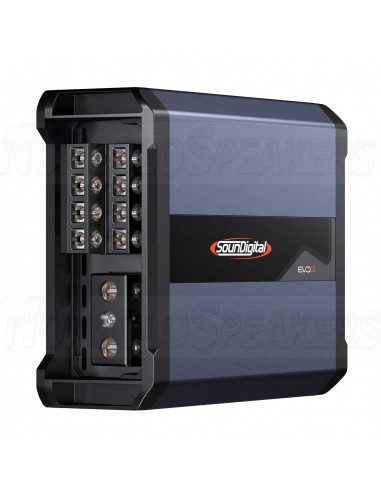

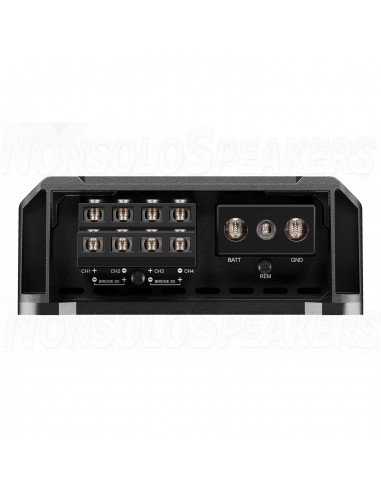

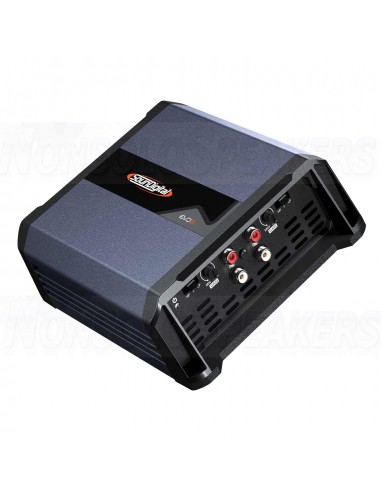

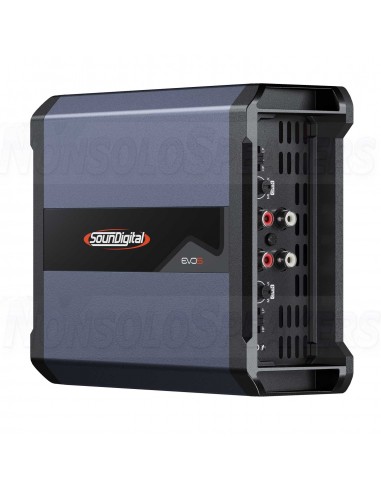

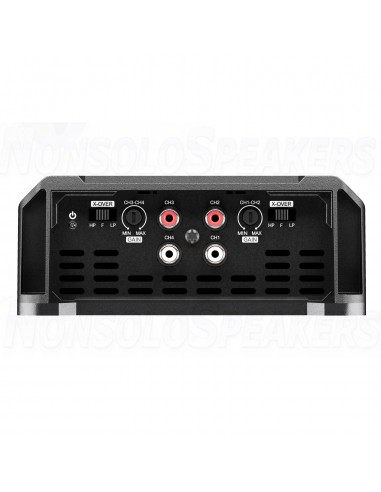

SounDigital 1200.4-2 EVO 5 - 2 ohm 4 Channel amplifier

The 1200.4 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power distributed over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

.

Technical Specifications

Power @ 1Ω: 4 X 300 WRMS

Power @ 2Ω: 4 X 198 WRMS

Power @ 4Ω: 4 X 130 WRMS

Bridge Power @ 2Ω: 2 X 600 WRMS

Bridge Power @ 4Ω: 2 X 396 WRMS

Frequency Response (-3dB): 5Hz ~ 22kHz

Low Pass Filter (12dB/oct): 80Hz

High Pass Filter (12dB/oct): 80Hz

Operating Voltage: 10V ~ 16V

SNR: 87dB

Input Sensitivity (RCA): 0.2V ~ 2V

Current Draw (music): 59A

Current Draw (max.): 118A

Total Efficiency: 81%

Damping Factor: 200

Power Cable: 16mm² (5 AWG)

Speaker Cable: 2 x 2mm² (14 AWG)

Recommended Fuse (music): 60A

Recommended Battery (minimum): 60Ah

Width: 6.7″ / 12.1 cm

Length: 5.4″ / 17 cm

Height: 2.2″ / 5.48 cm

Weight: 2.36 lb / 1,07 kg
