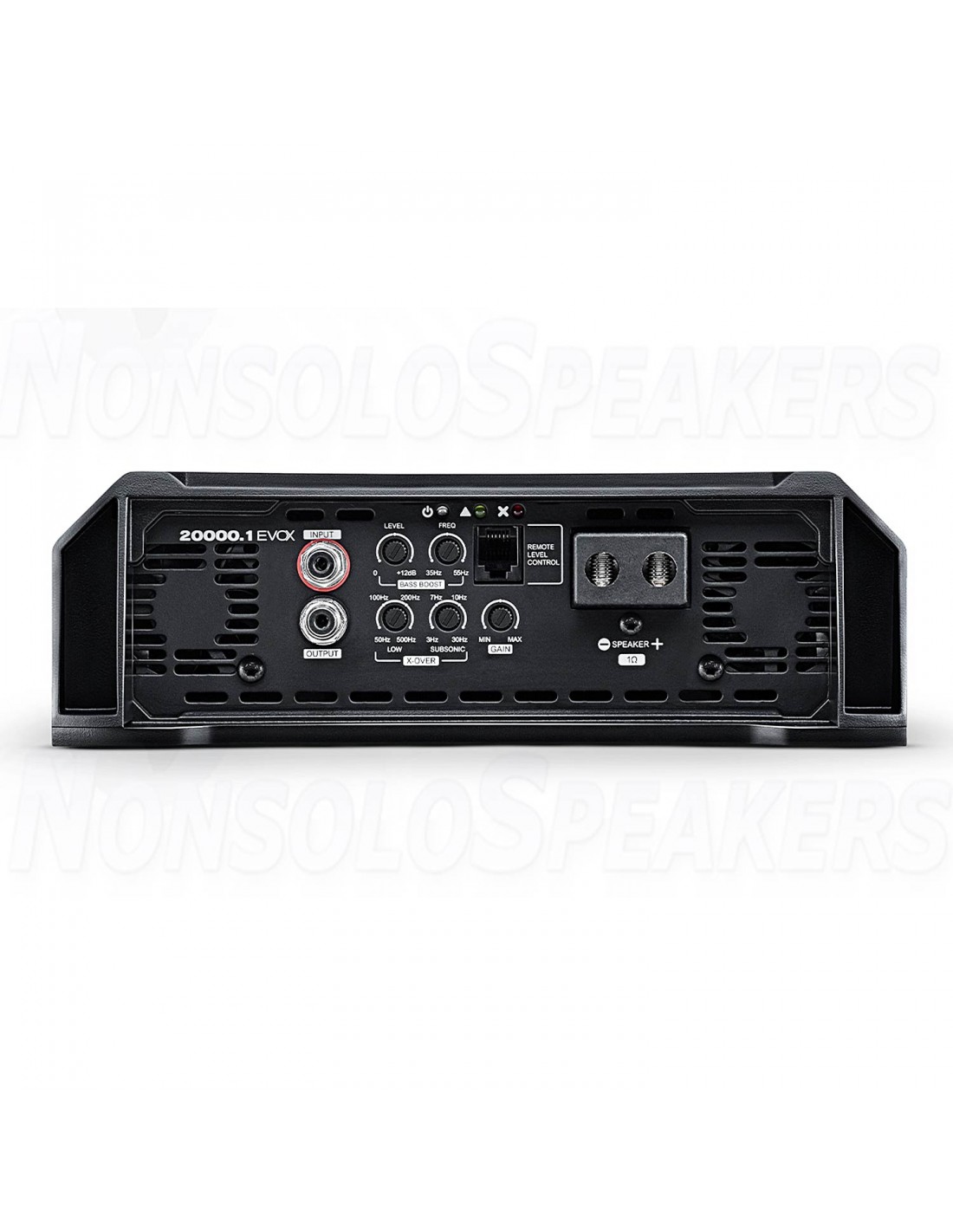

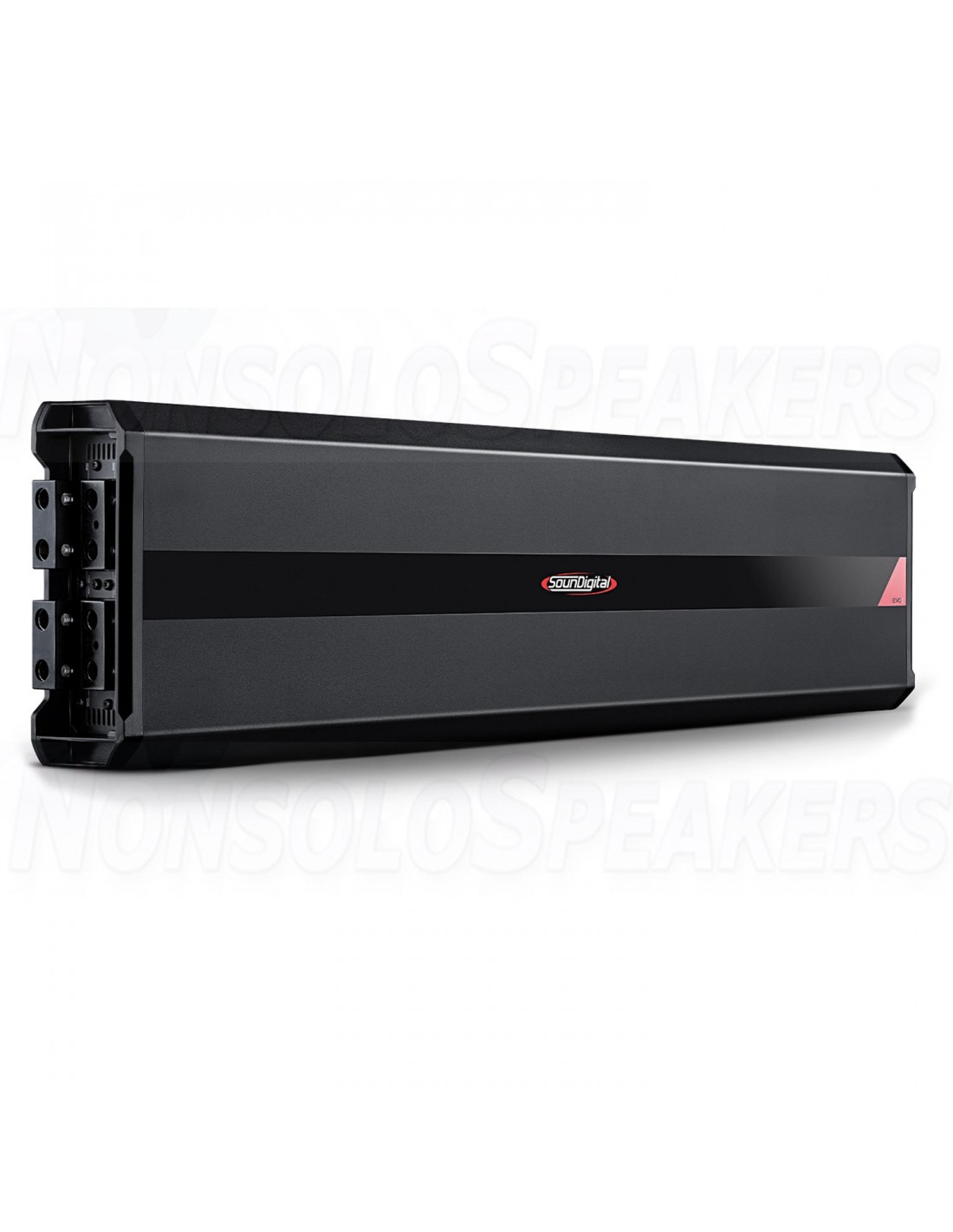

SounDigital 20000.1 EVOX - 1ohm mono amplifier

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system. The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

.

Technical Specifications

Compatible with SD-RLC Remote level control.

Power @ 12.6V @ 4Ω: 1 X 8712 WRMS

Power @ 12.6V @ 2Ω: 1 X 13200 WRMS

Power @ 12.6V @ 1Ω: 1 X 20000 WRMS

Power @ 14.4V @ 4Ω: 1 X 9714 WRMS

Power @ 14.4V @ 2Ω: 1 X 14718 WRMS

Power @ 14.4V @ 1Ω: 1 X 22300 WRMS

Operating Voltage: 8V – 16V

Current Draw (Music): 980 A

Current Draw (Max): 1960 A

Recommended Fuse (Music): 1200 A

Total Efficiency: 81%

Damping Factor: 200

Frequency Response (-3dB): 5Hz – 500Hz

SNR: 76dB

Crossover HPF: 5Hz – 30Hz

Crossover LPF: 50Hz – 500Hz

THD + N (10% Rated Power): 0.2%

Product Dimensions: 34 x 8.8 x 2.8 in
