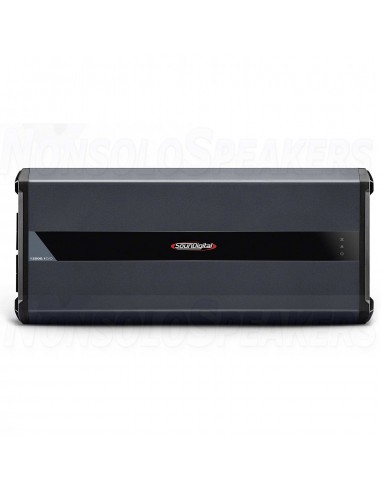

Soundigital 12000.1 EVO 4.0 - amplifier 1 channel 2 Ohm

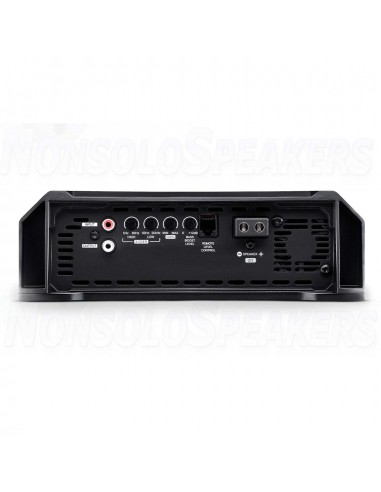

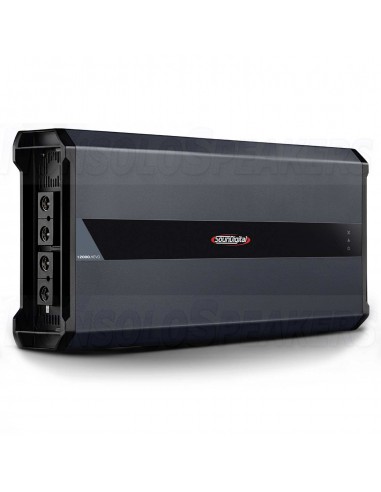

12000.1 EVO 4.0 features a symmetrical dual power connector. This novelty ensures a more efficient supply of the amplifier, with the entry of more cables and internally ensures greater symmetry in the circuits. With tracks of exactly the same length and thickness on both sides of the amplifier, we have greater energy efficiency and a substantial improvement in the bass and sub-bass response of the system.

Technical Specifcations

Compatible with SD-RLC Remote level control.

POWER RATING
12,6V: @ 2Ω: 1 x 12000 W RMS
12,6V: @ 4Ω: 1 x 7920W RMS
14,4V: @ 2Ω: 1 x 13380 W RMS
14,4V: @ 4Ω: 1 x 8831 W RMS

CROSSOVER
HPF: 5Hz - 80Hz
LPF: 50Hz - 6Khz

DIMENSIONS
L: 53cm
W: 22,5cm
H: 7,1cm

FREQUENCY
(-3dB): 5Hz – 6kHz
THD: 0,08%
