The new SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The SS1500 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.

Out-of-Stock
€289.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like

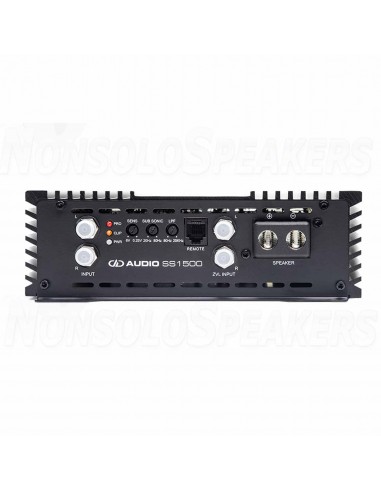

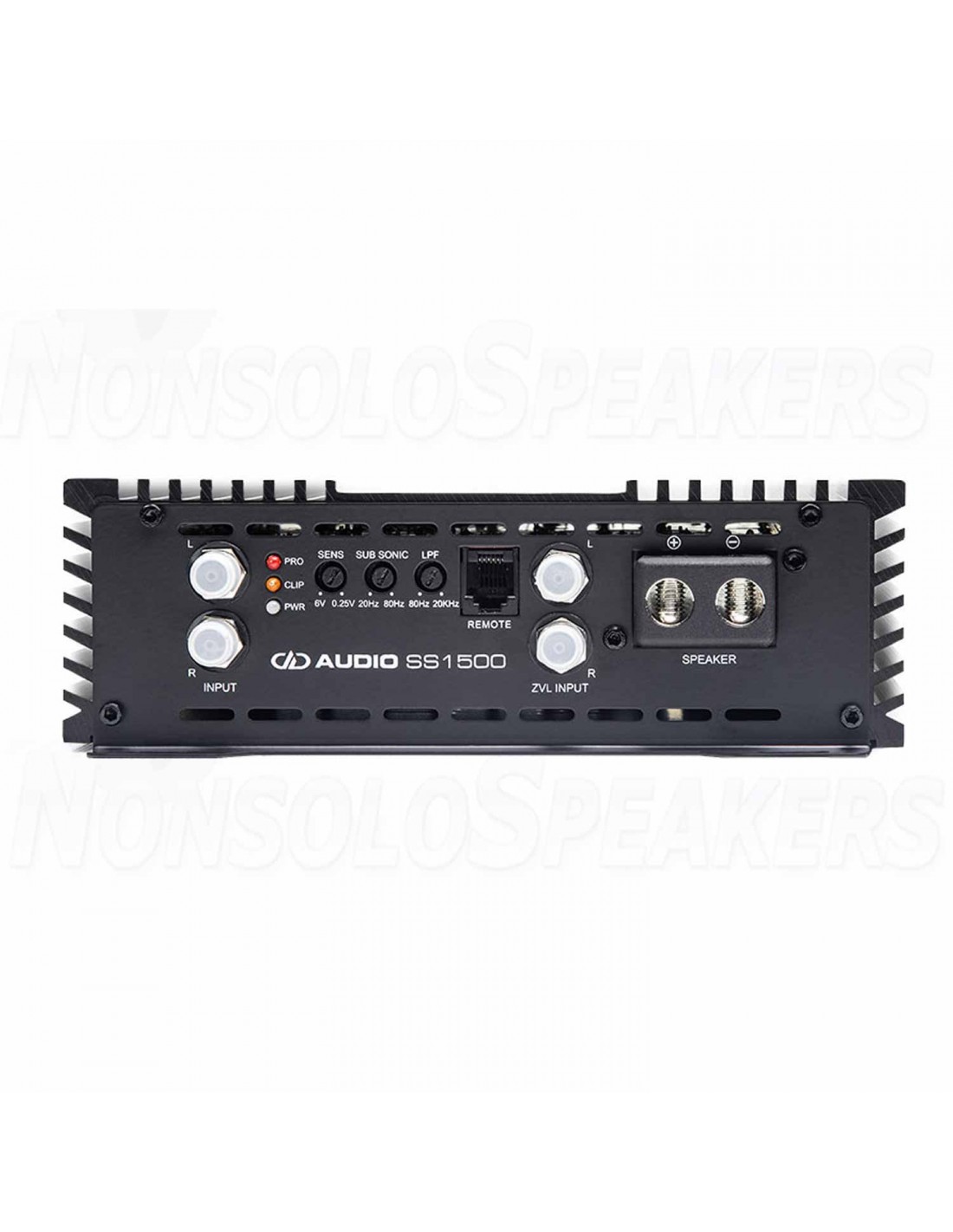

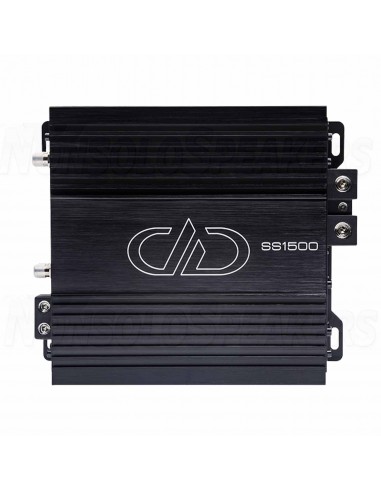

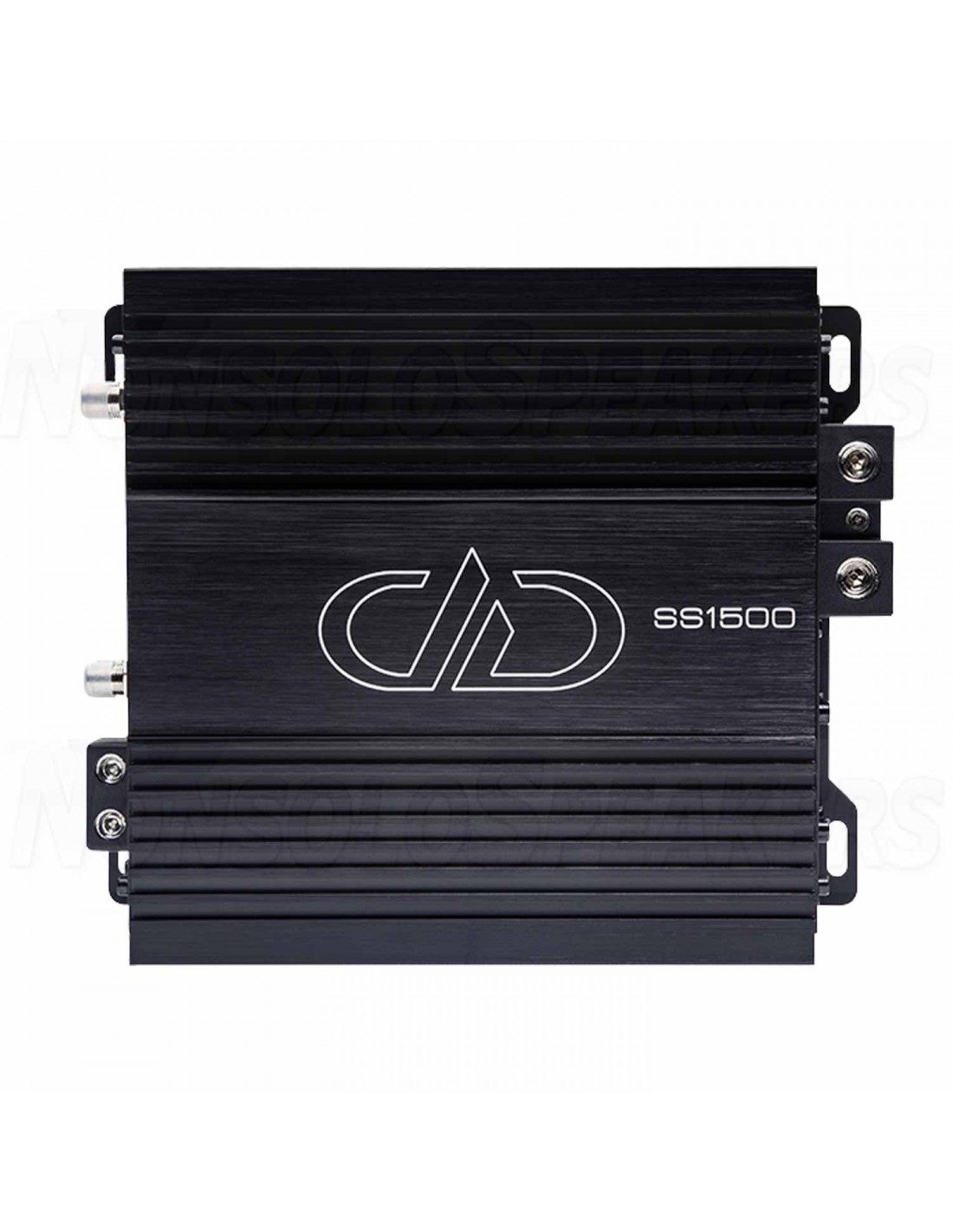

DIGITAL DESIGNS SS1500 Amplifier mono class D

.

The new SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The SS1500 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.

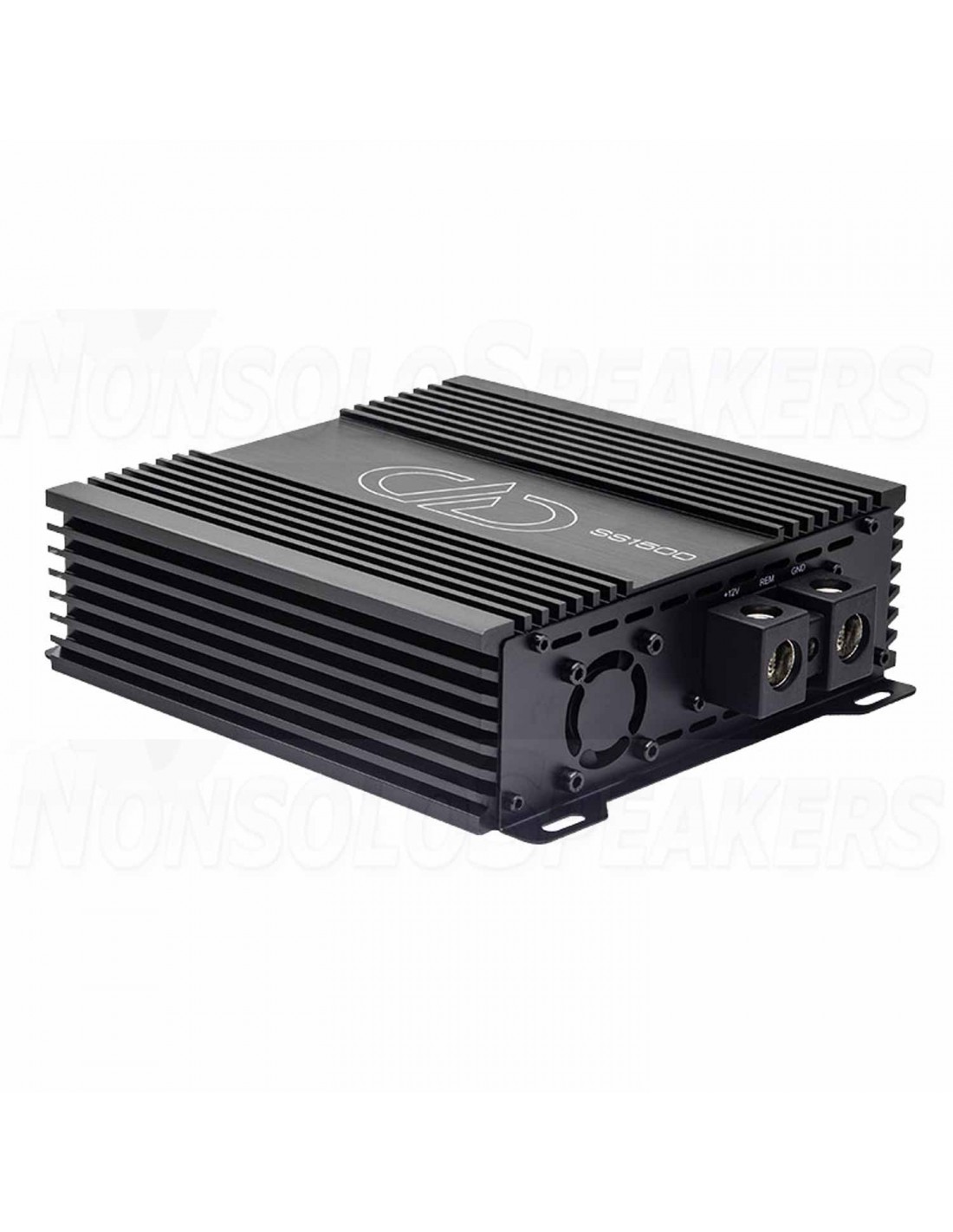

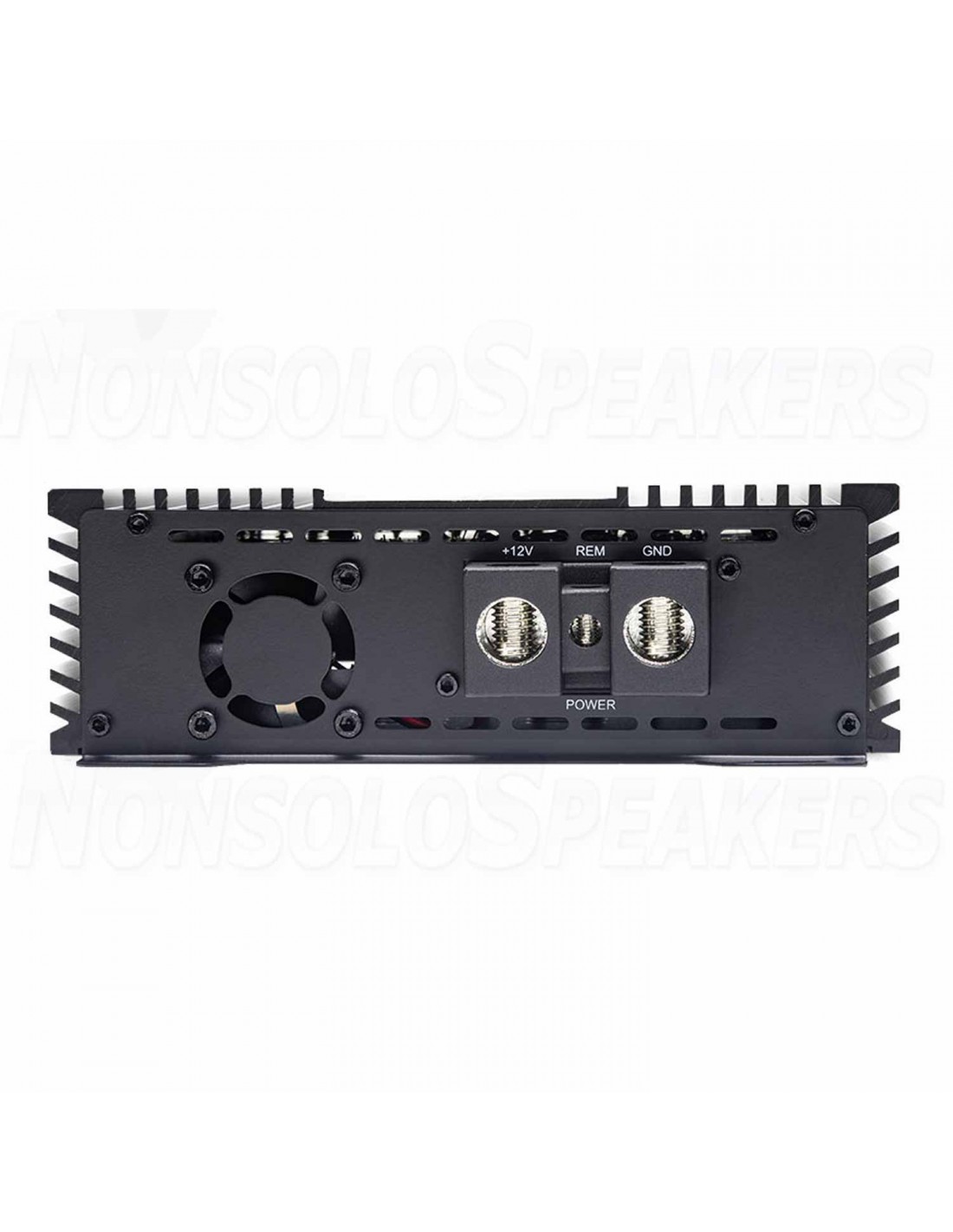

The design starts with our DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Clean power is delivered unstressed thanks to the internal fan cooling and thick walled, DD style aluminum heat sink, contributing to a very small footprint of 7.125” wide x 7.3” deep.

The preamp section features variable crossovers covering subwoofer and mid/high frequencies as well as the DD ZVL input.

.

Technical Specifications

  • Operating Voltage: 9 - 16
  • Test Voltage: 14.4
  • Input Channel(s): 2
  • Output Channel(s): 1
  • Continuous Wattage @2ohm: 1100
  • Continuous Wattage @1ohm: 1500
  • Dynamic Wattage: 150
  • RCA Input Voltage Sensitivity: 6 - 0.25
  • High-Level Input Voltage Sensitivity: 20 - 1.1 RCA
  • Input S/N: 95
  • Damping Factor: 100
  • THD: 1.0%
  • Frequency Response (Hz): 20 - 20k
  • Sub-Sonic Filter: 20 - 80
  • Low-Pass Filter: 80 - 20k
  • ZVL Input: Yes
  • Remote Control: Remote Included in Box Power
  • Wire Gauge: 0 Speaker
  • Wire Gauge: 4 Dimensions (Inches): 7.125 x 7.3 x 2.4
  • Dimensions (MM): 181 x 185 x 60
  • Shipping Weight (Lbs): 5
SS1500
