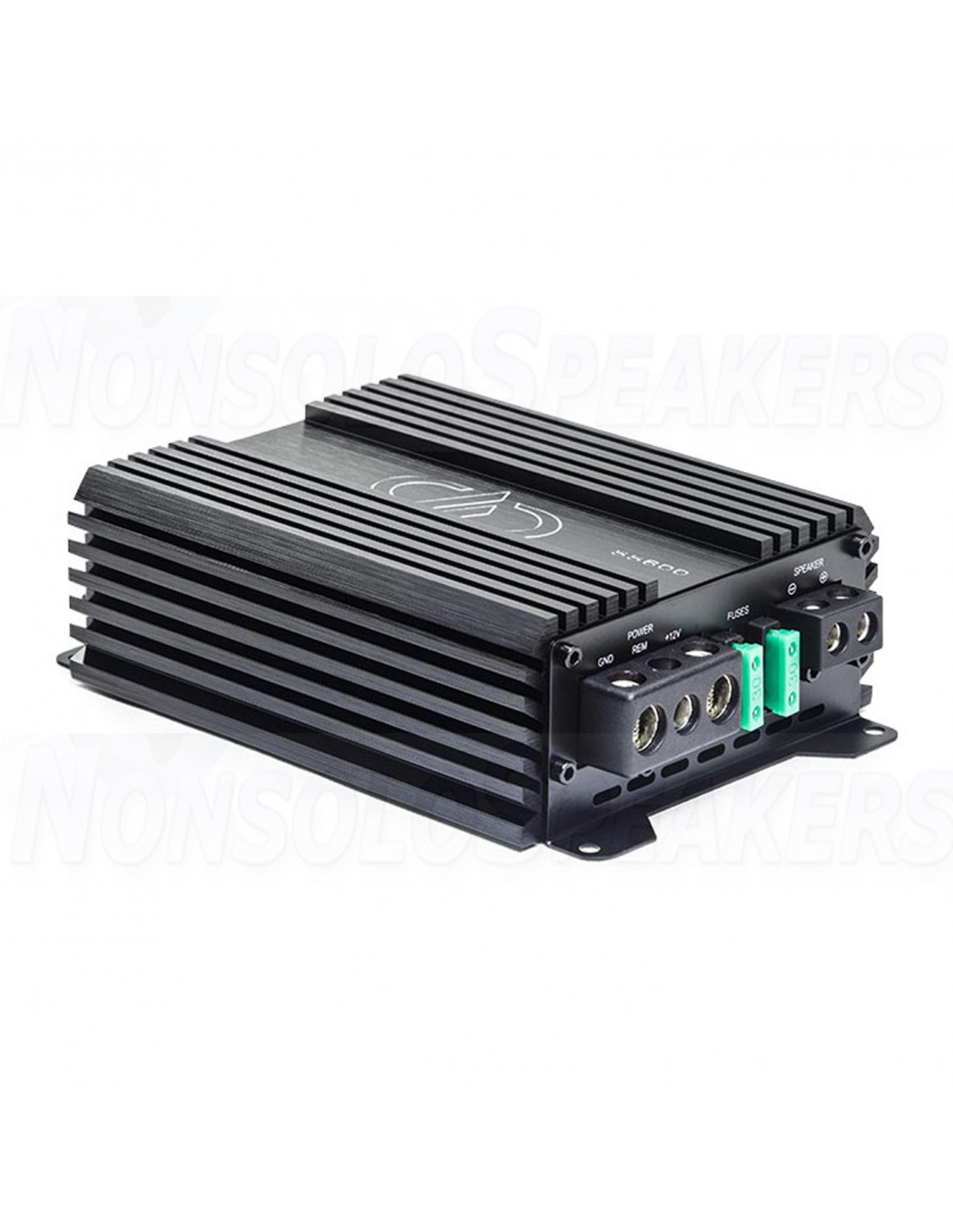

DD Audio SS600 monoblock compact multi-amplifier class D

.

The new SS amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints.

The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. All major components have been upgraded higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.

These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is not only tangible, but audibly apparent.

Big clean power from a small package is what the SS600 does best, 600 Watts of continuous power at less than 1% THD+N. Within its chassis you’ll discover a selection of the best branded electrical components, 4 layer PCB and large toroidal transformer. Together, these elements synergize to enrich your system with precision and power.

.

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 1
• Output Channel(s): 1
• Continuous Wattage @4ohm: 250
• Continuous Wattage @2ohm: 350
• Continuous Wattage @1ohm: 600
• Max Current Draw (Amps): 60 RCA
• Input Voltage Sensitivity: 6 - 0.25
• High-Level Input Voltage Sensitivity: 20 - 1.1
• RCA Input S/N: 95
• Damping Factor: 100
• THD: 0.1%
• Bass Boost: 12
• Frequency Response (Hz): 20 - 20k
• Sub-Sonic Filter: 30 - 100
• Low-Pass Filter: 35 - 250
• Remote Control: Remote Included in Box
• Power Wire Gauge: 4 Speaker
• Wire Gauge: 12
• Dimensions (Inches): 5.75 x 4.5 x 2
• Dimensions (MM): 146 x 115 x 50
