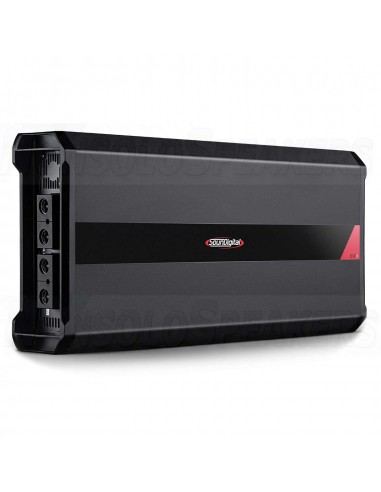

SounDigital 12000.1 EVOX 1ohm  mono amplifier

EVO X Line brings the latest technology to a compact design and high-quality components. With pioneering technology, SounDigital brought something unexplored to car audio amplifiers. Thermal coupling through the RTGP system. The unique RTGP system (heat recovery for electricity generation) guarantees SounDigital products both higher thermal efficiency and durability and stability.

.

Technical Specifications

Compatible with SD-RLC Remote level control.

Power @ 12.6V @ 4Ω: 1 X 5227 WRMS

Power @ 12.6V @ 2Ω: 1 X 7920 WRMS

Power @ 12.6V @ 1Ω: 1 X 12000 WRMS

Power @ 14.4V @ 4Ω: 1 X 5828 WRMS

Power @ 14.4V @ 2Ω: 1 X 8831 WRMS

Power @ 14.4V @ 1Ω: 1 x 13380 WRMS

Operating Voltage: 8V – 16V

Current Draw (Music): 627 A

Current Draw (Max): 1253 A

Recommended Fuse (Music): 675 A

Total Efficiency: 76%

Damping Factor: 200

Frequency Response (-3dB): 5Hz – 500Hz

SNR: 76dB

Crossover HPF: 5Hz – 30Hz

Crossover LPF: 50Hz – 500Hz

THD + N (10% Rated Power): 0.1%

Product Dimensions: 20.8 x 8.8 x 2.8 in
