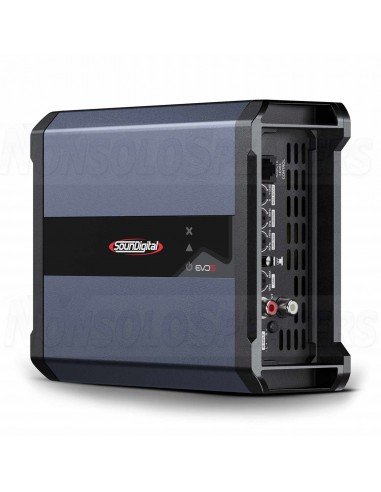

SounDigital 1600.1 EVO 5 - 1 Ohm 1 channel amplifier

SounDigital 1600.1 EVO 5 - 2 Ohm 1 channel amplifier

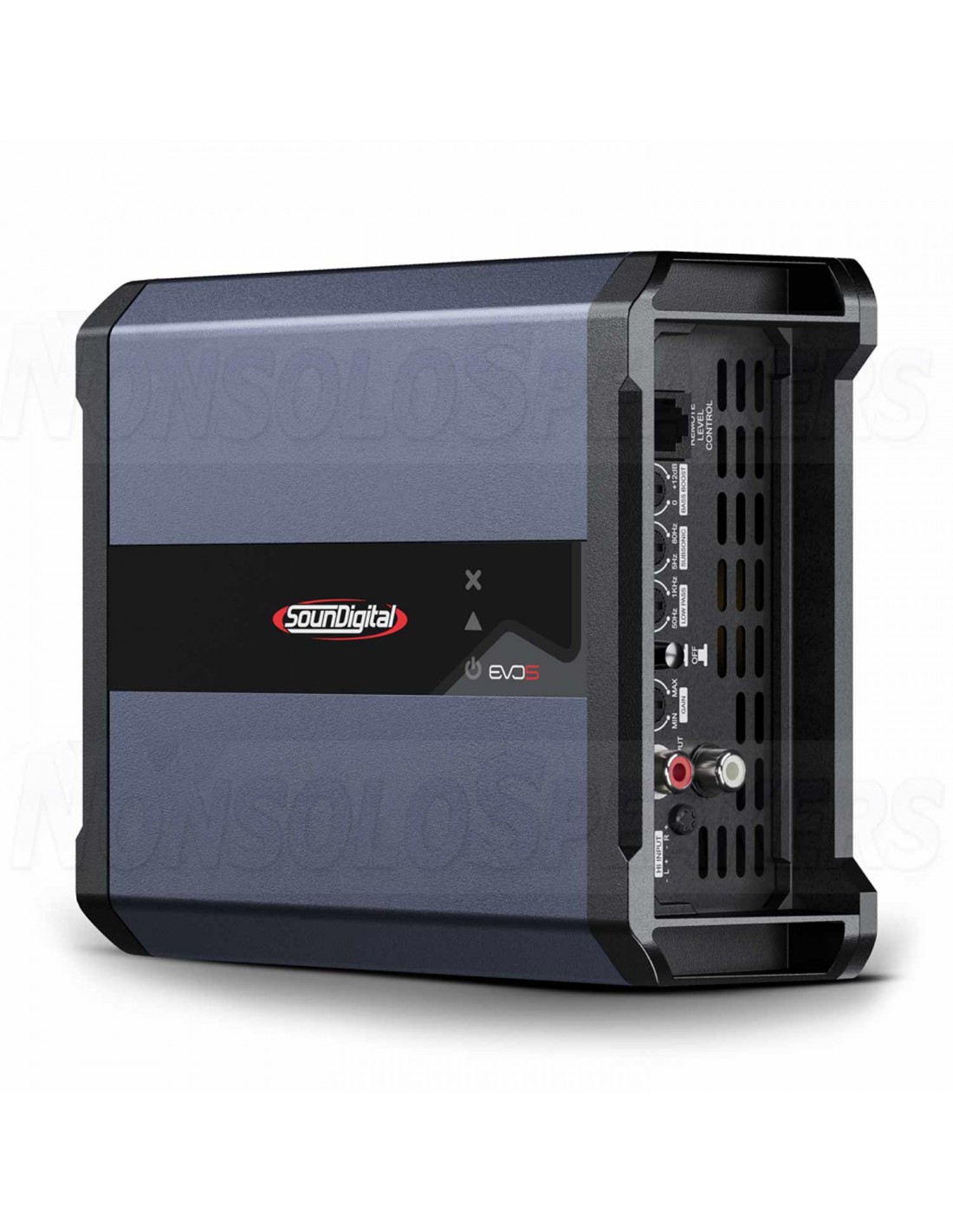

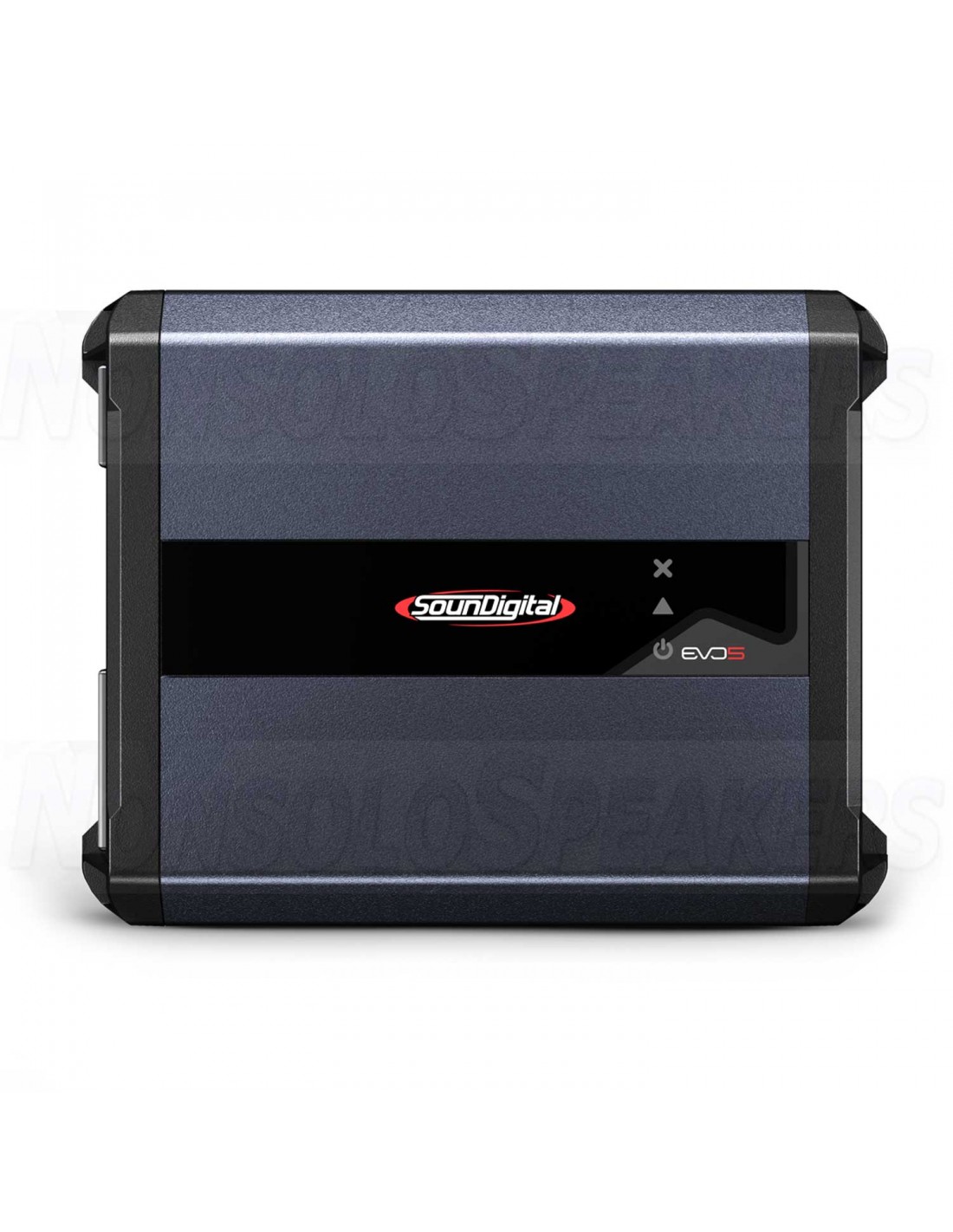

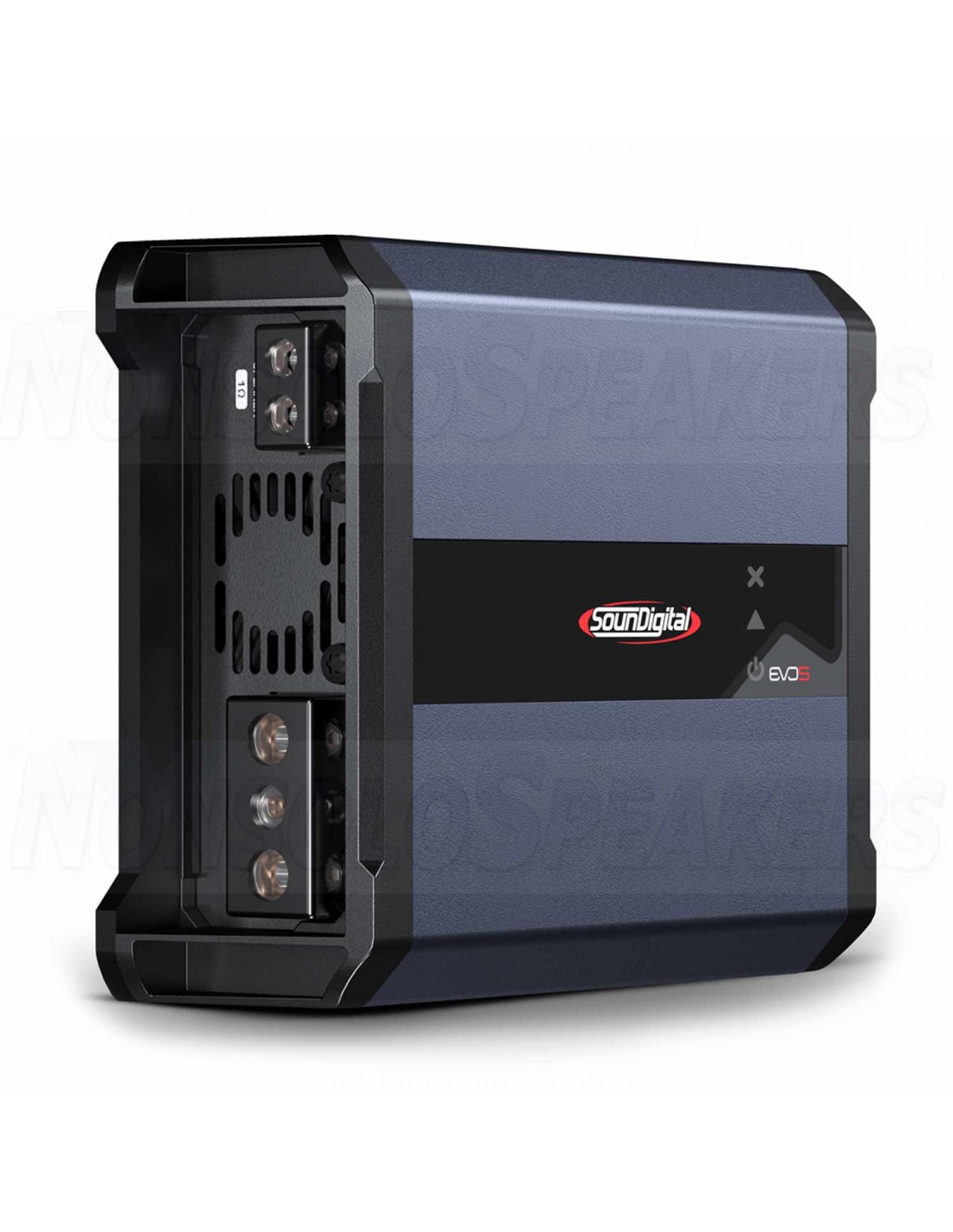

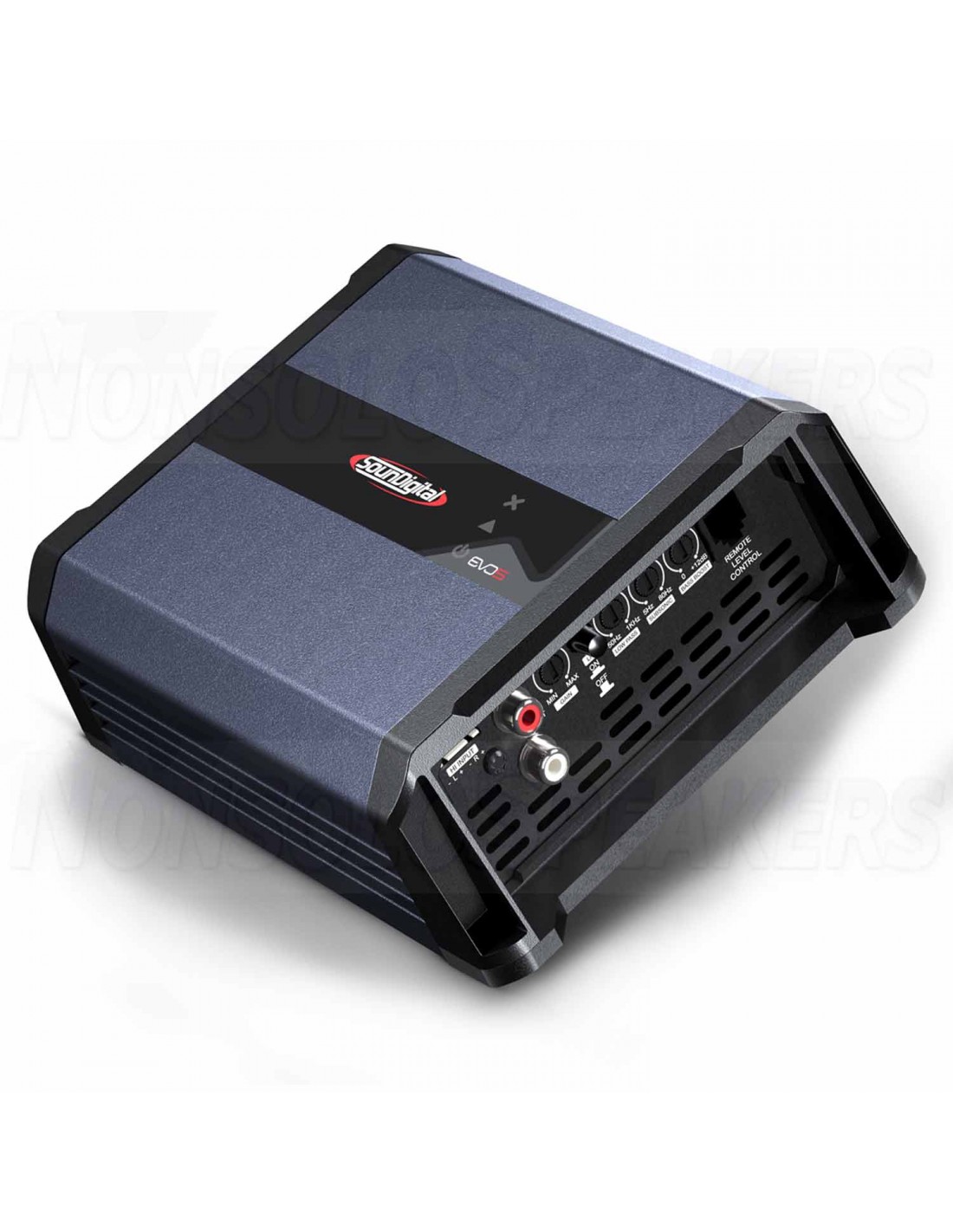

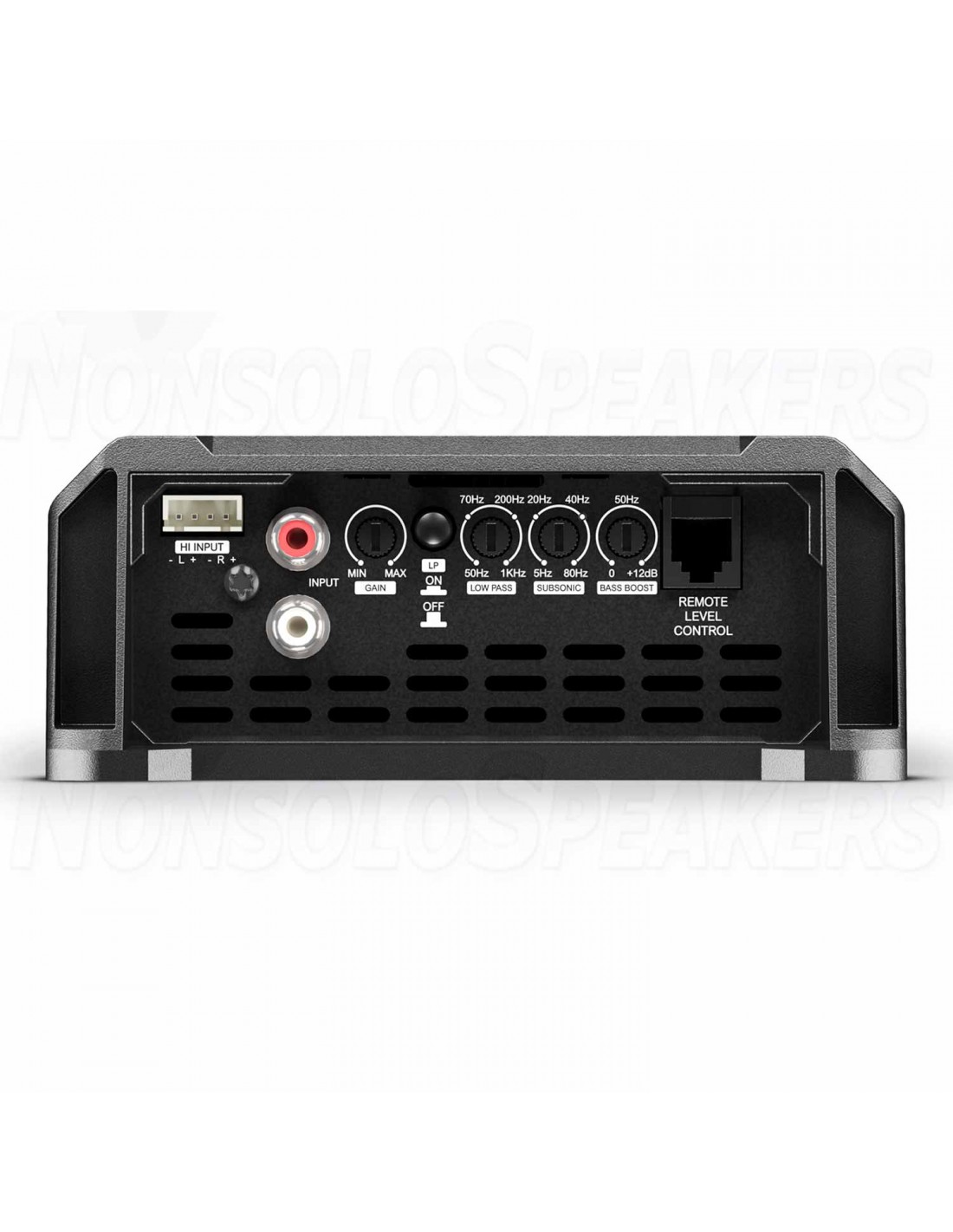

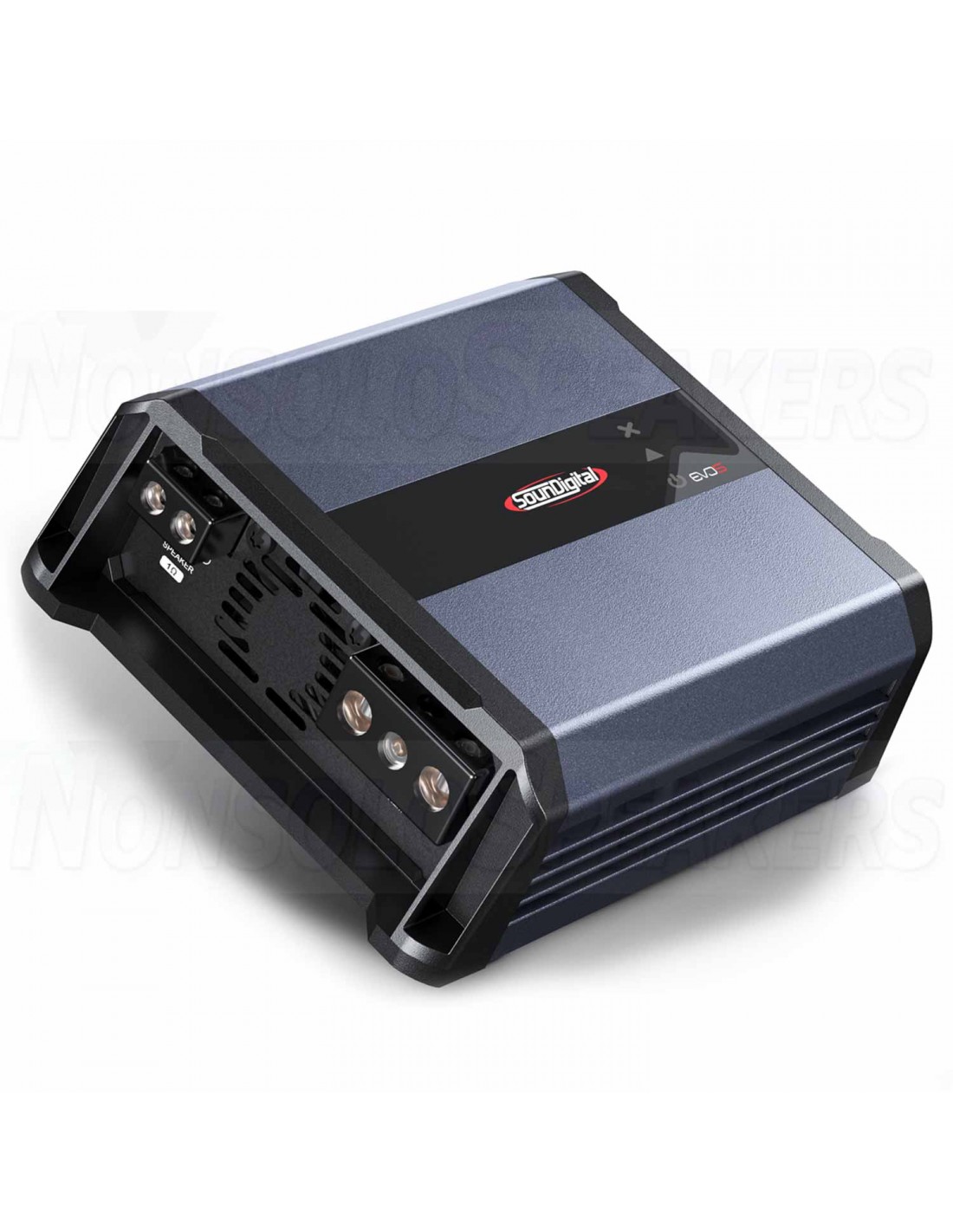

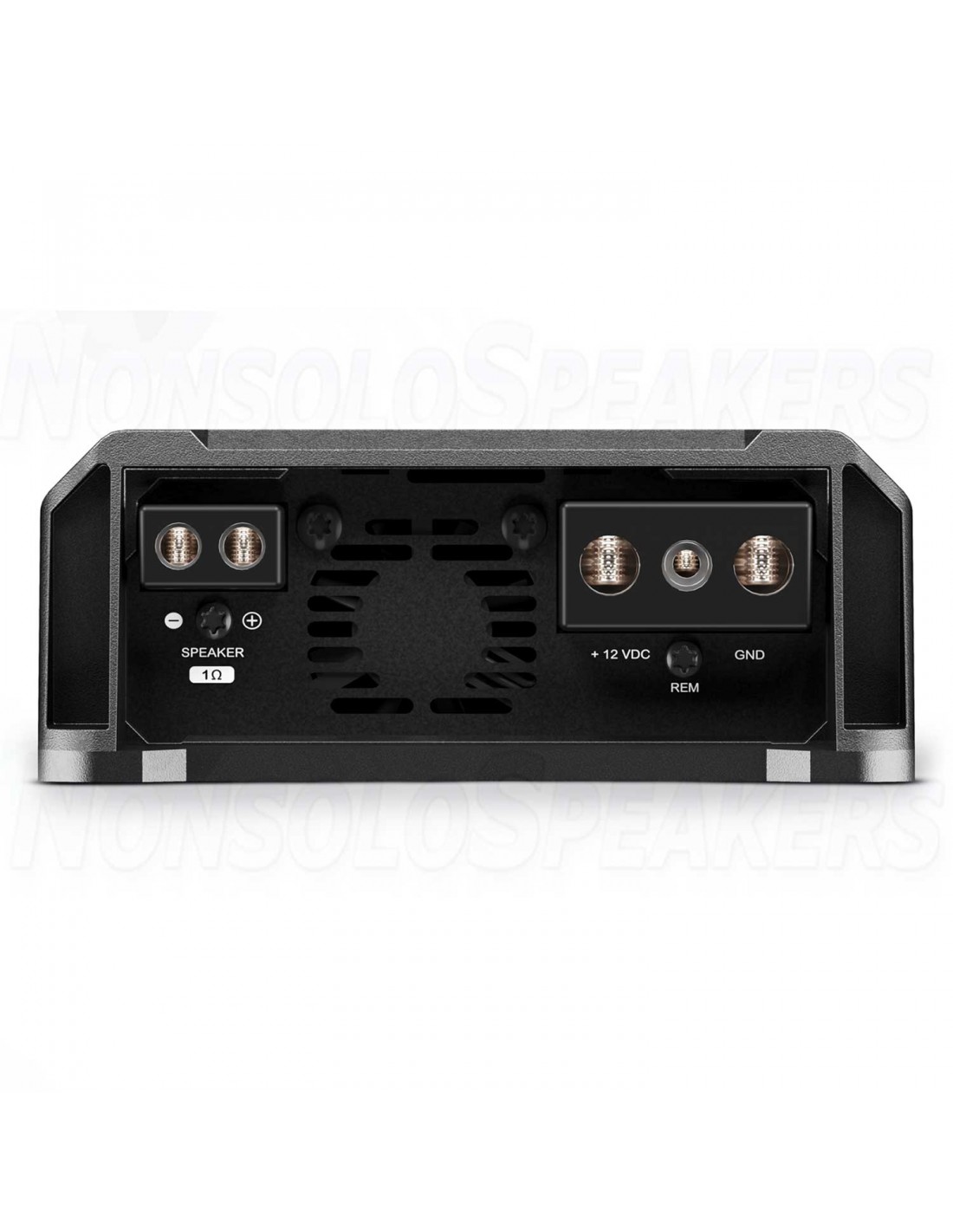

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Power @ 4Ω: 1 X 697 WRMS

Power @ 2Ω: 1 X 1056 WRMS

Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB): 5Hz ~ 25kHz

Subsonic Filter: 5Hz ~ 80Hz

Low Pass Filter: 50Hz ~ 1kHz

Bass Boost: 0dB ~ 12dB @ 50Hz

Operating Voltage: 9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB

2Ω: 95dB

4Ω: 93.4dB

Input Sensitivity: 0.2V ~ 2V

Current Draw (Music):

1Ω: 75A

2Ω: 71A

4Ω: 69.4A

Current Draw (Max):

1Ω: 149A

2Ω: 143A

4Ω: 138.8A

Total Efficiency:

1Ω: 85%

2Ω: 89%

4Ω: 91.5%

Damping Factor: 2000

Power Cable: 16mm² (5 AWG)

Audio Output Cable: 2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music): 80A

Recommended Battery: 80Ah

Width: 13.6 cm / 5.4 in

Length: 18 cm / 7.1 in

Height: 5.48 cm / 2.1 in

Weight: 1.13 Kg
