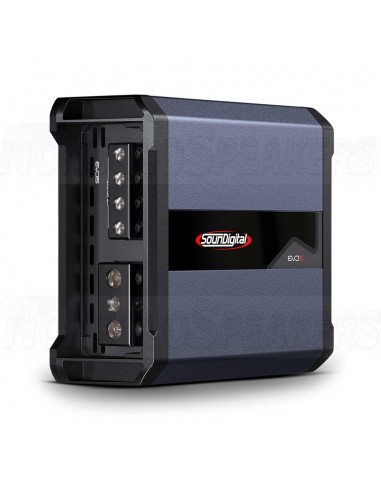

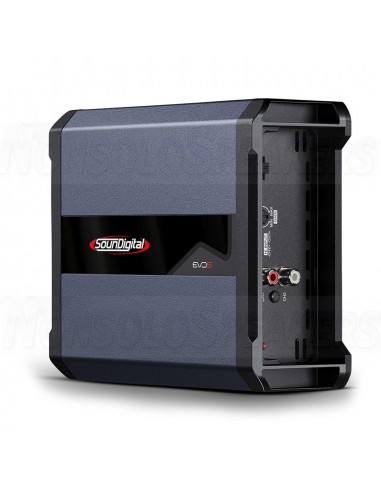

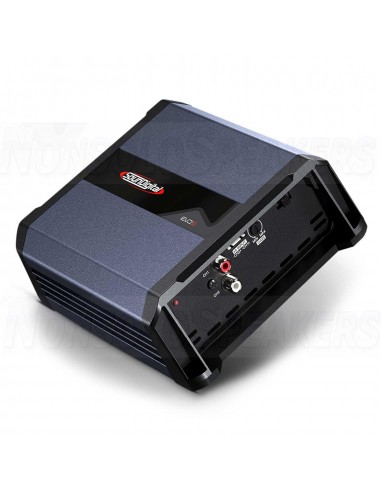

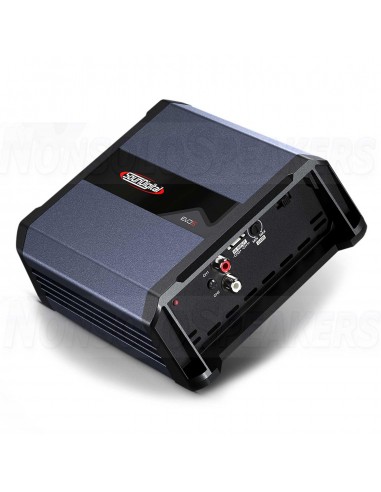

SounDigital 1200.2 EVO 5 - 4 Ohm 2 Channel amplifier

EVO5 brings the latest technology in compact design and high quality components. With pioneering technology. Soundigital Evo5 series amplifiers change the concept of STRONG playing! In a short time, this amplifier brand has grown into one of the largest manufacturers in Brazil. And no wonder, as each amplifier is designed and manufactured in their own factory. The design team includes a number of tough names from the so-called Pancadao builders, these are cars that play music continuously for really long periods of time at outdoor events. This hobby puts amplifiers really hard and no compromise in design is the solution

.

Technical Specifications

Power at 12.6V @ 60Hz with a maximum thd of 1%

Power @ 12.6V @ 4Ω: N/A

Power @ 12.6V @ 2Ω: 2 X 600 WRMS

Power @ 12.6V @ 1Ω: N/A

Bridge Power @ 12.6V @ 4Ω: 1 X 1200 WRMS

Bridge Power @ 12.6V @ 2Ω: N/A

Operating Voltage: 8V – 16V

Current Draw (Music): 57 A

Current Draw (Max): 115 A

Recommended Fuse (Music): 60 A

Total Efficiency: 83%

Damping Factor: 200

Frequency Response (-3dB):10Hz – 20kHz

SNR: 91dB

Crossover HPF: 80Hz

Crossover LPF: 80Hz

Power cable size 16mm2

Speaker cable size 2 x 2mm2

Product Dimensions: 6.7 x 5.4 x 2.2 in

Product Dimensions: 17.0 x 13.6 x 5.5 cm
