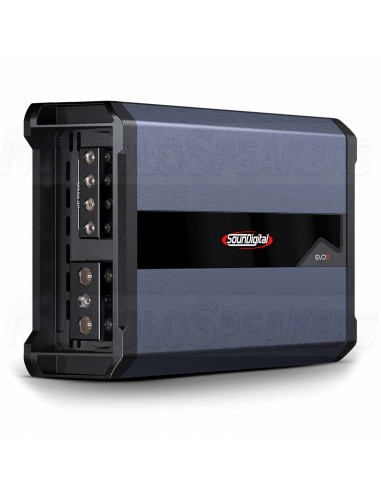

SounDigital SD2000.2 EVO 5 - 4 Ohm 2 channel amplifier

SounDigital SD2000.2 EVO 5 - 4 Ohm 2 channel amplifier

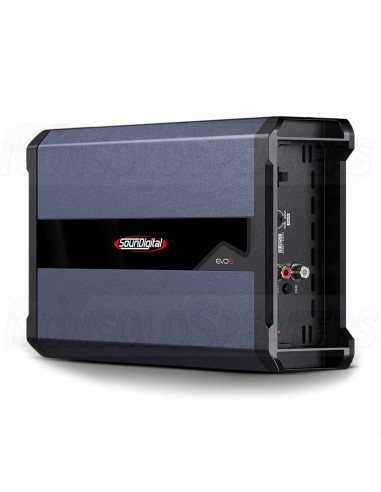

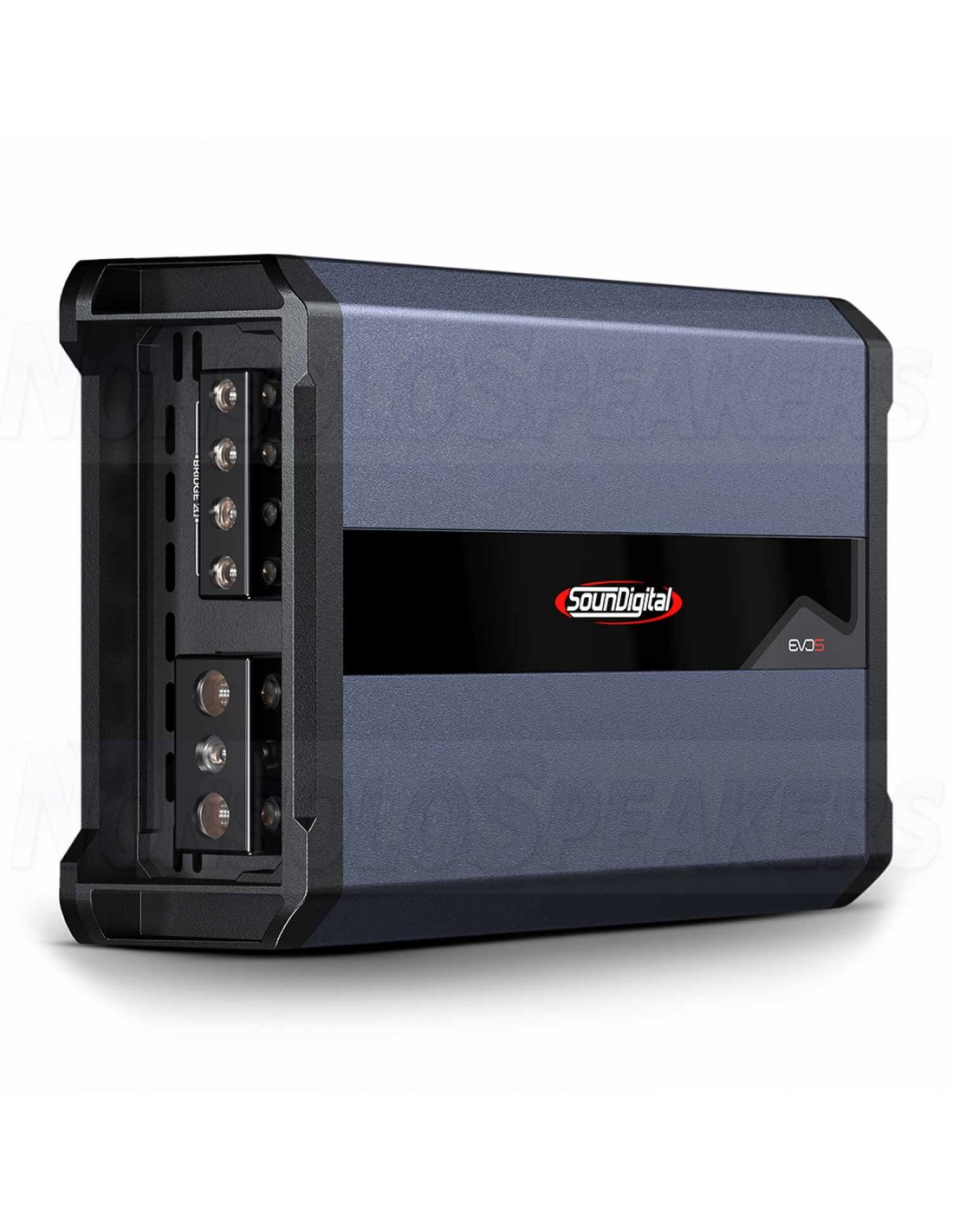

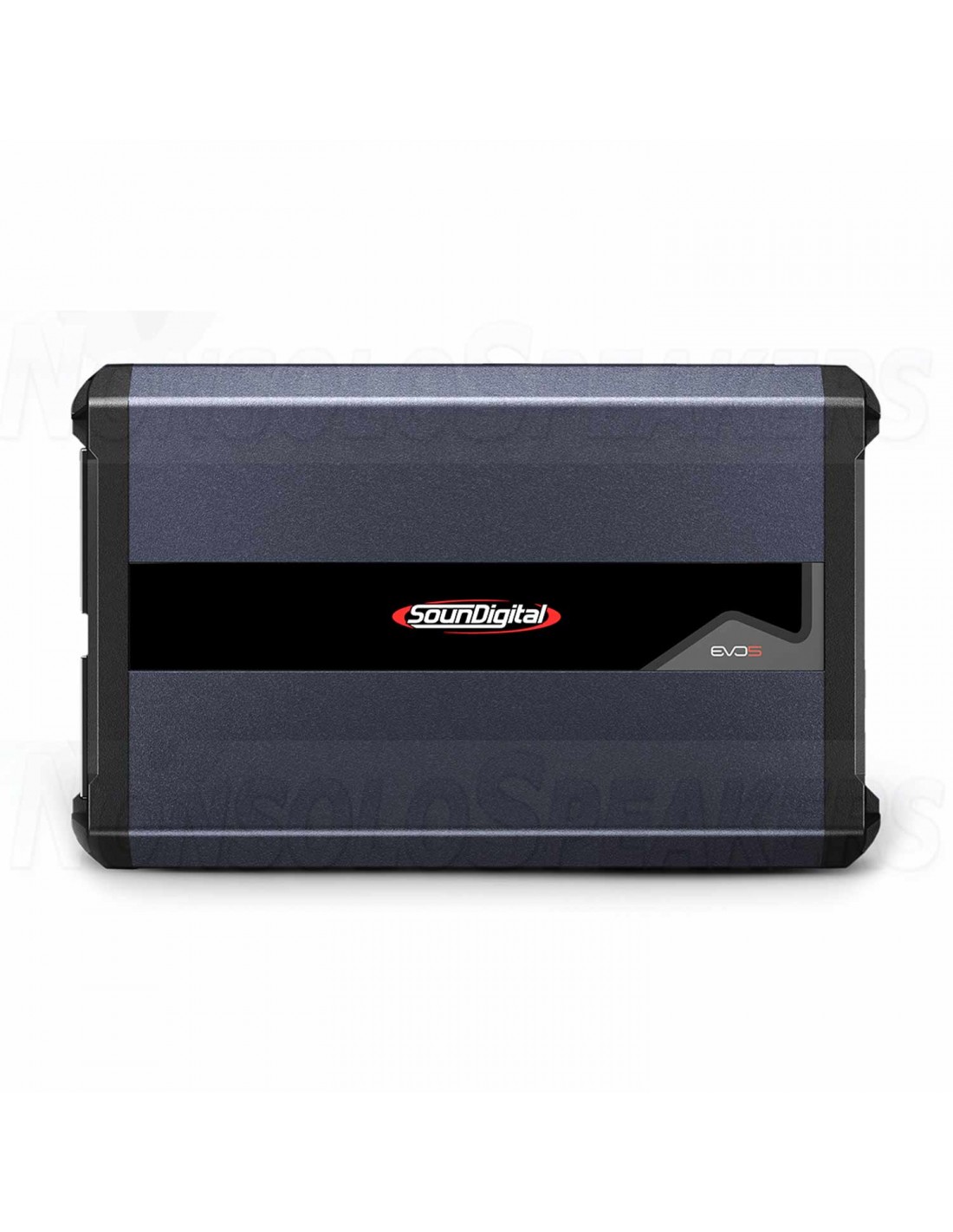

Soundigital amplifiers take the power/price/size ratio of amplifiers to a new level. Never before has such a large amount of power been obtained from such small external dimensions. And at a very reasonable price! All models have a damping factor of over 1000! At high power, a lot of power is consumed, and in many cars the problem is that the voltage drops at the peak of the music and when playing loudly. Sounddigital's amplifiers have taken this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts! Soundigital is an amplifier manufacturer operating in a very rare way these days, ALL models are designed and manufactured in their own production facility in Brazil. The picture shows a 2ohm model. The amplifiers are identical in appearance to the 4ohm model.

Power @ 1Ω: N/A

Power @ 2Ω: 2 X 1000W

Bridge Power @ 2Ω: N/A

Bridge Power @ 4Ω: 1 X 1200W

Frequency Response (-3dB): 10Hz ~ 20kHz

Low Pass Filter (LP -12dB/8): 80Hz

High Pass Filter (HP -12dB/8): 80Hz

Operating Voltage: 8V ~ 16V

SNR: 90dB

Input Sensitivity: 0.2 ~ 4V

Current Draw (Music):

2Ω: 89A

4Ω: 88A

Current Draw With Resistive Load (1kHz @ 12.6V):

2Ω: 178A

4Ω: 176A

Total Efficiency:

2Ω: 89%

4Ω: 90%

Damping Factor (@100Hz Rated Impedance):200

Minimum Audio Output Impedance:

2Ω: 1 ohm

4Ω: 2 ohms

Minimum Bridge Impedance:

2Ω: 2 ohm

4Ω: 4 ohms

Recommended Fuse (Music): 100A

Recommended Battery (Music): 100Ah

Width: 5.4 in / 13,6 cm

Length: 8.9 in / 22,7 cm

Height: 2.2 in / 5,5 cm

Weight: 3.39 lb / 1,54 Kg
