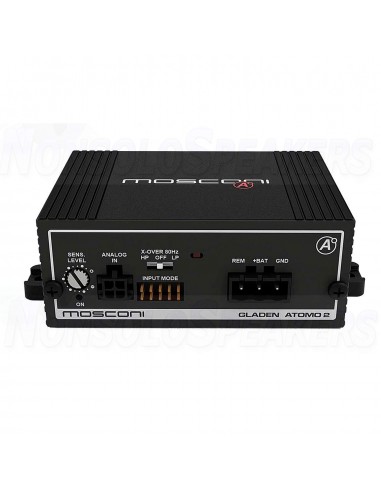

MOSCONI Gladen Atomo 2 24V 2 channel amplifier

MOSCONI Gladen Atomo 2 24V 2 channel amplifier

2-channel amplifier for trucks, ultra compact, digital, 2 x 100 WRMS @ 4 Ohm

The start of the new Atomo amplifier series.

Output power at 4 ohms: 2x 100Wrms / 1x 220 Wrms

Large input range 0.4Vrms - 5Vrms (LowLevel), 1.6Vrms - 20Vrms (HighLevel)

Automatic switch-on of the power supply.

Developed for vehicles with on-board voltage 24V

High / low pass filter

Autosence performance

Dimensions: 86 x 65 x 34 mm

Weight: 275g

Power: 10 - 16V

DC-DC converter typology: unregulated pressure pull

External fuse: 1x 15A

Autosense Power on: Available through high level, only BTL source

Overall efficiency:> 75%

Power output at 4 ohms: 2x 100W or 1x 220W

Power output at 2 ohms: 2x 110W

Analog input: 2x high / low level (EXT2RCA adapter available)

Low level + high level input sensitivity range: 0.4 + 5Vrms (LL) - 1.6 + 20Vrms (HL)

Configuration of the integrated crossover filters: AUS - LP - HP (80Hz)

Dimensions: 86 x 65 x 34 mm

Weight: 275g

Color and finishing: black anodized

Note: This amplifier is designed to play music on real speakers. It is not designed to drive static signals to purely ohmic loads.
