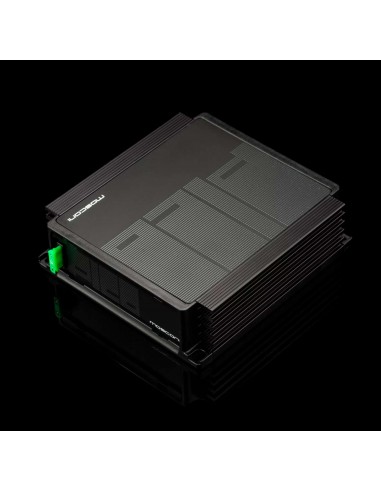

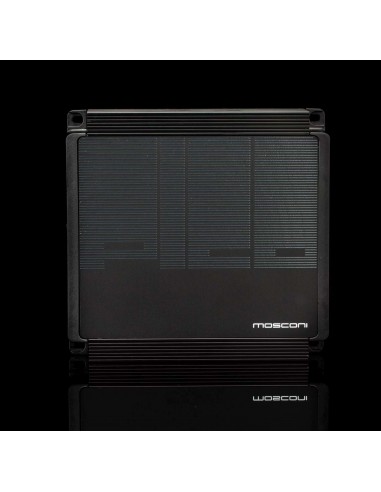

MOSCONI Gladen PICO 8/10 v2 8-ch DSP

With the PICO V2 8|10 DSP, MOSCONI is launching the second generation of PICO DSP amplifiers on the car hi-fi market. In addition to improved connectivity, the new PICO scores with increased sound performance and better effectiveness.

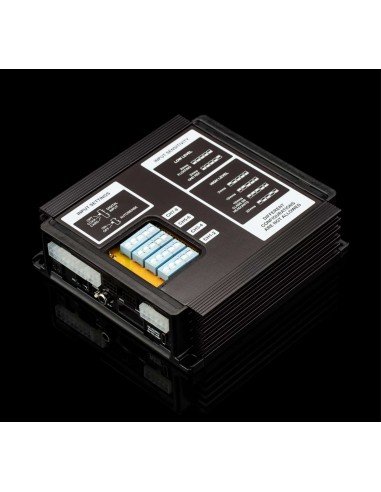

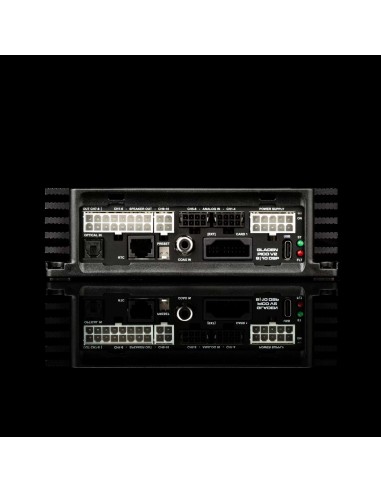

All connections are now on one side and all relevant setting switches that are necessary for operation in modern vehicles are located under a magnetic housing cover.

In addition, all inputs are now high and low level capable. All desired DSP settings can now be made via a USB-C connection.

.

Perfect OEM integration:

Powerful DSP amplifier, optimized for use on the factory radio. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 watts + 4 x 80 watts, ideal for active and partially active systems, as well as classic front + rear + sub applications. With two digital inputs (SP-Dif and BT+) and two processed line-outs, ready for the future.

.

Converter-free high-speed PWM power amplifiers

Highly efficient PWM power amplifiers with the fastest carrier frequency in the world (> 2 MHz), enabling HiRes audio transmission and an extremely small size. The modulation takes place without a DAC directly from the 96 kHz TDM signal of the DSP, which means that the background noise is close to zero and THD + N ~ 0.02% / 1 W.

.

INPUT SIDE:

• 8 x analog inputs switchable (high-level / low-level) Class SB compatible, 2-30V
• 1 x digital input SP-Dif optical (8 kHz – 96 kHz sampling rate)
• 1 x digital input Coax digital (8 kHz – 96 kHz sampling rate)
• 1 x Bluetooth port with SP-Dif – TTL (8 kHz – 96 kHz, e.g. for Mos_BTS Bluetooth streaming module)
• Bluetooth extended digital audio port (BT+)
• (flexible 8 kHz – 384 kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

.

CONTROL:

• 1 x Remote Connector (analog, for RTC.2 potentiometer remote control)
• 1 x BT+ control port (MOS-BT3.0 connection (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C high-res streaming module, Gladiator controller
• Can be controlled with pilot tone
• 1 x remote out, 1 x remote in, auto-remote with high-level connection
• Connections with MOLEX® plug contacts.
• Very small size with low heat generation, ideal for installation behind panels

.

DSP PART:

• 912 MHz, 32-bit audio port, 64-bit core
• double precision 56bit filter calculation
• sample rate 96kHz

.

SOFTWARE:

• 3 x 9 band parametric input EQ (de-equalizing), dynamic
• 6 x input delay 0 – 3 ms / 0.01 ms (de-delay)
• 10 x input level control digital (signal conditioning)
• Flexible mixer for signal routing
• (Side-separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
• 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
• (parametric, relative phase remains stable)
• 8 x 10 band output filter
• HighPass / LowPass / HighShelf / LowShelf / Notch / Allpass 1st - 4th order / Speaker EQ)
• 8(10) x Speaker delay 0 – 12 ms, 0.01 ms
• 8 x Speaker phase switch
• Flexible phase control with calculation tool
• Extensive analysis tools integrated
• B.A.R.N.I.E. Compatible

.

TECHNICAL DATA MOSCONI PICO V2 8|10 DSP

• OUTPUT POWER / OUTPUT SIDE:
• Output power at 4 ohms: 4 x 50 watts (channel: 1 - 4) 3-ohm stable (not bridgeable!)
• Output power at 4 ohms: 4 x 80 watts (channel: 5 + 6 / 9 + 10) 2-ohm stable / bridgeable
• Output power at 4 ohms: 4 x 45 watts + 2 x 210 watts (bridged channel: 5 + 6 / 9 + 10)
• Line Out: 2 x 2 Vrms Line Out outputs (channel: 7 + 8)

.

DATA:

• Input voltage: 2Vrms (LL) - 15 Vrms (HL) by default - 30 Vrms (HL)
• Overall efficiency: > 80%
• Auto-On (high level only): Off-BTL
• Dimensions: 150 x 160 x 46 mm
• Weight: 1150 grams

.
