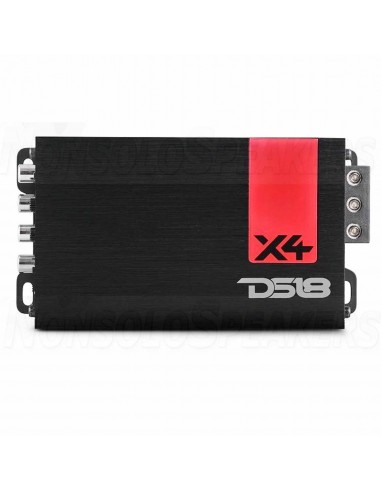

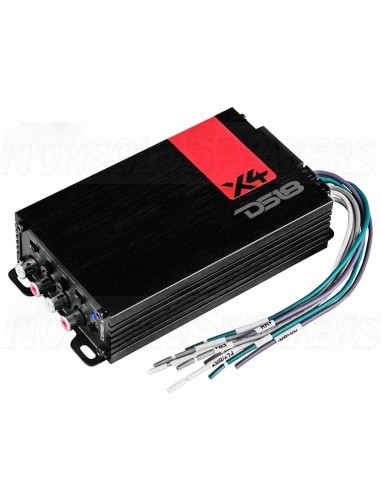

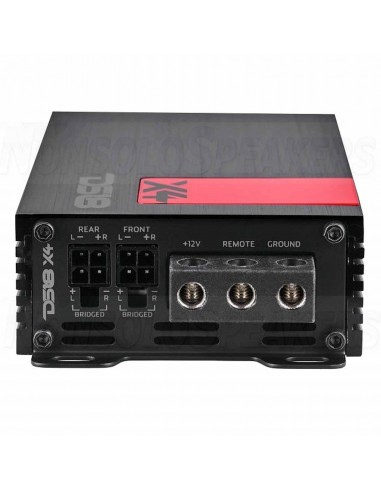

DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

Name: DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm
Brand: DS18
SKU: DS18 X4
Price: 180 EUR
Availability: InStock

DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

DS18’s X4 defies expectations by combining mind-blowing power with an incredibly compact design. Featuring some of our smallest dimensions for an amplifier, DS18’s X4 effortlessly finds its place in even the tightest of spaces. Imagine the possibilities: you can now install multiple X series amps in any of your custom builds, daring you to complete the audio system of your dreams, all securely tucked away.

SHIPMENT IN 7/10 WORKING DAYS

€180.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€19.08

Shipping Time

Want to check another country or courier?

DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm

The X4 delivers an astonishing amount of power for its compact size, making it an exceptionally versatile amplifier suitable for a wide range of applications. DS18’s X4 unleashes an astonishing output of 70W RMS x 4 channels at 4 ohm. But that's just the beginning. When Bridged at 4-ohm, the X4 releases an even mightier performance—220W RMS x 2 channels. Enough pure power to bring your music to life with unparalleled vitality. Experience the peace of mind that comes with the X4's stability and reliability. This amplifier is built to endure, with a four-layered traces PCB design, surface mount component technology, and audio precision quality control verification.

DS18 leaves no stone unturned when it comes to ensuring top-notch performance. With easily adjustable filters, the X4 makes it a breeze to fine-tune your audio system. Effortlessly achieve the perfect balance for your mids and tweeters with the X2’s easily adjust LPF/FLAT/HPF filters, resulting in an immersive audio experience tailored to your unique preferences. DS18’s X4 is a gateway to audio excellence — taking you on a journey you'll never want to end.

Technical Specifications:

Total Watts (Peak): 1320 Watts
RMS Power @ 4 OHM: 4 x 70 Watts
RMS Power @ 2 OHM: 4 x 140 Watts
RMS Power @ 1 OHM: -------------
RMS Power @ 4 OHM Bridge: 2 x 220 Watts
Frequency Response: 20Hz ~ 20KHz
Signal To Noise Ratio: 90dB
Efficiency @ 4 OHM: Greater than 80%
Damping Factor: Greater than 202
Total Harmonic Distortion (THD): Less than 0.2%
Low Level Input Range: 0.2 ~ 5V

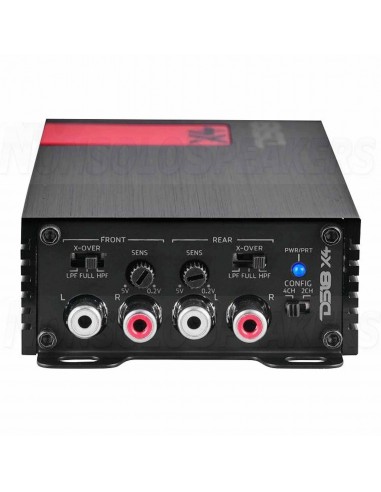

Selectable X-over: LPF/FLAT/HPF
X-over Filter Range: Fixed 80Hz
Amplifier Class: D
Amplifier Type: Micro Stereo Full Range
Number Of Channels: 4
Minimum Impedance: 2 Ohm
Led Indicator: Power/Protection
Fuse Size: 45A
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Overall Length: 5.54 (140.8mm)
Overall Width: 3.24 (82.4mm)
Overall Height: 1.37 (34.8mm)
Heatsink Length: 4.75 (120.8mm)
Small and compact amp putting out amazing power for its size.
Perfect for vehicles with very little to no room to mount large amplifiers.
Perfect for motorcycles looking to put an amp or two in their Ferring.

Reference DS18 X4

In stock 2 Items

DS18 car audio: they’re pretty well-known for providing high-performance, budget-friendly audio equipment, especially for people looking to upgrade their car sound system without breaking the bank.

A Quick Overview of DS18 Car Audio Gear:

DS18 offers a wide variety of products, from speakers and subwoofers to amplifiers and accessories. They cater to both casual listeners and hardcore enthusiasts looking for some serious audio power. Some key features that set DS18 apart:

High Power Output: Many of their products, like subwoofers and amplifiers, are designed to handle a lot of power, which is great for those who want deep, pounding bass or need extra headroom for loud, clear audio.
Variety of Options: DS18 has a broad range of options—whether you’re looking for 6.5-inch speakers, 15-inch subwoofers, or multi-channel amplifiers, they cover a lot of ground. This makes it easier for customers to customize their setup based on their needs.
Vibrant Design: A lot of DS18’s products have a bold, modern design, with some models featuring LED lighting, which gives your car audio system an extra aesthetic appeal, especially if you're into the whole "show car" look.
Performance & Clarity: Even though they offer high power handling, their products are designed to maintain clarity. Many users praise DS18 for having subs that hit hard but don’t lose the detail, making them great for both bass-heavy and more melodic genres.

Popular DS18 Products:

Subwoofers: DS18 offers some beastly subs, like their XL Series and Competition Series, designed for serious bass enthusiasts. Their 12" and 15" models can handle a lot of wattage and provide huge low-end output.
Amplifiers: Their amps, like the GEN-X series, are built for high power and are designed to drive subwoofers or multiple speakers with clean, solid output.
Speakers: DS18 makes a range of high-performance speakers, from coaxial models to component systems, designed to produce clear mids and highs.
Tweeters and Horns: They also have specialized tweeters (like the Super Bullet Tweeters) and horn drivers for those who want to add extra clarity and treble to their setups.

Why Choose DS18?

Affordable Performance: Compared to other high-end audio brands, DS18 tends to offer solid performance at a more budget-friendly price point.
Customization: Their wide range of products lets you customize your setup to exactly what you want, whether you’re building a basic system or going all-in on a competition-grade setup.
