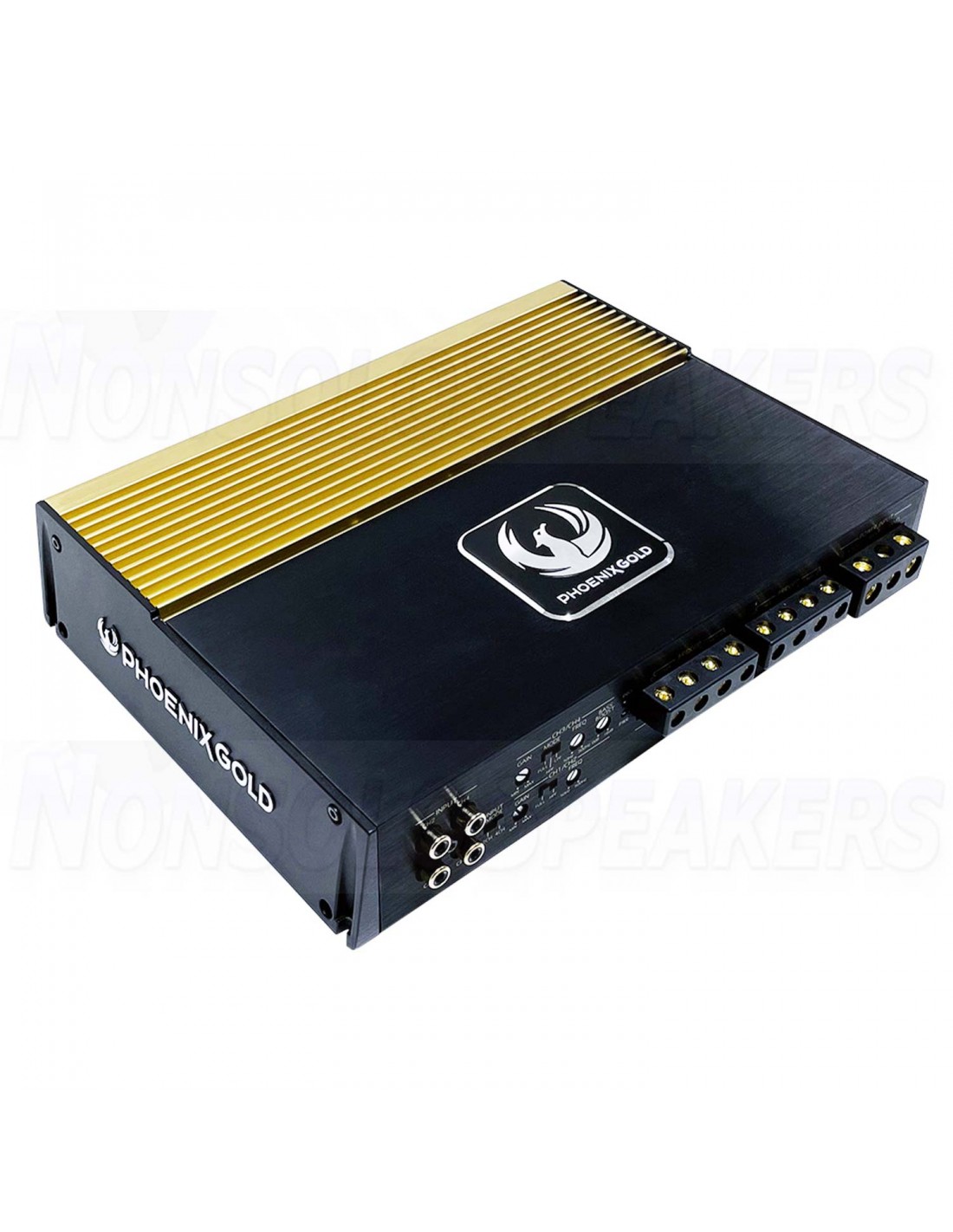

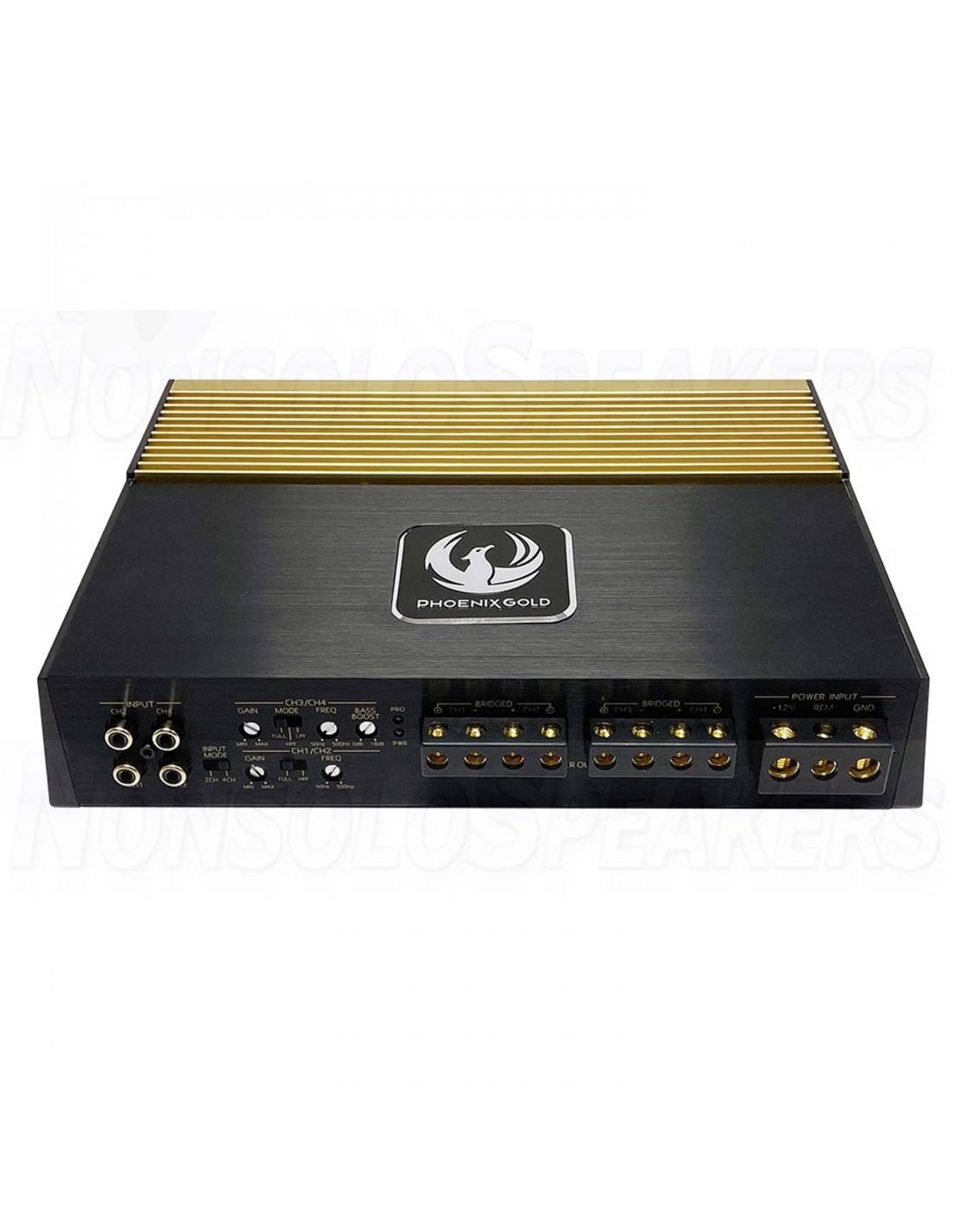

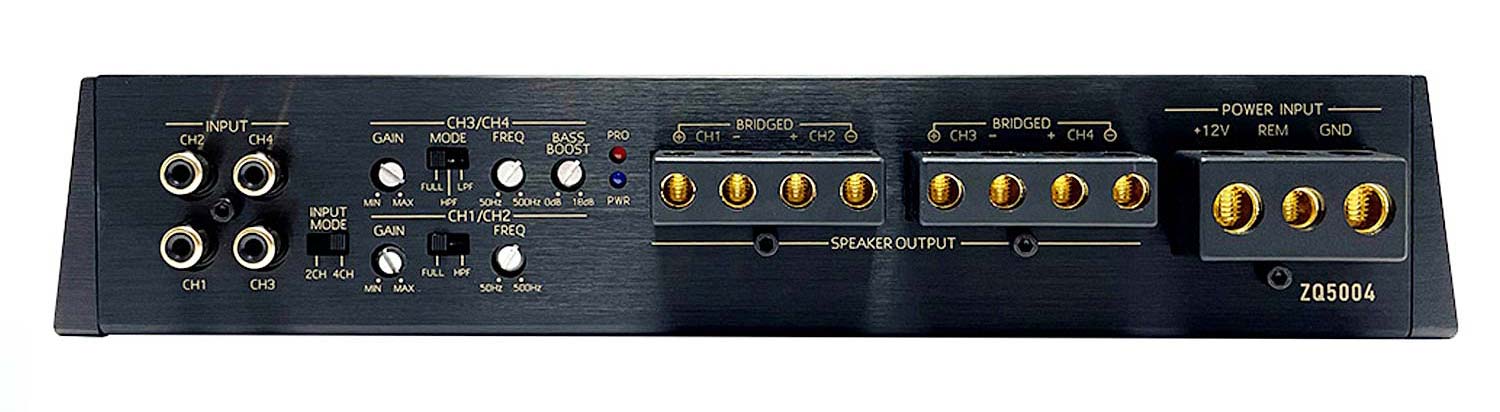

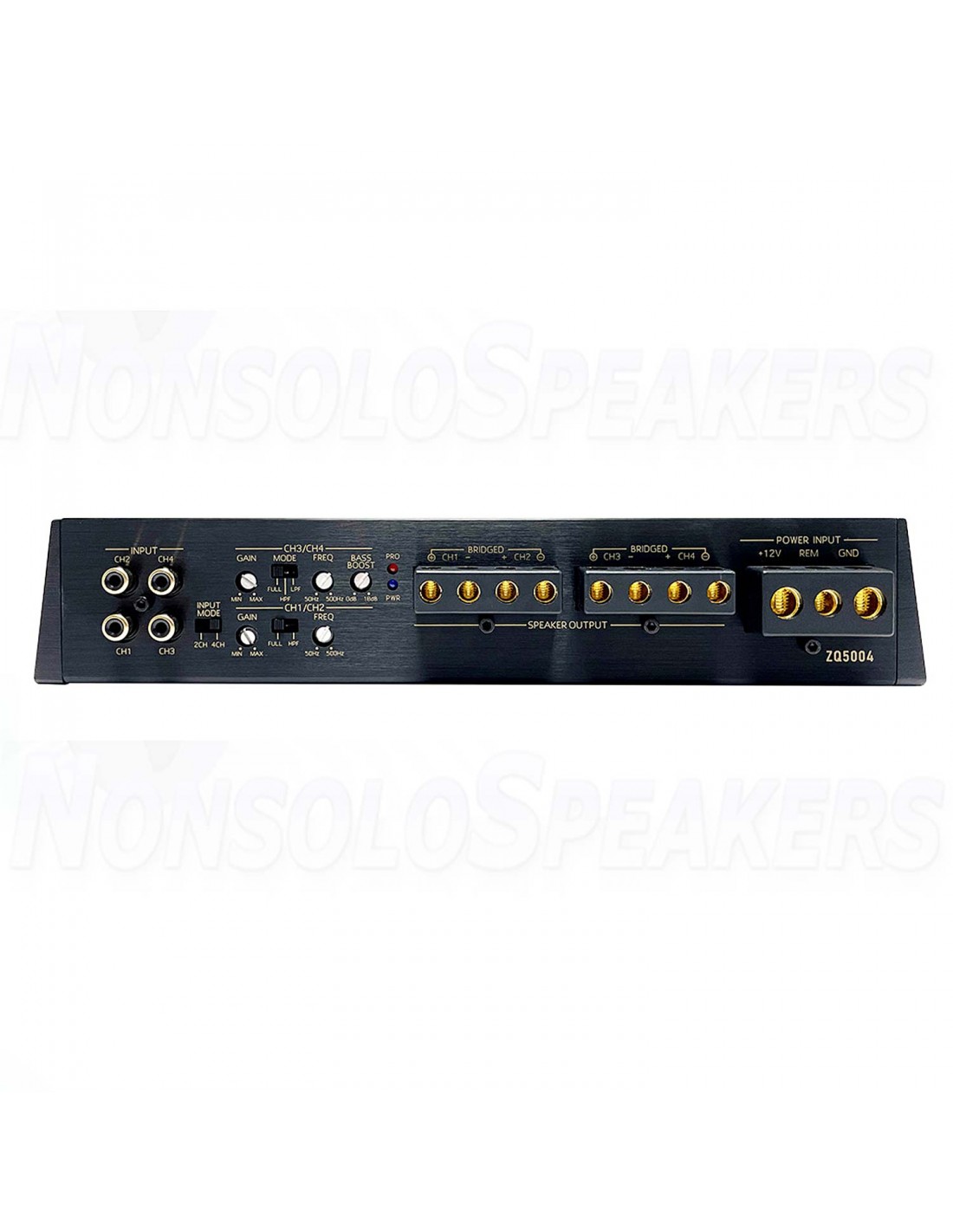

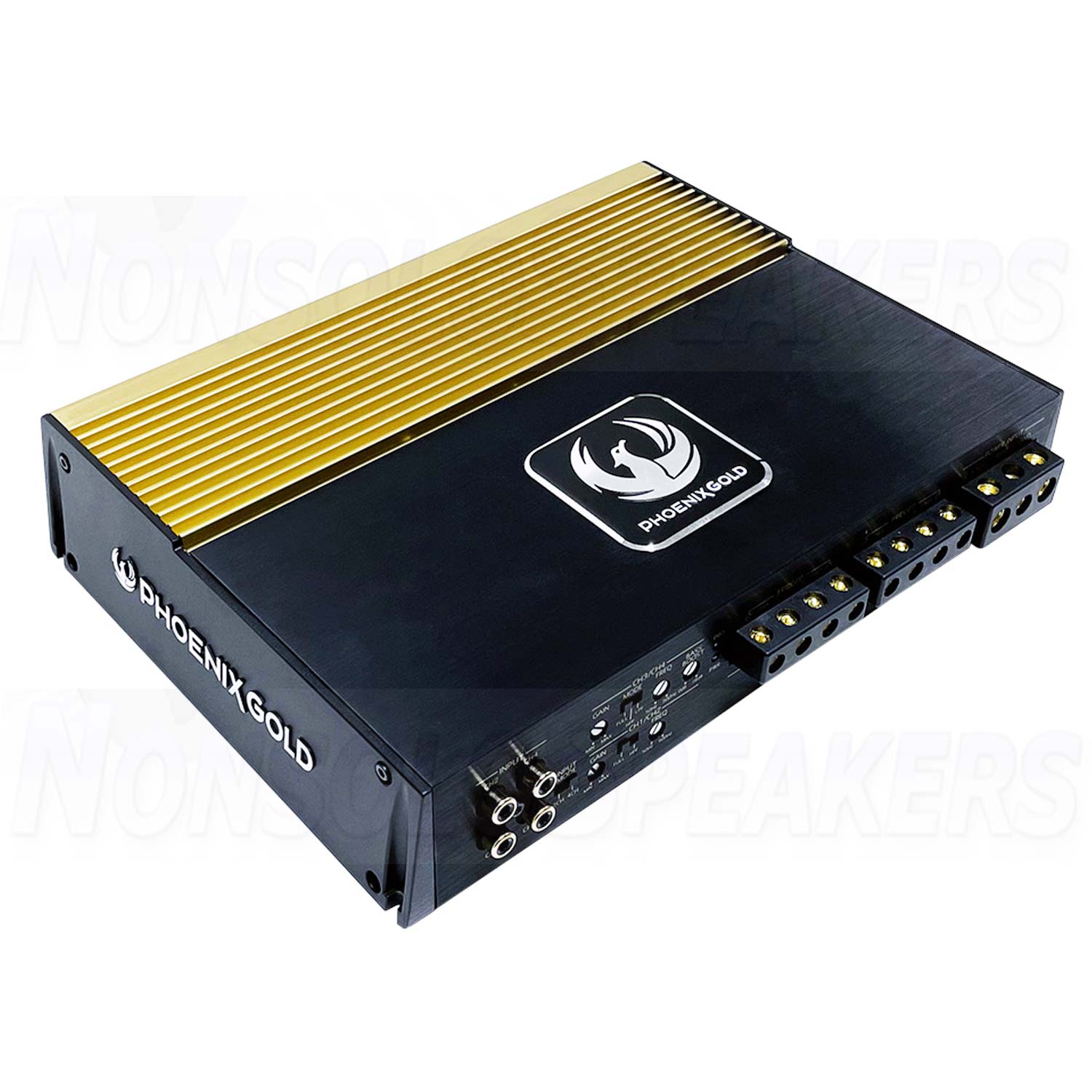

Phoenix Gold ZQ5004 – 4Channel Class A/B High End Amplifier

The ZQ5004 is an impressive Class A/B high end amplifier which gives the user almost limitless possibilities when it comes to power and sound options. This 4-channel product comes in a compact yet attractive casing suitable for use in a variety of applications. Measuring just 280mm x 200mm the ZQ5004 can easily be hidden away or you could make it the highlight of the installation thanks to its quality black and gold finish.

The ZQ Series of amplifiers feature award winning technology that not only offers a natural uncompromised sound but also a design that represents Phoenix Gold's past, present, and future all in one. Highly sought after by PG enthusiasts and audiophiles alike, the ZQ Series is a rebirth of PG's original core values offering premium high-end technology that brings the purest audio sound to the masses. The Gold Treated PCB's of the ZQ5004 feature a unique two layered, gold immersion treatment along with 24K gold plated terminals offering superior connectivity. The dual power supply has been optimized to proficiently feed the amp and only the best Nichicon (Japan) & Wima (Germany) capacitors are used to provide the best possible uninterrupted power supply. High end polymer gain potentiometers are used to aid amplification and the shielded transformer cores which are manufactured in Germany ensure a pure feed of power throughout the amp. The dual color extrusion heatsink with heat transfer optimization ensures that the amp stays cool even when under the highest most strenuous usage.

.

Technical Specifications:

• Pure class A/B technology
• Power ratings (RMS)
• 85W x 4 @ 4 ohms
• 130W x 4 @ 2 ohms
• 250W x 2 @ 4Ohm (bridged)
• Frequency Response: 10Hz - 55kHz
• Signal to Noise Ratio: >100dB
• Crossover range: 50Hz - 500Hz
• Bass Boost: @ 45Hz 0 to +18dB
• Input Impedance: 22K ohms
• Supply Voltage: 11-15V
• Dimensions (LxWxH) 280 x 200 x 56mm
