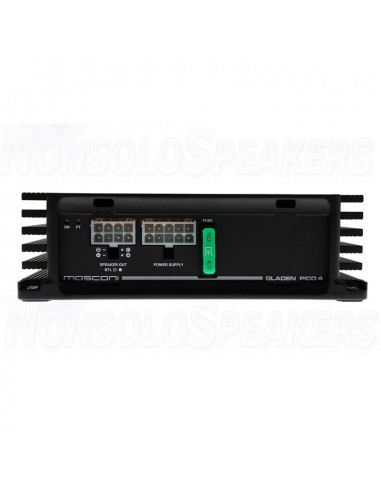

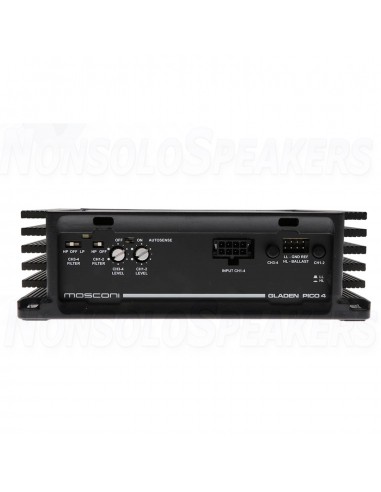

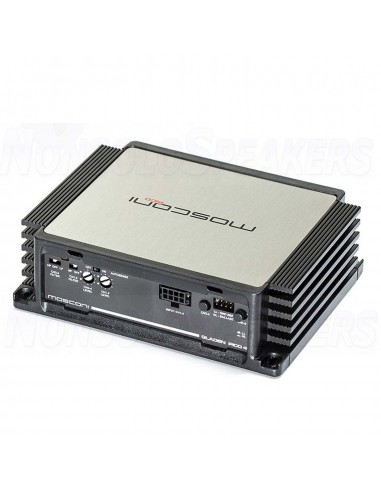

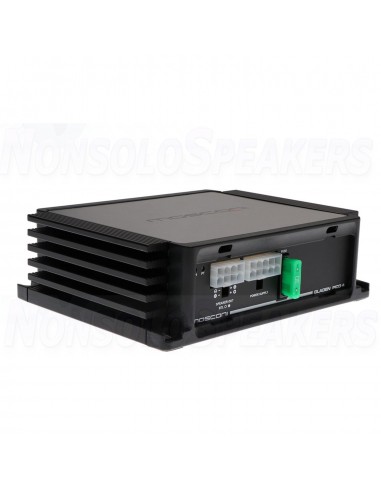

MOSCONI Gladen PICO 4 24 volt amplifier 4-channel digital

4-channel amplifier, digital, 4 x 90 WRMS @ 4 ohms

Description

24V 4-channel amplifier, digital, 4 x 90 WRMS @ 4 ohms Description 24V four-channel full-range PWM amplifier with separate, synchronized modulation. Up to 480Wrms total power, bridgeable and 2-ohm stable. The PICO 4 thus masters every constellation: Whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with double voice coil. The ideal addition to a PICO DSP power amplifier, with the high-level and low-level input and its own filters, but can also be used universally.

Technical specifications

Output power RMS @ 4 ohms 4 x 90 W

Output power RMS @ 2 ohms 4 x 120 W

Output power mixed RMS @ 4 Ohm 2 x 85 + 1 x 245 W

Output power bridged @ 4 ohms 1 x 220 W

Minimum load impedance 2 ohms

Overall Efficiency >75%

Auto-On (High Level only) Off - BTL

Channel 1+2 Filter (HP) Off - 80 Hz (12 dB/Oct)

Channel 3+4 Filter (HP/LP) Off - 80 Hz (12 dB/Oct)

Dimensions 150 x 115 x 46mm

Weight 1050 grams
