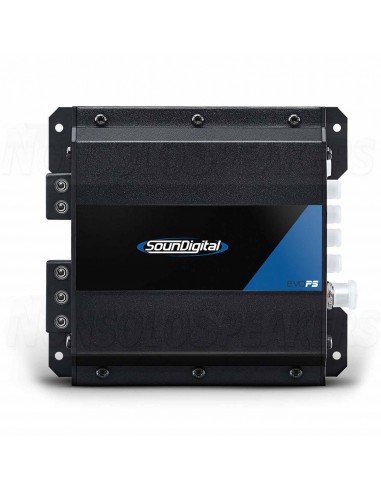

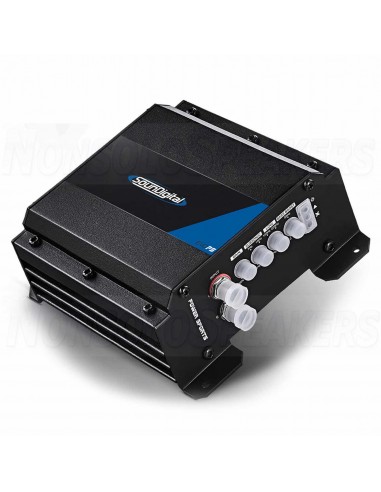

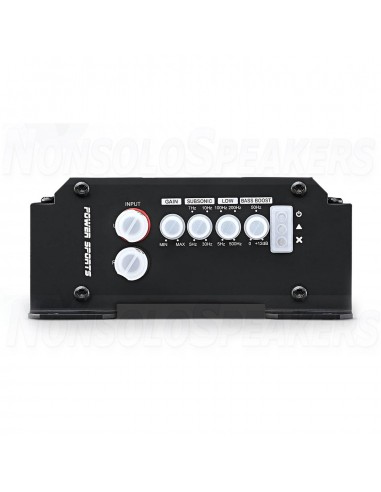

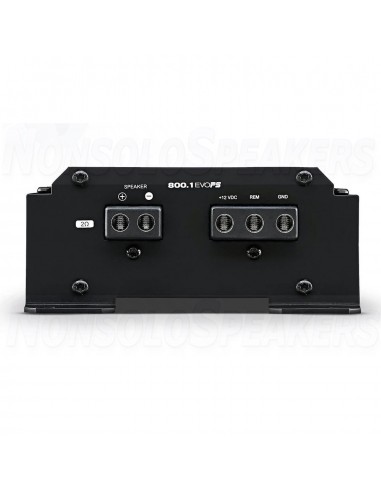

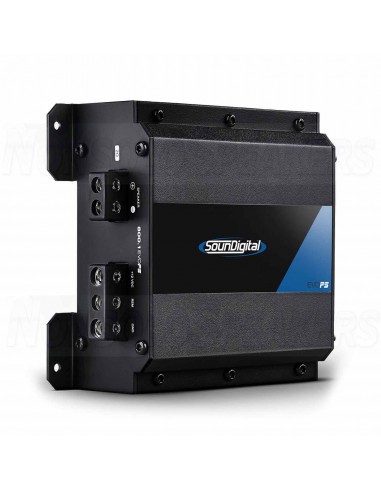

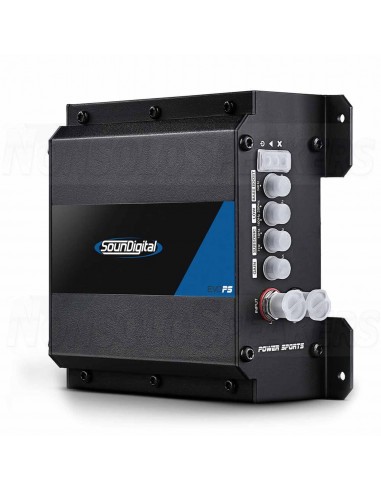

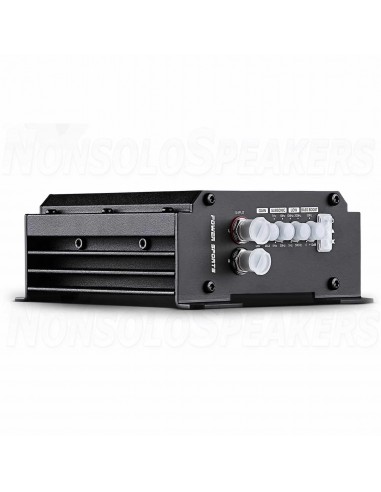

SounDigital SD800.1-2 EVOPS 2 ohm mono amplifier

SounDigital SD800.1-2 EVOPS 2 ohm mono amplifier

For use in Power Sports projects, the 800.1 EVOPS is a compact, modern design amplifier that delivers 800W RSM of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.

Technical Specifications

• Power @ 1Ω: N/A
• Power @ 2Ω: 1 X 800W RMS
• Power @ 4Ω: 1 X 528W RMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 32A
• Current Draw (Max): 65A
• Recommended Fuse (Music): 40A
• Total Efficiency: 85%
• Damping Factor: 200
• Frequency Response (-3dB): 5Hz – 500Hz
• SNR: 90dB
• Crossover LPF: 50Hz – 500Hz
• Subsonic: 5Hz – 30Hz
• Width: 5.1 in / 13 cm
• Length: 5.7 in / 14,4 cm
• Height: 2.2 in / 5,6 cm
• Weight: 0,87 Kg
