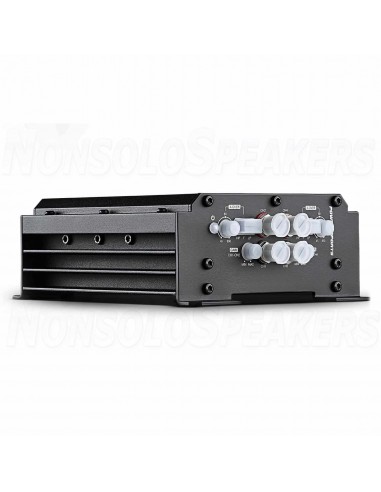

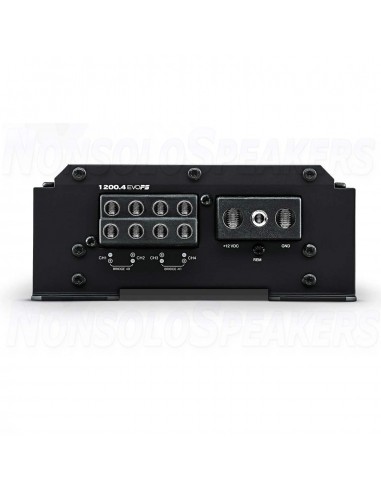

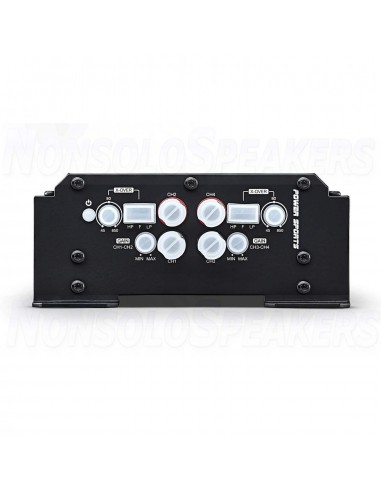

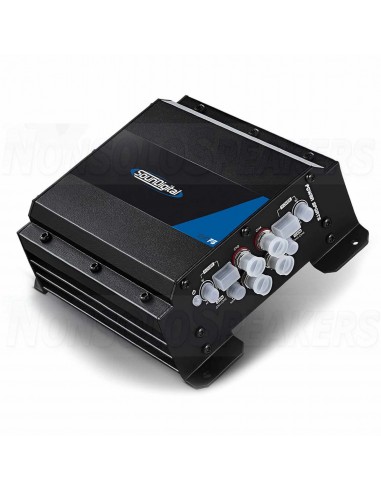

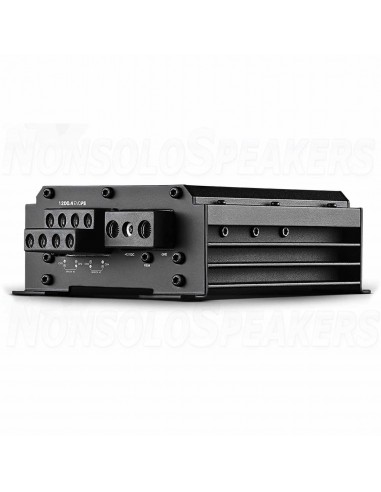

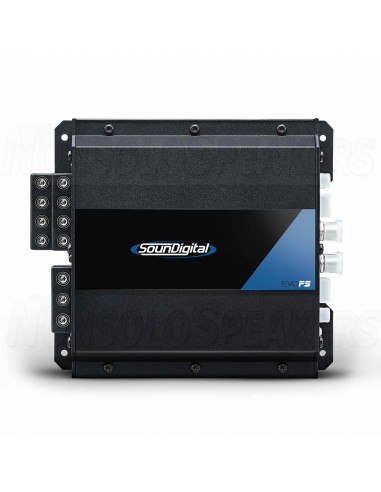

SounDigital SD1200.4-2 EVOPS 4 ohm 4 channel amplifier

SounDigital SD1200.4-2 EVOPS 4 ohm 4 channel amplifier

For use in Power Sports projects, the 1200.4 EVOPS is a compact, modern design amplifier that delivers 1200W RSM of power distributed over 4 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.

Technical Specifications

• Power @ 1Ω: 4 X 300W RMS
• Power @ 2Ω: 4 X 198W RMS
• Power @ 4Ω: 4 X 130W RMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 49A
• Current Draw (Max): 99A
• Recommended Fuse (Music): 60A
• Total Efficiency: 84%
• Damping Factor: 200
• Frequency Response (-3dB): 5Hz – 22kHz
• SNR: 88dB
• Crossover LPF / HPF: 45Hz – 850Hz
• Width: 5.8 in / 14,9 cm L
• ength: 6.5 in / 16,6 cm
• Height: 2.4 in / 6,2 cm
• Weight: 1,27 Kg
