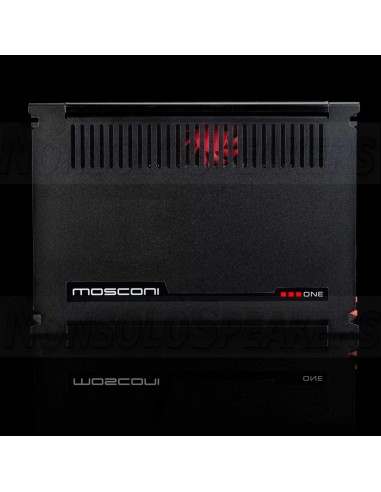

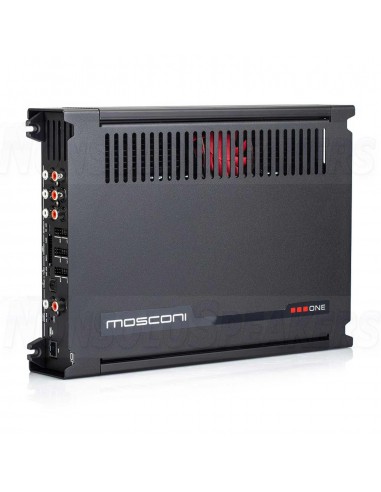

MOSCONI ONE 4/8DSP 4-channel amplifier on 8-channel DSP 24V

The 24 volt high-end DSP amplifier Gladen One 4/8 in a new design sets new standards!

Description: The new Gladen ONE 4/8 DSP-24V is a universal 24 volt 4-channel DSP power amplifier in Class AB technology. It is the ideal power amplifier for loudspeaker systems in combination with efficient subwoofers. In addition to the revised optics, this 4-channel amplifier has an 8-channel DSP with the latest software.

The new ONE - Line amplifier series is now also compatible with our GUI 3.xx software and offers you the full range of functions. The output stage section has remained analog to spoil the listener with a warm and powerful sound. Of course, all speaker outputs can be bridged. Here the user has almost limitless configurations. With its power of 4 x 130 watts RMS, the ONE 4|8 DSP-24V is sufficiently equipped for large 2-way solutions as well as for complete multi-channel concepts. The integrated 8-channel DSP offers two additional stereo outputs for system expansion.

The Gladen ONE 4/8 DSP-24V has a Molex speaker connection. This not only ensures clean cabling, but is also compatible with all Plug&Play cable sets from our SoundUp program..

Technical specifications

Output power at 4 ohms: 4 x 130 watts

Output power at 2 ohms: 4 x 175 watts

Bridge power at 4 ohms: 2 x 350 watts

Class AB amplifier

24 volts

8 channel DSP Pre Out: 4 x Pre Out 8V (channel 5 – 8)

Input sensitivity low level: 2 Vrms (LL)

Input sensitivity high level: 15 Vrms / 30 Vrms - (15 Vrms HL Class SB)

Digital inputs: Optical (Toslink) / EXT CARD

Analog inputs: 8 x analog (Cinch) / optional EXT4HLIN via adapter

Remote controls: Mosconi RCD or RC mini

Connection programming: Micro USB

Dimensions: 29.7 x 21 x 5.5 cm

Weight: 5.2kg
