HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP
HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP
HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP
HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP
HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP
HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP

HELIX M FOUR DSP 4 channel amplifier 4x100 Watt with DSP

HELIX M FOUR DSP  4 channel amplifier 4x100 Watt with DSP

The M FOUR DSP is more than “just” another four-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels.

FOR EU CUSTOMERS

SHIPMENT IN 7/10 WORKING DAYS
€587.88 €639.00 -8%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



HELIX M FOUR DSP  4 channel amplifier 4x100 Watt with DSP

.

The M FOUR DSP is more than “just” another four-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels. In addition, the amplifier delivers plentiful output power with generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load.

Finally its awesome price performance ratio in combination with the fantastic feature set will ensure bright eyes.

.

Technical data

  • Power RMS  ≤ 1% THD+N
  • - @ 4 Ohms 4 x 100 Watts
  • - @ 2 Ohms 4 x 100 Watts
  • - @ 1 Ohm -
  • - bridged @ 4 Ohms 2 x 200 Watts
  • - bridged @ 2 Ohms -
  • Max. output power per channel* Up to 135 Watts RMS @ 4 / 2 Ohms
  • Amplifier technology Class D

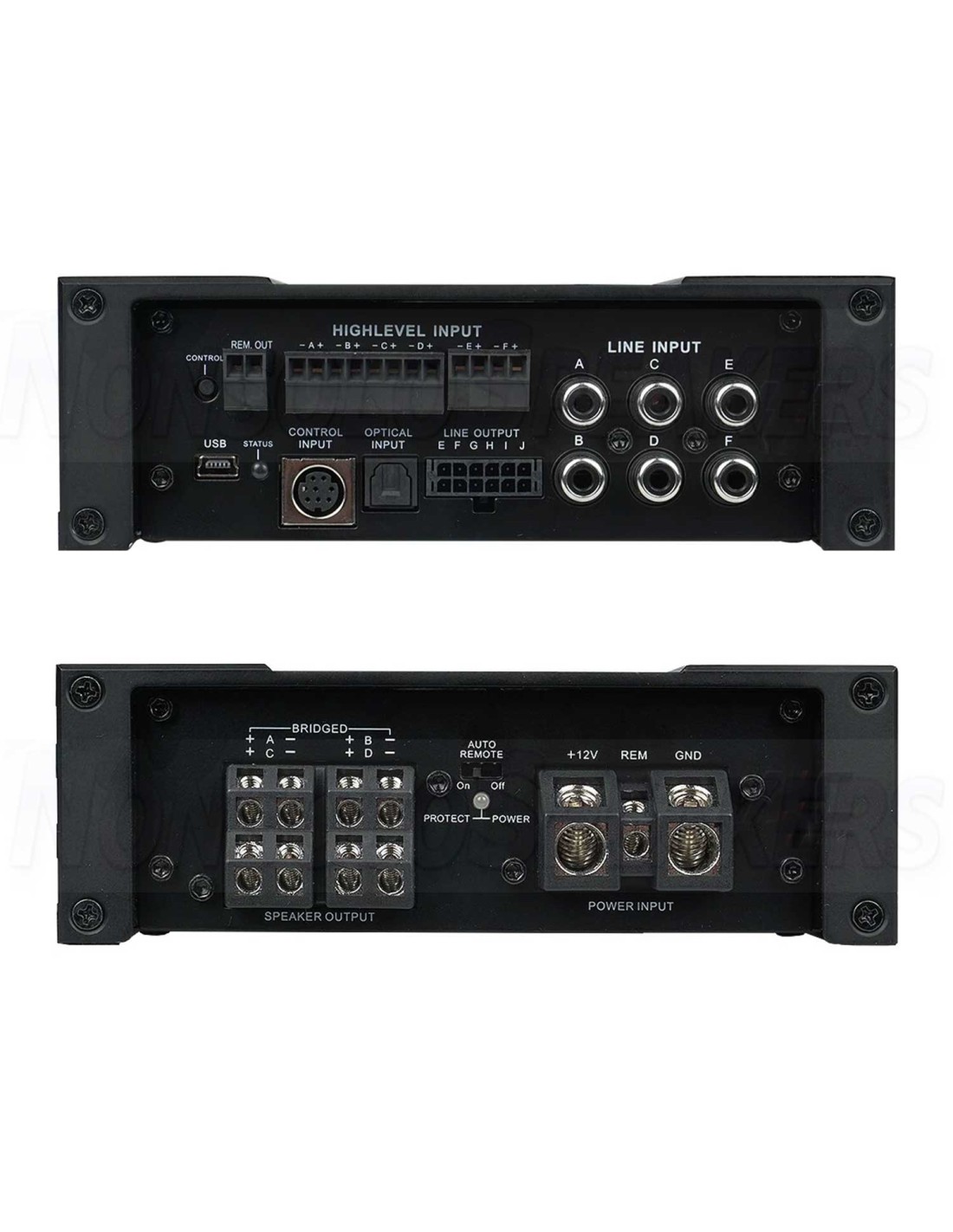

  • Inputs 6 x RCA / Cinch
  • 6 x Highlevel speaker input
  • 1 x Optical SPDIF (12 - 96 kHz)
  • 1 x Remote In
  • Input sensitivity RCA / Cinch 1 - 4 Volts
  • Highlevel 5 - 20 Volts
  • Input impedance RCA / Cinch 22 kOhms
  • Input impedance highlevel 9 - 33 Ohms or 20 kOhms
  • Outputs 4 x Speaker output
  • 6 x RCA / Cinch
  • 2 x Remote Out
  • Output voltage RCA / Cinch 6 Volts RMS
  • Frequency response 20 Hz - 22,000 Hz
  • DSP resolution 64 Bit
  • DSP power 295 MHz (1.2 billion MAC operations/second)
  • Sampling rate 48 kHz
  • DSP type Audio signal processor
  • Signal-to-noise ratio digital input 105 dB (A-weighted)
  • Signal-to-noise ration analog input 102 dB (A-weighted)
  • Distortion (THD) < 0.03 %
  • Damping factor 100
  • Operating voltage 10.5 - 16 Volts (max. 5 sec.down to 6 Volts)
  • Idle current 1500 mA
  • Max. remote output current 500 mA
  • Fuse 2 x 30 A Maxi-fuse (APX)
  • Power rating DC 12 V ⎓ 45 A max.
  • Additional features ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
  • Dimensions (H x W x D) 50 x 230 x 154 mm /
  • 2.00 x 9.06 x 6.0
