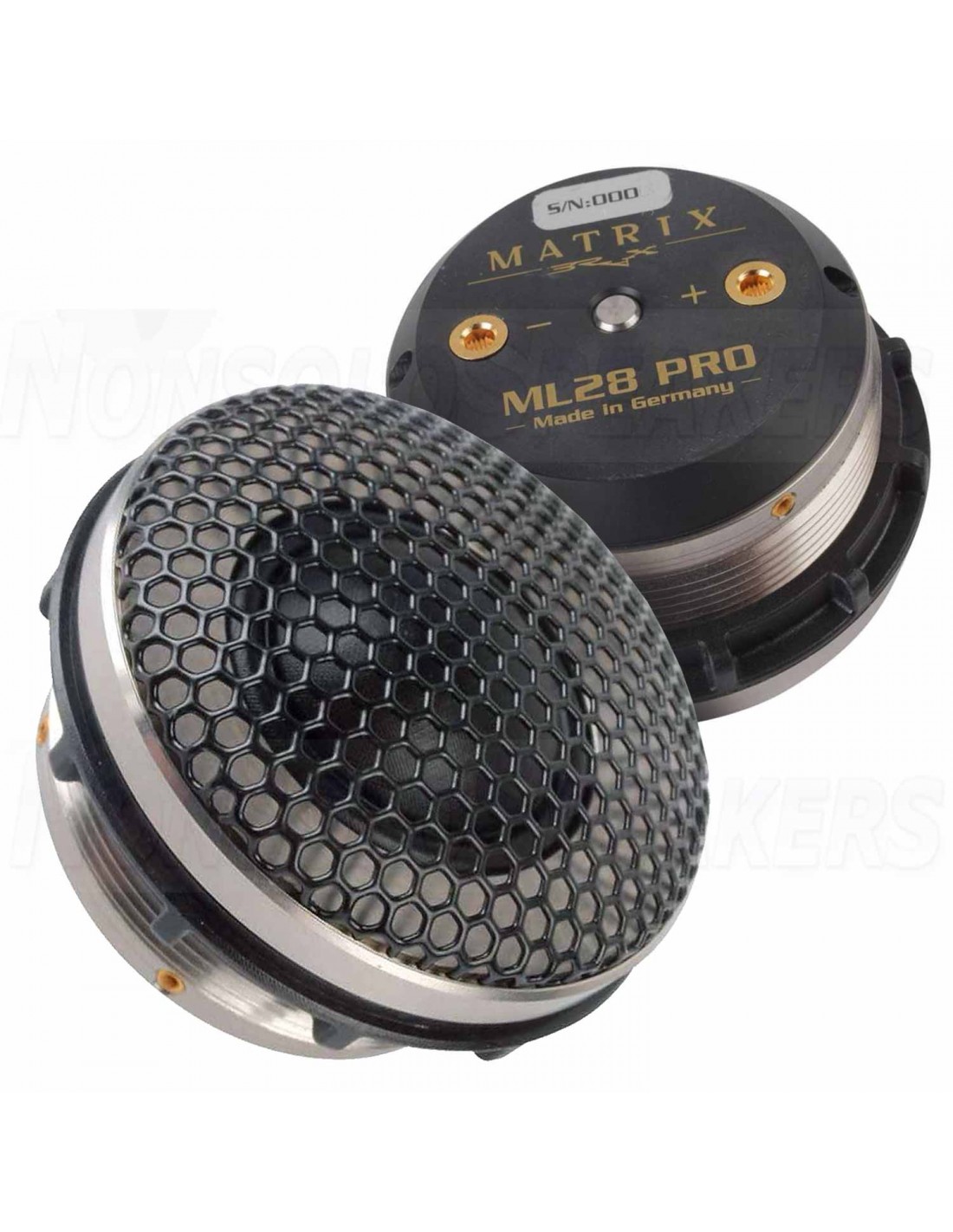

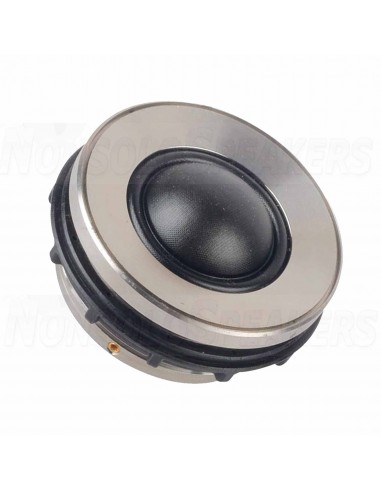

Brax ML 1 - 28 mm High-End silk dome tweeter - 4 Ohm - Price for Pair

.

The BRAX MATRIX speaker series has stood for unique sound and quality properties for years.

So it's only logical that the focus in the further development of our 28 mm tweeters was on the latest technologies and the highest quality materials in order to meet the BRAX brand's claim to pure, unadulterated music reproduction.

The new, particularly light and fine-meshed silk dome with a visco-elastic Acronal coating on both sides ensures brilliant and velvety high-frequency reproduction. The integrated coupling volume, dampened with pure sheep's wool, enables a particularly low resonance frequency and thus allows a deep acoustic coupling.

When it comes to design and technology, the BRAX philosophy is continued without exception: The subtle, elegant appearance reveals smart details such as the two-part, solid-turned stainless steel housing for maximum heat dissipation, the extremely precisely manufactured, 8-fold ventilated neodymium magnet for an optimally linear magnetic flux, the integrated, 24-carat gold-plated connection sockets for maximum conductivity, the thread with a solid mounting ring on the back of the housing for hidden attachment and the stable grille for optimal protection of the dome from damage.

In order to fully meet our high quality standards, the loudspeakers are hand-selected for perfect sound interaction and put together in pairs based on their acoustic parameters and recorded in a service database with a serial number. This high-end product is completed by packaging in an elegant wooden box, which further underlines the philosophy of the BRAX brand.

.

Features

Particularly light and fine-meshed silk dome with a visco-elastic Acronal coating on both sides for brilliant and velvety high-frequency reproduction

Integrated, 24-carat gold-plated connection sockets for maximum conductivity

Extremely precisely manufactured, 8-fold ventilated neodymium magnet for an optimally linear magnetic flux

Two-piece, solid stainless steel housing for maximum heat dissipation

The solid mounting ring and a thread on the back of the housing allow for hidden attachment

Integrated coupling volume dampened with pure sheep's wool for a particularly low resonance frequency

Stable protective grille included

.

Technical data

Power RMS / Max. P 120 / 170 watts

(High pass > 3,000 Hz at 12 dB/Oct.)

Impedance Z 4 Ω

DC resistance Re 3.4 Ω

Frequency range 1,800 Hz - 25,000 Hz

Resonance frequency Fs 630 Hz

Efficiency 1 W / 1 m SPL 90 dB

Voice coil diameter ø 28 mm

Membrane area Sd 6.2 cm²

Moving mass Mms 0.32 g

Membrane material: silk dome with a visco-elastic Acronal coating on both sides

Outer diameter ø 60 mm

Installation diameter ø 50 mm

Installation depth 25 mm

.

Recommended crossover frequencies for the high pass

Edge steepness / Minimum crossover frequency Minimum crossover frequency

6 dB/octave 3,500 Hz

12 dB/octave > 2,500 Hz

24 dB/octave > 1,800 Hz

-

Scope of delivery

2 x high-end tweeters BRAX MATRIX ML1

2 x Mounting Ring

2 x protective grilles

1 x Allen Key

1 x certificate

1 x data sheet
