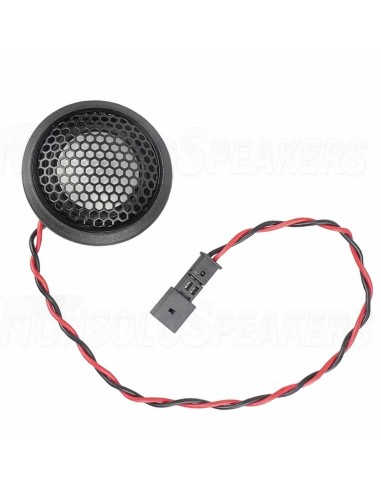

Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium

Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium

Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium

Variants
Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium
HELIX CFMK25 VW.1 universal VW FlexMount25
Helix Compose i7- Ci7 T20FM-SC - Tweeter 20mm - silk dome
SHIPMENT IN 7/10 WORKING DAYS
€140.06 €149.00 -6%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Helix Compose CI5 T25FM-CA - Helix Compose i5 - Tweeter 25mm - Flexmount - Aluminium

.

The Ci5 T25FM-CA tweeter, with its 25 mm aluminum dome, offers a Unparalleled high-frequency reproduction with a clear and balanced frequency response. The ceramic coating enables precise and realistic sound reproduction, while the robust aluminum housing and integrated protective grille safeguard the delicate dome tweeter. The innovative FlexMount25 system makes installation incredibly easy in a wide range of vehicle models and is optimally adapted to OEM mounting positions. Additional WireKits allow for seamless integration of the tweeter into the vehicle's wiring harness – perfect for those who prefer plug-and-play solutions.

.

Technical specifications:

- Impedance: 4 ohms

- DC resistance (Re): 3.2 Ω

- Frequency response: 2,000 Hz - 25,000 Hz

- Resonant frequency (Fs): 1,800 Hz

- Sensitivity (SPL): 94 dB @ 2.83V / 1m, 91 dB @ 1W / 1m

- Voice coil diameter: 25 mm

- Cone material: Aluminum with ceramic coating

- Outer diameter: 40 mm

- Mounting diameter: 38 mm

- Mounting depth: 11.7 mm

.

Slope – Minimum crossover frequency:

6 dB/octave – > 4,000 Hz

12 dB/Octave – > 3,000 Hz

24 dB/Octave – > 2,500 Hz

.

Features:

- 25 mm Advanced tweeter with ceramic-coated aluminum dome for a harmonious frequency response and excellent dispersion characteristics

- Sturdy aluminum housing with integrated grille for optimal dome protection

- High-efficiency neodymium magnet for linearized magnetic flux

- Compact design with various mounting options for different installation conditions

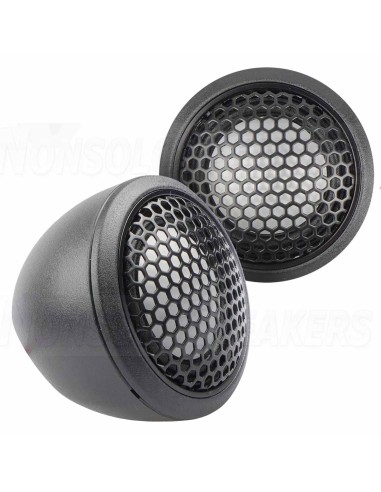

- Housing for flush and angled mounting included

- Compatible with FlexMount25 adapter rings for acoustically optimized integration into original mounting positions

- Compatible with WireKits for plug-and-play connection to the original vehicle wiring harness

Compatibility:

FlexMount25

WireKits

CI5 T25FM-CA
