The HELIX AMI Tuning Kit from Audiotec Fischer is a professional measurement suite designed for advanced car audio applications. It combines the AMI (Audio Measurement Interface) with a selection of premium accessories, offering a comprehensive and immediately operational tool for the precise analysis of electrical and acoustic signals in modern DSP audio systems.

The AMI interface, the heart of the system, is designed for full integration with the DSP PC-Tool software. It provides inputs and outputs for every type of measurement: a line input with selectable sensitivity (1 V/40 V) for low- and high-level signals, stereo RCA and optical outputs for direct playback into the DSP, and a built-in loopback function that enables advanced measurements such as phase response and detailed signal path evaluation.

The kit includes the Beyerdynamic MM-1 reference condenser microphone, calibrated with a 90° linear frequency response and optimized for in-car measurements. The AMI works in synergy with the advanced DSP PC-Tool tools, including:

- Advanced Input Signal Analyzer (AISA) for OEM signal analysis and factory equalization and filter compensation

- Real-Time Analyzer (RTA) for high-precision frequency response measurements

- TuneEQ for automatic tuning using proprietary algorithms

- Automatic Time Measurement (ATM) for automatic calibration of speaker delays

Ready to use – complete suite with all essential components

Includes all essential cables:

• USB-C cable,
• USB-C to USB-A adapter,
• RCA cable,
• RCA to high-level adapter,
• Toslink cable, and XLR microphone cable
• 16 GB USB 3.0 flash drive with pre-installed DSP tuning tracks
• Compatible with Windows 10 & 11, macOS, Android, and iOS

.

Technical specifications

• Inputs: 1 x microphone input 1 x line input
• Frequency response: 12 Hz – 44 kHz (+/-1 dB)
• Dynamic range: 95 dB (A-weighted)
• Input sensitivity: 5 – 200 mV
• Phantom power: Yes (24 volts)
• Frequency response: 8 Hz – 44 kHz (+/-1 dB)
• Dynamic range: 101 dB (A-weighted)
• Input sensitivity: max. 1 V / max. 40 V
• Input impedance: 10 kOhm
• Outputs: 2 x line outputs, 1 x optical output (SPDIF)
• Frequency response: 7 Hz – 44 kHz (+/-1 dB)
• Dynamic range: 100 dB (A-weighted)
• Maximum output voltage: 900 mV (RMS)
• Minimum load: 5 kOhm
• Loopback function: Yes
• Audio sampling rate: 96 kHz / 32 bit
• USB power consumption: max. 250 mA
• Supported operating systems: Windows, macOS, iOS, and Android
• Converter principle: Condenser (back electret)
• Operating principle: Pressure vessel
• Frequency response: 20 – 20,000 Hz (50 – 16,000 Hz ± 1.5 dB), diffuse-field equalized
• Directional characteristics Omnidirectional
• Sensitivity (0 dB = 1 V/Pa) 15 mV/Pa (= -36.5 dBV) ± 1 dB
• Nominal impedance 160 Ω
• Nominal load impedance ≥ 2.2 kΩ
• Maximum sound pressure level (SPL) 122 dBSPL at f = 1 kHz, k = 1%, RL = 2.2 kΩ
• Signal-to-noise ratio (relative to 1 Pa) > 57 dB
• A-weighted equivalent noise level Approx. 26 dB(A)
• Power supply 12 – 48 V phantom power
• Current consumption Approx. 1.9 mA
• Output Electronically balanced

Compatibility

• DSP PC-Tool 6
• DSP PC-Tool 5
• DSP PC-Tool 4

Included in delivery

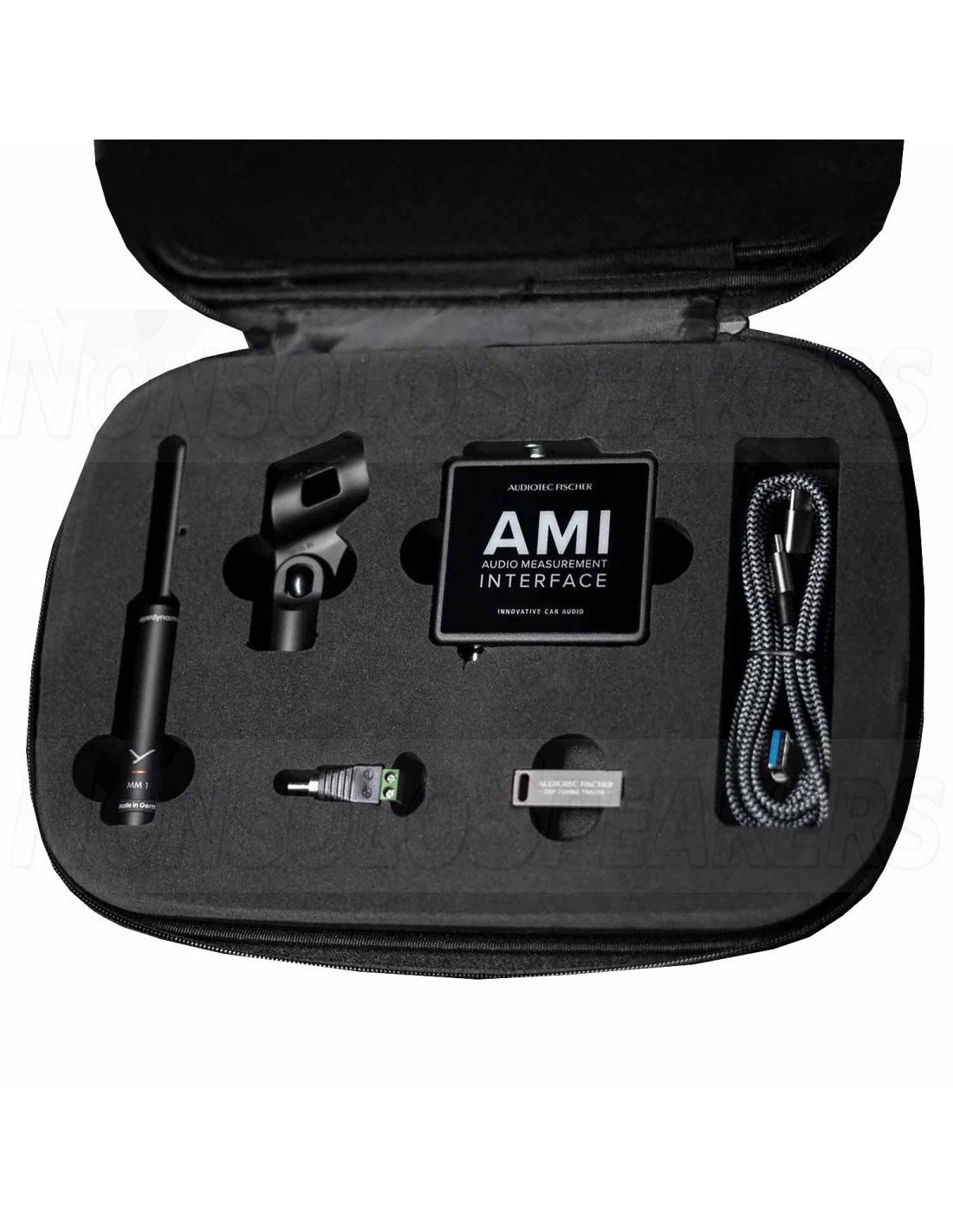

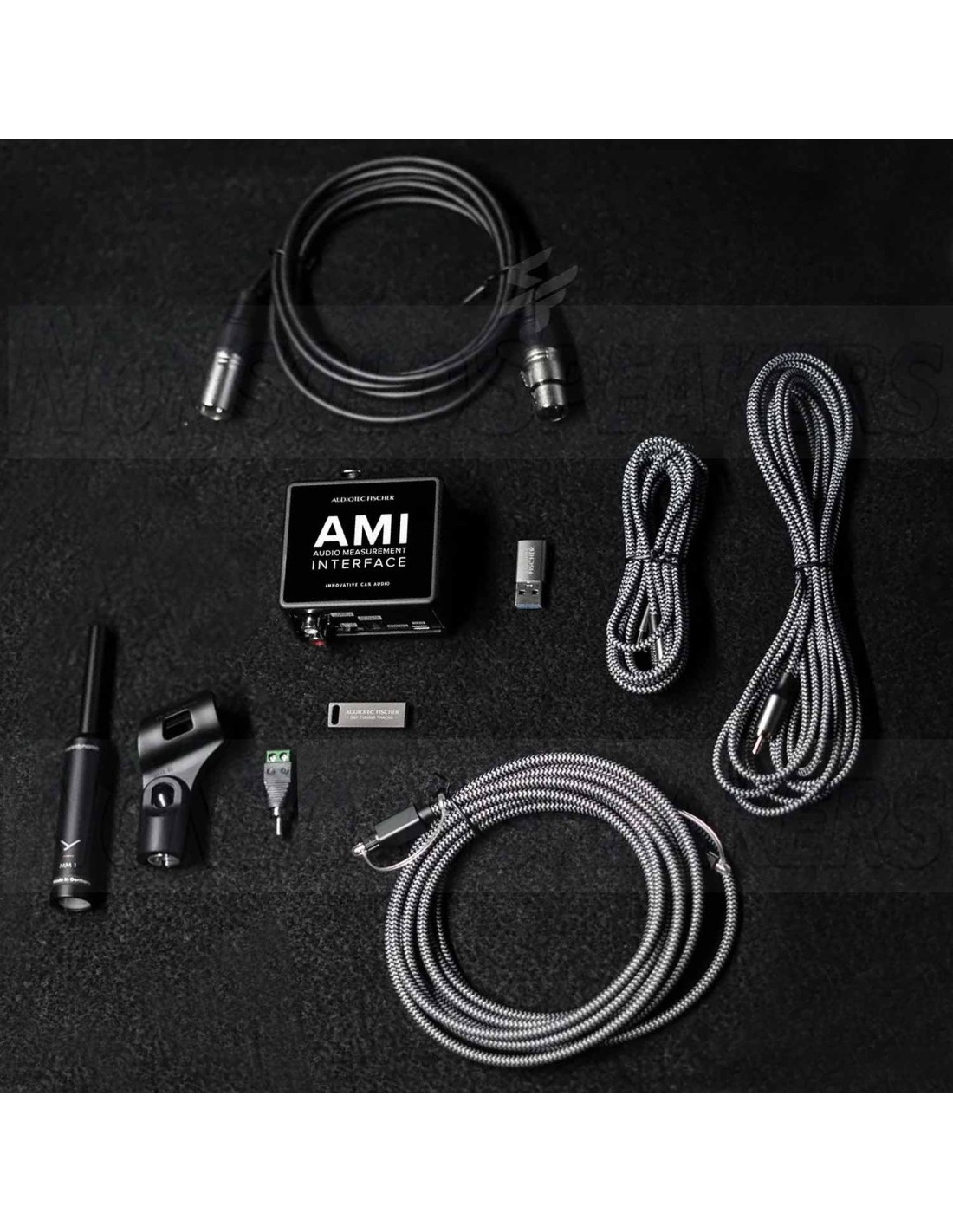

• 1 x AMI (Audio Measurement Interface)
• 1 x Beyerdynamic MM1 microphone
• 1 x Microphone stand holder
• 1 x RCA to high-level adapter
• 1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
• 1 x 3.0 m / 9.85' USB-C to USB-C cable with USB-A adapter
• 1 x 3.5 m / 11.50' optical Toslink cable, 1 x 3.5 m / 11.50' mono RCA cable
• 1 x 2.0 m / 6.56' XLR microphone cable
