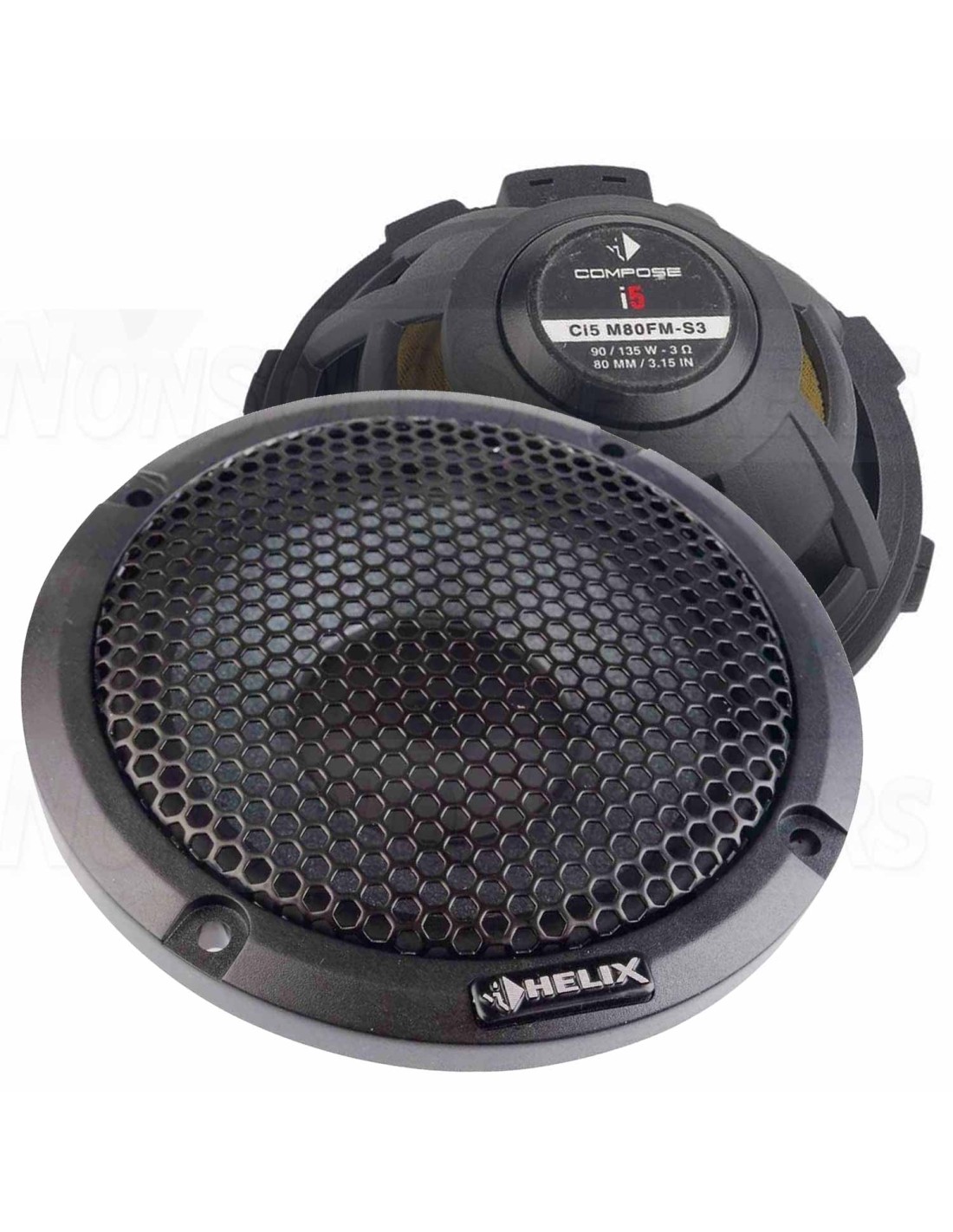

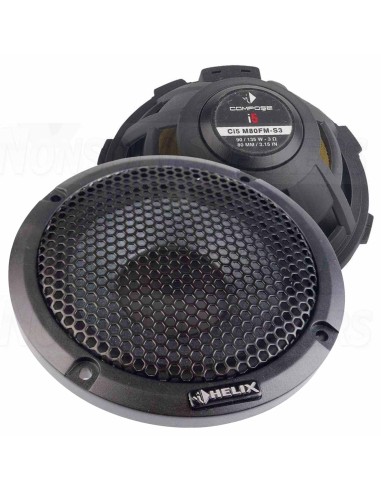

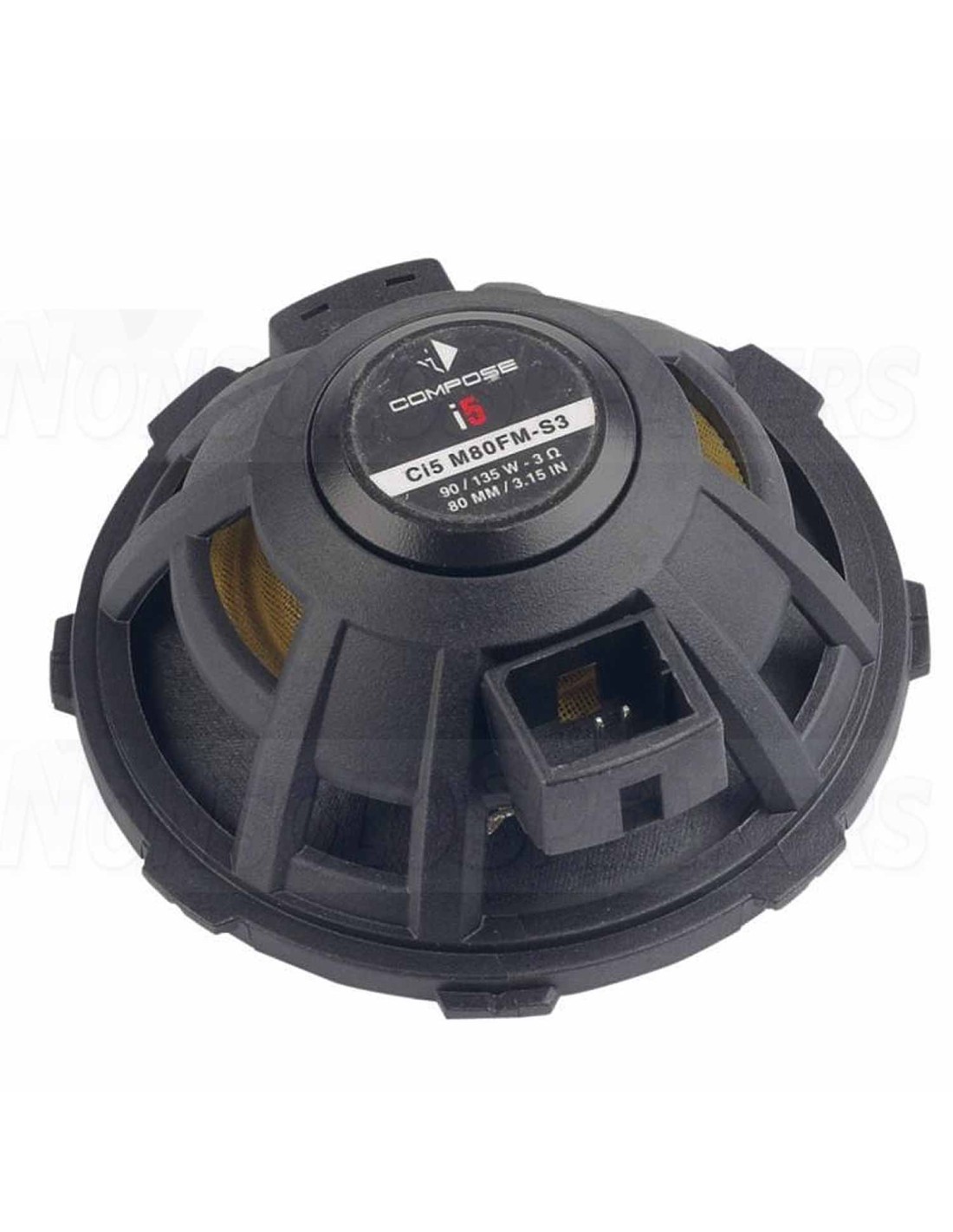

Helix CI5 M80FM-S3 - i5 - Midrange 80mm 3 Ohms

.

HELIX COMPOSE. The perfect loudspeaker for every composition.

Born from the ever-increasing demands of modern vehicle technology and HELIX's signature pursuit of intelligent solutions, we made the advanced redesign of proven universal loudspeaker systems our mission.

The result: The innovative HELIX COMPOSE platform, which, guided by the principle "designed in the car, for the car," combines classic universal loudspeakers with the advantages of vehicle-specific systems. Innovative materials and cutting-edge technologies paired with smart, practical engineering – the best of both worlds in perfect harmony: very high efficiency, fantastic sound quality, and tremendous dynamics that fit any vehicle.

.

HELIX COMPOSE – Universal loudspeakers reimagined.

The sound sensation for discerning music lovers.

.

FlexMount80 – Universal Meets Vehicle-Specific

FlexMount is a mounting system based on specially developed adapter rings that allows COMPOSE FlexMount speakers to be installed in a virtually unlimited number of vehicles. This transforms the universal speaker into a vehicle-specific speaker in no time, enabling easy and acoustically optimized installation in the original mounting position of any vehicle using the appropriate FlexMount ring.

.

Specifications

• 80 mm Advanced Midrange Driver with exceptional sound performance and versatile integration options
• High efficiency and 3-ohm technology for maximized amplifier power output
• Unique silicate-coated paper cone for maximum impulse response and unsurpassed frequency response

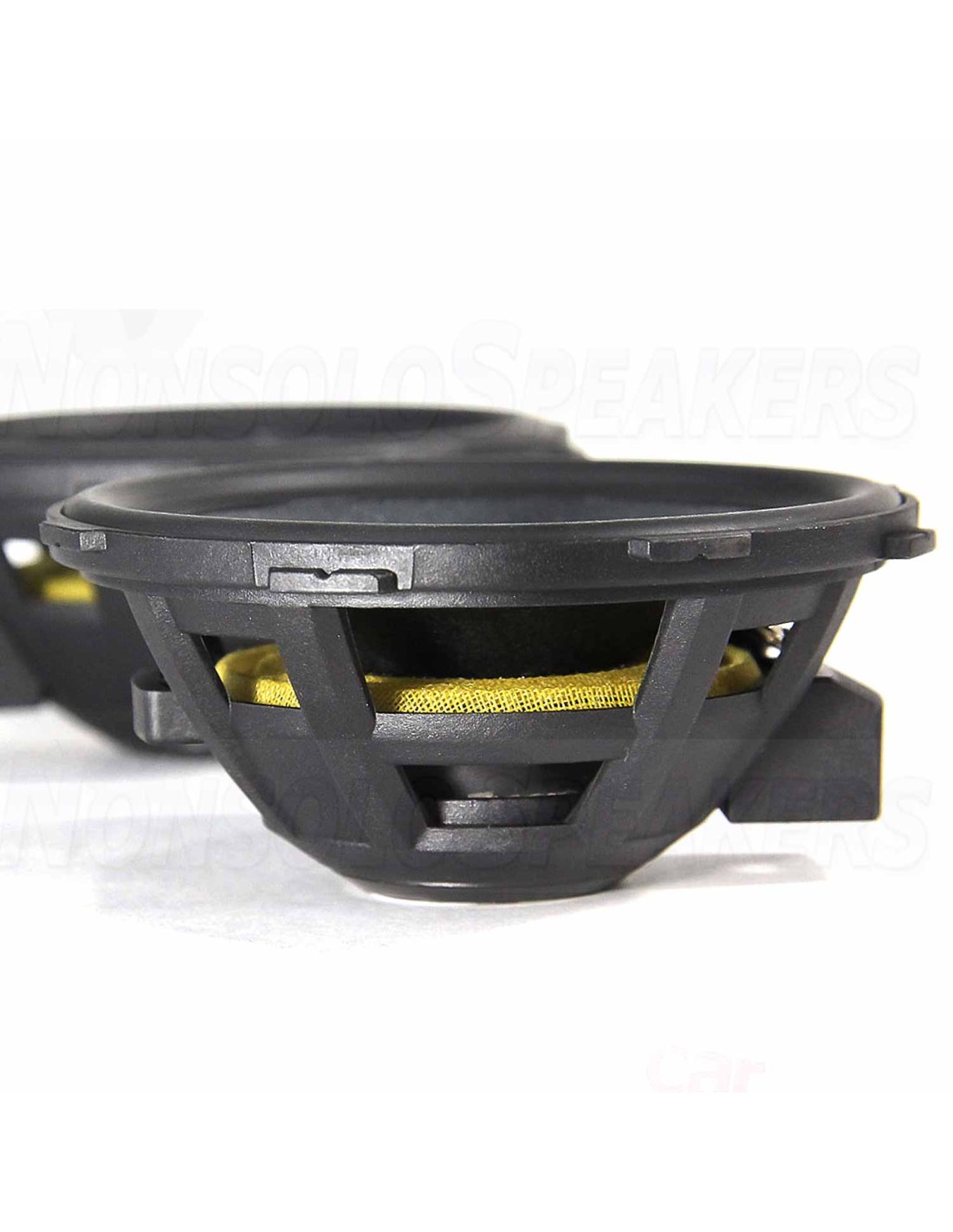

• Glass bead-reinforced high-tech polymer composite basket for maximum rigidity and minimal resonance
• Special rubber surround and optimized magnet system for large linear cone excursion
• Innovative rubber surround manufacturing for a reduced mounting diameter and maximized effective cone area compared to typical 80 mm speakers
• Aluminum dome (dust cap) for optimized frequency response in the upper midrange

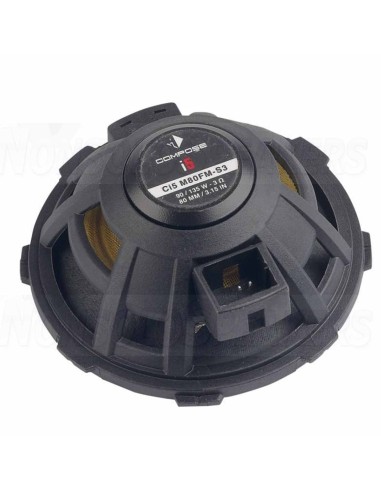

• Automotive-standard FlexConnect terminal for quick, locking, and reverse polarity-protected connection
• Powerful push-pull neodymium magnet system for exceptionally high efficiency and minimal distortion

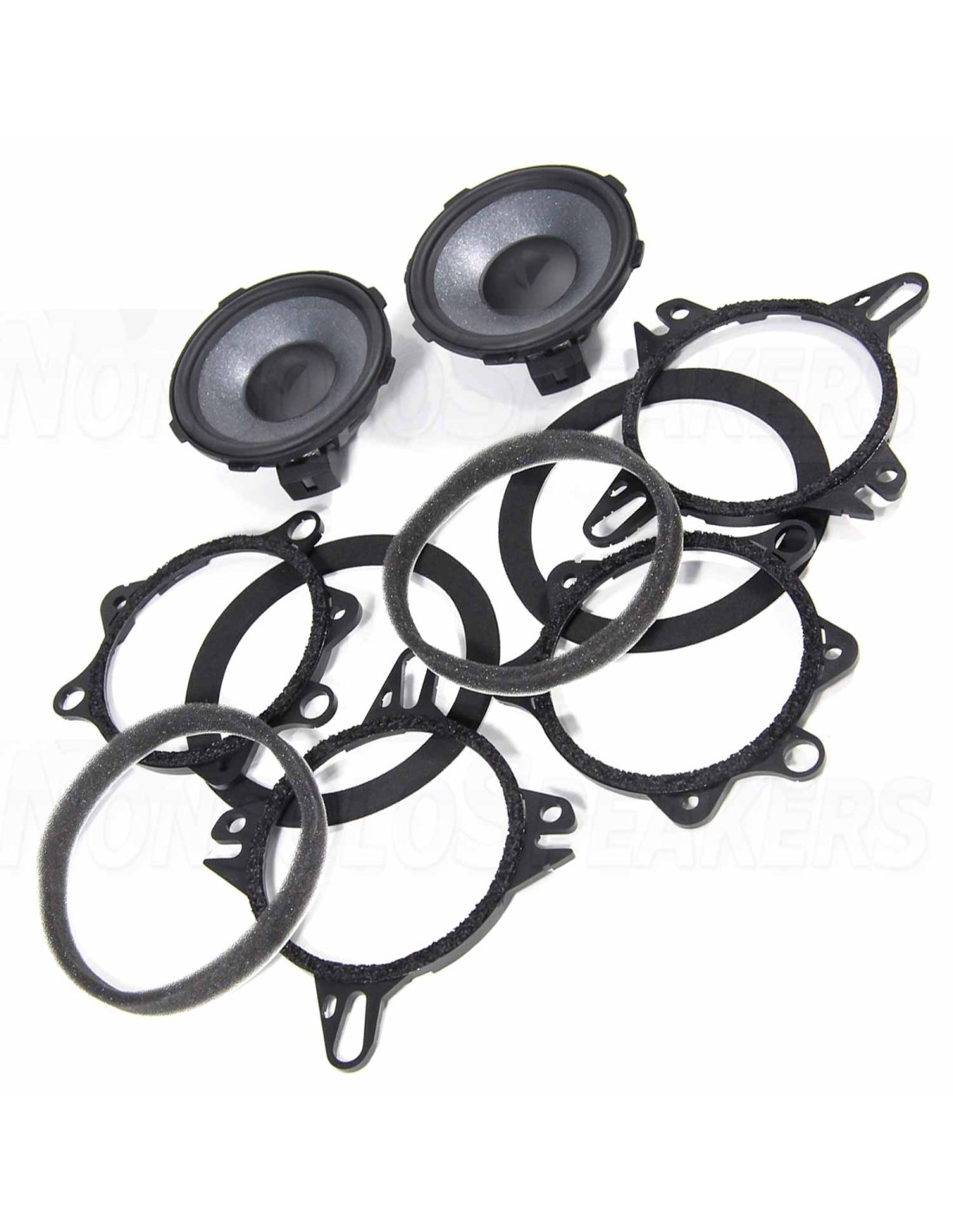

• Two universal FlexMount80 mounting rings for vehicle-specific adaptation (e.g., Audi, Ford, Mercedes, etc.) or included for universal installation
• Optionally available: The CFM80-100 adapter ring, which allows the use of optionally available vehicle-specific FlexMount100 adapters for acoustically optimized and professional integration into the vehicle's original mounting position

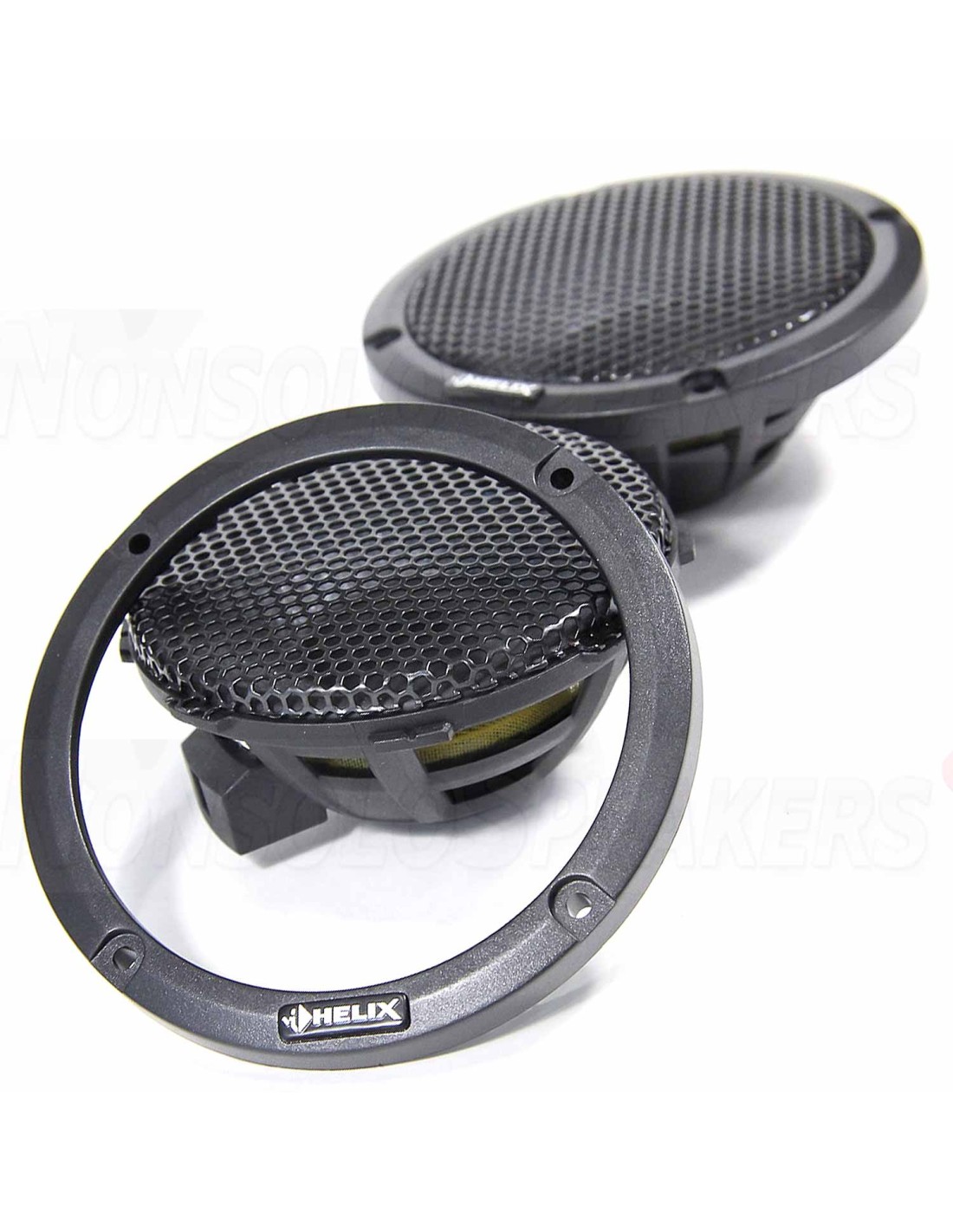

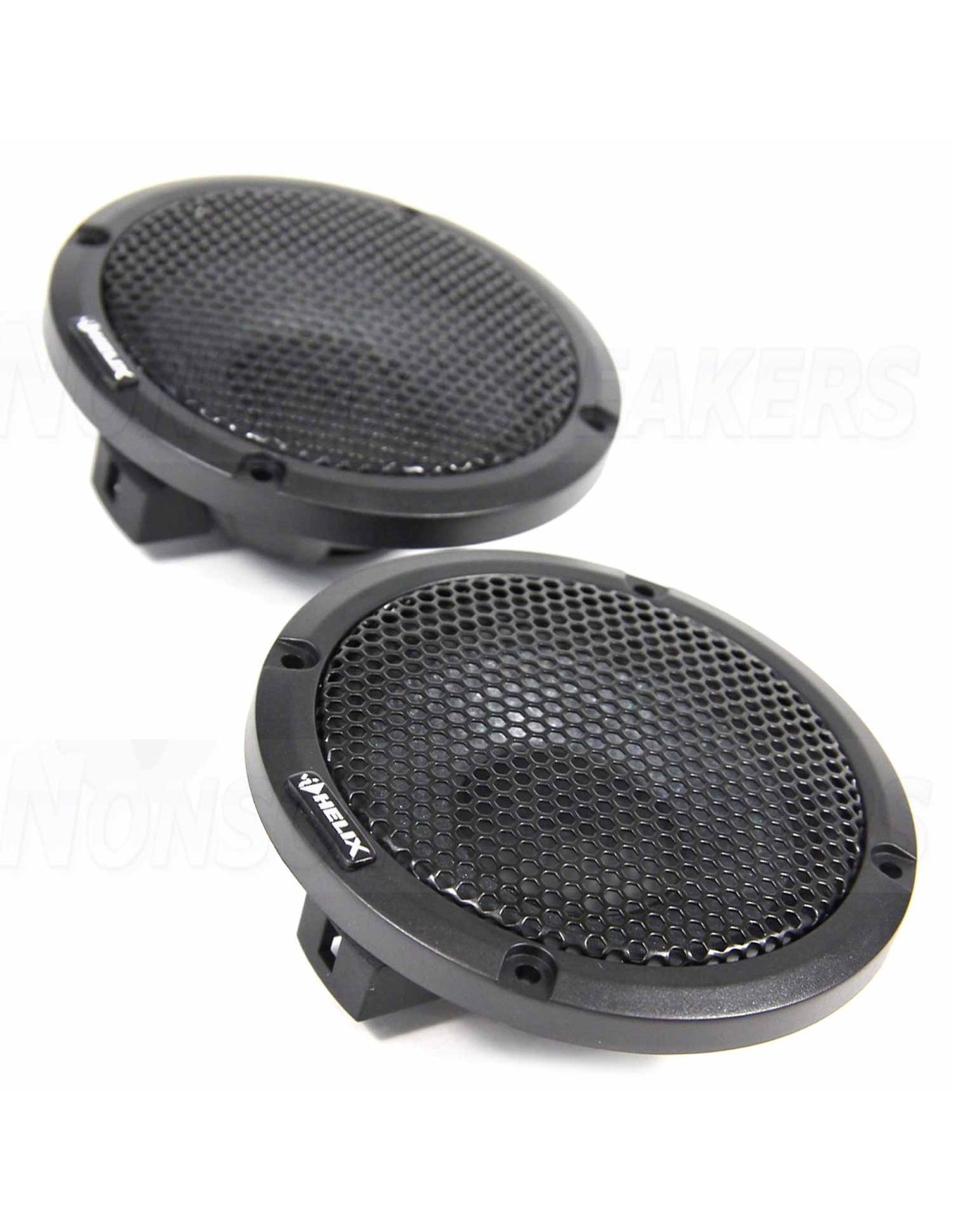

• Universal mounting ring with grille included

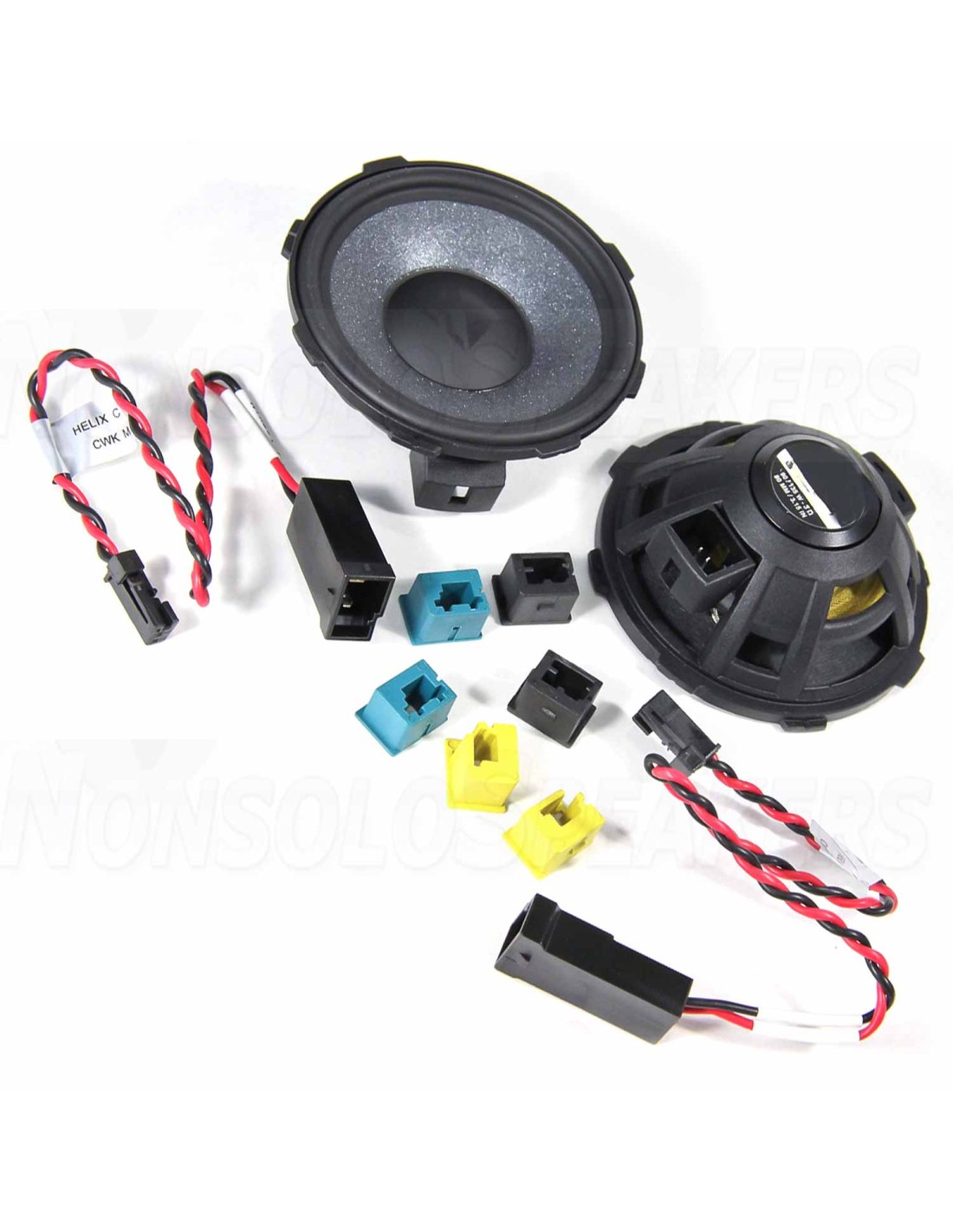

• Compatible with the optionally available WireKits for a vehicle-specific, reversible connection to the original vehicle wiring harness

.

Technical Specifications

• Power Handling RMS / Max. P 90 / 135 Watts
• Impedance Z 3 Ω
• DC Resistance Re 3.1 Ω
• Frequency Range 200 Hz - 6,000 Hz
• Resonant Frequency Fs 156 Hz
• Mechanical Q Factor Qms 3.68
• Electrical Q Factor Qes 0.75
• Total Q Factor Qts 0.63
• Compliance Cms 407 µm/N
• Equivalent Volume Vas 0.7 L
• Force Factor B*I 3.2 Tm
• Sensitivity SPL 92 dB @ 2.83V / 1m
• 88 dB @ 1W / 1m
• Diaphragm Area Sd 36 cm²
• Moving Mass Mms 2.6 g
• Diaphragm Material Silicate-coated paper diaphragm
• Mechanical Resistance Rms 0.68 kg/s
• Voice coil diameter ø 20 mm
• Voice coil winding width 7 mm
• Max. linear diaphragm excursion Xlin +/- 2.5 mm
• Max. mechanical diaphragm excursion Xmax +/- 4.5 mm
• Outer diameter ø 78.5 mm
• Outer diameter with universal mounting ring ø 88.9 mm
• Installation diameter ø 65.5 mm
• Installation depth 30.2 mm
• Features: FlexConnect terminal, high-performance push-pull neodymium magnet system,
• FlexMount80
