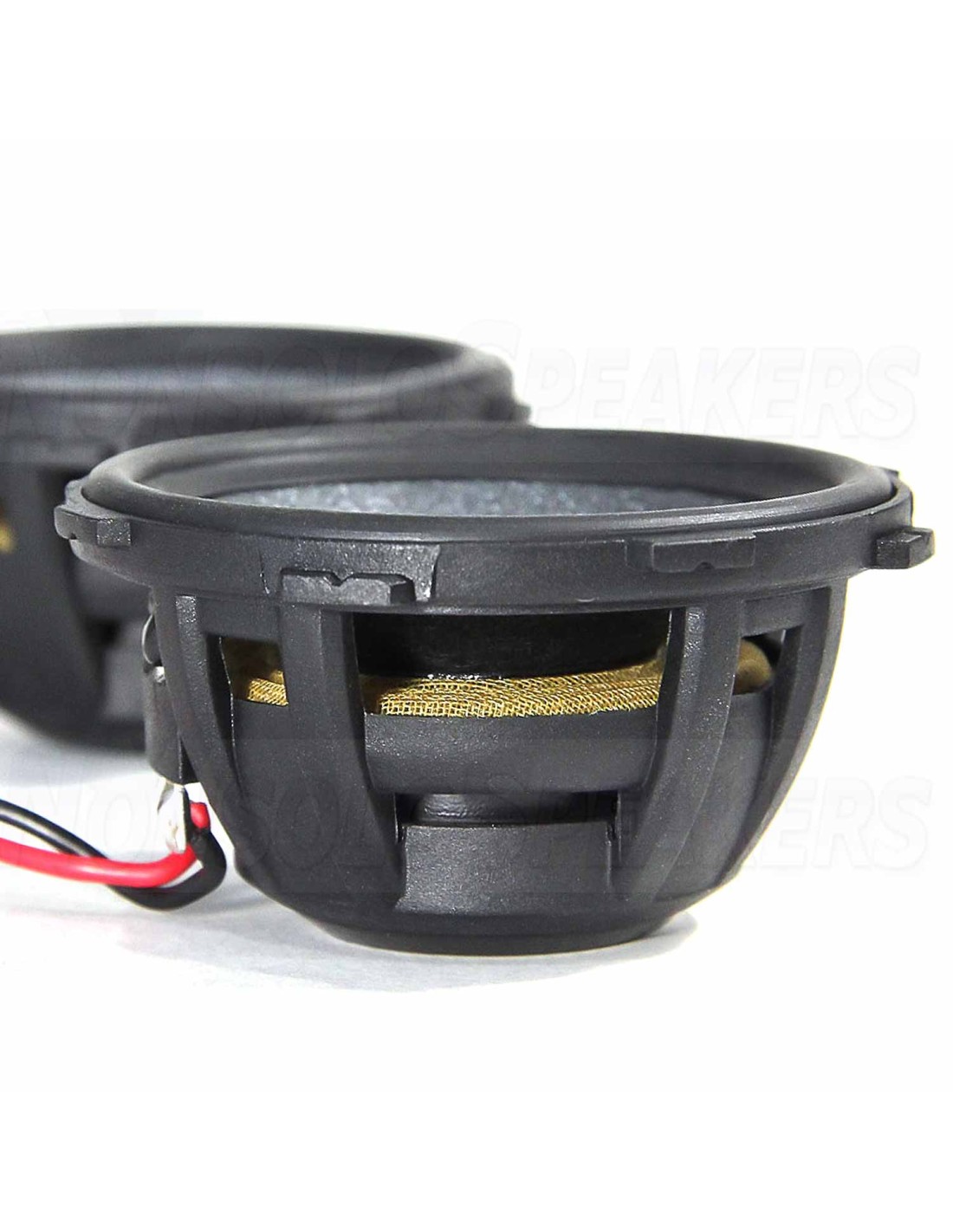

Helix compose CI5 M50FM-S3 - i5 - Midrange Wideband 50mm 3 Ohm

.

HELIX COMPOSE. The perfect loudspeaker for every composition.

Born from the ever-increasing demands of modern vehicle technology and HELIX's signature pursuit of intelligent solutions, we made the advanced redesign of proven universal loudspeaker systems our mission.

The result: The innovative HELIX COMPOSE platform, which, guided by the principle "designed in the car, for the car," combines classic universal loudspeakers with the advantages of vehicle-specific systems. Innovative materials and cutting-edge technologies paired with smart, practical engineering – the best of both worlds in perfect harmony: very high efficiency, fantastic sound quality, and tremendous dynamics that fit any vehicle.

.

HELIX COMPOSE – Universal loudspeakers reimagined.

The sound sensation for discerning music lovers.

.

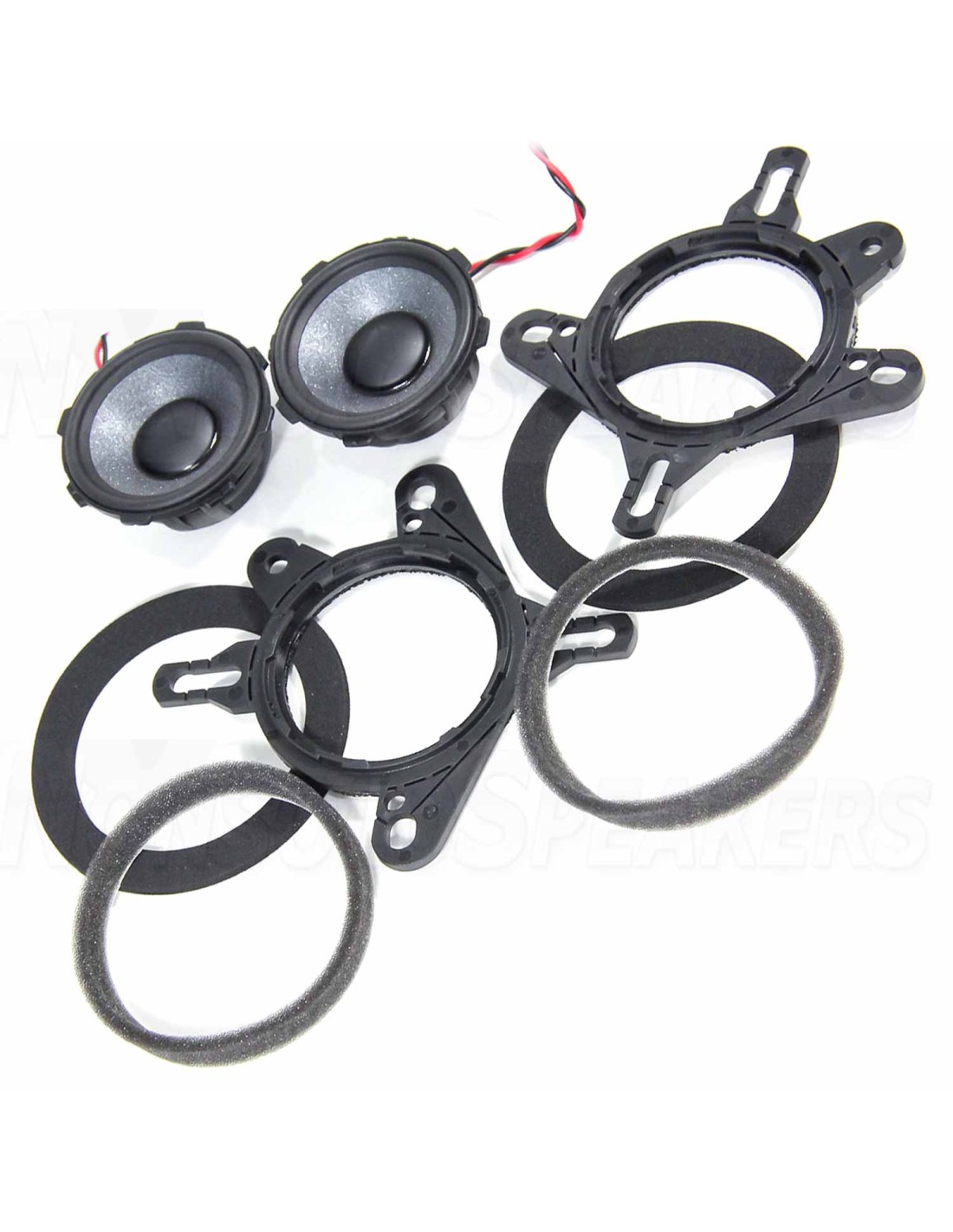

FlexMount50 – Universal Meets Vehicle-Specific

FlexMount is a mounting system based on specially developed adapter rings that allows COMPOSE FlexMount speakers to be installed in a virtually unlimited number of vehicles. This transforms the universal speaker into a vehicle-specific speaker in no time, enabling easy and acoustically optimized installation in the original mounting position of any vehicle using the appropriate FlexMount ring.

.

Specifications

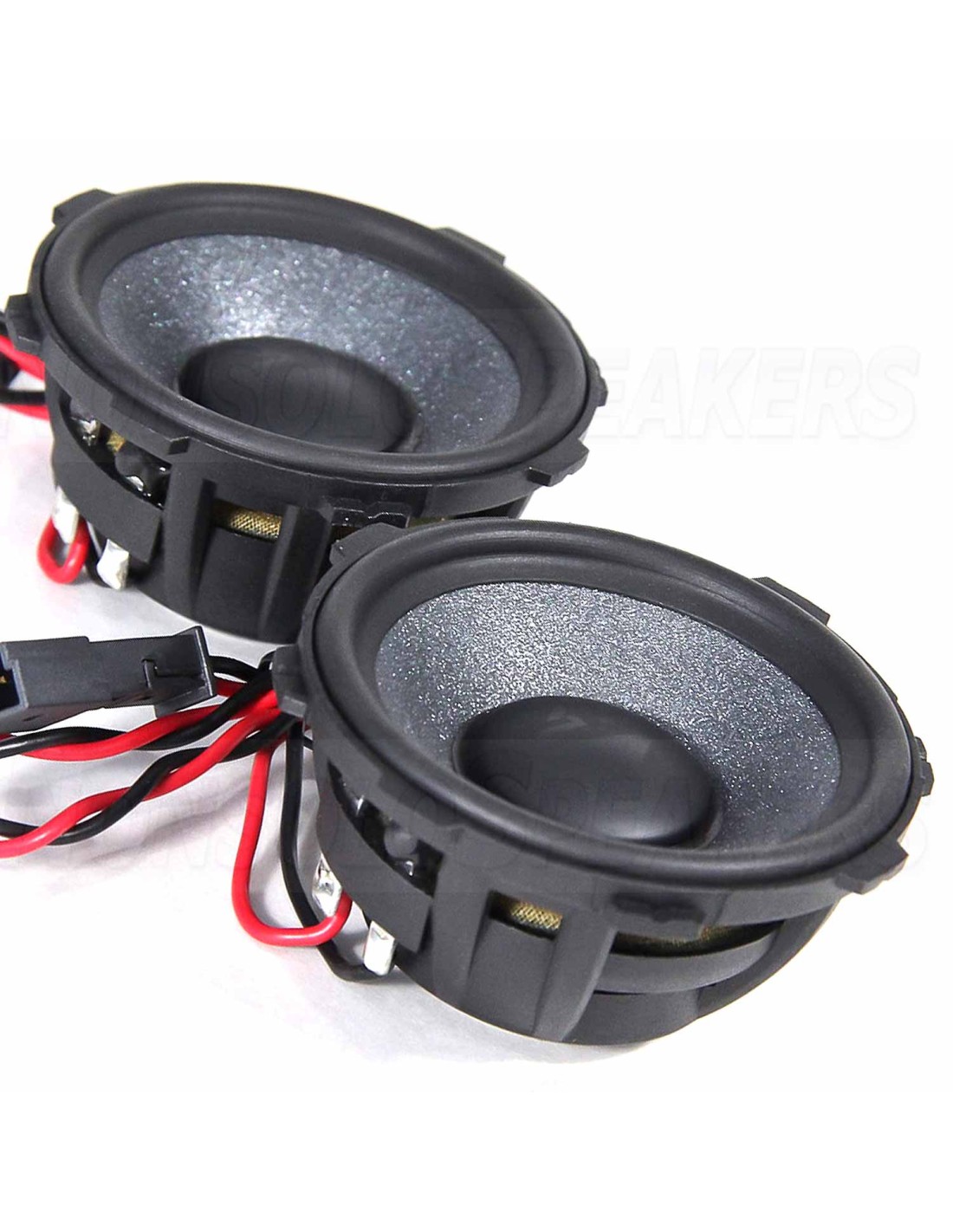

• 50 mm advanced full-range loudspeaker with exceptional sound performance and versatile integration options
• High efficiency and 3-ohm technology for maximized amplifier power output
• Unique silicate-coated paper cone for maximum impulse response and unsurpassed frequency response
• Maximized cone area and an aluminum dust cap directly connected to the voice coil enable an exceptionally wide linear frequency response of 300 – 20,000 Hz
• Glass bead-reinforced high-tech polymer composite basket for maximum rigidity and minimal resonance
• Special rubber surround and optimized magnet system for large linear cone excursion
• Innovative rubber surround manufacturing for a reduced mounting diameter and maximized effective cone area compared to typical 50 mm loudspeakers
• Powerful push-pull neodymium magnet system for exceptionally high efficiency and minimal distortion
• Universal FlexMount50 mounting ring for vehicle-specific adaptation (e.g., Audi, Ford, Mercedes, etc.) or for universal installation included

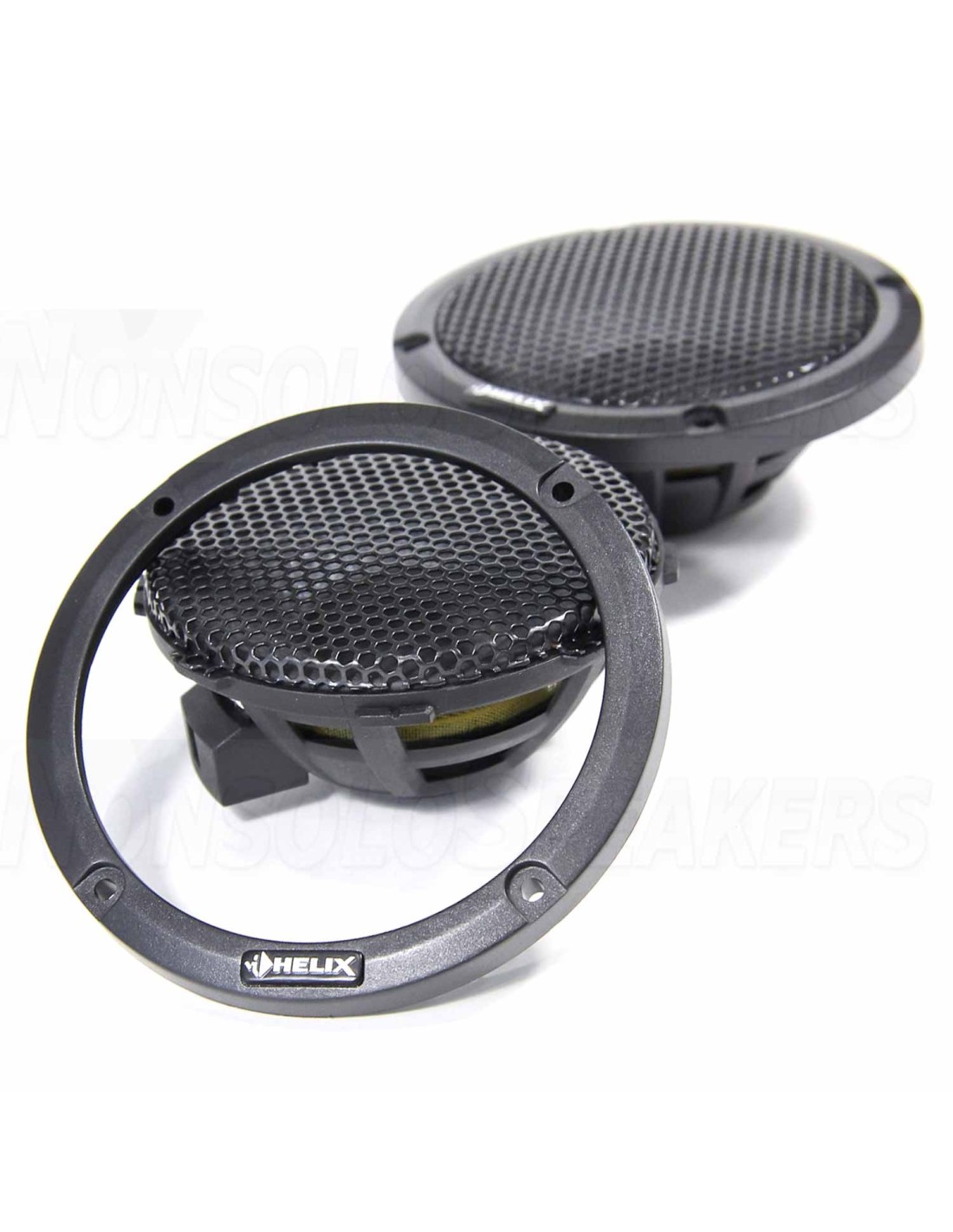

• Universal mounting ring with grille included

.

Technical Specifications

• Power Handling RMS / Max. P 70 / 100 Watts
• Impedance Z 3 Ω
• DC Resistance Re 3.1 Ω
• Frequency Range 300 Hz - 20,000 Hz
• Resonant Frequency Fs 240 Hz
• Mechanical Q Factor Qms 3.09
• Electrical Q Factor Qes 0.80
• Total Q Factor Qts 0.68
• Compliance Cms 300 µm/N
• Equivalent Volume Vas 0.16 L
• Force Factor B*I 2.8 Tm
• Sensitivity SPL 89 dB @ 2.83V / 1m
• 85 dB @ 1W / 1m
• Diaphragm Area Sd 19.6 cm²
• Moving Mass Mms 1.43 g
• Diaphragm Material Silicate-coated paper diaphragm
• Mechanical Resistance Rms 0.71 kg/s
• Voice coil diameter ø 20 mm
• Voice coil winding width 7 mm
• Max. linear diaphragm excursion Xlin +/- 2.5 mm
• Max. mechanical diaphragm excursion Xmax +/- 3.5 mm
• Outer diameter ø 59.5 mm
• Outer diameter with universal mounting ring ø 70.0 mm
• Installation diameter ø 50.9 mm
• Installation depth 25.2 mm
• Features: High-performance push-pull neodymium magnet system,
• FlexMount50
