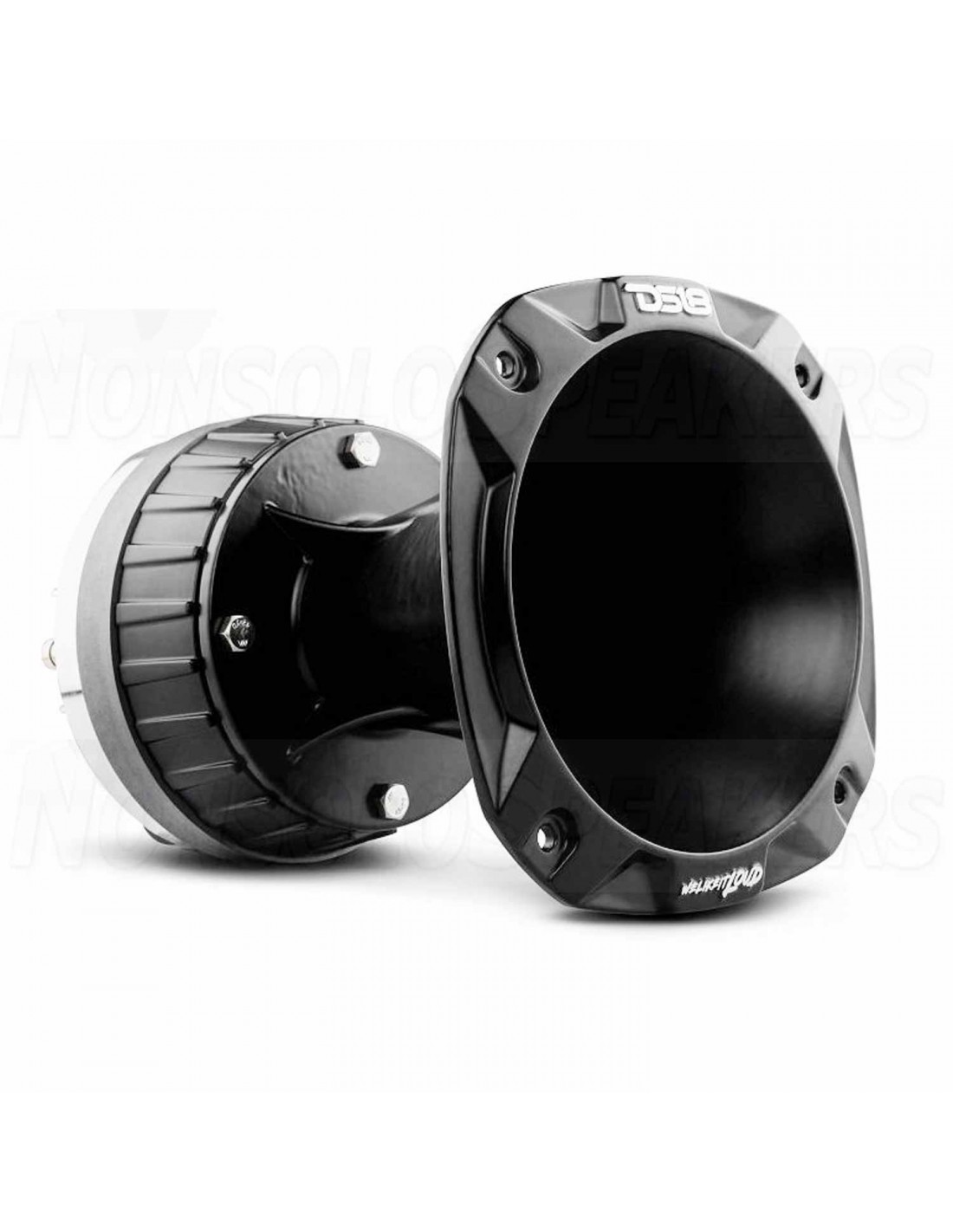

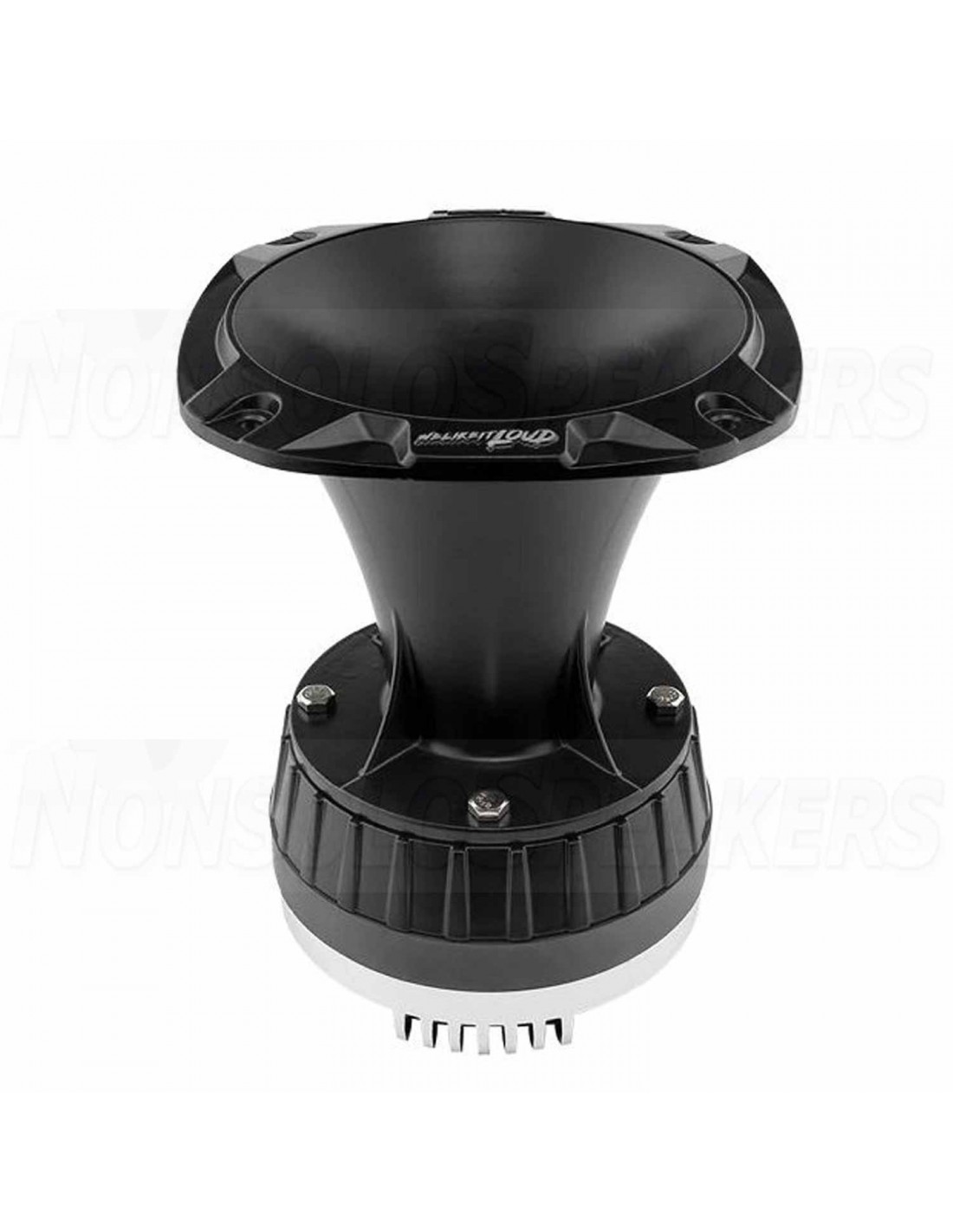

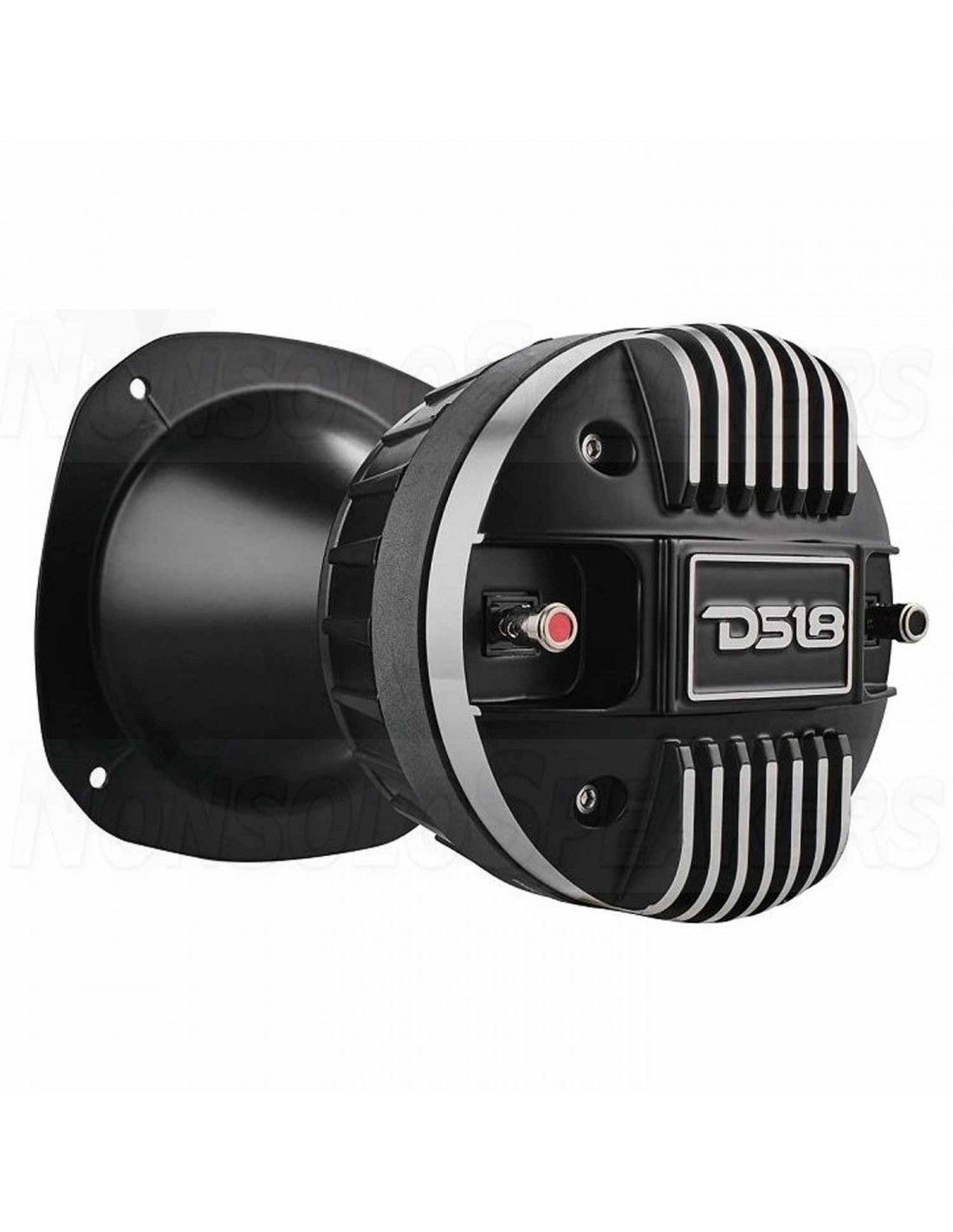

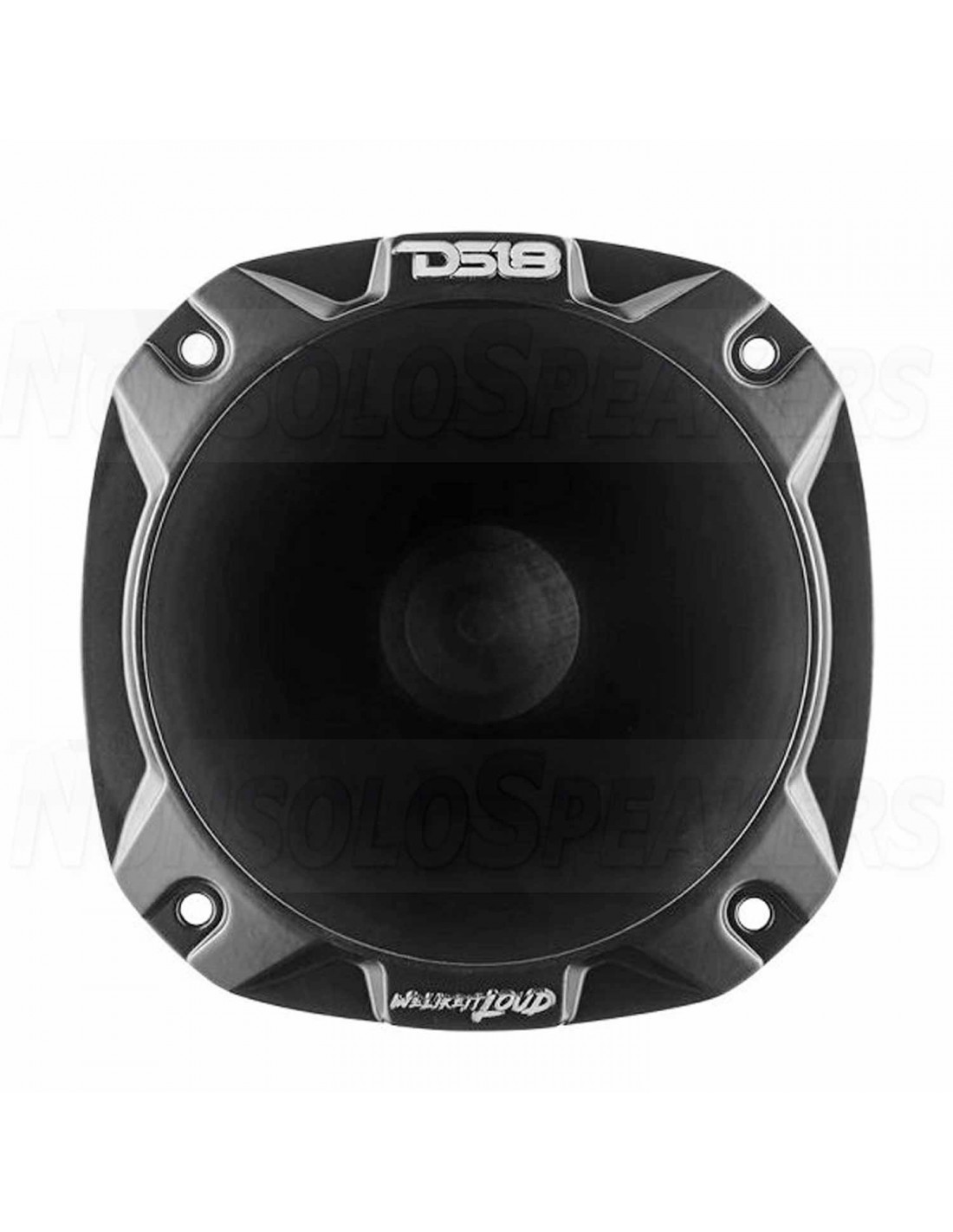

DS18 PRO-DKH1X 2" Driver with Spacer And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
.
Price for Piece
Introducing DS18’s PRO-DKH1X, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, DS18’s DKH1X combines a 2" bolt-on throat compression driver and a PRO-HA102/BK horn, to help deliver a rich, powerful, and immersive sound experience. Built with a titanium voice coil and diaphragm, DS18’s PRO-DKH1X is capable of handling Peak Powers of up to 640W, making it one of the most powerful compression drivers in the market.
The PRO-DKH1X is not just about power, but delivering crystal clear and distortion-free sound. With a sensitivity of 115 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1X guarantees an EXTREMELY LOUD and exceptional listening experience. Everyone is looking for louder horns and what they can do to tweak them. DS18’s DKH1X takes all the guesswork out of finding yours. This full-size driver combines DS18’s DKH1 with the included dB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency.
The DS18 PRO-DKH1X is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03" voice coil ensures that the product operates efficiently and reliably, even at high volumes and extended playtimes. Whether you're a professional audio installer or a car enthusiast, DS18’s PRO-DKH1X is the perfect addition to your sound system. The PRO-DKH1X is bolt on so you can spend less time in installation, and more time enjoying your system.
.
Technical Specifications:
- Nominal Impedance 8 OHM
- AES Power 160 Watts
- Program Power 320 Watts
- Peak Power 640 Watts
- Sensitivity (1w/1m) 111 dB
- Frequency Response 630Hz-20KHz
- Recommended High Pass Crossover 900Hz PRO-D1X -
- Voice Coil Diameter 2.03” / 51.5 mm
- Voice Coil Material Kapton
- Winding Material CCAW
- Diaphragm Material Titanium
- Magnet Material Ferrite
- Body Material Aluminum
- Nominal Diameter 6.5” / 165 mm
- Throat Diameter 2” / 50.8 mm
- Sound Coverage 35°
- Rounded Body Material Aluminum
- Color/Finish Satin Black
- Overall Diameter 6.37” / 162 mm
- Total Depth 8.3” / 211mm
- Mounting Depth 7.9” / 201.5mm
- Mounting Hole Diameter 5.7” / 145mm
- Bolt Pattern / Type Ø 6.33“ / 161mm x 4 - 0.21” / 5.5mm
- Dimensions 7 x 7 x 8.75 M/C
- Weight 36.5 lbs M/C
- Dimensions 14.5 x 14.5 x 9.5
