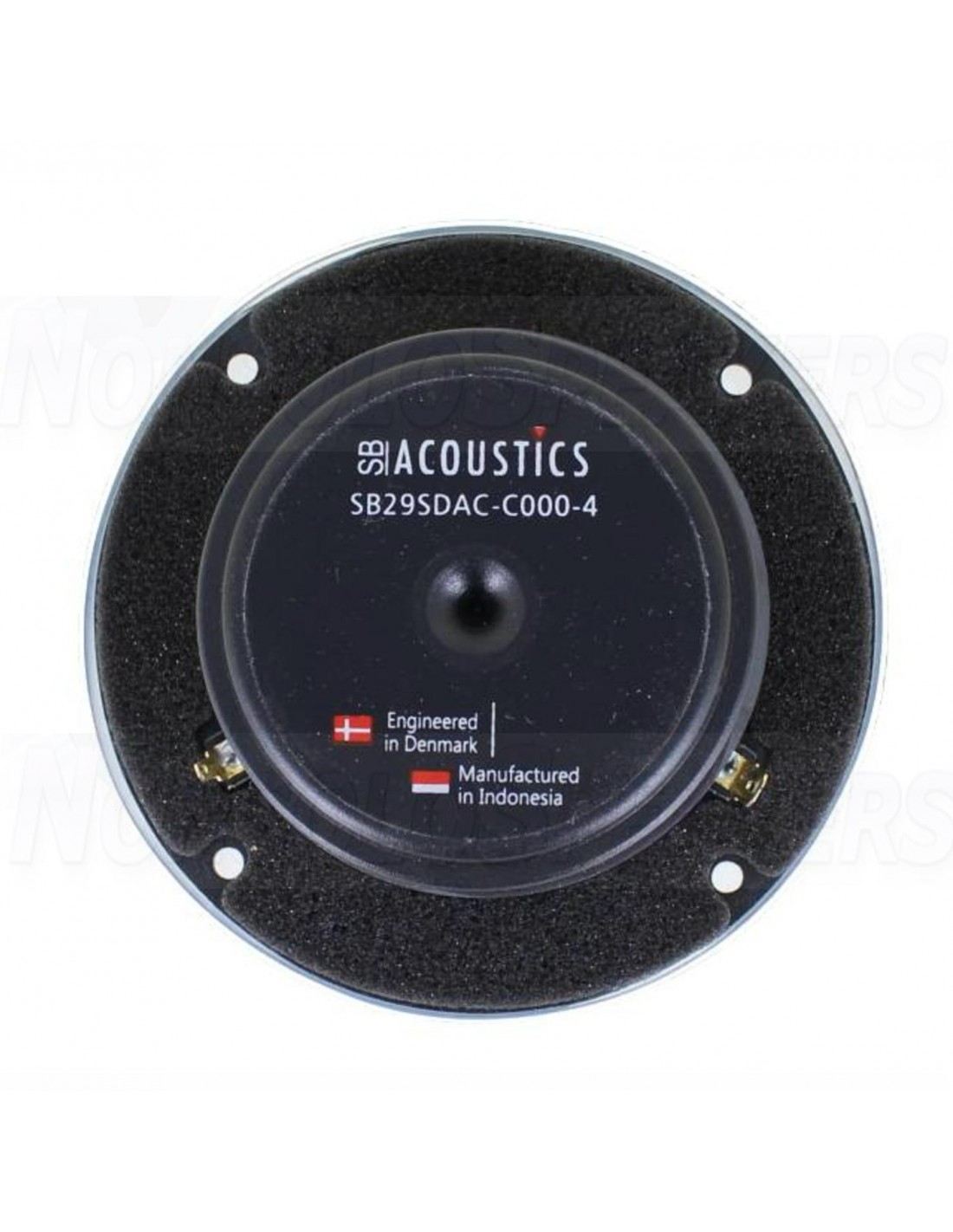

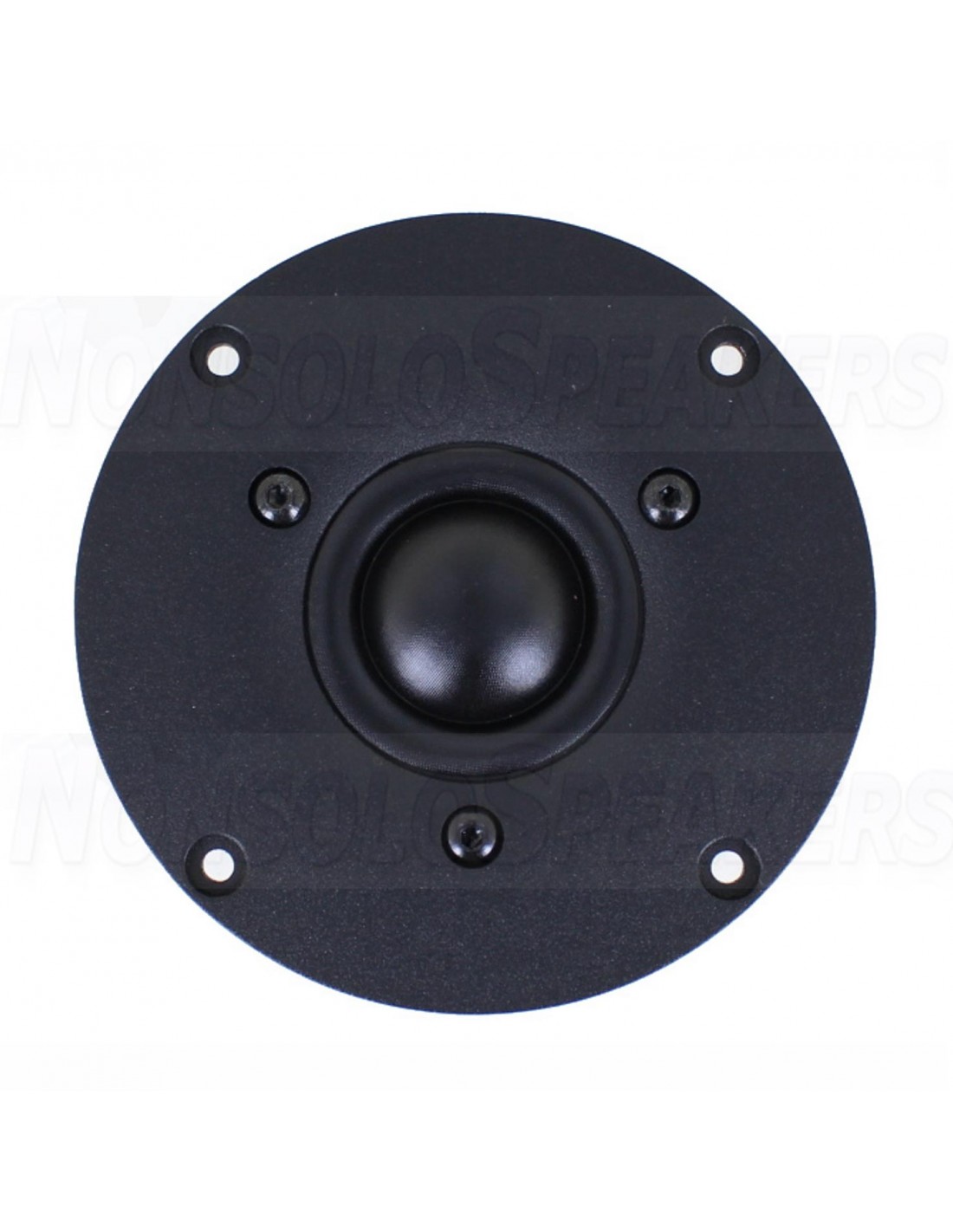

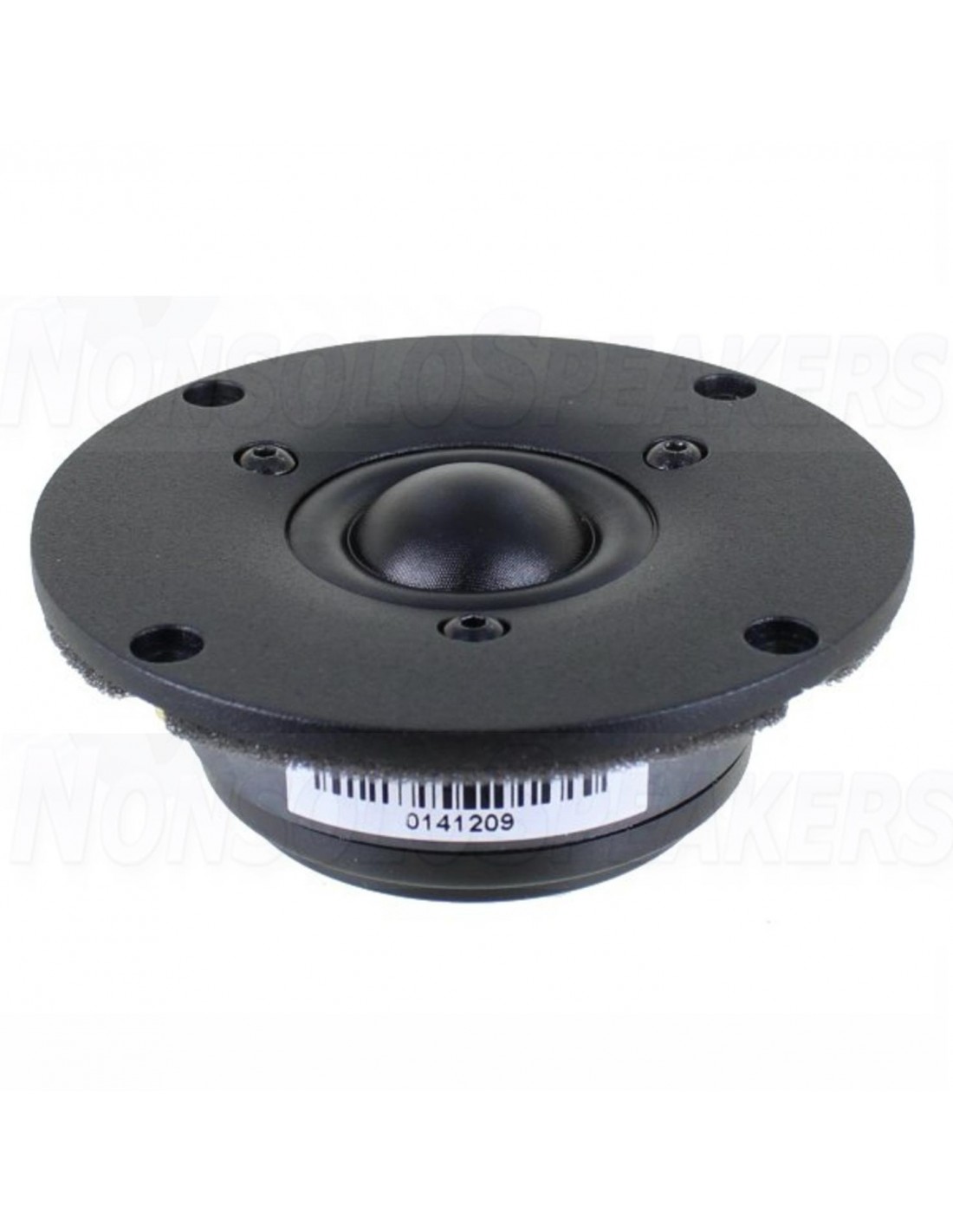

SB Acoustics SB29SDAC-C000-4 Dome Tweeter
SB Acoustics SB29SDAC-C000-4 Dome Tweeter
SB Acoustics SB29SDAC-C000-4 Dome Tweeter
SB Acoustics SB29SDAC-C000-4 Dome Tweeter
SB Acoustics SB29SDAC-C000-4 Dome Tweeter
SB Acoustics SB29SDAC-C000-4 Dome Tweeter

SB Acoustics SB29SDAC-C000-4 Dome Tweeter

SB Acoustics SB29SDAC-C000-4 Dome Tweeter

The SB29SDAC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics.

SHIPMENT IN 7/10 WORKING DAYS
€43.04 €45.31 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB29SDAC-C000-4 Dome Tweeter

.

Product description

Large surround dome for increased acoustic output

Dual balanced compression chamber for improved dynamics

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Non-reflective rear chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

Cast aluminum faceplate

.

Product details

SB Acoustics SB29SDAC-C000-4 Textile Dome Tweeter

The SB29SDAC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics. CCAW voice coil for low moving mass. Saturation controlled motor system for low distortion and low resonance frequency. Cast aluminum faceplate.

Specifications: BL Product (BL): 2.4 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

.

Specifications

Article numberSB29SDAC-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)60 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)93 dB
Resonant Frequency (Fs)600 Hz
DC Resistance (Re)3 ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)2.94
Electromagnetic Q (Qes)1.09
Total Q (Qts)0.80
SB29SDAC-C000-4
