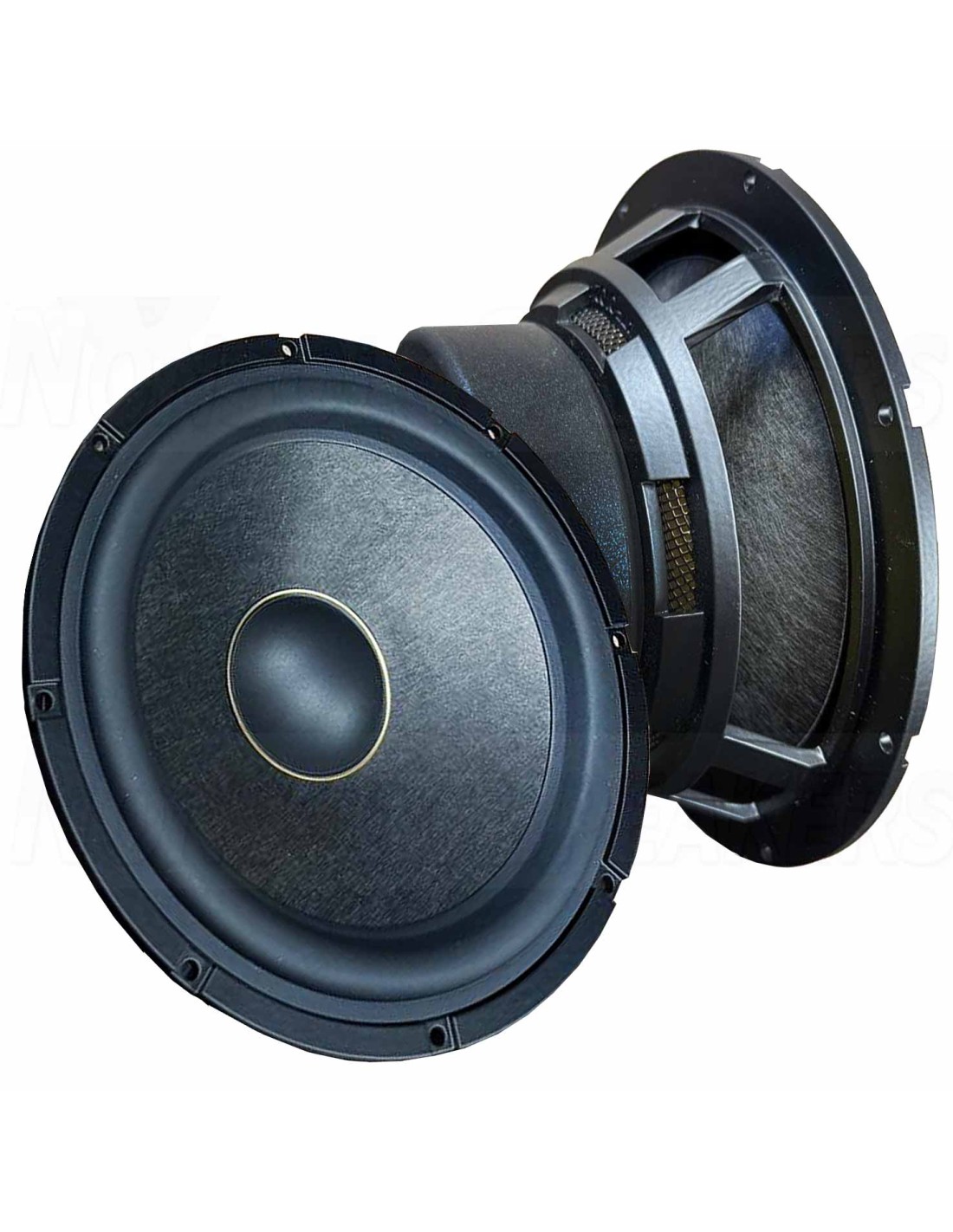

BRAX MATRIX ML165 Pro high end midwoofer -Pair-

.

BRAX MATRIX ML165 PRO – Reference-class 165mm high-end mid-bass driver.

The BRAX MATRIX ML165 PRO continues the legacy of the legendary ML6 D, taking mid-bass reproduction to a new level. Modern materials, a completely redesigned technical structure, and uncompromising attention to detail result in a speaker that reproduces music with impressive authority, exceptional precision, and emotional depth.

Whether as the centerpiece of a high-end front-firing system or as a precision woofer in multi-way reference installations, the ML165 PRO is designed for uncompromising audiophiles who expect maximum control, dynamics, and naturalness.

.

165 mm high-end mid-bass driver for reference systems

Multi-layered, ultra-rigid carbon fiber cone

Copper pole piece to linearize frequency response

Specially shaped rubber surround and Nomex spider for precise travel

High-precision magnet system for maximum control in the low-frequency range

Manufactured, selected, and documented in Germany

Measurements: 165 mm high-end mid-bass driver

Load capacity (RMS/Max.): 120/170 watts

Impedance: 4 Ω

Frequency range: 40 Hz – 4,000 Hz

Origin: Handcrafted in Germany, selected in pairs

.

Mechanics, Control, and Design

The special rubber surround, made of high-quality butyl, allows for exceptionally linear diaphragm excursion with minimal distortion. Its highly damping material promotes precise diaphragm guidance and prevents unwanted resonances in the suspension area, even at high excursions.

The robust Nomex spider structure, made of meta-aramid fabric, ensures precise and consistent centering and stable mechanical properties throughout its life. Together with the vented spider structure and vented pole piece, air circulation in the magnetic cavity is optimized and compression effects are significantly reduced.

The ML165 PRO model impresses with its refined appearance, thanks to the satin-finished membrane surface and fine structure, the matte black powder-coated aluminum basket, and the discreet decorative ring around the dust cap. This design combines acoustic functionality with an elegant, understated aesthetic that blends harmoniously into high-quality vehicle interiors.

Massive 24-karat gold-plated binding posts ensure maximum conductivity and pristine signal purity. Each ML165 PRO is individually manufactured, measured, selected, and serialized in Germany, and delivered in a custom-made wooden case, a testament to uncompromising build quality and audiophile craftsmanship.

.

Features at a Glance

Ultralight, multi-layered, non-woven carbon fiber cone with exceptional stiffness-to-weight ratio and low resonance.

Copper cap on the center pole piece reduces voice coil inductance and linearizes impedance in the higher frequency range.

Hemispherical dust cap optimizes mid-to-high frequency response and provides a smooth transition to the tweeter.

Aerodynamic, die-cast aluminum basket with optimal voice coil ventilation and minimized flow noise.

High-strength Nomex speaker shell constructed from meta-aramid fabric for excellent shape retention and long-term stability.

Specially shaped butyl rubber surround ensures maximum linear diaphragm excursion with minimal distortion.

Precision-engineered magnet system for symmetrical magnetic flux, high pulse fidelity, and powerful bass reproduction.

Ventilated center pole piece and vented surround reduce thermal compression and ensure consistent high-level performance.

Made in Germany: developed, engineered, and selected for uncompromising, reference-level sound quality.

.

BRAX MATRIX ML165 PRO Technical Specifications

• Load Capacity (RMS / Max.) 120 / 170 watts
• Impedance (Z) 4 Ω (Re = 3.4 Ω)
• Frequency Range 40 Hz – 4,000 Hz
• Resonant Frequency (Fs) 48 Hz
• Quality Factors (Qms / Qes / Qts) Qms = 6.80, Qes = 0.50, Qts = 0.47
• Conformity (CMS) 560 μm/N
• ΔEquivalent Volume (Vas) 14.6 liters
• Force Factor (B*I) 6.3 Tm
• SPL Efficiency 91 dB at 2.83 V/1 m, 88 dB at 1 W/1 m
• Diaphragm Area (Sd) 137 cm²
• Moving Mass (mms) 19.1 g
• Membrane material: Multilayer carbon fiber membrane
• Mechanical resistance (Rms) 0.87 kg/s
• Voice coil/winding width: 37 mm / 14 mm
• Maximum linear travel (Xlin) ± 4.0 mm
• Maximum mechanical travel (Xmax) ± 8.0 mm
• Outer diameter: 167 mm
• Installation diameter: 143 mm
• Installation depth: 64 mm

.

Installation recommendations:

a) Infinite baffle

Recommended high-pass filter: 50 Hz / 24 dB/octave Linkwitz-Riley

b) Enclosed enclosure

Net volume: Lower cut-off frequency (-3 dB) Recommended high-pass filter

Approximately 13 liters: 71 Hz / 65 Hz / 24 dB/octave Linkwitz-Riley

Note: Enclosed spaces should always be completely filled with suitable sound-absorbing material to achieve the best possible reproduction. Linear and controlled as possible.

Delivery Contents

2 BRAX MATRIX ML165 PRO high-end mid-bass speakers

1 drill bit

1 high-quality screwdriver

1 set of stainless steel screws

1 certificate with serial number and documentation

1 x Data Sheet
