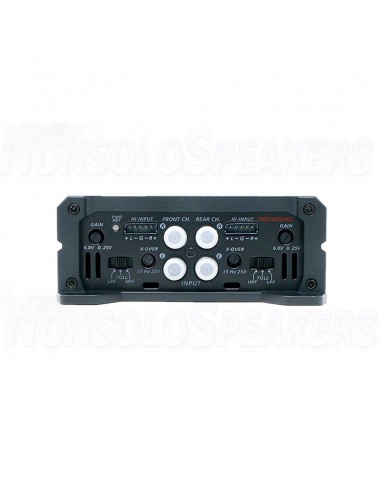

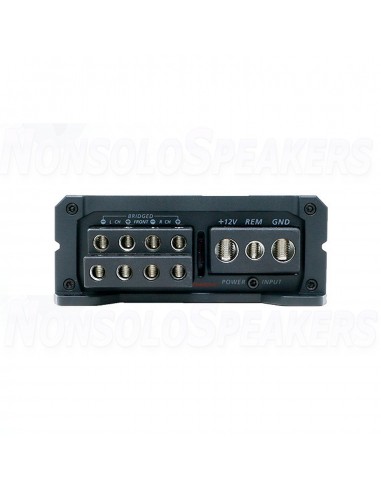

Cerwin Vega XED 400.4D 4 channel amplifier

Product description

4-channel XED series class D amplifier / 400W MAX - XED4004D.
The world's best 4-channel Class-D amplifier is the only one readily available and available on CVM's website.

Features:

Latest high efficiency class D topology
Compact size with ambient backlit logo
RCA “Pass Thru” output for easy system expansion
Fully variable dividers (12 dB per octave)
Handles HI and LO level input to 12V
2 Ω stable stereo and 4 Ω mono (CH3 /4) for 3-channel mode
Owner Vega Bass Boost EQ up to 12 dB.

Technical data

• Number of channels 4
• Amplifier class D
• Maximum power 400W
• Power into 2 ohms RMS 4x90W
• Power into 4 ohms RMS 4x60W
• Frequency range 10Hz-30KHz
• High pass filter Yes, 35Hz-250Hz
• Low pass filter Yes, 35Hz-250Hz
• Remote control/bass remote control YES
• Attenuation factor >70
• Input sensitivity 250mV - 6.0V
• Recommended power and ground cable 10mm2
• THD <0.1%
• Low level output NO
• Dimensions 160×120×46.5
