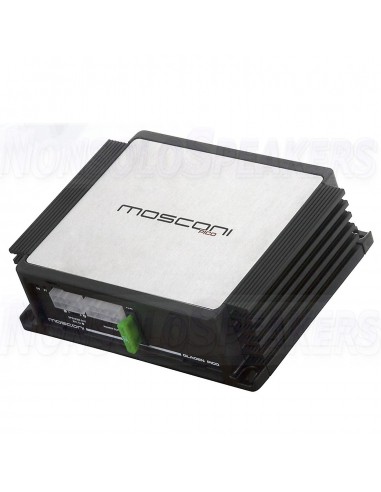

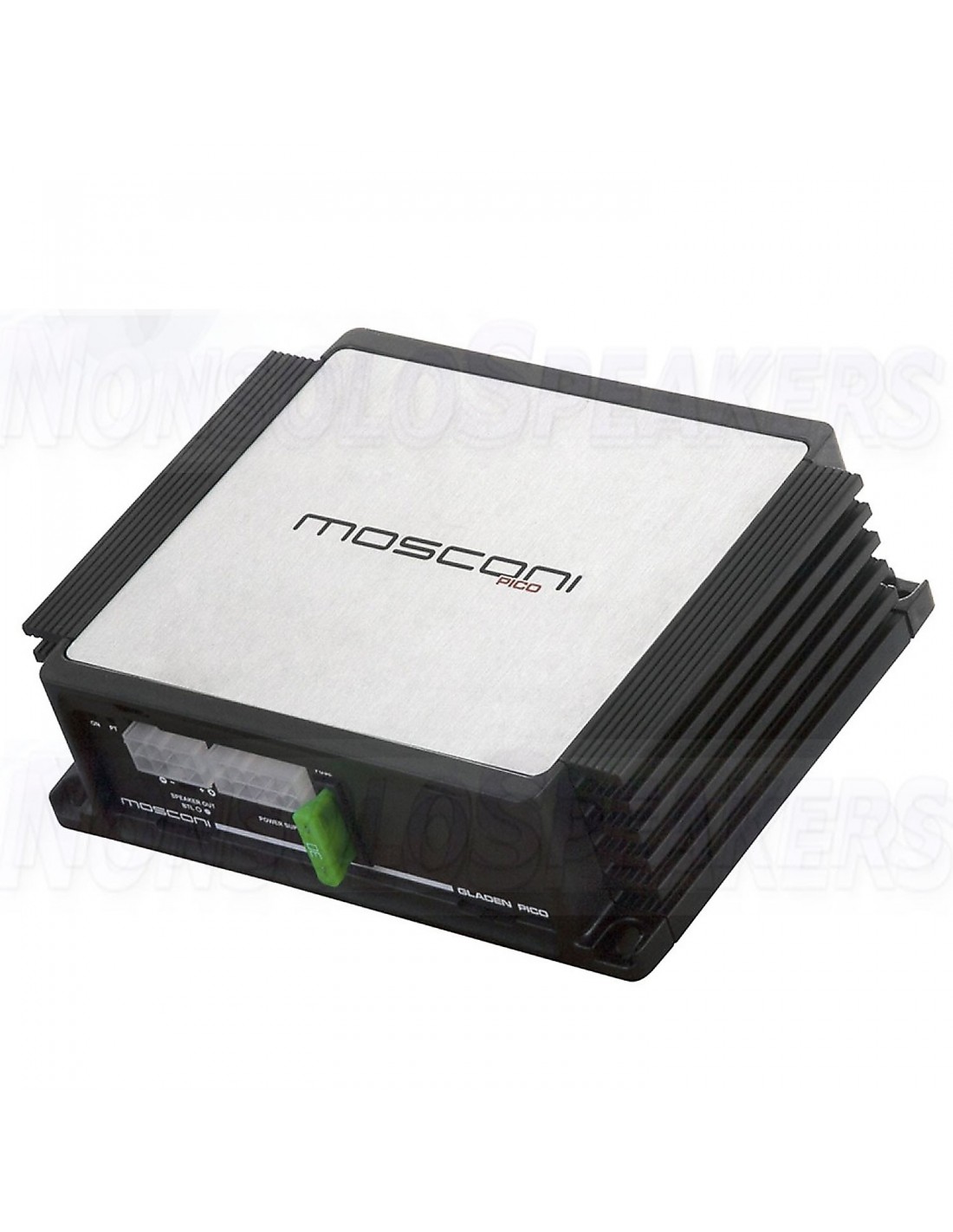

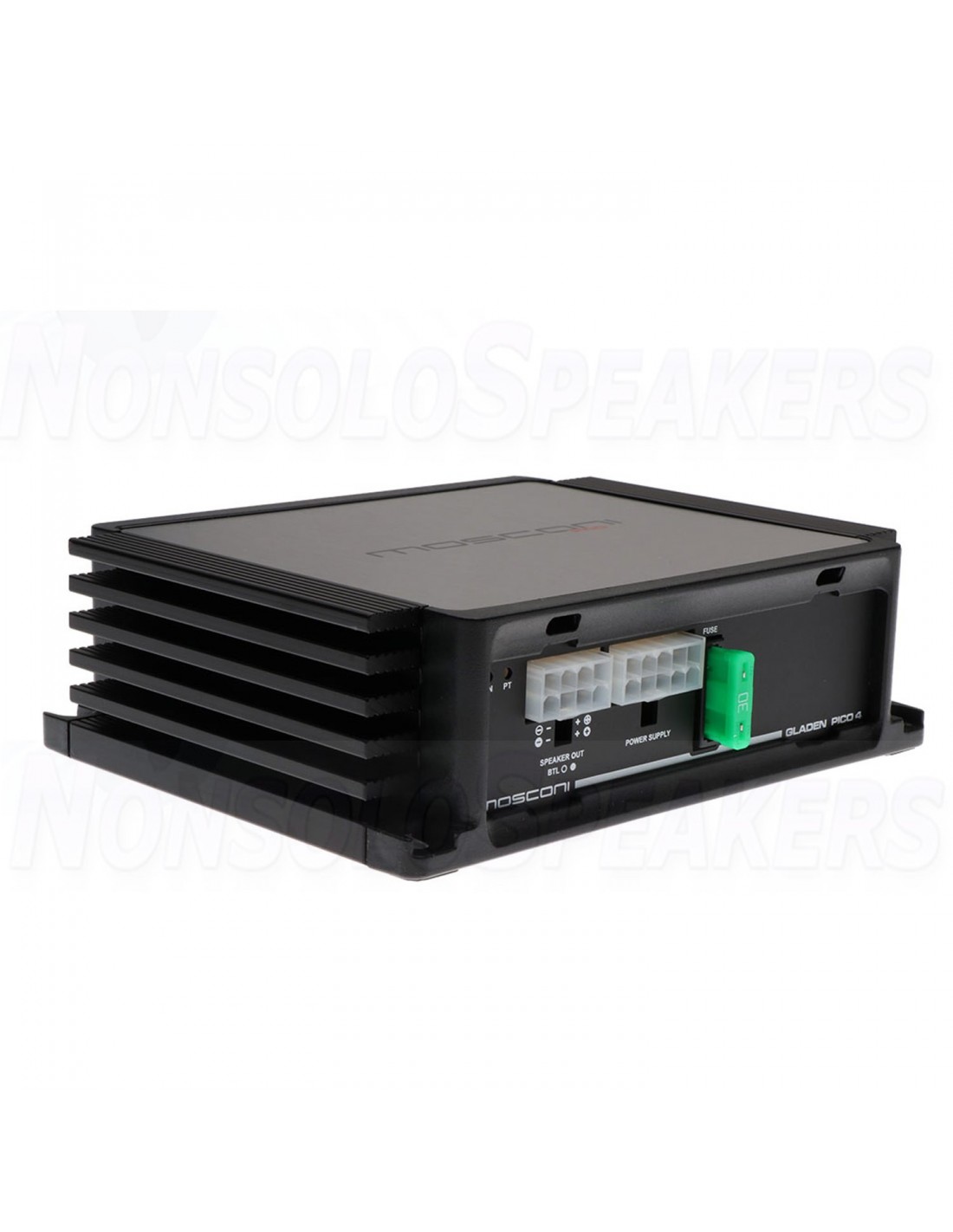

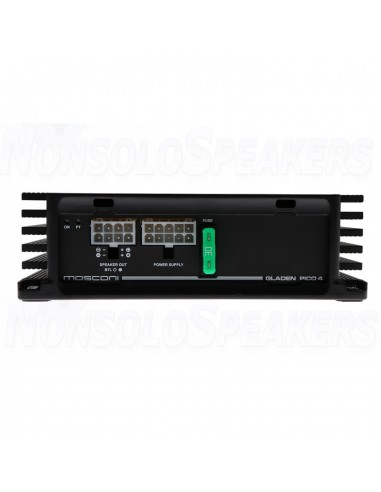

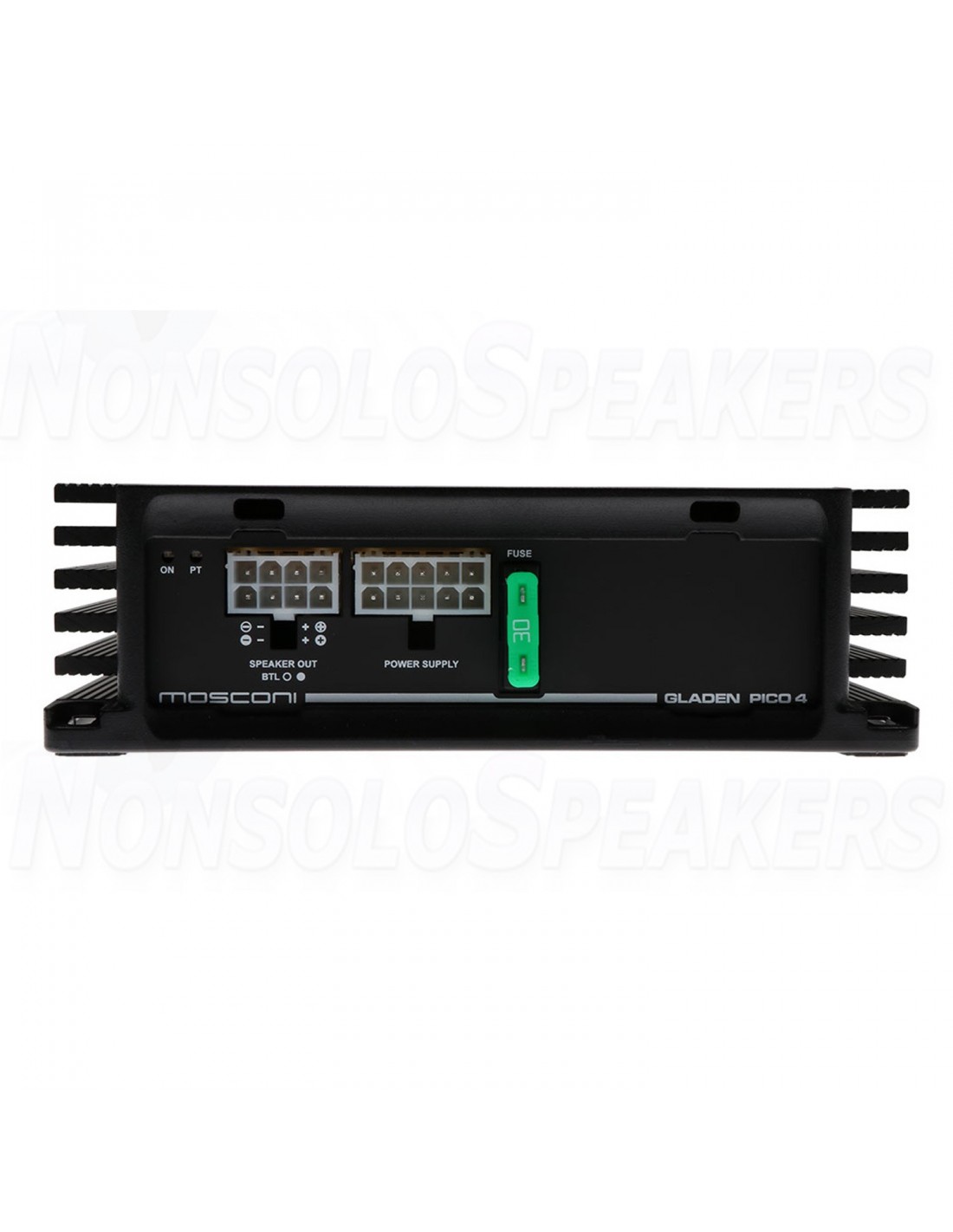

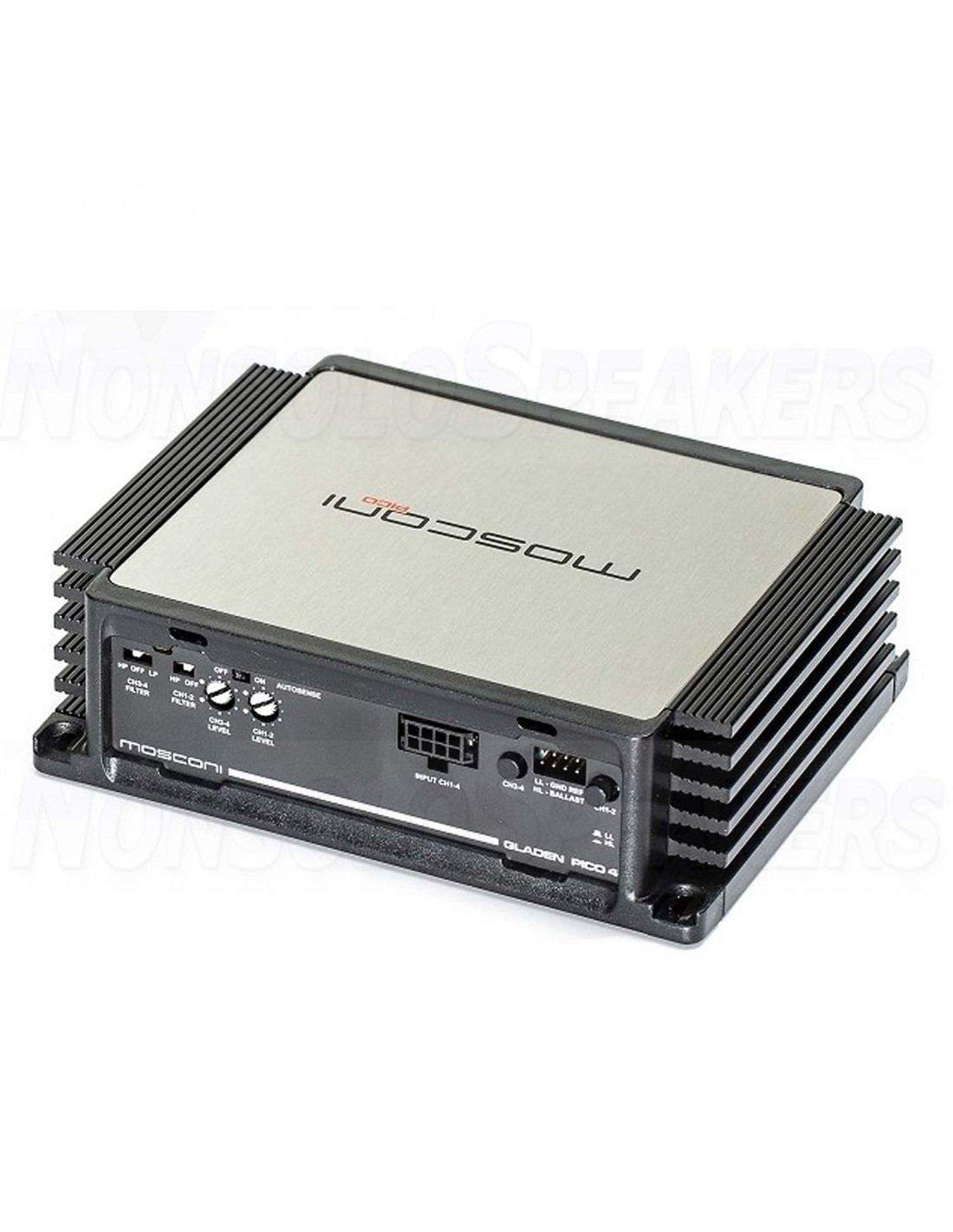

MOSCONI Gladen PICO 4 amplifier 4-channel digital
SHIPMENT IN 7/10 WORKING DAYS
€449.00
Tax included
No review at the moment
MOSCONI Gladen PICO 4 amplifier 4-channel digital
Four-channel full-range PWM amplifier with separate, synchronized modulation.
Output power RMS @ 4 ohms 4 x 90 W Output power RMS @ 2 ohms 4 x 120 W Output power mixed RMS @ 4 ohms 2 x 85 + 1 x 245 W. Output power bridged @ 4 ohms 1 x 220 W Minimum load impedance 2 ohms
You might also like
MOSCONI Gladen PICO 4 amplifier 4-channel digital
4-channel amplifier, digital, 4 x 90 WRMS @ 4 ohms
Description
Four-channel full-range PWM amplifier with separate, synchronized modulation.
Up to 480Wrms total power, bridgeable and 2-ohm stable. The PICO 4 thus masters every constellation: whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with double voice coil.
The ideal addition to a PICO DSP power amplifier, but can also be used universally with the high-level and low-level input and its own filters.
Technical specifications
Output power RMS @ 4 ohms | 4 x 90 W |
Output power RMS @ 2 ohms | 4 x 120 W |
Output power mixed RMS @ 4 ohms | 2 x 85 + 1 x 245 W. |
Output power bridged @ 4 ohms | 1 x 220 W |
Minimum load impedance | 2 ohms |
Efficiency above all | > 75% |

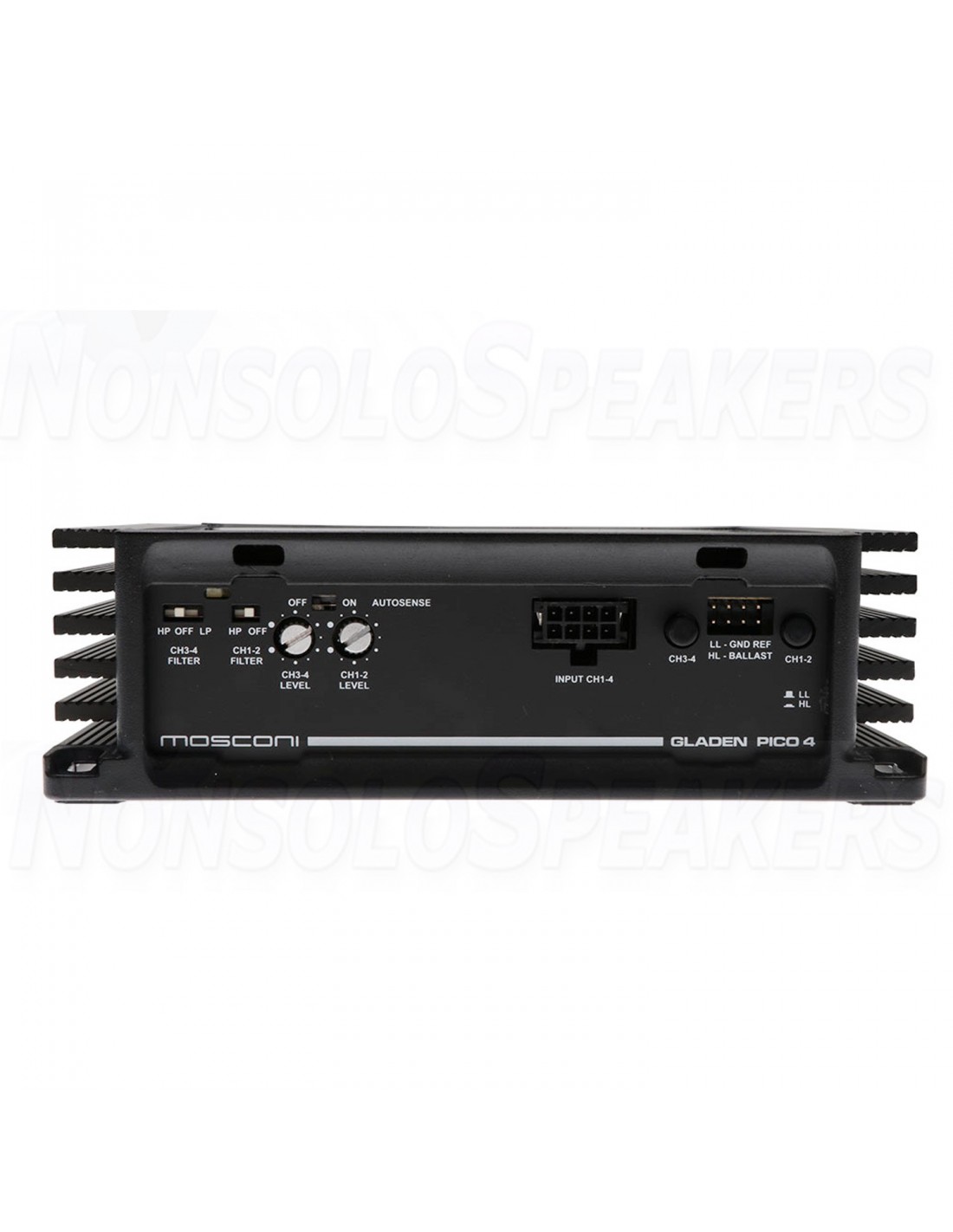

Input voltage (LL + HL) | 0.3 ÷ 20V |
Auto-On (only high level) | Off - BTL |
Channel 1 + 2 filter (HP) | Off - 80 Hz (12 dB / Oct) |
Channel 3 + 4 filter (HP / LP) | Off - 80 Hz (12 dB / Oct) |
Dimensions | 150 x 115 x 46 mm |
Weight | 1050 grams |
Gladen PICO 4
