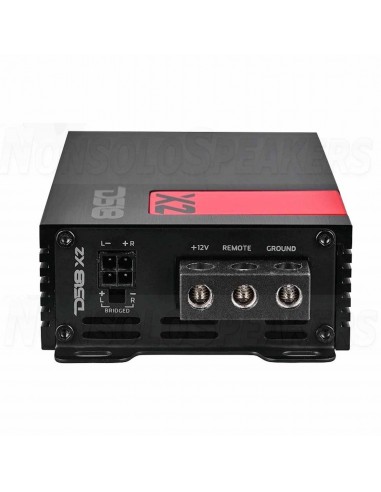

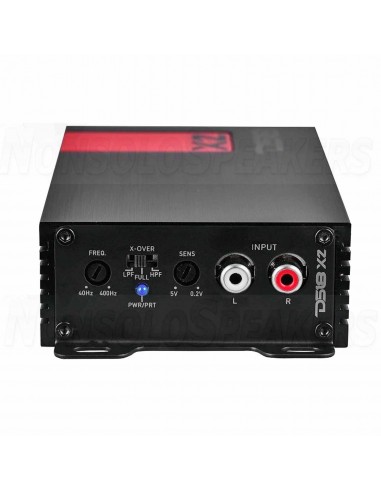

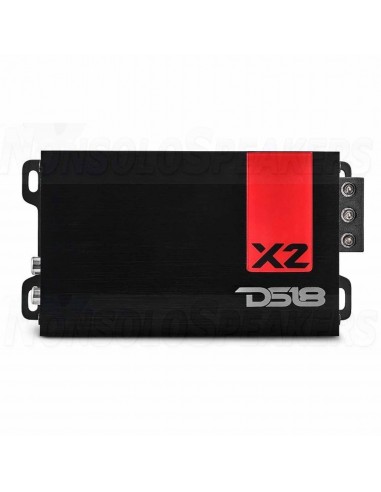

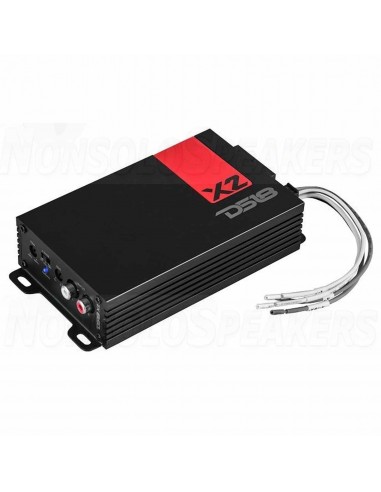

DS18 X 2 2-Channel Ultra Compact Class D Amplifier 4-ohm

DS18 X 2 2-Channel Ultra Compact Class D Amplifier 4-ohm

Name: DS18 X 2 2-Channel Ultra Compact Class D Amplifier 4-ohm
Brand: DS18
SKU: DS18 X 2
Price: 180 EUR
Availability: InStock

DS18 X 2 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms 4-ohm

SHIPMENT IN 7/10 WORKING DAYS

€180.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€19.08

Shipping Time

Want to check another country or courier?

DS18 X 2 2-Channel Ultra Compact Class D Amplifier 2 x 140 Watts Rms 4-ohm

DS18’s X2 defies expectations by combining mind-blowing power with an incredibly compact design. Featuring some of our smallest dimensions, tDS18’s X2 effortlessly finds its place in even the tightest of spaces. Imagine the possibilities: you can now install multiple X series amps in any of your custom builds, daring you to complete the audio system of your dreams, all securely tucked away. Embrace your sound without compromising on size or power. Don't let its size deceive you.

The X2 delivers an astonishing amount of power for its compact size, making it an exceptionally versatile amplifier suitable for a wide range of applications. DS18’s X2 unleashes an astonishing output of 140W RMS x 2 channels at 4 ohm. But that's just the beginning. When the impedance drops to 2 ohm, the X2 releases an even mightier performance—230W RMS x 2 channels. Enough pure power to bring your music to life with unparalleled vitality. Experience the peace of mind that comes with the X2's stability and reliability. This amplifier is built to endure, with a four-layered traces PCB design, surface mount component technology, and audio precision quality control verification.

DS18 leaves no stone unturned when it comes to ensuring top-notch performance. With easily adjustable filters, the X2 makes it a breeze to fine-tune your audio system. Effortlessly achieve the perfect balance for your mids and tweeters with the X2’s easily adjust LPF/FLAT/HPF filters, resulting in an immersive audio experience tailored to your unique preferences. DS18’s X2 is a gateway to audio excellence — taking you on a journey you'll never want to end.

Technical Specifications:

CLASS Class D / Digital
Amplifier Type Micro Stereo Full Range
Channels 2
Total Watts Peak 1140W
RMS Power @ 4 Ohm 140W x 2 CH
RMS Power @ 2 Ohm 230W x 2 CH
RMS Power @ 4 Ohm Bridge 380W x 1 CH
Frequency Response 20Hz - 20Khz
Signal/Noise Ratio >90 dB
Efficiency @ 4 Ohm >80%
Damping Factor >201
THD % <0.2%
Low Level Input Range 0.2-5V
Selectable X-Over LPF/FLAT/HPF
X-Over Filter Range 40Hz - 400Hz
Minimum Impedance 2 Ohm
Led Indicator
Power/Protection
Power Input Size 12GA
Fuse Rating 40A
Thermal Protection Yes
Over Load Protection Yes
DC Output Protection Yes
Short Circuit Protection Yes
Voltage Input Protection Yes
Dimensions L x W x H (inches) 5.54 x 3.24 x 1.37”
Heatsink Length 4.75”
Stable/Reliable Four Layers Yes
Surface Mount Yes
Audio Precision Control Yes

Reference DS18 X 2

In stock 4 Items
