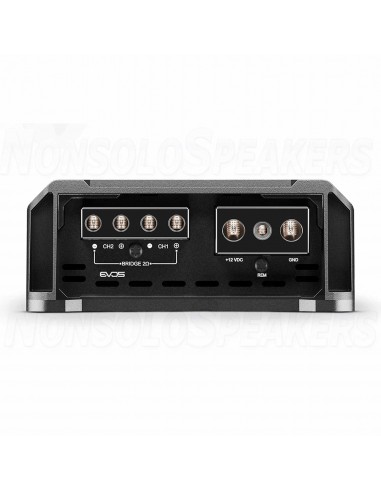

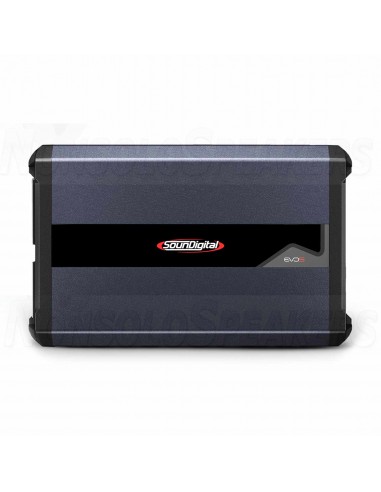

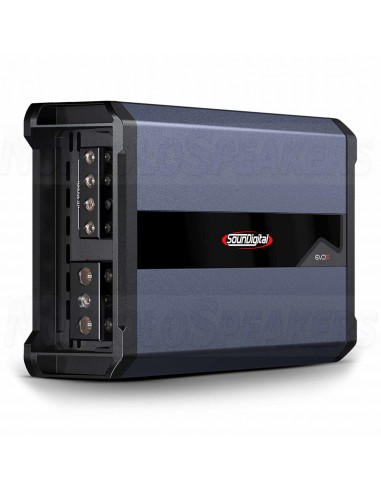

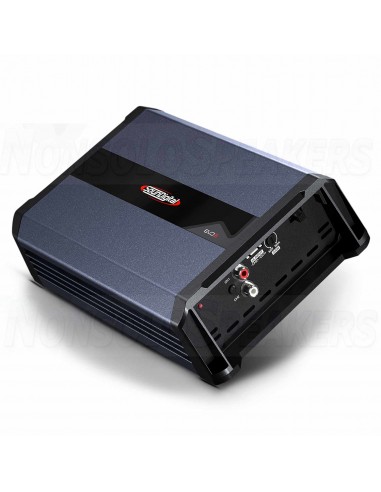

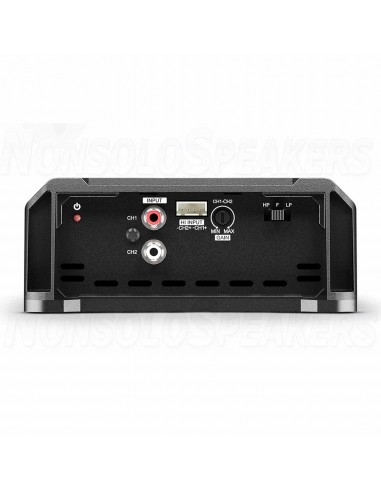

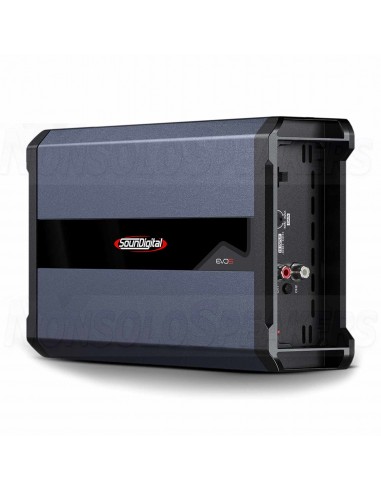

SounDigital SD2000.2 EVO 5 - 2 Ohm 2 channel amplifier

SounDigital SD2000.2 EVO 5 - 4 Ohm 2 channel amplifier

The 2000.2 EVO 5 is a compact, modern amplifier that delivers 2000W RMS of power distributed over 2 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Power @ 1Ω: 2 X 1000W

Power @ 2Ω: 2 X 660W

Bridge Power @ 2Ω: 1 X 2000W

Bridge Power @ 4Ω: 1 X 1320W

Frequency Response (-3dB):10Hz ~ 20kHz

Low Pass Filter (LP -12dB/8):80Hz

High Pass Filter (HP -12dB/8):80Hz

Operating Voltage:8V ~ 16V

SNR:90dB

Input Sensitivity:0.2 ~ 4V

Current Draw (Music):

2Ω: 89A

4Ω: 88A

Current Draw With Resistive Load (1kHz @ 12.6V):

2Ω: 178A

4Ω: 176A

Total Efficiency:

2Ω: 89%

4Ω: 90%

Damping Factor (@100Hz Rated Impedance):200

Minimum Audio Output Impedance:

2Ω: 1 ohm

4Ω: 2 ohms

Minimum Bridge Impedance:

2Ω: 2 ohm

4Ω: 4 ohms

Recommended Fuse (Music):100A

Recommended Battery (Music):100Ah

Width: 5.4 in / 13,6 cm

Length: 8.9 in / 22,7 cm

Height: 2.2 in / 5,5 cm

Weight: 3.39 lb / 1,54 Kg
