DLS Signature S1 single channel amplifier

The DLS Signature S1 is a reference 1-channel digital car amplifier co-developed with Gordon Taylor.

In 2019, 40 years have passed since the creation of DLS. For four decades, they've been giving auto hifi enthusiasts exactly what they wanted, but they knew they could do even better. Together with Gordon Taylor, they are now embarking on a new path to perfection.

.

Shut up honey

A really great amp makes no sound at all by itself. The Signature Series has unmatched low distortion and extremely high signal-to-noise ratio, so you can hear only the music and experience new details in your favorite tracks with warm clarity and tight mid-bass with impressive authority.

.

Optimized for perfection

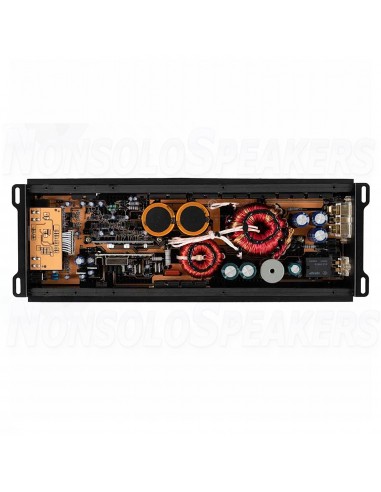

No detail was left unedited. From its own cooling system to the power supply. Each channel has even been trimmed individually and each component synchronized with each other so that the individual channels work in perfect harmony. When used in conjunction with a digital audio processor, there is the ability to bypass all preamplifier circuitry, allowing the DSP to gain complete control over all audio tuning parameters. This allows a clean and unaltered signal to reach the amplification stage in full without sonic degradation.

.

DLS Signature S1 parameters

Energy class D

RMS power: 1x 450/800/1000 W at 4/2/1 Ohm

Frequency range: 10 - 250 Hz

Signal/Noise ratio: 94 dB

Damping factor: 150

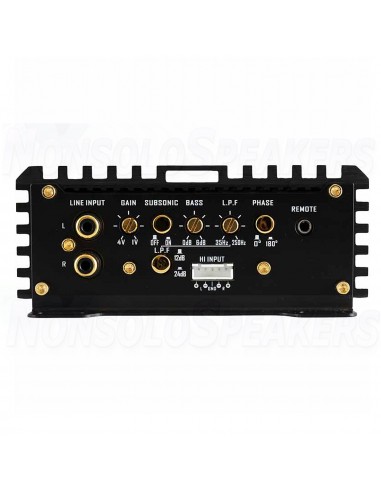

Input sensitivity: 1-4 V

Built-in low-pass LPF: 35-250 Hz with adjustable slope 12/24 dB/Oct

Variable phase setting 0-180°

Bass Boost 0-6 dB at 45 Hz

Built-in Subsonic filter: 30 Hz (ON/OFF)

High-level inputs with automatic switching function

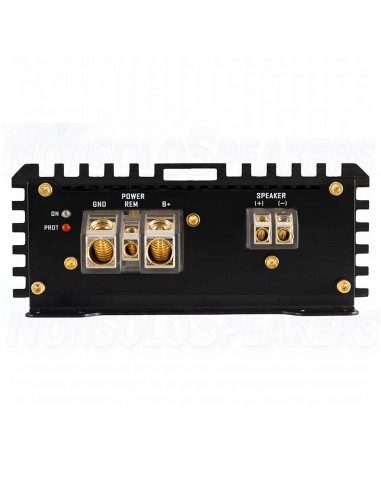

Connection terminals for power wiring by 33 qmm

Remote bass remote controller included in the package

Recommended fuse: 100 A

Dimensions: 129 x 370 x 54 mm

Weight: 2.9 kg

Price for 1 piece
