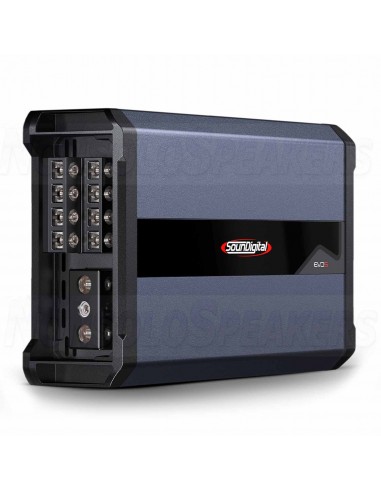

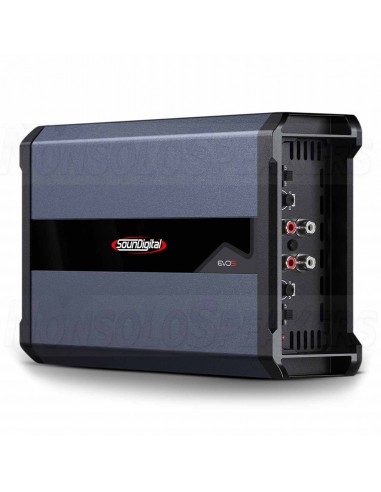

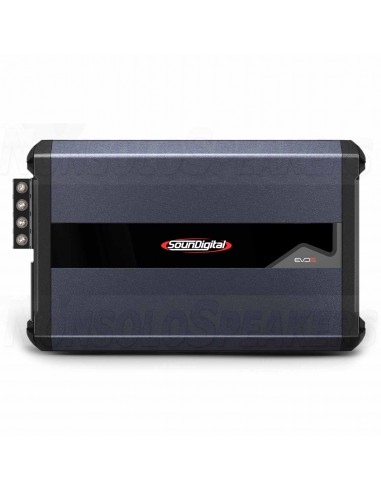

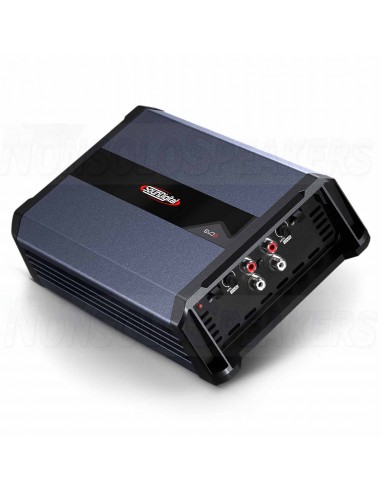

Soundigital SD2000.4 EVO 5 amplifier 4 channel 2 Ohm

Soundigital SD2000.4 EVO 5 amplifier 4 channel 2 Ohm

The Soundigital SD2000.4 EVO5.0 is a truly powerful full-range multi-channel digital amplifier with excellent efficiency. EVO5 brings the latest technology in compact design and high quality components. With pioneering technology. Soundigital Evo5 series amplifiers change the concept of STRONG playing! In a short time, this amplifier brand has grown into one of the largest manufacturers in Brazil. And no wonder, as each amplifier is designed and manufactured in their own factory. The design team includes a number of tough names from the so-called Pancadao builders, these are cars that play music continuously for really long periods of time at outdoor events. This hobby puts amplifiers really hard and no compromise in design is the solution

Technical Specifcations

• Power at 12.6V @ 60Hz with a maximum thd of 1%
• Power @ 12.6V @ 4Ω: N/A
• Power @ 12.6V @ 2Ω: 4 X 330 WRMS
• Power @ 12.6V @ 1Ω: 4 X 500 WRMS
• Bridge Power @ 12.6V @ 4Ω: 2 X 600 WRMS
• Bridge Power @ 12.6V @ 2Ω: 2 X 1000 WRMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 91 A
• Current Draw (Max): 182 A
• Recommended Fuse (Music): 100 A
• Total Efficiency: 87%
• Damping Factor: 200
• Frequency Response (-3dB):10Hz – 22kHz SNR: 90dB
• Crossover HPF: 80Hz
• Crossover LPF: 80Hz
• Power cable size 21mm2
• Speaker cable size 2 x 2mm2
• Product Dimensions: 8.9 x 5.4 x 2.2 in
• Product Dimensions: 22.7 x 13.6 x 5.5 cm
