    SHIPMENT IN 7/10 WORKING DAYS
    €399.00
    Tax included
    rating No review at the moment

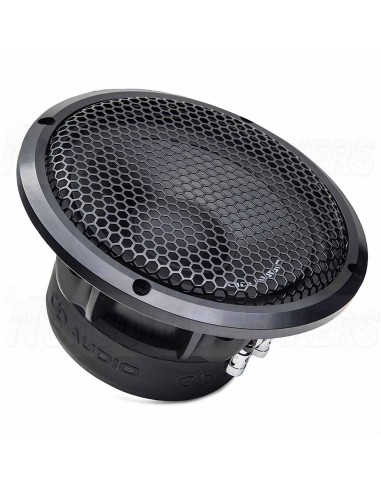

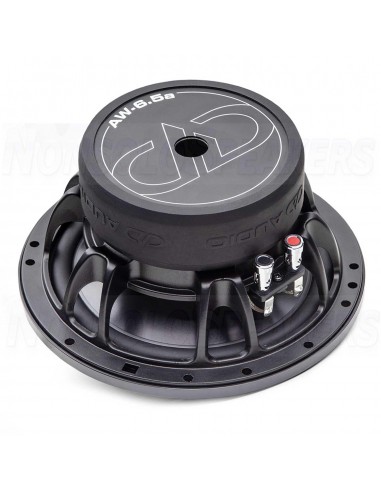

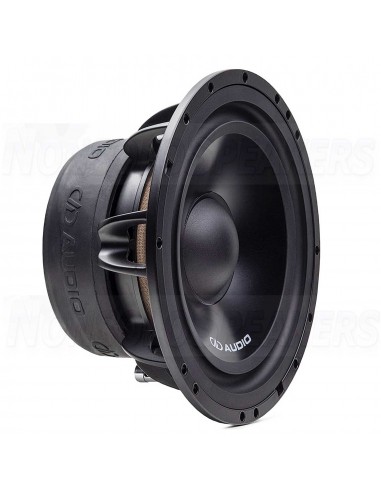

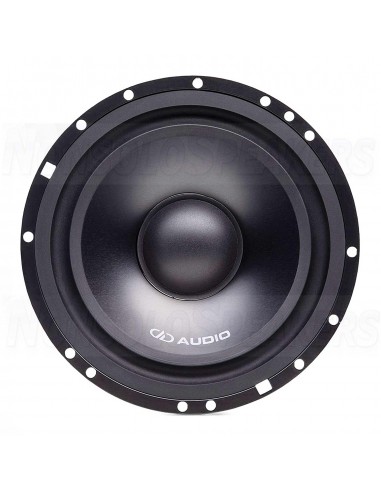

    DD Audio AW6.5a  High End mid woofer 165mm - Pair -

    The AW-6.5a mid-woofers represent “state of the art” in driver technology.

    Estimated Shipping Costs
    Shipping Costs
    €19.20
    Shipping Time
    .
    Want to check another country or courier?



    DD Audio AW6.5a  High End mid woofer 165mm - Pair -

    The AW-6.5a mid-woofers represent “state of the art” in driver technology. The open design cast aluminum baskets provide an ultra rigid support system while also functioning as an additional heatsink and shorting ring. A high-energy double shorting ring motor is matched to a 1.5” copper clad aluminum wire, Kapton former voice coil, providing balanced output efficiency and power handling. The inverted butyl rubber surround and composite spider work in tandem to damp unwanted vibrations while providing control and linearity. An aluminum cone with a b dustcap offers the neutral sound of a pulp cone with the precision only an ultra rigid cone can deliver. This combination achieves wide bandwidth and efficient energy transfer to the air.

    .

    Specifications

    Speaker Size (In): 6.5

    Watts RMS: 75

    Watts Peak: 200

    Impedance: S4

    VCD (In): 1.5

    Frequency Response (Hz): 50 - 20k

    Fs (Hz): 62

    Qms: 4.835

    Qes: 0.452

    Qts: 0.413

    Vas: 14.714

    dBSPL: 91

    Mounting Diameter (In): 5.75

    Mounting Depth (In): 2.9

    AW6.5a
