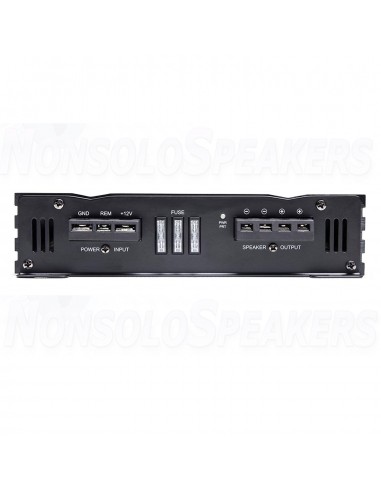

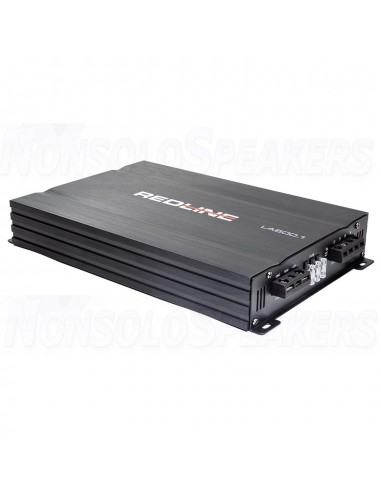

DD Audio RL-LA600.1 600W Monoblock Amplifier

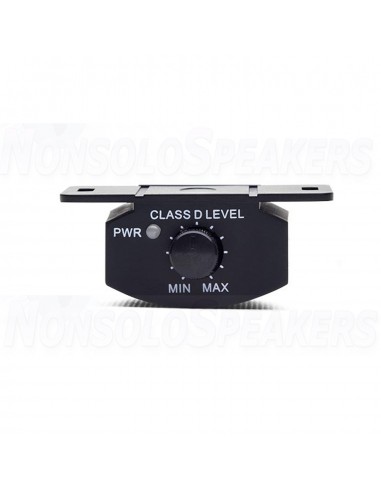

The Class D RL-LA600.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or DD REDLINE multi subwoofer setups. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume. When paired with a DD AUDIO SC2 or SC4 active line output converter, the REDLINE LA Series amplifiers provide a seamless factory integrated amplification solution. The REDLINE LA Series amplifiers utilize spade terminals for clean and secure connections on both the power input and speaker outputs.

-

Operating Voltage: 9 - 16

Test Voltage: 14.4

Output Channel(s): 1

Continuous Wattage @4ohm: 1 x 180

Continuous Wattage @2ohm: 1 x 350

Continuous Wattage @1ohm: 1 x 600

Dynamic Wattage: 1200

Max Current Draw (Amps): 60

RCA Input Voltage Sensitivity: 6 - 0.25

RCA Input S/N: 85

THD: 0.1%

Bass Boost: 6dB @ 45Hz

Frequency Response (Hz): 20 - 500

Sub-Sonic Filter: 10 - 50

Low-Pass Filter: 32 - 300

ZVL Input: No

Pass Thru Output: No

Power Wire Gauge: Spade Terminal

Speaker Wire Gauge: Spade Terminal

Dimensions (Inches): 11.75 x 8.25 x 2

Dimensions (MM): 298 x 209 x 51
