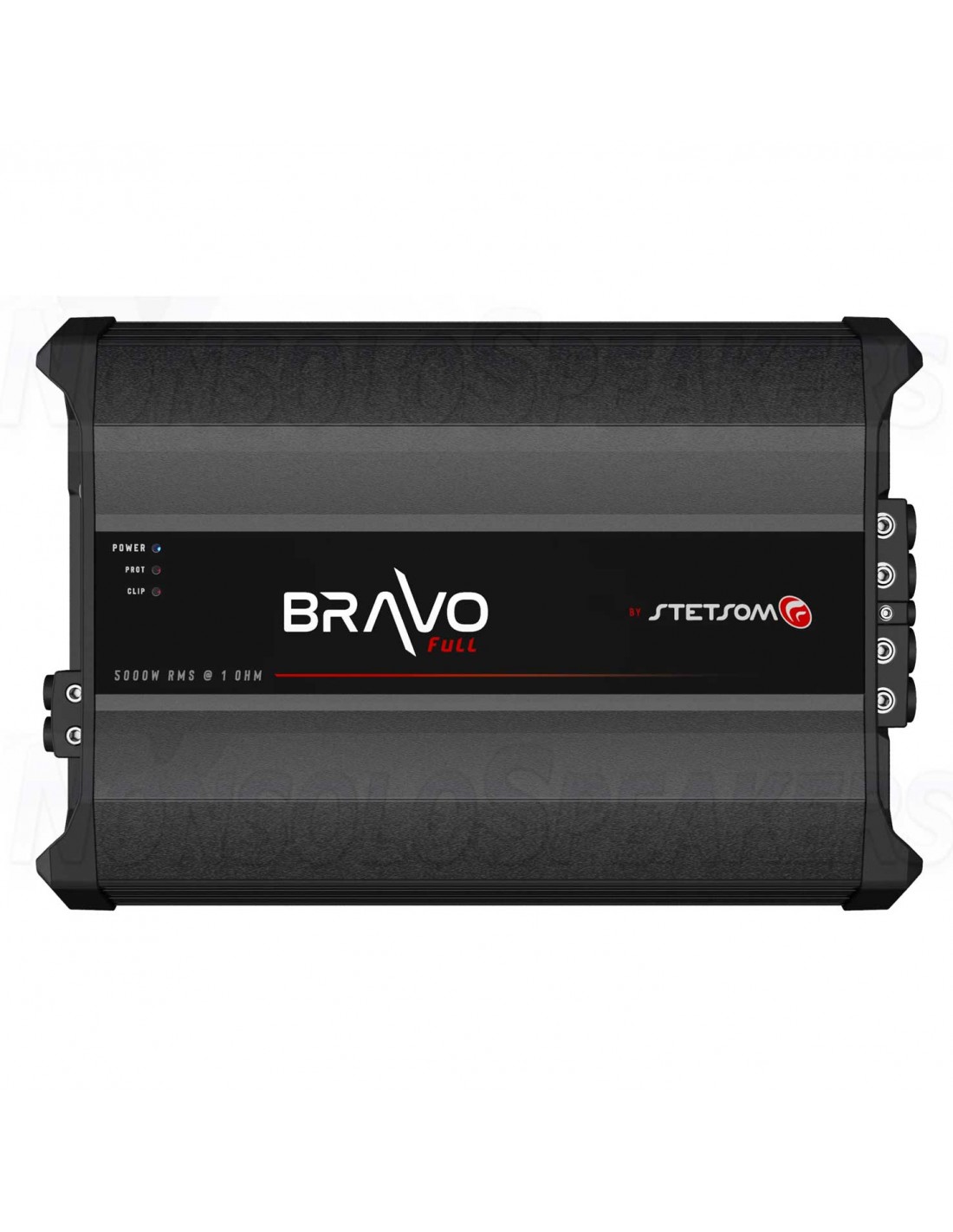

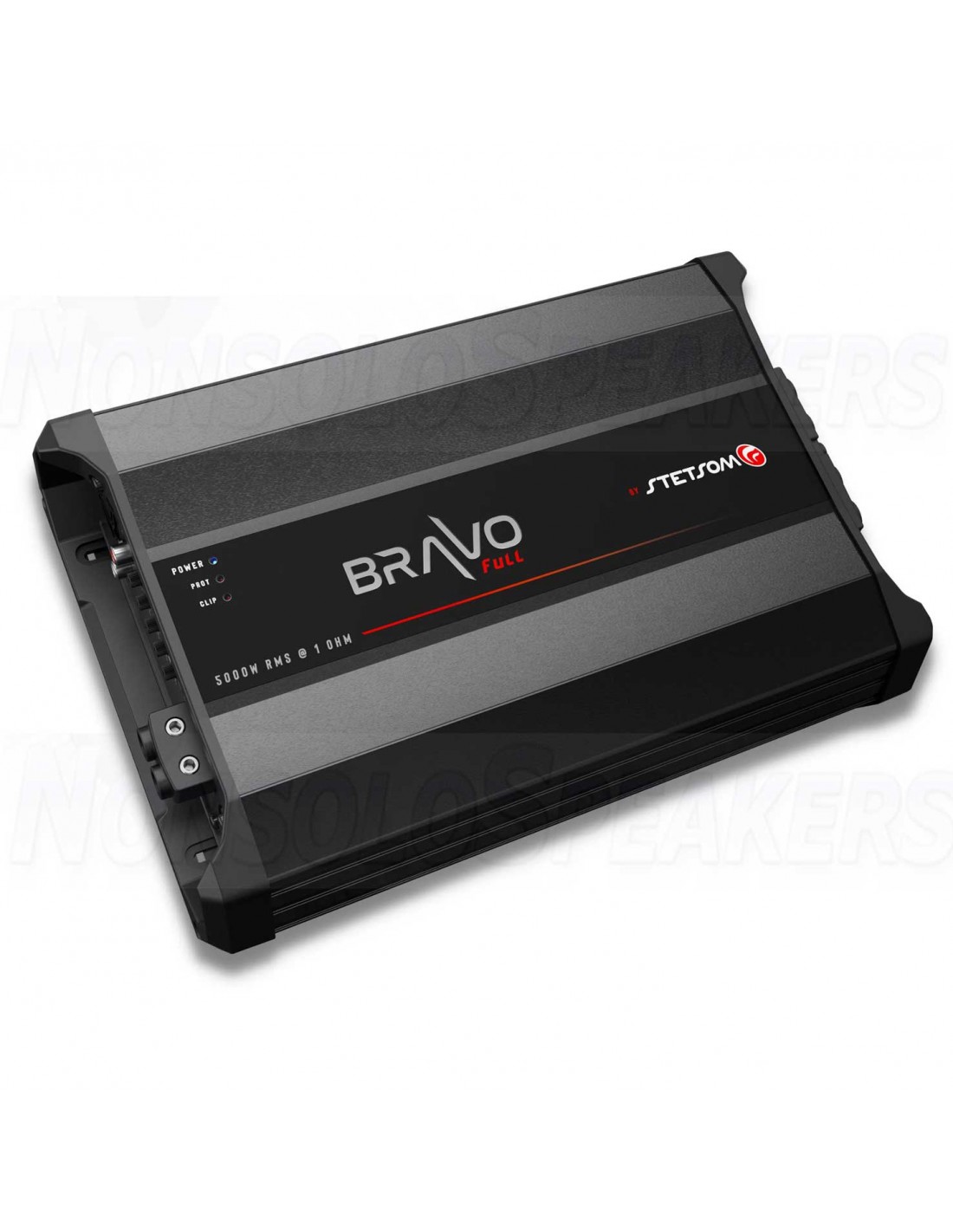

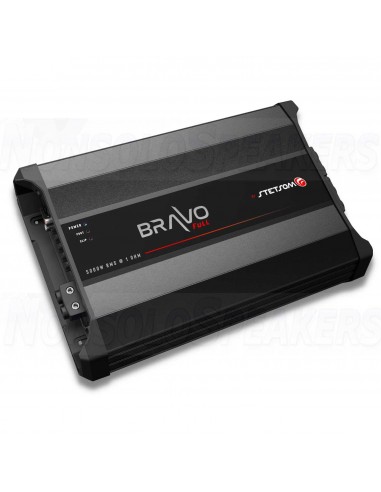

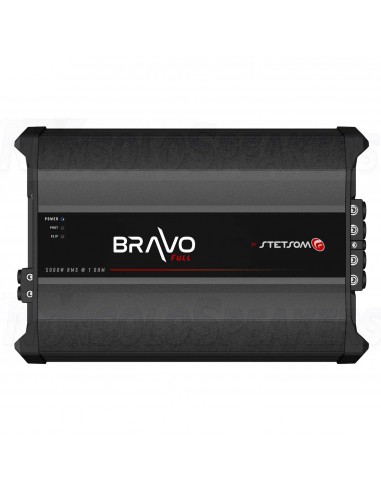

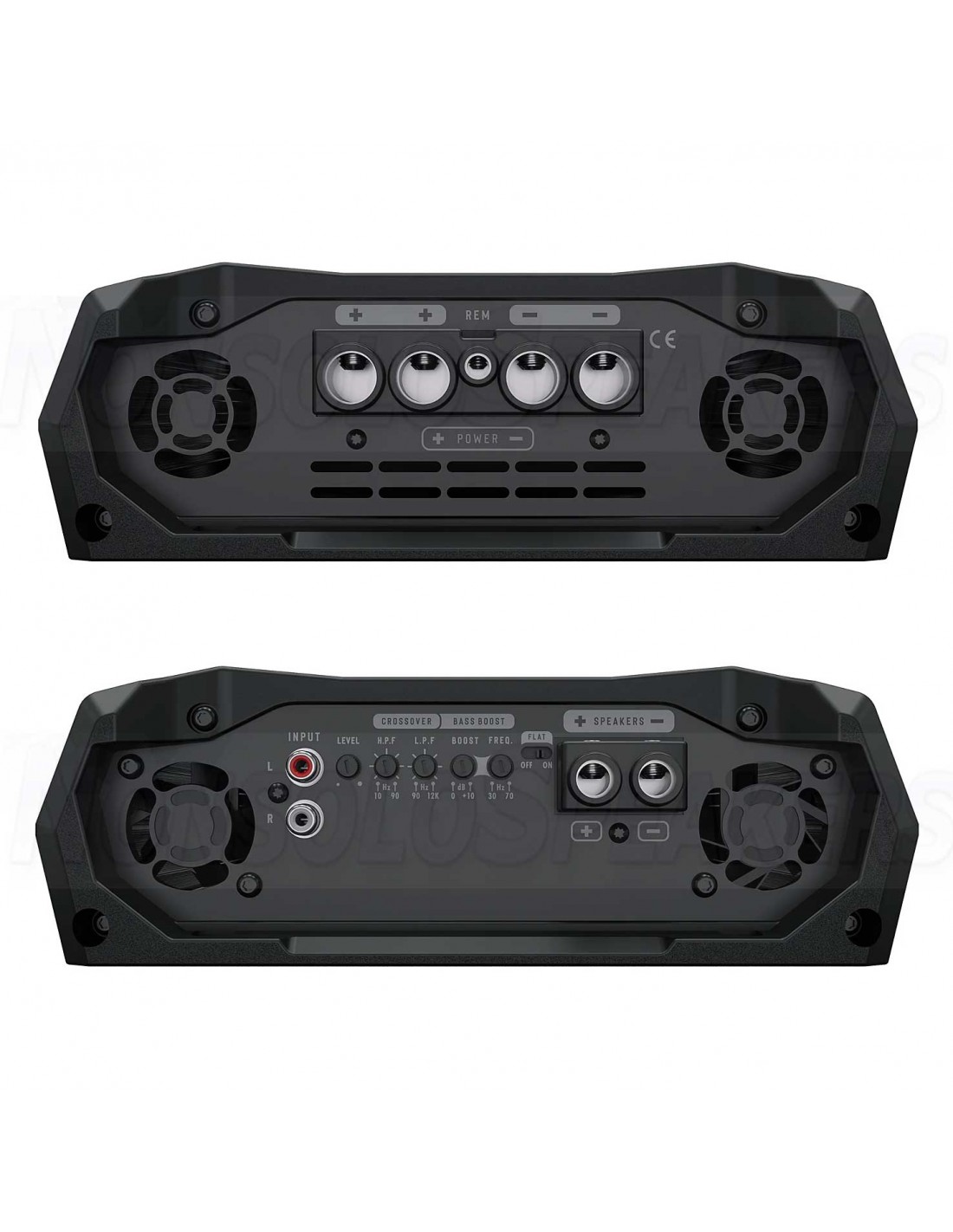

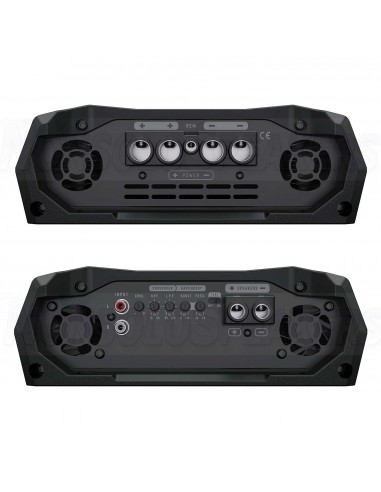

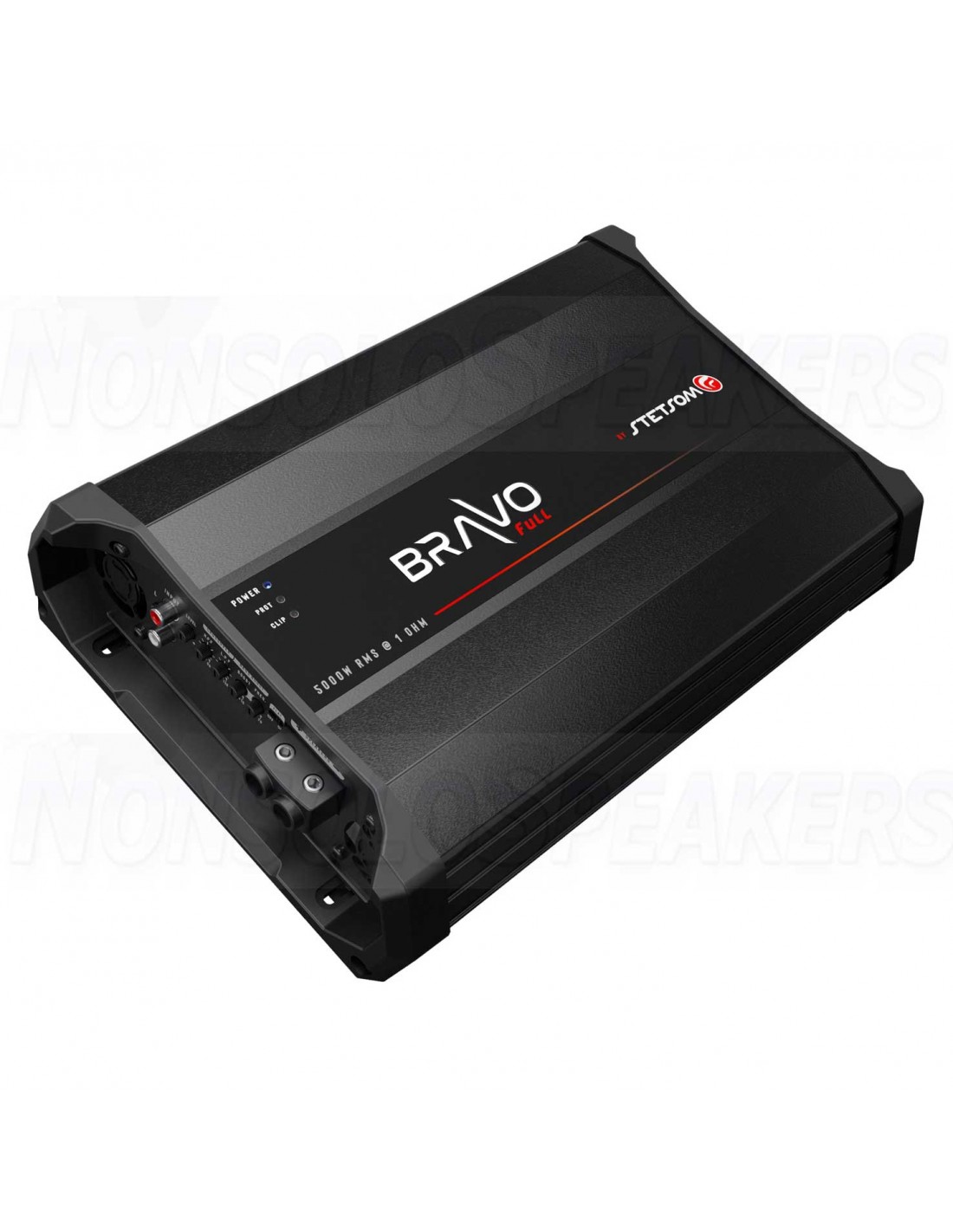

STETSOM BRAVO FULL 5K Digital Car Amplifier - 1x5000W RMS 1ohm Full range

The BRAVO FULL line was developed for automotive sound lovers who are looking for maximum performance in FULL-Range amplifiers.

Its frequency response from 10 Hz to 12 Hz offers audio quality and definition and can be used with subwoofers, woofers, drivers and tweeters.

.

TECHNICAL SPECIFICATIONS

Number of Channels 1

RMS Power at 1 Ohm @ 14.4V 5300W

RMS Power at 2 Ohms @ 14.4V 3300W

RMS Power at 1 Ohm @ 12.6V 5000W

RMS Power at 2 Ohms @ 12.6V 2800W

Minimum input sensitivity 200mV

Signal to noise ratio >90dB

Frequency response (-3dB) 10Hz ~ 12KHz

Crossover low pass 90Hz ~ 12KHz

Crossover high pass 10Hz ~ 90Hz

Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB

Input impedance 12K Ohms

Supply voltage 9V ~ 16V DC

Musical/Bass consumption 242A/485A

Dimensions (H x W x L) 3.14" x 9.11" x 13.11"

Weight 4,25 KG
