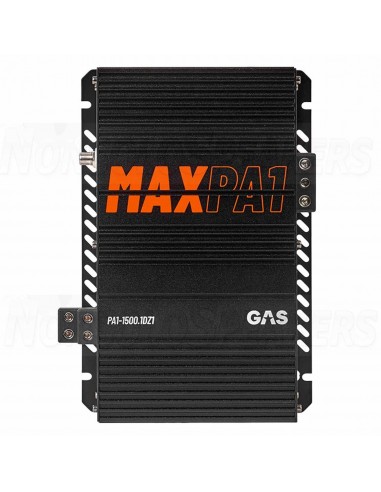

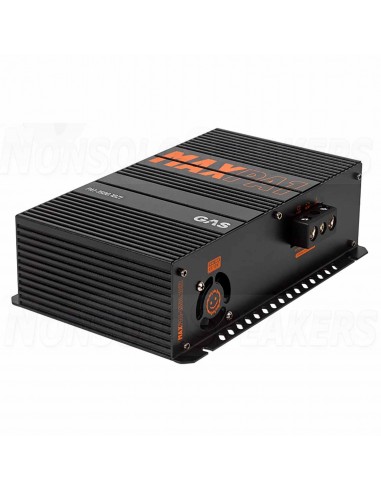

GAS MAX PA1-1500.1DZ1 1-channel amplifier

.

GAS MAX PA1-1500.1DZ1 is a 1-channel digital car amplifier with a power of 1x 500/850/1500 W at 4/2/1 Ohm.

.

The MAX PA1 series amplifiers are a new generation of high-efficiency, full-range Class-D amplifiers - engineered to perfection with hand-selected, high-quality components and innovative design features to ensure long-term maximum output power.

The unique extruded aluminum heatsink with reinforced A-star backplate has thermal properties developed to optimize and control the temperature of the amplifier. The GAS VCC (Vented Cross Cooling) system keeps cold air flowing continuously forward over the components and expels hot air through heat vents on the opposite side of the chassis.

Advanced, full-range Class-D circuitry on a 4-layer PCB allows any type of speaker to be connected - subwoofers, components, tweeters or coaxial speakers. The high/bandpass is adjustable between 15-80Hz and the lowpass is adjustable from 50Hz up to 22000Hz. For fine tuning of bass frequencies (35-70Hz) there is a bass equalizer level control with a level of 0-12dB. The PA1-1500.1DZ and PA1-3000.1DZ are available in Z1 (max output @1Ohm) and Z2 (max output @2Ohm) versions to suit any setup.

The high-performance continuous output of the MAX PA1 series is possible thanks to the high-voltage stabilized power supply, which fully monitors the voltage fluctuations from the car battery. The amplifiers also have a 4-way protection circuit system; Thermal protection, short-circuit protection, overload protection and switch-on delay.

Setting (and maintaining) the correct output level is optimized thanks to the Clip LED, which is located on both the amplifier and the wired remote - the Clip LED does not indicate if the distortion is less than 1%, anything above activates the protection circuits. All models have high quality Tiffany RCA connectors.

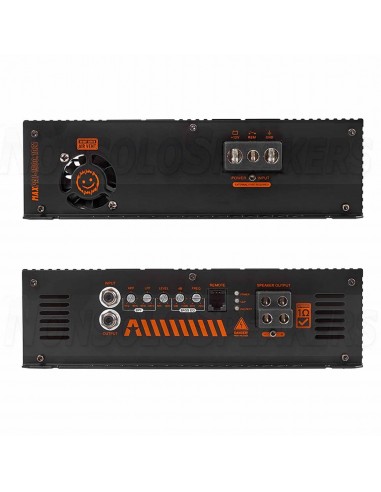

The MAX PA1 amplifiers were equipped with dual 8AWG (10mm²) speaker cable outputs and power and ground connectors of the required size. The PA1-1500.1DZ1/2 has a 2AWG (35mm²) connector, the PA1-3000.1DZ1/2 has 0AWG (50mm²) and the largest model, the PA1-5000.1DZ1, has dual 0AWG (50mm²).

.

GAS MAX PA1-1500.1DZ1 parameters

• RMS power: 1x 500/850/1500 W at 4/2/1 Ohm
• Frequency range: 15-22000 Hz
• Harmonic Distortion THD: 0.1%
• Signal-to-noise ratio: >92 dB
• Input sensitivity: 0.2-10 V
• Built-in HPF 15-80 Hz high-pass filter
• Built-in low-pass filter LPF 50-22000 Hz
• Built-in Bass Boost 0-12 dB at 45 Hz
• Working voltage: 10-16 V
• Damping Factor: >120
• Required external fuse up to 250 A

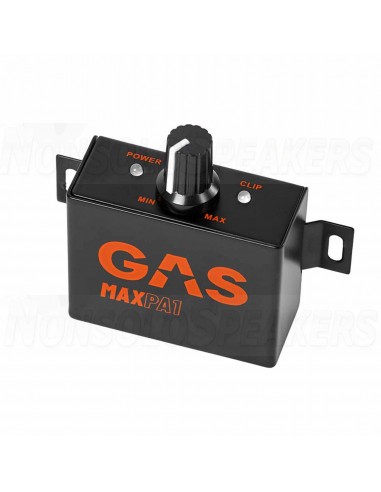

• Bass Remote included
• Dimensions: 229.5x152x66 mm (WxDxH)

Price for 1 pc
