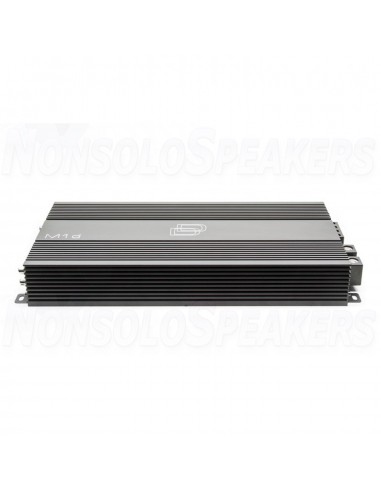

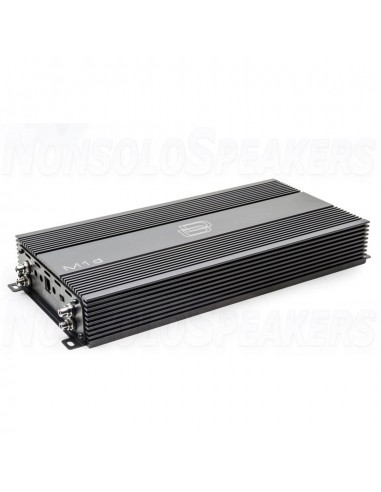

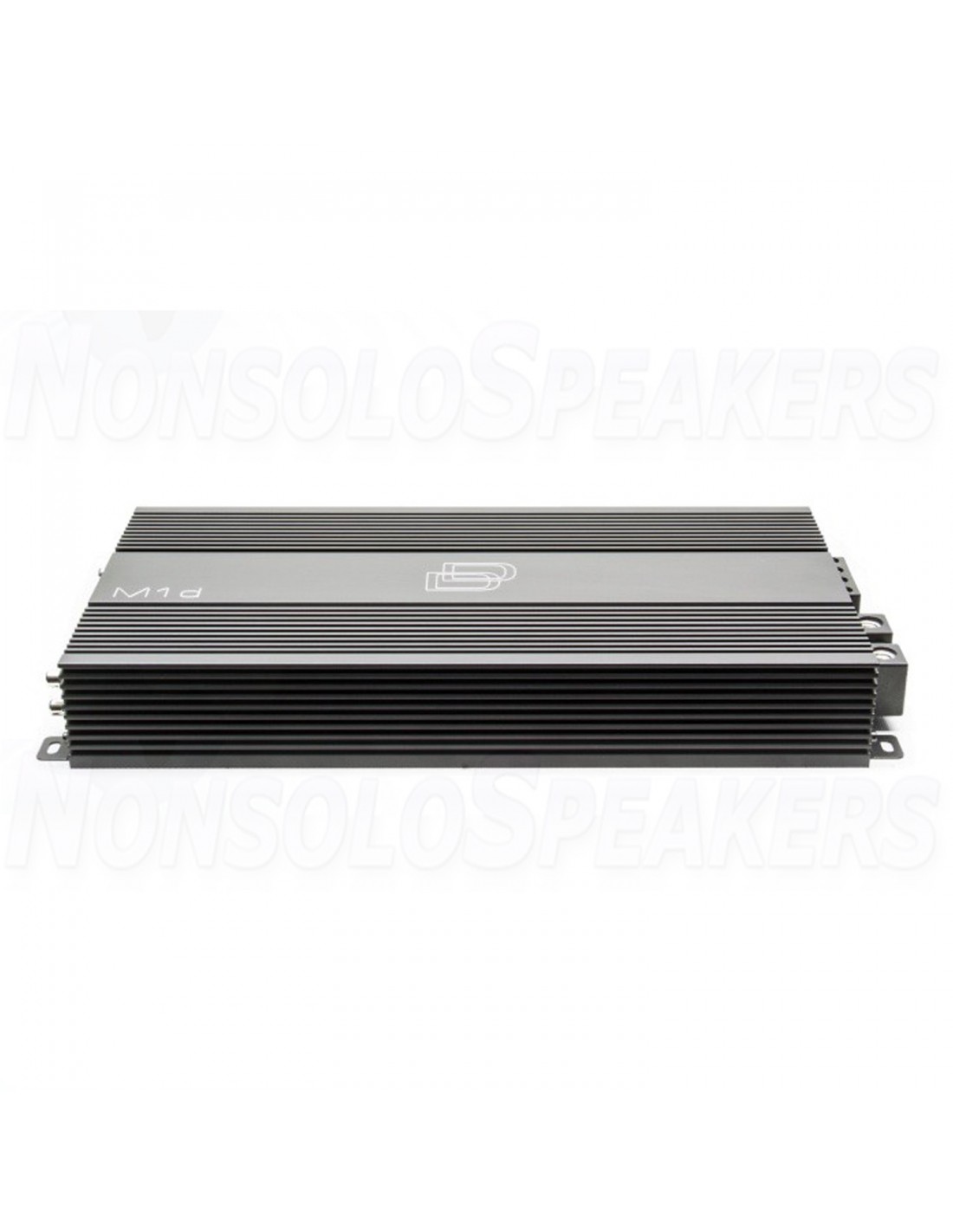

DIGITAL DESIGNS M1d Amplifier mono class D

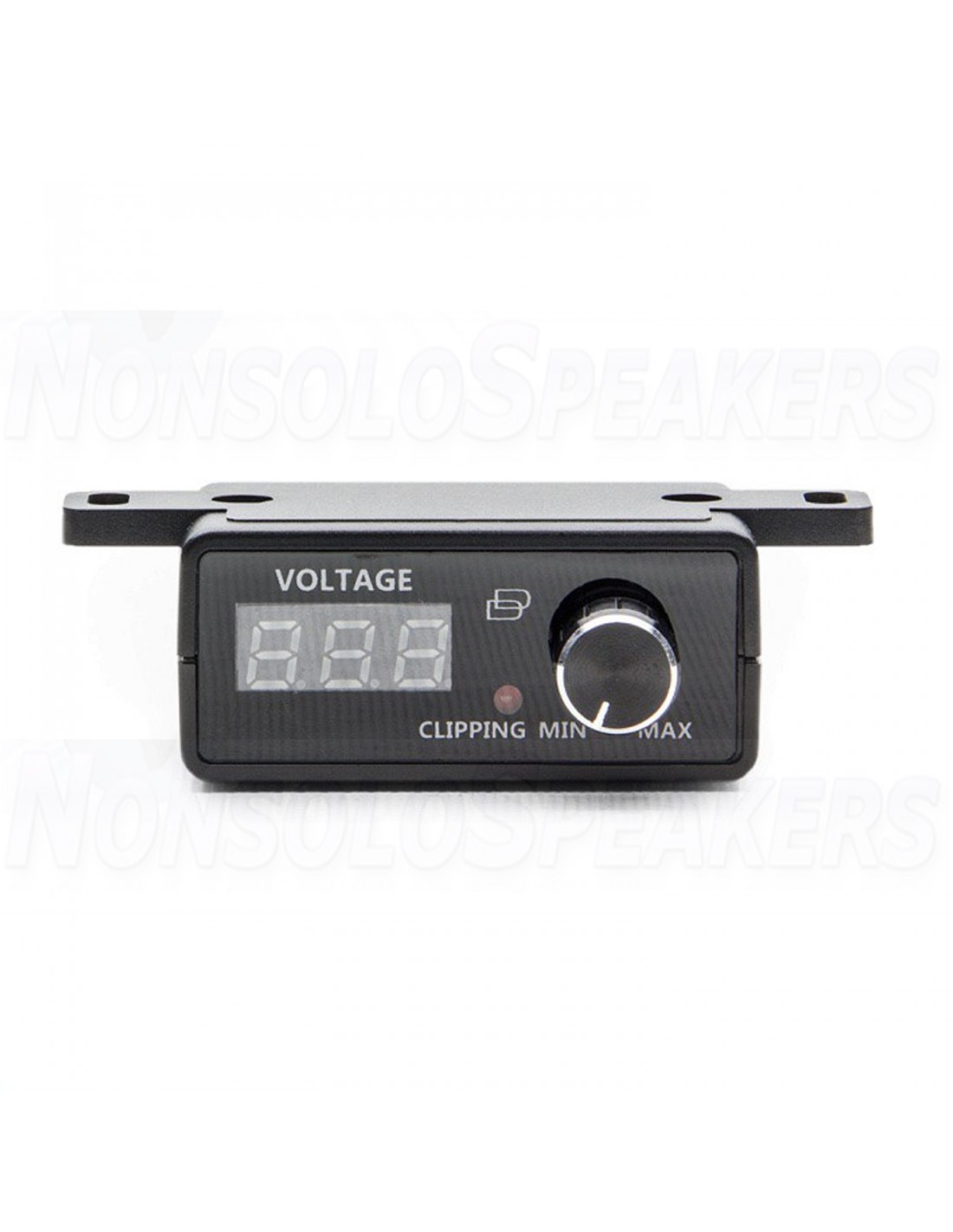

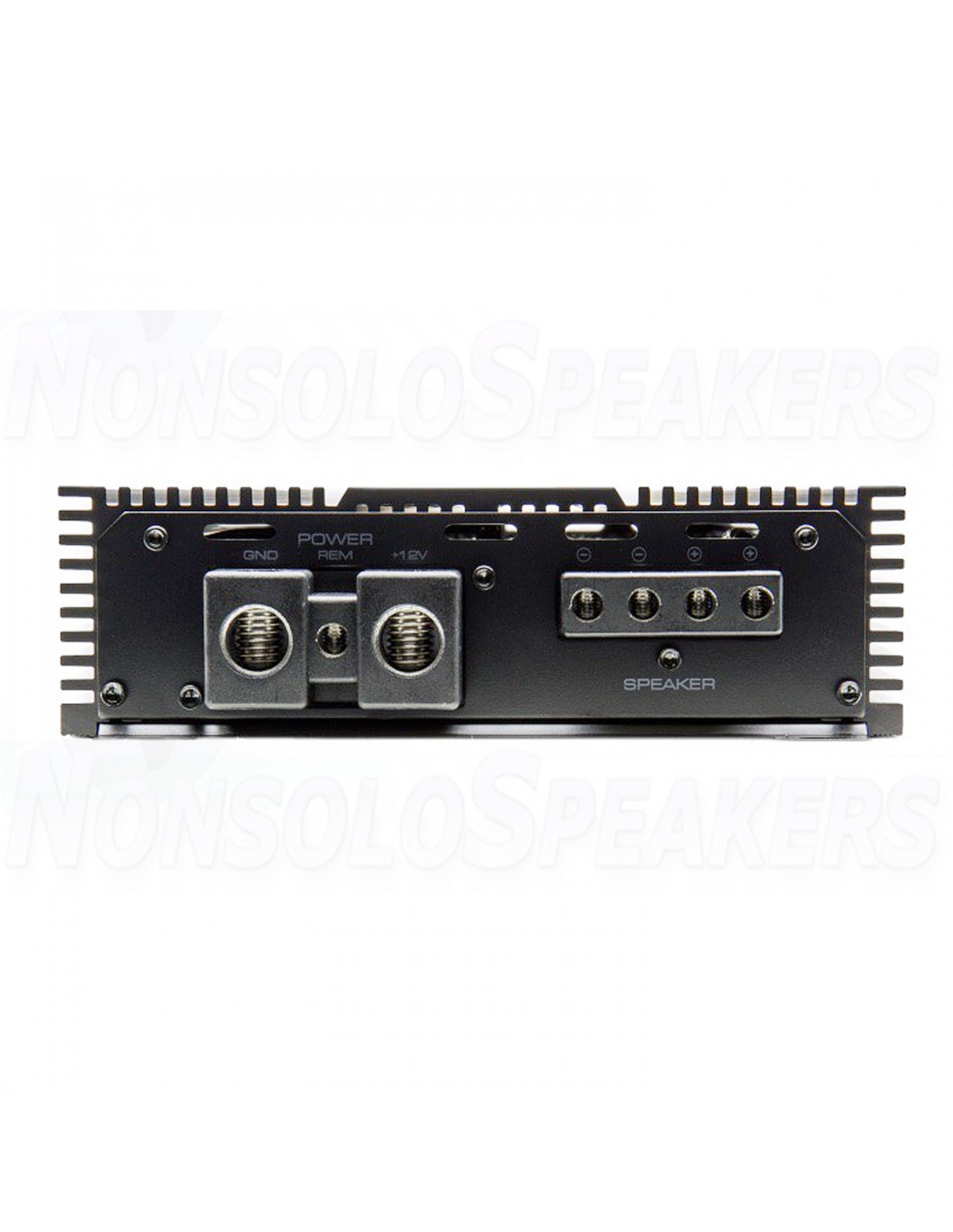

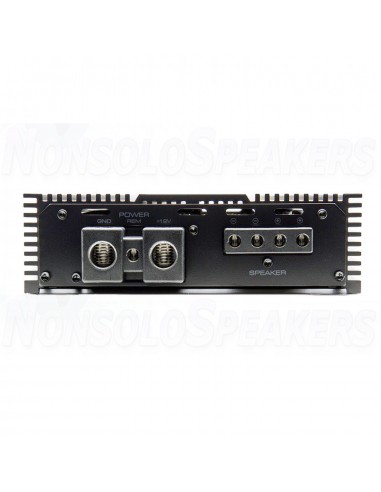

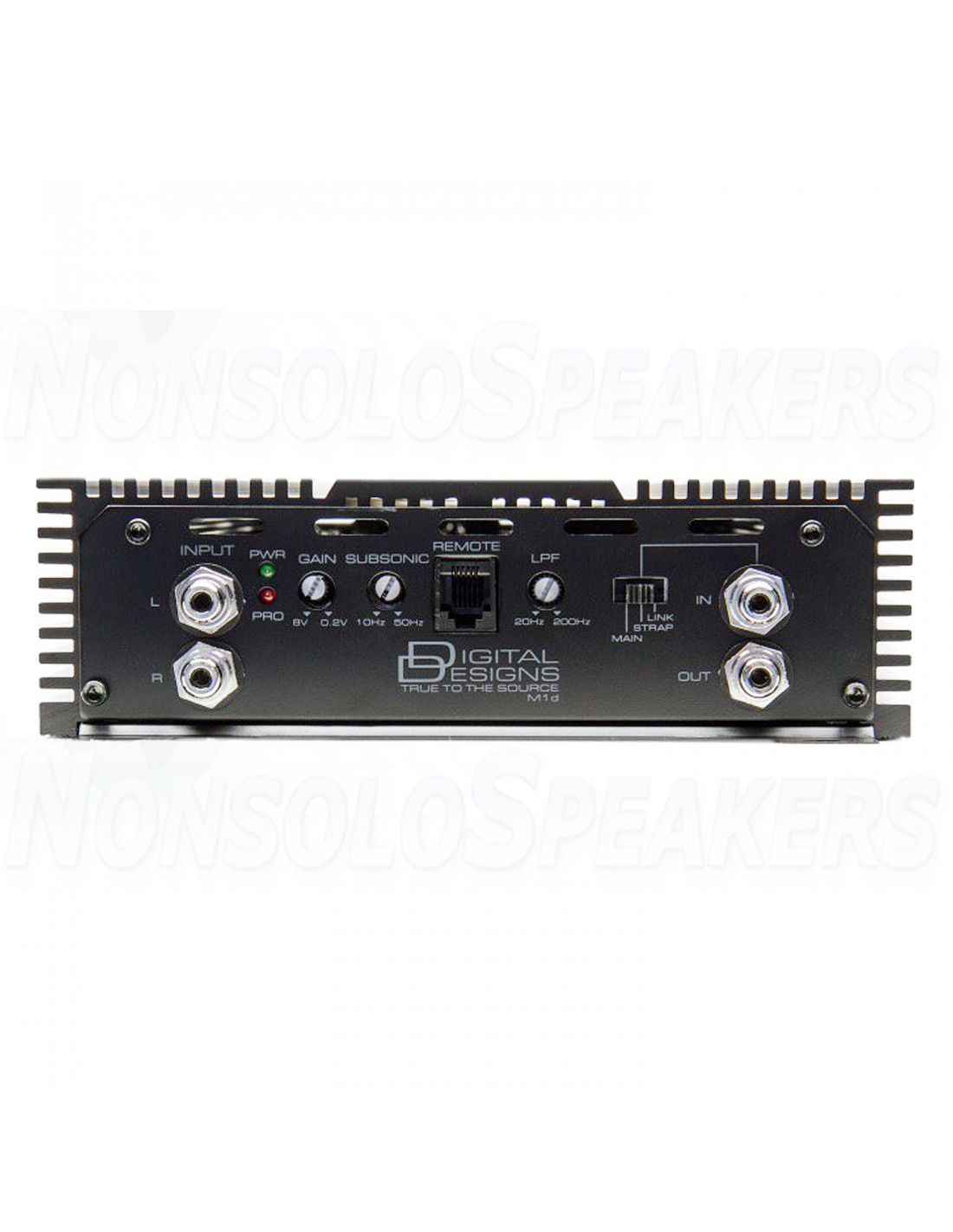

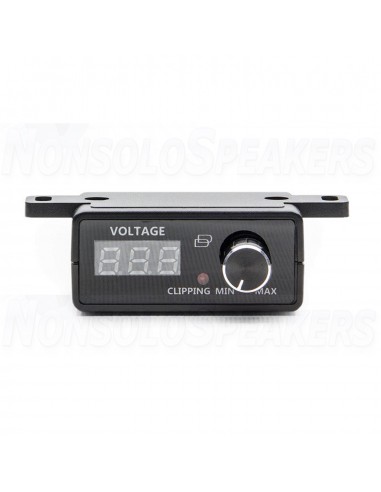

The M1 is one of our most popular amps of all time, and it is now entering its 5th generation. The M1d is the perfect amp for a myriad of applications, delivering over 1200 Watts of true RMS power at 12 Volts, 1700 Watts continuous at 14.4 Volts, and over 2500 Watts dynamic power. The compact layout uses our LV type twin power supply, which keeps the chassis small and the power big while allowing for a plethora of mounting options. 0 Gauge power connections and through bolted RCAs provided high-end features at an affordable price. For installation ease, and upgradeability the M1d features Strap and Link mode. When using one of these modes you’re able to use multiple M1d in an install and control the Strapped or Linked amplifiers level settings from the main. You’ll also be able to use a single remote gain to control all strapped and linked amps. The M1d also comes with the VM-RMT remote control. The VM-RMT is a mini amplifier diagnostic center that’s able to mount within arms reach for real-time performance monitoring and adjustments. From this remote, you have fine gain control, amplifier input voltage monitoring, and output clipping monitoring.

.

DD Audio M1d technical characteristics

Test Voltage 12 / 14.4
Channels 1
Cont Wattage @ 1 Ohm 1,200x1 @ 12V / 1,700x1 @ 14.4V
Dynamic Wattage 2,500x1
Max Current Draw - Amperage 170
S / N Ratio> 100dB
THD <0.2%
Input Voltage Sensitivity 8 - 0.2
Pass-Through Output
Remote Subwoofer Control
Power Wire Guage In 1 x 0
Speaker Wire Gauge Out 10
Dimensions: 13.77 x 6.88 x 2.14 "
Dimensions: 350 x 175 x 54.5 mm
Shipping Weight 5 Kg

Type 1-channel amplifier
Crossover Yes
RMS power 4 Ohm Watt
Signal to noise ratio 100 dB S / N
RMS power 2 Ohm Watt
Harmonic distortion 0.2% THD
RMS power 1 Ohm 1x1.700 Watt
Absorption MAX 170 Ampere
Dimension 350 x 175 x 54 mm
