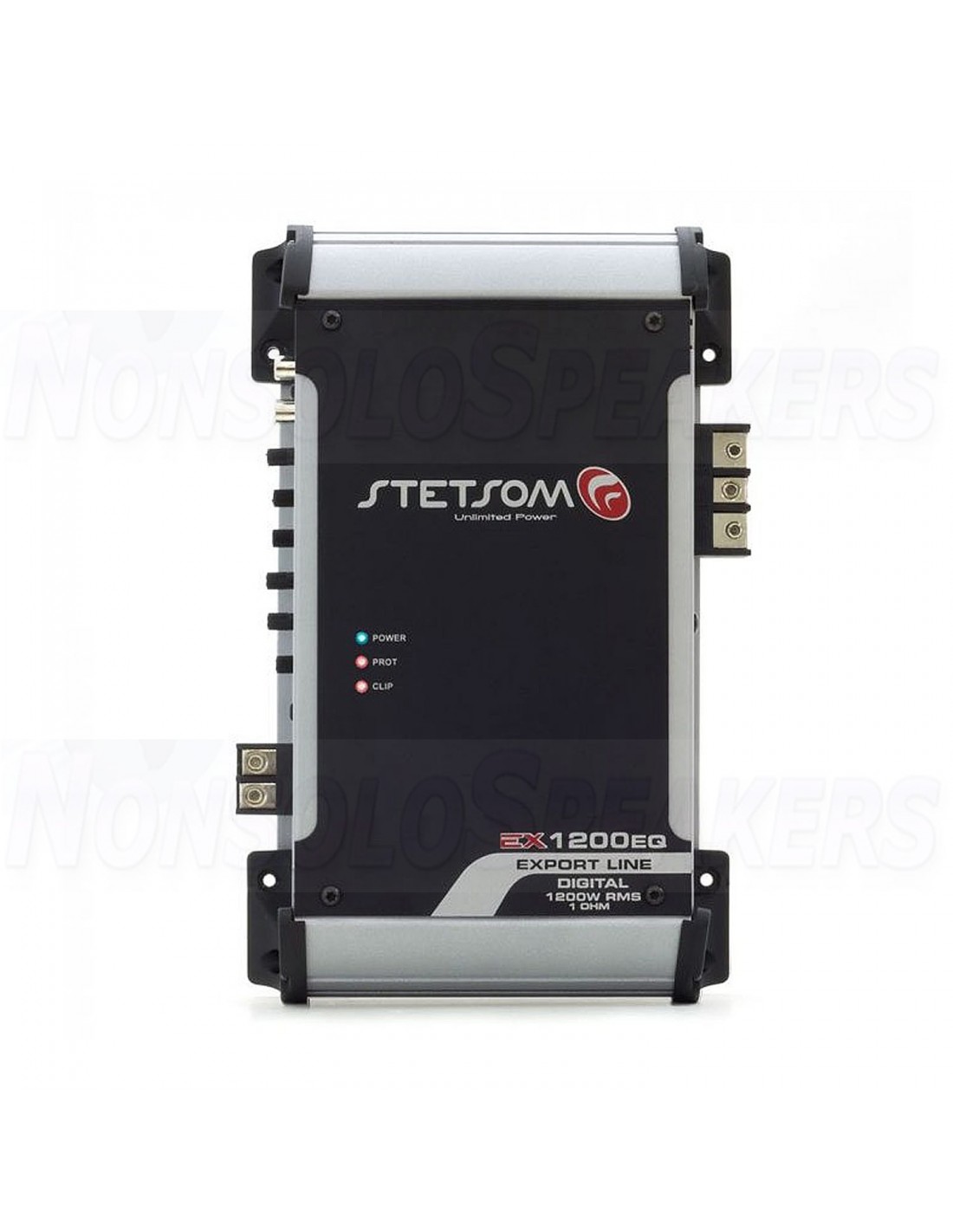

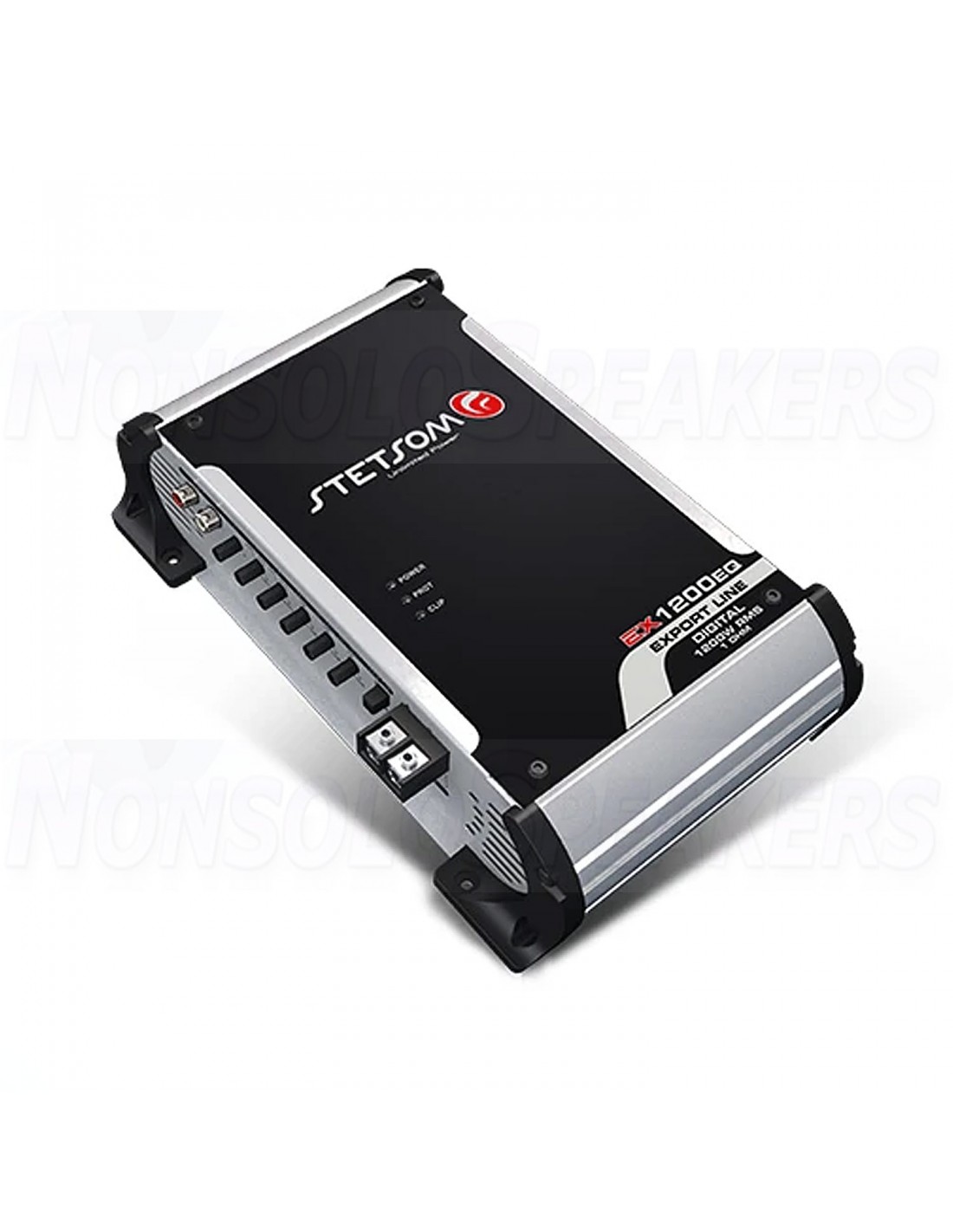

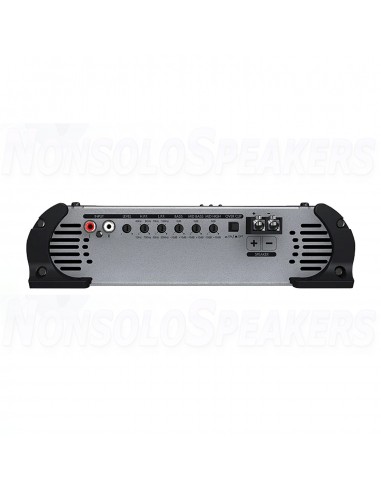

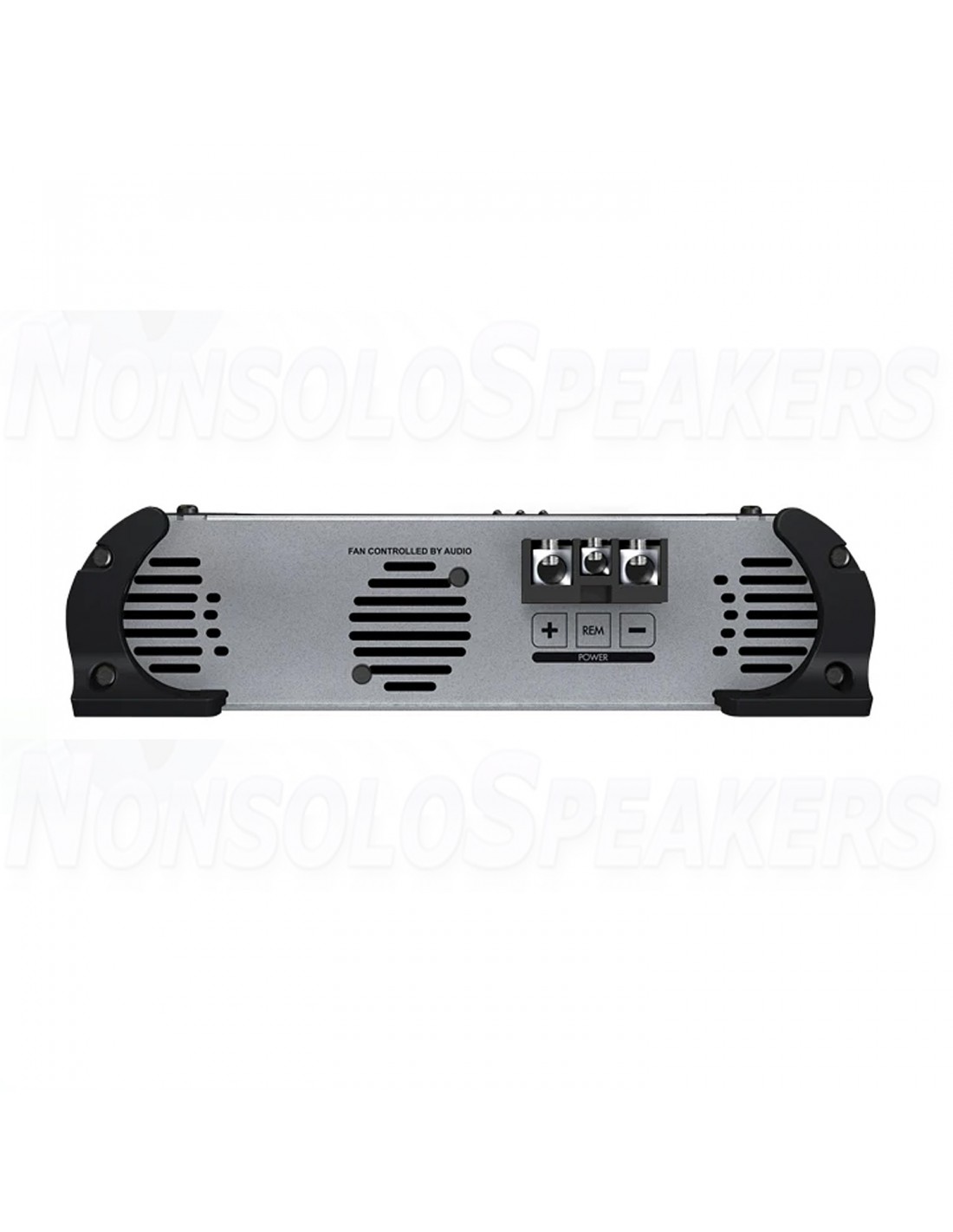

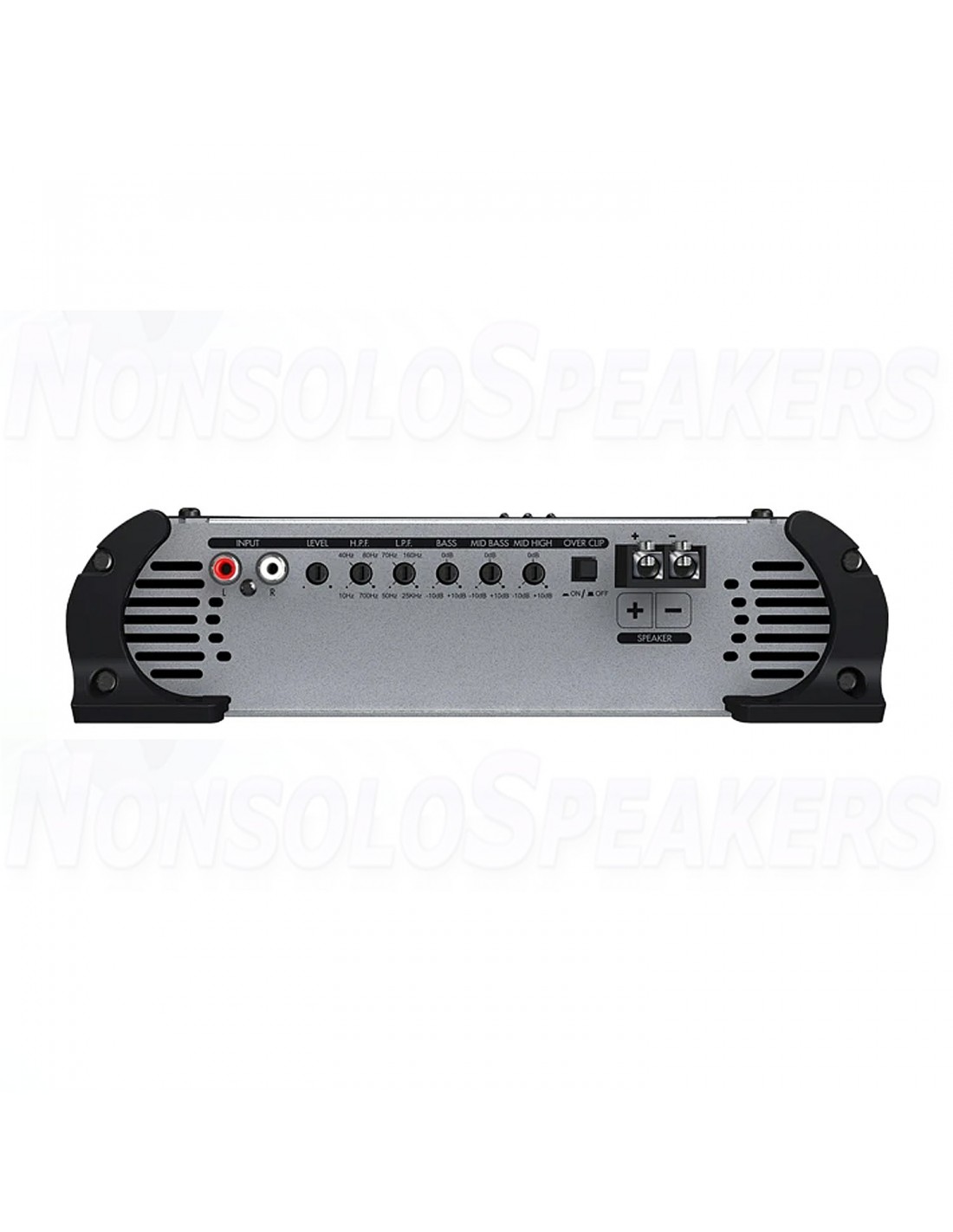

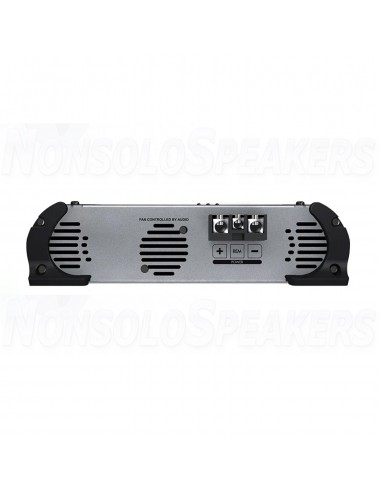

STETSOM EX1200EQ_2 Amplifier - 2 ohm

STETSOM EX1200EQ_2 Amplifier - 2 ohm

EXPORT LINE STETSOM: an export line of products that will satisfy the world and Brazil. Developed for those looking for high performance and sound fidelity in automotive amplifiers with the most innovative electronic components. STETSOM EXPORT. Performance to enchant!

EX 1200 EQ features: Three-band EQ: BASS, MID BASS, MID HIGH, plus traditional level, high pass and low pass functions. EQ Bass: -10dB to + 10dB / Medium EQ: -10dB to + 10dB / Medium-high EQ: -10dB to + 10dB. Frequency response from 10Hz to 25KHz and cooler controlled by an intelligent system.

Technical characteristics

Number of channels 1

RMS power in 1 Ohm 12.6V 1200W RMS

RMS power into 2 Ohms 12.6V 700W RMS

RMS power in 1 Ohm 14.4V 1400W RMS

RMS power into 2 Ohms 14.4V 900W RMS

Supply voltage 9.5 ~ 15V

Frequency response 10Hz ~ 25KHz

Low pass 50Hz ~ 25KHz pass

High Pass Crossover 10Hz ~ 700Hz

Signal to noise ratio> 90 dB

Harmonic distortion <0.9% THD

0.2V input sensitivity

Input impedance 25K OHMS

Minimum output impedance 2 OHM

Consumption with musical mark 1 ~ 56A

Consumption with Bass Signal 1 ~ 112A

Dimensions (H x H x H) mm 64 x 260 x 170 mm

Weight kg 1,7 Kg
