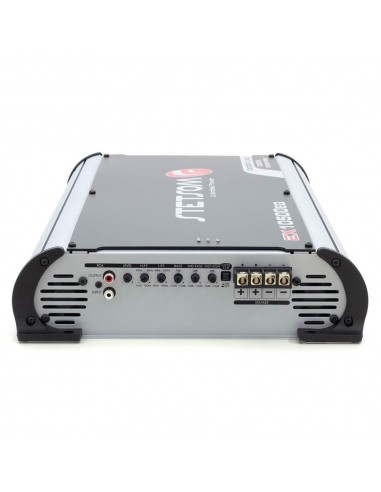

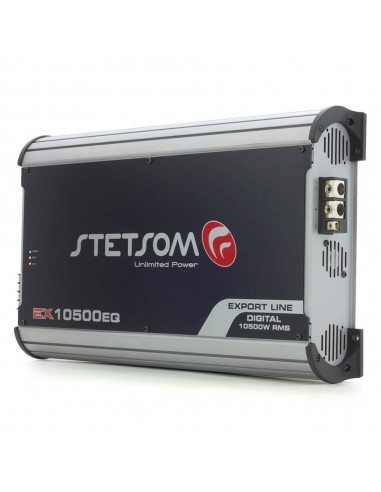

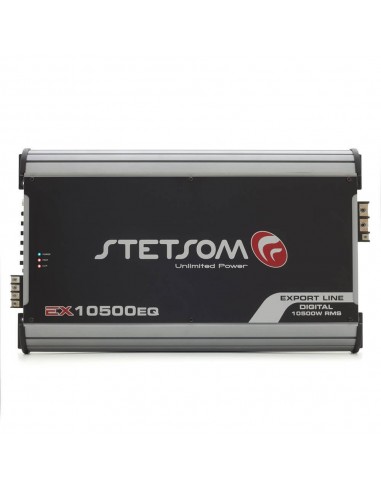

STETSOM EX10500EQ Amplifier 1 channel 1 ohm

Details

Stetsom's new export line arose from the need for a product with the highest quality and yield to meet the international market, and as a result, Stetsom can also provide the national market with a product with exceptional quality and quality!

With 11100 Watts RMS of power at 14.4 volts, the New Stetsom EX10500EQ Digital Amplifier Module - 1 channel -11100 Watts RMS is a product with an incredible size-performance ratio!

It has an EQ system of equalizations, which allows the reinforcement of the low, medium and high frequency ranges.
The module also has several burners and an exclusive forced ventilation system.

-

Additional Information

Module Application For subs and woofers
Bass Boost, Bass Boost Yes
Channels 1 Channel Mono
Digital Operation Class
Class D
RCA Connections 2
Maximum musical consumption (A) 495
Maximum sinusoidal consumption (A) 990
HPF filter, High Pass Yes
HPL Filter, Low Pass Yes
Frequency Response (Hz) 10Hz - 15000Hz
Impedance Ω 1 Ohm
Bridge Impedance Ω Bridge Not Accepted
Led Clip Yes
Real Power per Channel (Watts RMS) 11100
Real Power per Channel with Impedance Double (Watts RMS) 5500
Total Actual Power (Watts RMS) 11600
Signal-to-noise ratio (dB) 90
High Voltage Protection Systems
Heating
Short Circuit on Exit
Input Voltage 12V
THD (Total Harmonic Distortion) 0.9%
Approximate Product Weight (kg) 8.08
