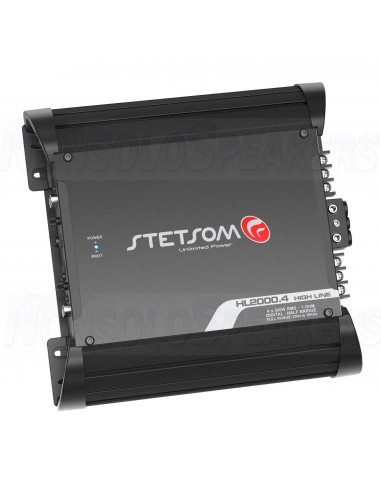

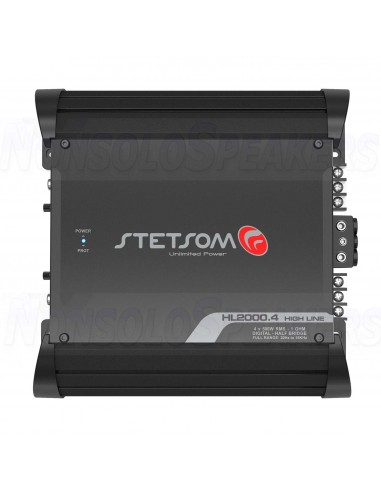

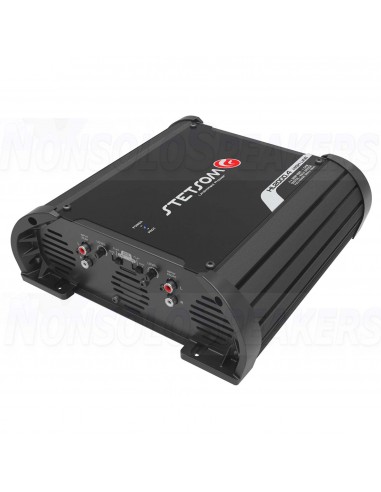

STETSOM HL2000.4_2 digital amplifier 4x500W - 2Ohm

.

Developed for those seeking high performance and sound fidelity in automotive amplifiers.

The HL2000.4, is a 2000W RMS product with 4 CHANNEL 500W RMS 2 ohms and installation versatility.

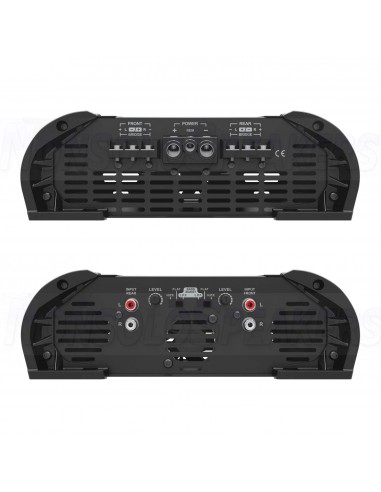

It offers independent front and rear channel resources such as LEVEL to adjust the input signal level and Crossover, which allows you to choose between operating in LOW-PASS, high-pass or FLAT (full-range).

.

TECHNICAL SPECS (2 Ohms):

Number of Channels: 4

RMS Power in 2 Ohms 12.6V: 4 x 500W RMS (STEREO)

RMS Power in 4 Ohms 12.6V: 4 x 290W RMS (STEREO)

RMS Power in 2 Ohms 14.4V: 4 x 561W RMS (STEREO)

RMS Power in 4 Ohms 14.4V: 4 x 338W RMS (STEREO)

Power @ 12.6V Bridge 4 Ohms: 2 x 1000W RMS (BRIDGE)

Power @ 14.4V Bridge 4 Ohms: 2 x 1080W RMS (BRIDGE)

Power Supply: 9 ~ 15V

Frequency Response @8 Ohms (-3dB): 20Hz ~ 26KHz

Bass Boost (Low Pass): +12 dB

Low Pass Crossover: 90 Hz

High Pass Crossover: 90 Hz

Signal to Noise Ratio: > 90 dB

Harmonic Distortion: > 0.3% THD

Input Sensitivity: 200mV

Input Impedance: 15 kOHMS

Minimum Output Impedance: 2 OHMS (STEREO) / 4 OHMS (BRIDGE)

Consumption with Musical Signal: 96A

Bass Signal Consumption: 192A

Dimensions (H x W x L): 3” x 9.2” x 9.4”

Weight: 5.9 lb
