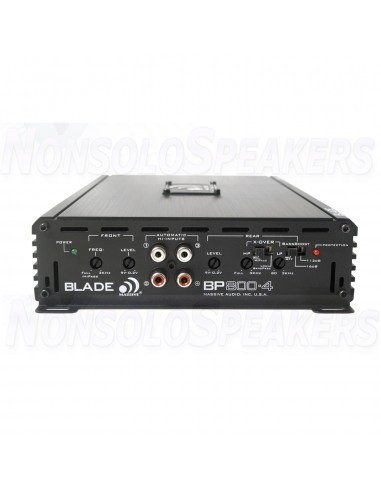

Massive Audio BP800.4 – 4 CHANNEL AMPLIFIER WITH BUILT-IN OEM LINE CONVERTER
The "BP Series" Amplifiers are designed with our “Live, Loud and Play Hard” motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BP800.4 is Class A/B designed with a minimum per channel impedance operation of 2 Ohm. All BP Series amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standards”, “ROHS”, “E-Mark” and are CTA2006 Compliant. This ensures that no competition can stand up to the Massive Audio BP Series amplifiers when it comes to features, performance and value.
FEATURES:
- Built-In OEM Line Converter
- 2 Ohm Stable Design
- Mil Spec PCB with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High Grade Switching Devices
- Built-In Auto Sensing Turn On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Level Inputs)
- 0dB ~ 12dB Bass Boost
- Next Generation Advanced 5 Way Protection Circuitry
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS:
Peak Output Power @ 14.4V 200W x 4
1 Ohm RMS n / a
2 Ohm RMS 120W x 4
4 Ohm RMS 60W x 4
4 Ohm Bridged 240W x 2
Input Level 0.2 ~ 9.0v
Freq. Response 10Hz ~ 35KHz
THD at 4 Ohm Load 30% Rated Power <0.1%
S / N Ratio> 90dB
Bass Boost 0 ~ 6dB / 12dB (45Hz)
Minimum Load 2 Ohm Stereo
Gain Remote n / a
Dimensions 2 "H x 7.1" W x 11.8 "L
