DS18 SXE-1200.4/RD Class A/B 4-Channel Full-Range Car Amplifier 4 Ohm

DS18 SXE-1200.4/RD Class A/B 4-Channel Full-Range Car Amplifier 4 Ohm

Name: DS18 SXE-1200.4/RD Class A/B 4-Channel Full-Range Car Amplifier 4 Ohm
Brand: DS18
SKU: DS18 SXE-1200.4/RD
Price: 131 EUR
Availability: InStock

DS18 SXE-1200.4/RD Class A/B 4-Channel Full-Range Car Amplifier 4 x 60 RMS @4 Ohm 1200 Watts

SHIPMENT IN 7/10 WORKING DAYS

€131.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€19.08

Shipping Time

Want to check another country or courier?

DS18 SXE-1200.4/RD Class A/B 4-Channel Full-Range Car Amplifier 4 x 60 RMS @4 Ohm 1200 Watts

DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-1200.4 at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks. The SXE-1200.4 offers you the ability to shape your systems audio to match your personal preferences. Its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy.

The compact size of the SXE-1200.4 enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style. Thanks to its Class A/B amplifier design the SXE-1200.4 seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-1200.4's staggering performance, delivering 200W x 2 CH bridged at 4-ohms, 100W x 4 CH at 2-ohms, and 60W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build, leaving you with a smile that stretches from ear to ear.

The SXE-1200.4 also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has meticulously thought of everything to guarantee a long-lasting and exceptional audio experience.

Technical Specifications:

Compact size for easy installation anywhere

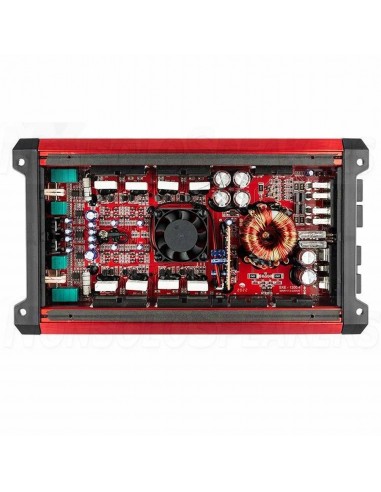

Stable Two or Four Layer Traced PCB Design
Audio Precision Quality Control Verification
Full Adjustable HP/LP @ 12dB/oct Crossover
Various Forms of Electronic Protection
POWER : -Total Watts (Peak)1200W
RMS Power @ 4 ohms4 x 60W
RMS Power @ 2 ohms4 x 100W
RMS Power @ 4 ohms Bridge 2 x 200W
Frequency Response10Hz-20KHz
Signal to Noise Ratio90dB
Efficiency @ 4 ohms64%
Damping Factor170
Input Impedance20k
Channel Separation45dB
Total Harmonic Distortion (THD)0.05%
Low Level Input Range200mV-5V
Selectable X-OverHPF/FULL/LPF
X-Over Filter Range40Hz-2KHz
Amplifier ClassAnalog (AB)
Amplifier TypeStereo Full Range
Number of Channels4
Minimum Impedance2 Ohms Stereo / 4 Ohms Bridge
Led IndicatorPower/Protect/Clip

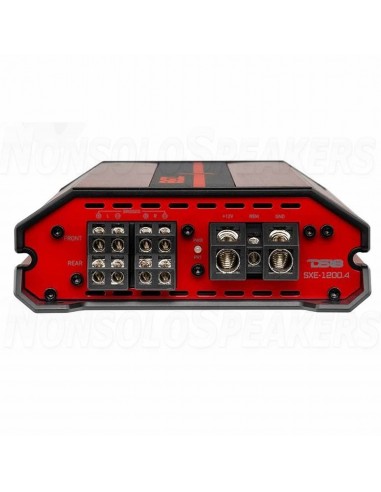

Power Input Terminal Size 4Ga
Fuse Size2 x 25A (50A)
Cooling FanYes
Thermal ProtectionYes (80)
Over-Load ProtectionYes
DC Output ProtectionYes
Short Circuit Output ProtectionYes
Voltage Input ProtectionYes (16.5v)
Clipping ProtectionYes
Body Color / FinishRed / Black Brushed Aluminum
Overall Length9.8" / 249.3mm
Overall Wide5.5" / 140mm
Overall Height1.8" / 48mm
Heatsink Length8.34" / 212mm
Gross Single Unit Weight 1.76KG

Reference DS18 SXE-1200.4/RD

In stock 2 Items

DS18 car audio: they’re pretty well-known for providing high-performance, budget-friendly audio equipment, especially for people looking to upgrade their car sound system without breaking the bank.

A Quick Overview of DS18 Car Audio Gear:

DS18 offers a wide variety of products, from speakers and subwoofers to amplifiers and accessories. They cater to both casual listeners and hardcore enthusiasts looking for some serious audio power. Some key features that set DS18 apart:

High Power Output: Many of their products, like subwoofers and amplifiers, are designed to handle a lot of power, which is great for those who want deep, pounding bass or need extra headroom for loud, clear audio.
Variety of Options: DS18 has a broad range of options—whether you’re looking for 6.5-inch speakers, 15-inch subwoofers, or multi-channel amplifiers, they cover a lot of ground. This makes it easier for customers to customize their setup based on their needs.
Vibrant Design: A lot of DS18’s products have a bold, modern design, with some models featuring LED lighting, which gives your car audio system an extra aesthetic appeal, especially if you're into the whole "show car" look.
Performance & Clarity: Even though they offer high power handling, their products are designed to maintain clarity. Many users praise DS18 for having subs that hit hard but don’t lose the detail, making them great for both bass-heavy and more melodic genres.

Popular DS18 Products:

Subwoofers: DS18 offers some beastly subs, like their XL Series and Competition Series, designed for serious bass enthusiasts. Their 12" and 15" models can handle a lot of wattage and provide huge low-end output.
Amplifiers: Their amps, like the GEN-X series, are built for high power and are designed to drive subwoofers or multiple speakers with clean, solid output.
Speakers: DS18 makes a range of high-performance speakers, from coaxial models to component systems, designed to produce clear mids and highs.
Tweeters and Horns: They also have specialized tweeters (like the Super Bullet Tweeters) and horn drivers for those who want to add extra clarity and treble to their setups.

Why Choose DS18?

Affordable Performance: Compared to other high-end audio brands, DS18 tends to offer solid performance at a more budget-friendly price point.
Customization: Their wide range of products lets you customize your setup to exactly what you want, whether you’re building a basic system or going all-in on a competition-grade setup.
