DLS Scandcase 3 speakers Kit 3 way 165 mm

The DLS Scandcase 3 speakers are 165mm three-way high-end component car speakers.

The highest class of DLS speakers.

DLS know that even if you have the best available sources to have the very best sound you need to have absolute control over the reproduction devices.

As speakers are put together from different materials, there is a normal variance between each single unit. Most manufacturers do not have the capability to scientifically measure all individual units they produce, and others simply do not care. Some might say the variances between different drivers from a high-quality producer is not so critical, but for those who demand the absolute best there are no shortcuts.

.

3-way 6.5” extreme competition class speaker kit

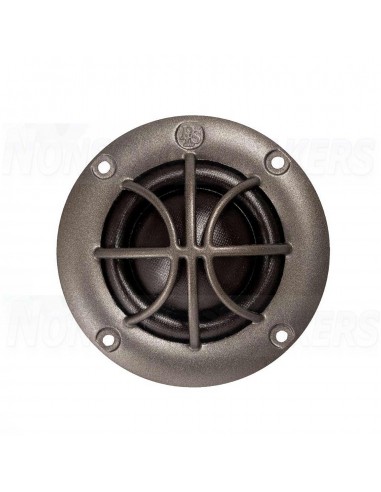

• Bass:             matched pairs of Scandinavia 165Wi

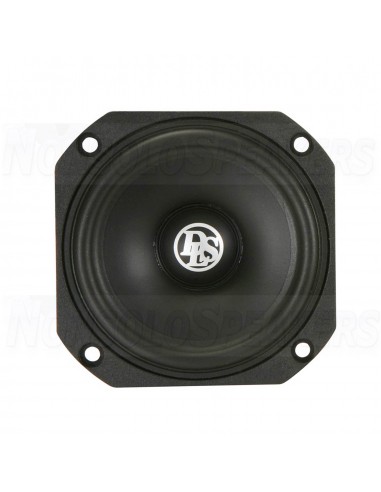

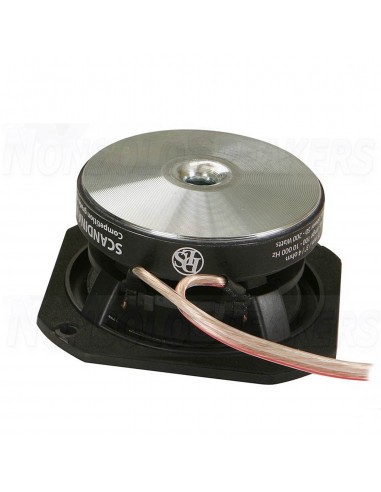

• Midrange:     matched pairs of Scandinavia 75

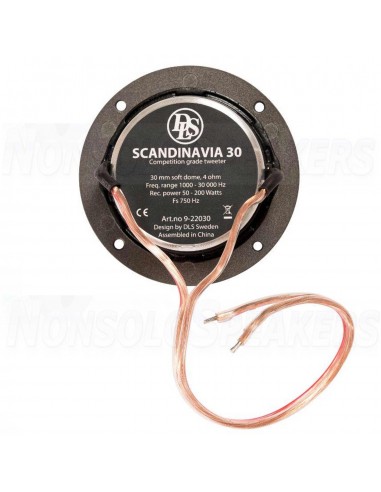

• Tweeter:       matched pairs of Scandinavia 30

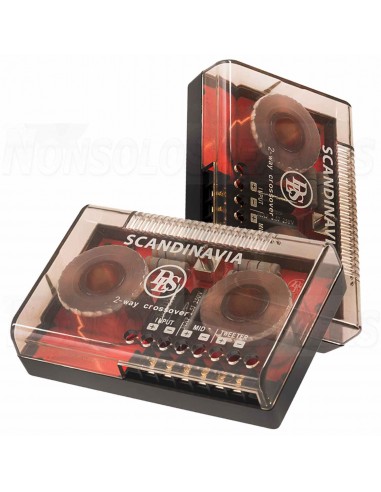

• Crossover:    Scandinavia XO-3 Audiophile High grade for semi active 12/12dB with ribbon air coils and 2 step tweeter level select switch

.

Specifications

• Mid-bass size: 165 mm
• RMS power: 200 W
• Impedance: 4 Ohms
• Sensitivity: 91.9 dB/1W/1m
• Fr.range: 50-30000 Hz Mid
• -bass size: 165 mm Center
• size: 75 mm Tweeter size
• : 30 mm Mid-
• bass mounting diameter: 140 mm
• Center mounting diameter: 78 mm
• Tweeter mounting diameter: 53 mm Mid
• -bass mounting depth: 65 mm
• Center mounting depth: 38 mm
• Tweeter mounting depth: 19 mm
• Carbon center Mid
• -bass polypropylene membrane Tweeter
• membrane material: silk
• Rubber suspension
• Cast basket
• Full-size crossovers with the possibility of active connection included in the package
• For maximum efficiency, it is suitable to install the mid-bass in 9 L closed enclosures. But they are adapted to be installed in the full volume of the door.

.

Cover grids included in the package

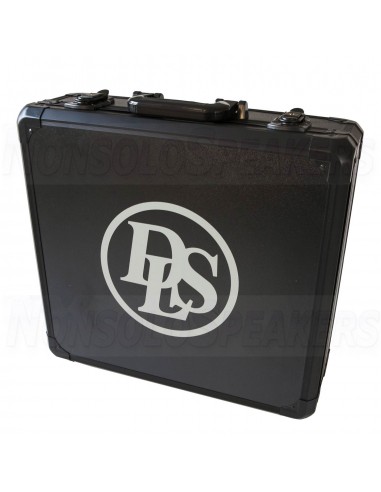

Packaged in an effective protective case

.
