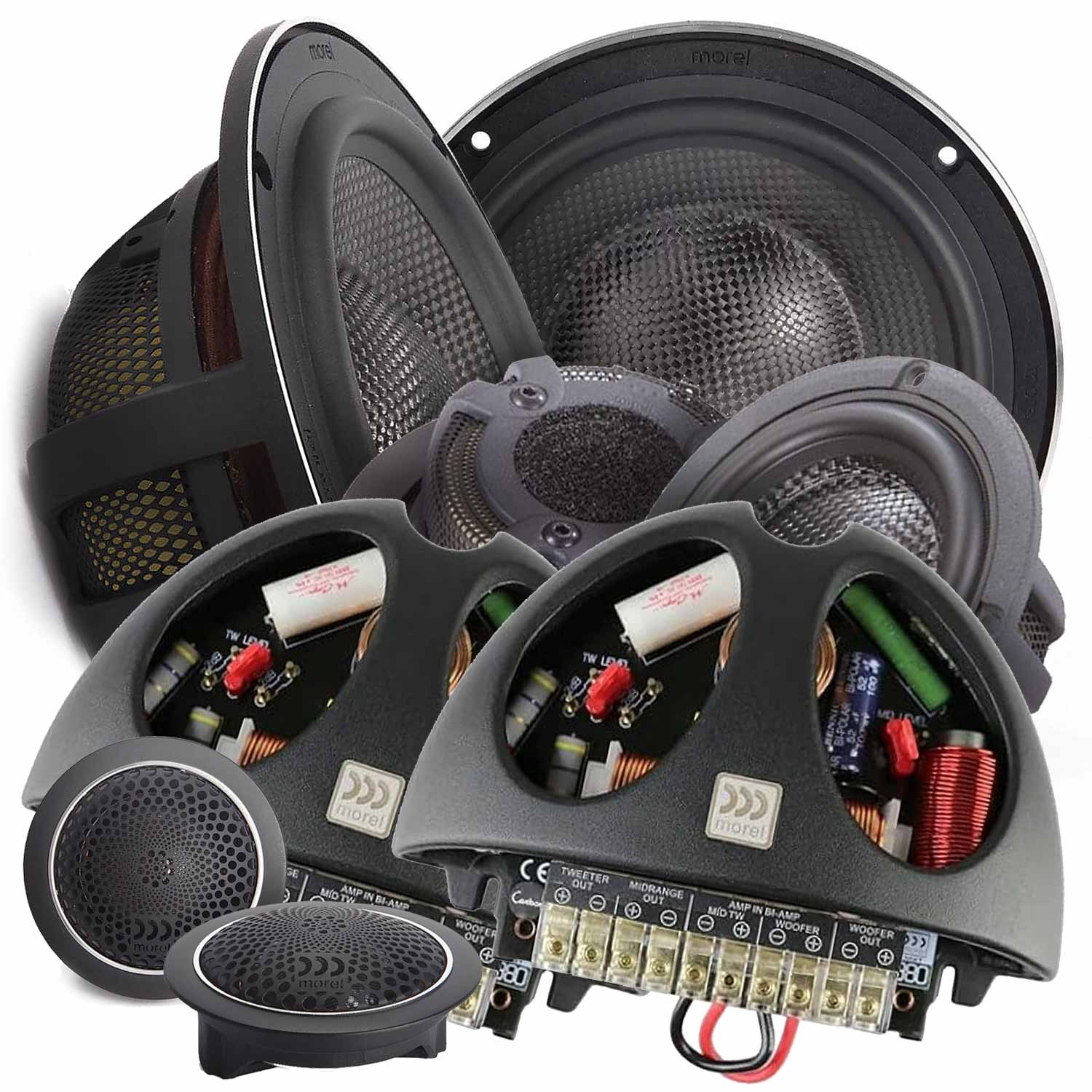

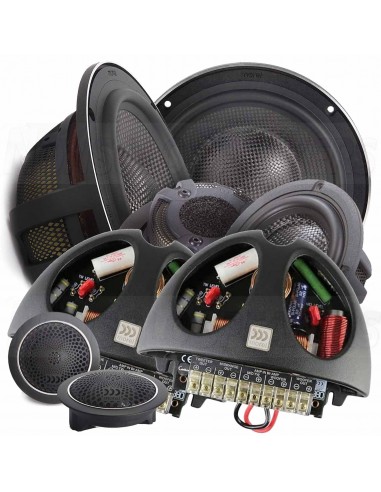

MOREL ELATE CARBON 63 - 16,5 cm kit 3 Way

The MOREL Elate Carbon 63 3-Way 6.5" (16.5cm) speaker set uses the same unique woofers and midrange drivers as the Elate Carbon Pro versions, but is equipped with the new compact MT450 tweeter with open-cavity design and dual Neodymium magnet motor equipped. The style of Morel's iconic Lotus design speaker grilles alone will take your breath away, and then there's the sound...

The Elate Carbon 63 active version 3-way speaker system includes a 6-1/2-inch woofer, a 3" midrange driver and the MT450 tweeter for fuller sound and excellent detail at impressive volumes. Both the midrange driver and the woofer use a carbon fiber/Rohacell membrane, which minimizes distortion and thus enables the most precise sound possible.

Characteristics

• 3-way component speaker system
• Includes two woofers, two midrange drivers and two tweeters

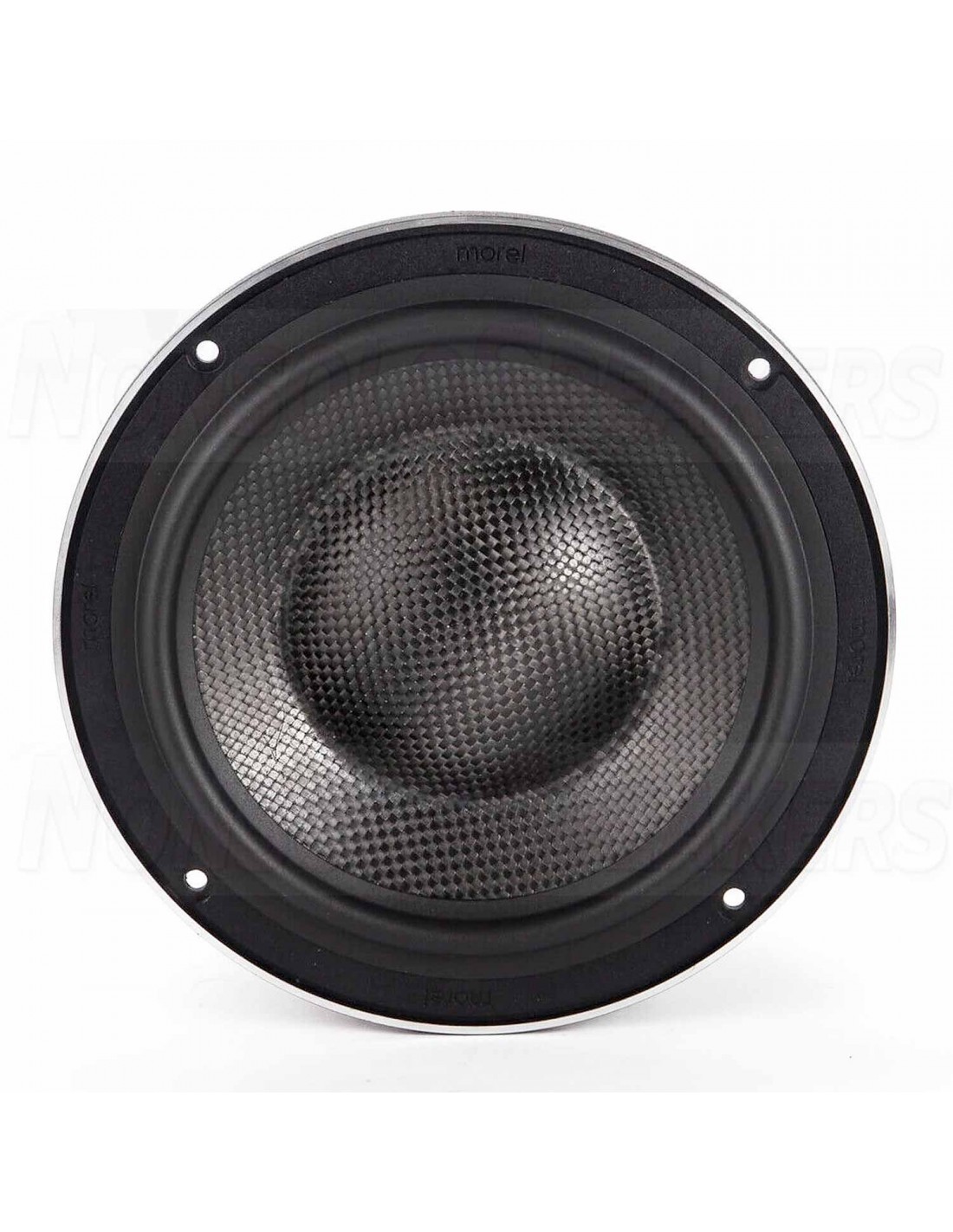

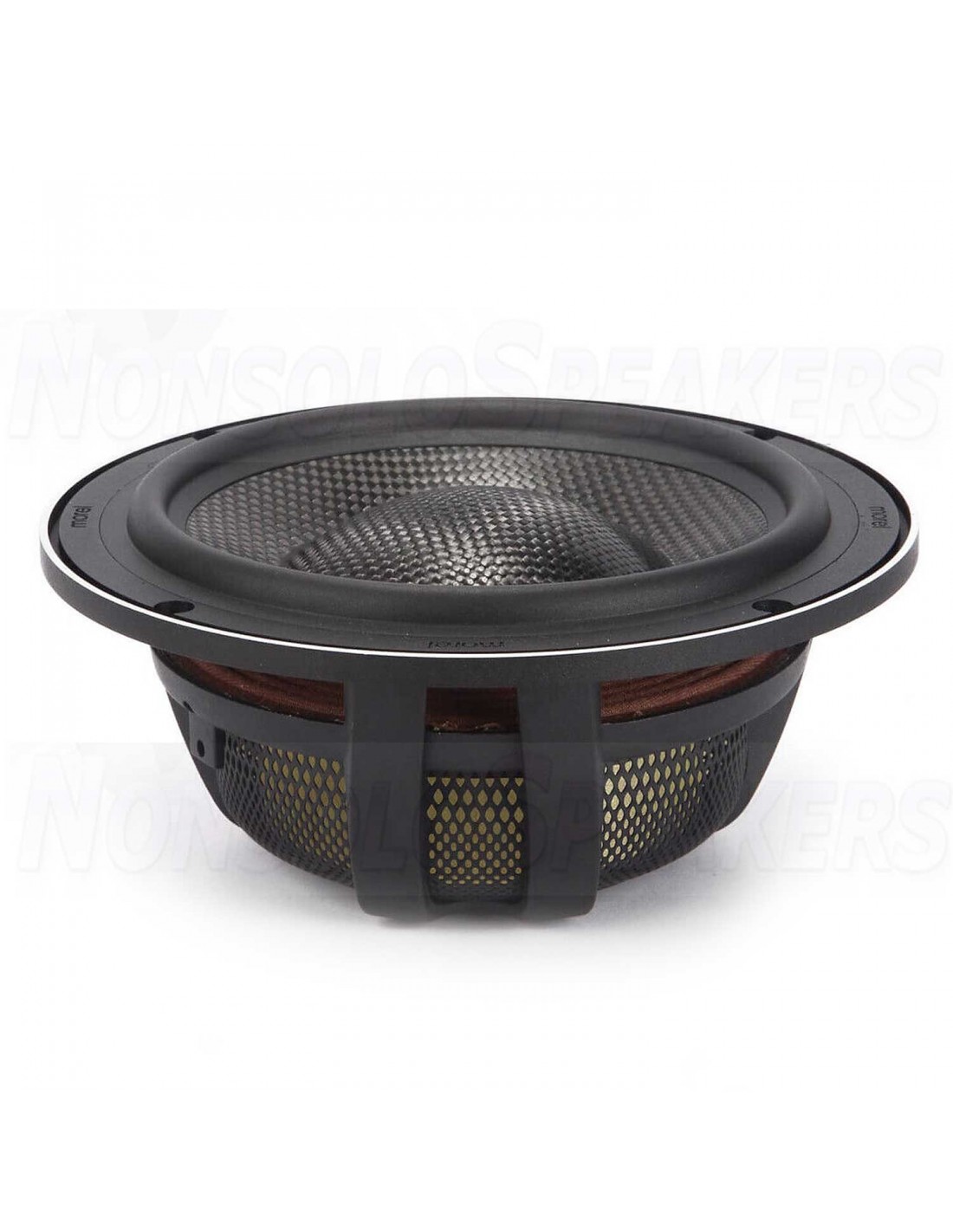

• 6-1/2" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround

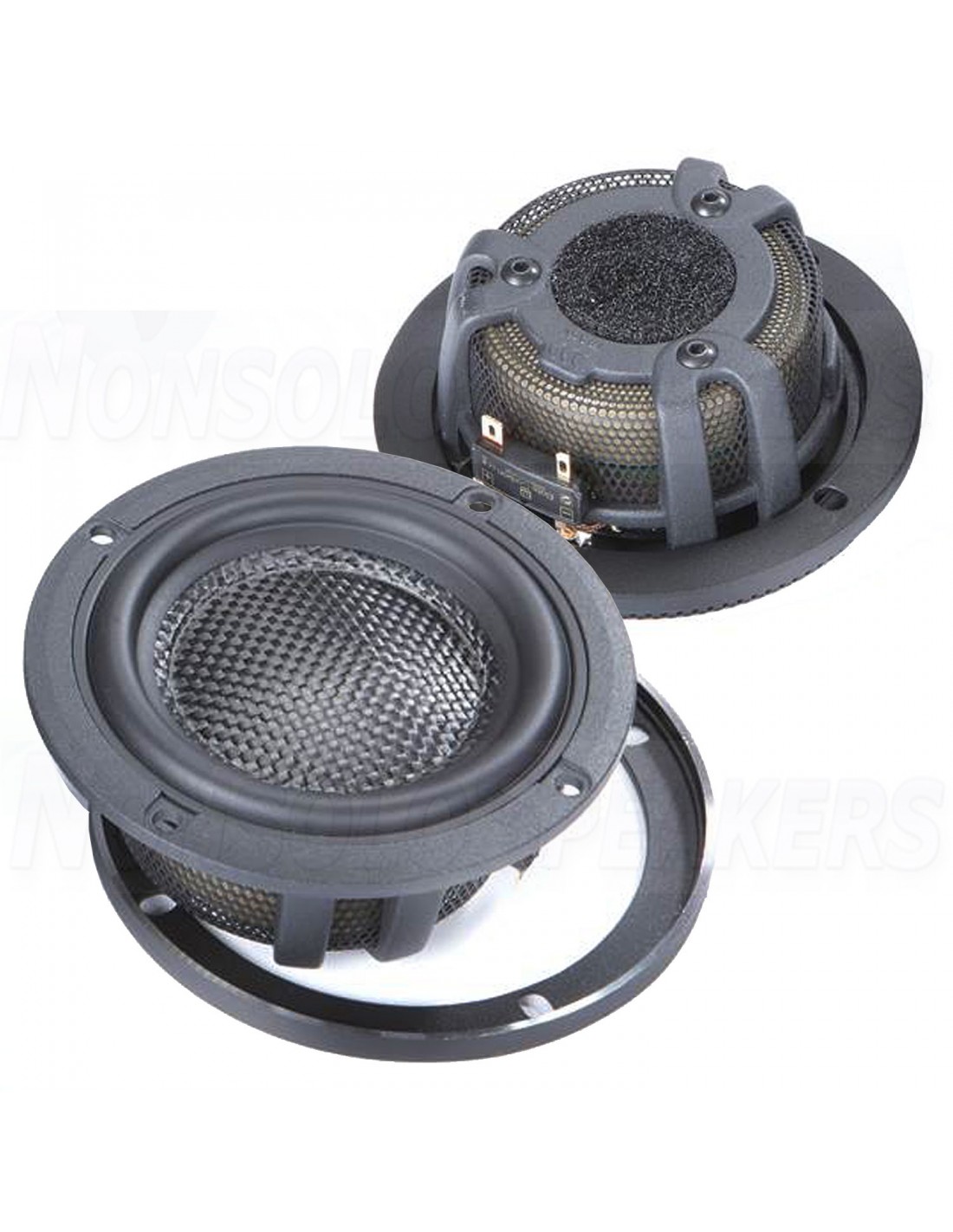

• 3" 3-layer carbon fiber/Rohacell midrange driver

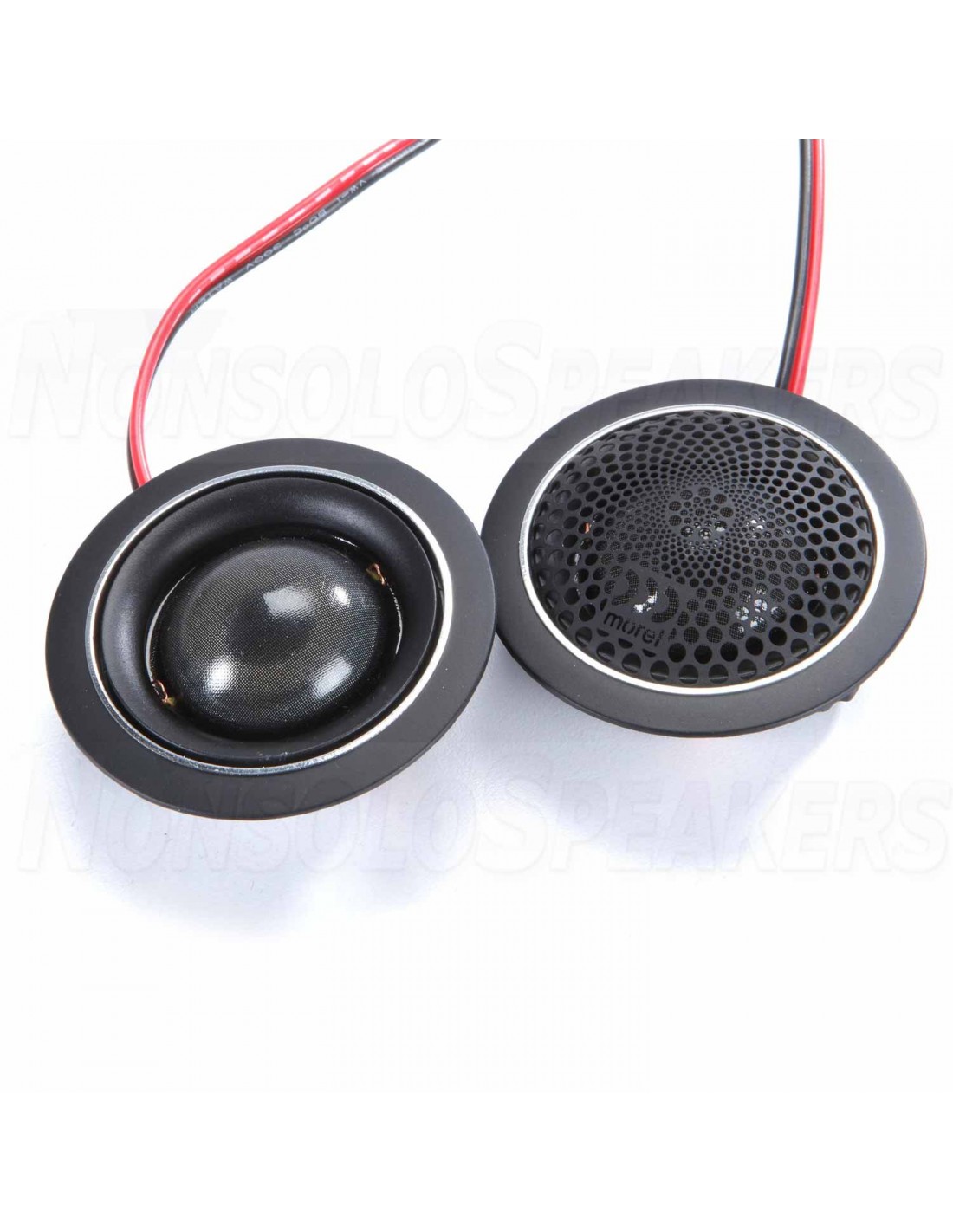

• 1-1/8" MT450 Acuflex coated silk dome tweeter
• Cast aluminum basket
• Can handle up to 180 watts RMS (1000 watts peak power)
• Frequency response: 30-25,000 Hz
• Sensitivity: 87dB at 2.83V
• Installation depth of woofer: 6.2cm
• Diameter of the woofer cutout: 14cm
• Midrange installation depth: 2cm
• Midrange cutout diameter: 4.8cm
• Includes grid

Contenents of package

• 2 MW6 woofers
• 2 MM3 midrange drivers
• 2 MT 450 tweeters (with included 7" speaker cable)
• 2 woofer grilles (mounted)
• 2 midrange grilles (built-in)
• 2 midrange grille frames
• 2 tweeter grilles (installed)
• 2 tweeter installation housings (tweeter installed)
• 2 brackets for flush mounting
• 2 angled surface mount tweeter enclosures
• 2 rubber feet for surface-mounted housings
• Eight 1-1/4" screws
• Four 1" screws
• Eight 3/4" screws
• 8 large speed clips
• 8 small quick release clips
• Lattice putty
• Eight 0.25" crimp quick connectors
• Two 0.187" crimp quick connectors
• Two 0.110" crimp quick connectors with internal thread
• Two .187" insulating covers for quick slides
• Two insulating covers with 0.110" quick-release fasteners
• Installation manual
• Warranty card
• Instructions for checking the original product
