Gladen Sigma 130.2  kit 2 way 5,5"

.

The new Sigma model series combines the original values ​​of Gladen with the latest, future-oriented technologies. In addition to the excellent sound performance achieved by the careful development of the latest materials and newly designed transducers, a very important aspect of the development was in particular the integration into today's modern vehicles. The compact tweeter with a 22 mm dome and a wide range of mounting accessories, together with the mid-woofer equipped with the new Hexatec membrane, dazzle with their sound quality and at the same time are very easy to install. This is also supported by the advanced frequency crossover, which can be easily divided into bands. In addition to normal operation, the crossover design also allows for a bi-amping configuration. The newly developed 50 mm wide-range speaker also deserves special attention, which, thanks to its frequency range from 300 to more than 20 thousand Hz, enables innovative audio system concepts. Sigma thus successfully follows on from its predecessor Zero and Zero Pro and brings an exclusive speaker line that will transform any audio system into an unforgettable sound experience.

.

Main features

2-way component speakers from the Sigma series.

High sensitivity and reduced impedance of 3 ohms ensure low amplifier requirements.

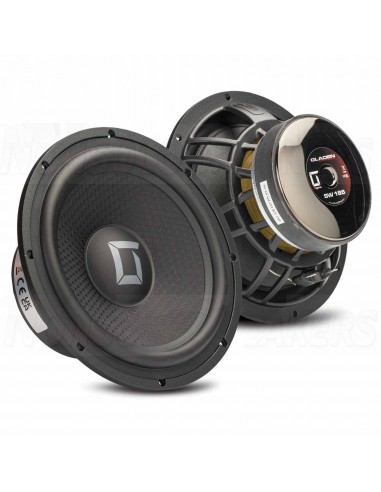

Newly developed Hexatec diaphragm with a diameter of 165 mm.

Bellows made of meta-aramid fiber with high resistance (Nomex).

Possibility of removing the tweeter from the plastic case.

Solid aluminum basket with optimized airflow.

Rubber suspension for long-term durability.

Robust magnet system with rubber protection for high performance without distortion.

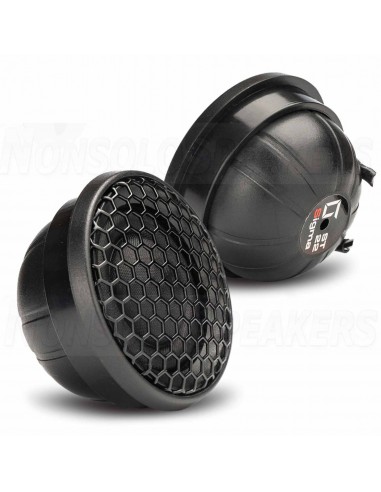

Tweeter with a diameter of 22 mm with silk dome.

Possibility of removing the tweeter from the plastic case.

Housings and other accessories for tweeters in the package.

Frequency crossovers with a detachable printed circuit board.

.

About the brand

The Gladen brand is one of the most successful brands in Germany, where it was founded and has its roots there. Gladen offers high-quality products such as speakers, subwoofers and amplifiers. It also has a wide product portfolio that includes hundreds of items, whether it is connectors, damping materials and many other items. In the past and present, Gladen products have won prestigious EISA awards. Germans have fallen in love with this brand - they simply love it.

.

Specifications

• Catalog number SIGMA 165.2
• Brand Gladen
• Speaker type Component 2-way
• RMS power 175 W
• MAX power 250 W
• Sensitivity (2.83V/1m) 92 dB
• Sensitivity (1W/1m) 88 dB
• Impedance 3 Ω
• Diameter of mid-woofer 165 mm
• Mounting depth of mid-woofer 68 mm
• Resonant frequency of mid-woofer 46.2 Hz
• Total diameter of tweeter 49 mm (after removing the grille 39.5 mm)
• Diameter of tweeter dome 22 mm
• Mounting depth of tweeter 24 mm
• Material of tweeter dome Silk
• Resonant frequency of tweeter 790 Hz
• Frequency crossover included Yes
• Options crossover adjustment Yes
• Grilles included No
• Price per Pair

.

.

.

.

.
