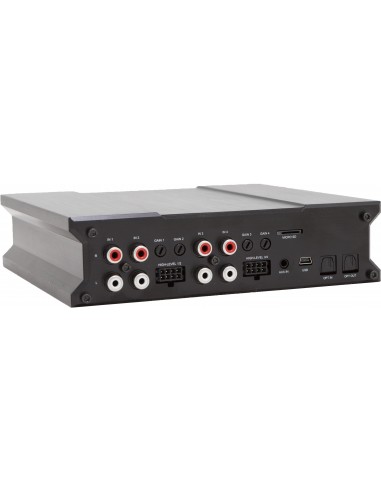

Audio system DSP 8.12 PROCESSOR Avalanche

Audio system DSP Avalanche 8.12

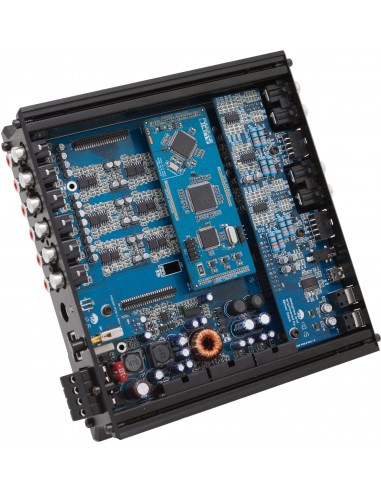

12-channel high performance DSP with Freescale multi-core chip

• 12-channel high-performance DSP with Freescale multi-core chip.
• 8 RCA inputs (Low level 2 to 4 volts)
• 8 Molex line input (5 to 20 volts) with automatic switch-
• 12 RCA outputs (5 volts)
• 1x AUX input
• 1x optical input
• 1x optical output
• 1x remote output
• SD card slot
• Intuitive GUI, 2 dual-core chip with 250 MHz computing power. Sampling rate 96 kHz Frequency range: 10 to 44,000 Hz, digital signal to noise ratio: 108 dB, analog: 102 dB crosstalk attenuation greater than 92 dB, start / stop able to 6 volts / 5sec, operating voltage from 9.6 to 18 volts, operating temperature of -20C ° to + 80C °
• Dimensions: 180x160x45 mm
