Audio System DSP 4.6 6-channel high-performance DSP
Audio System DSP 4.6 6-channel high-performance DSP

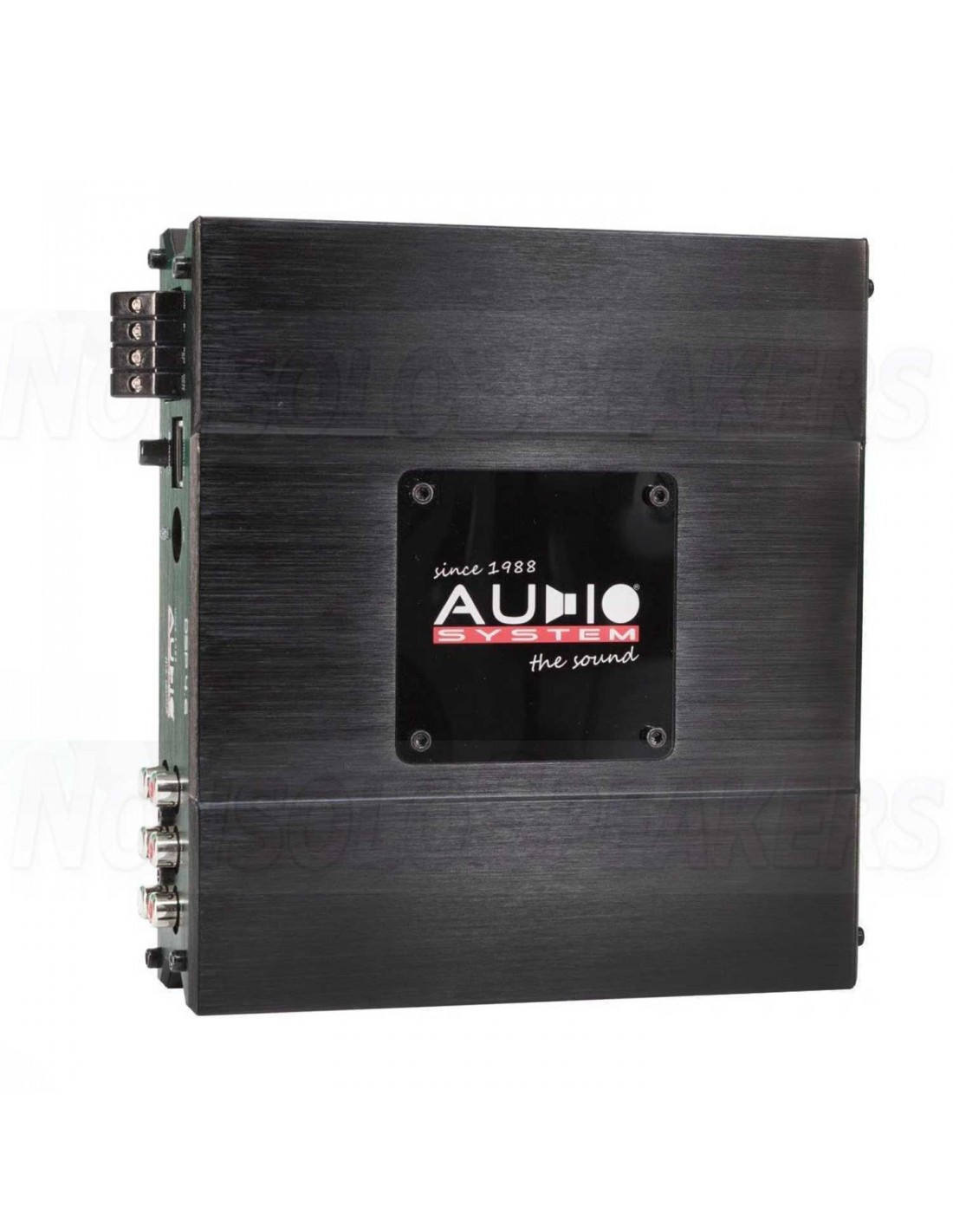

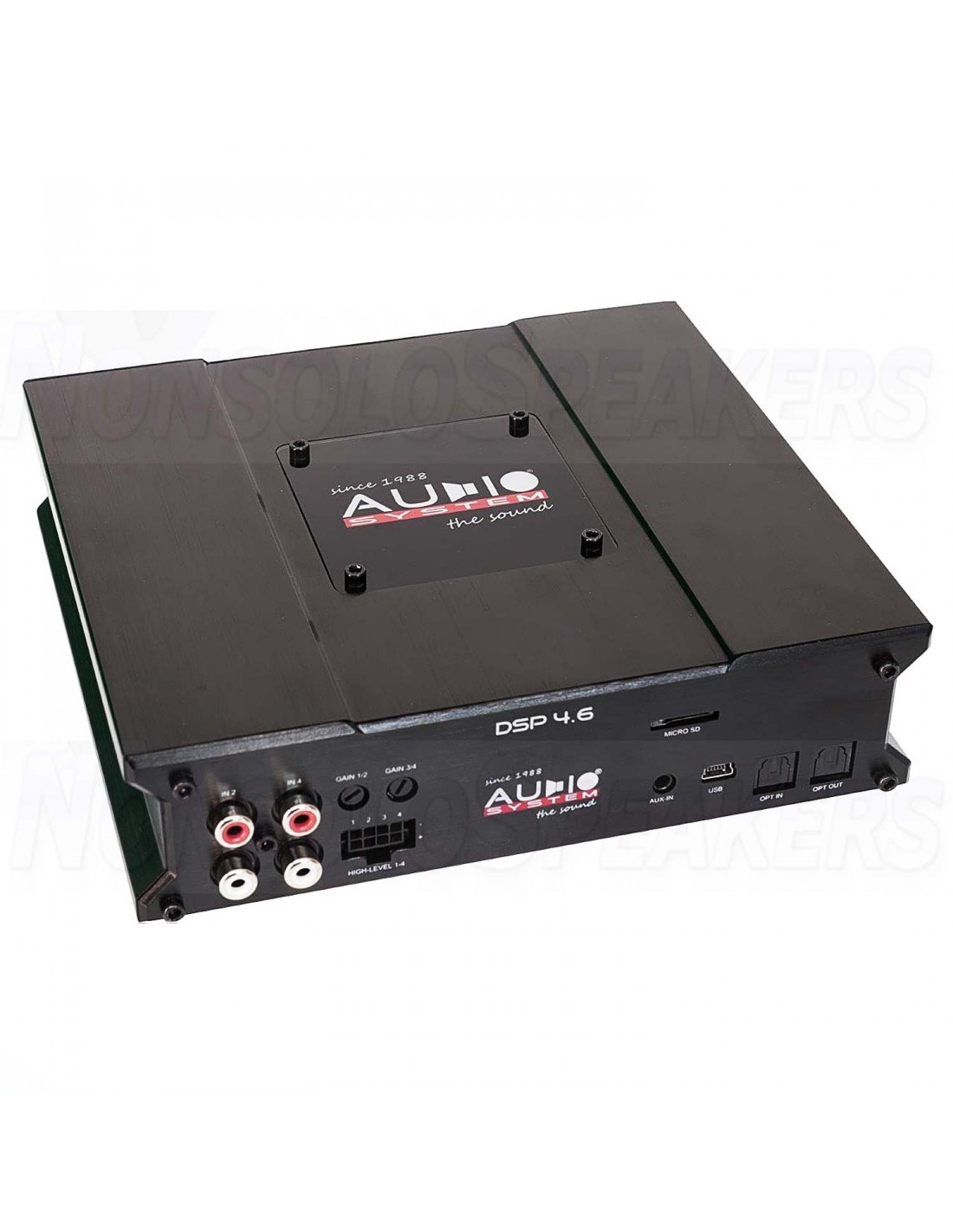

The Audio System DSP 4.6 is a high quality digital sound processor and has 4 single channels and 6 output channels, which is perfect for a 2-way front system with a subwoofer in the trunk of the car to drive it fully active!
Audio system DSP 4.6
6-channel high-performance DSP with Freescale multi-core chip
4 RCA inputs (low level 2 to 4 volts)
4x Molex high-level inputs (5 to 20 volts) with automatic switch-on
6 RCA outputs (5 volts)
1 x AUX input
1 x optical input
1 x optical output
1 x remote output
You might also like
Audio System DSP 4.6 6-channel high-performance DSP
The Audio System DSP 4.6 is a high quality digital sound processor and has 4 single channels and 6 output channels, which is perfect for a 2-way front system with a subwoofer in the trunk of the car to drive it fully active!
Features Audio System DSP 4.6:
DSP SERIES 6-Channel Sound Processor Audio System DSP 4.6
6-channel high performance DSP with Freescale Multi-Core Chip
4x RCA inputs (low level 2 to 4 volts) and 4x Molex high level inputs
(5 to 20 volts) with automatic switch-on
6x RCA outputs (5 volts)
1x AUX input
1x optical input and 1x optical output
1x remote output
SD card slot

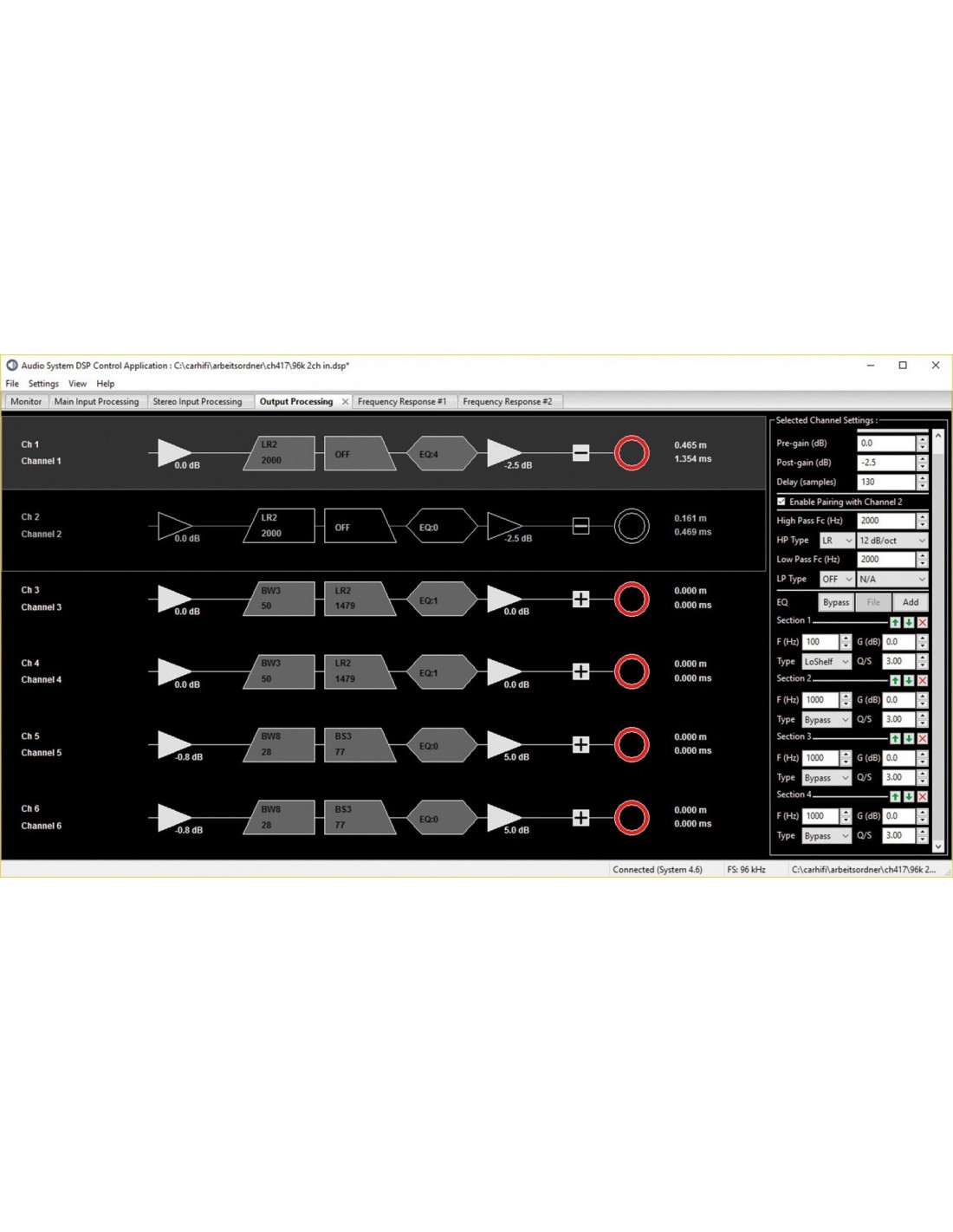

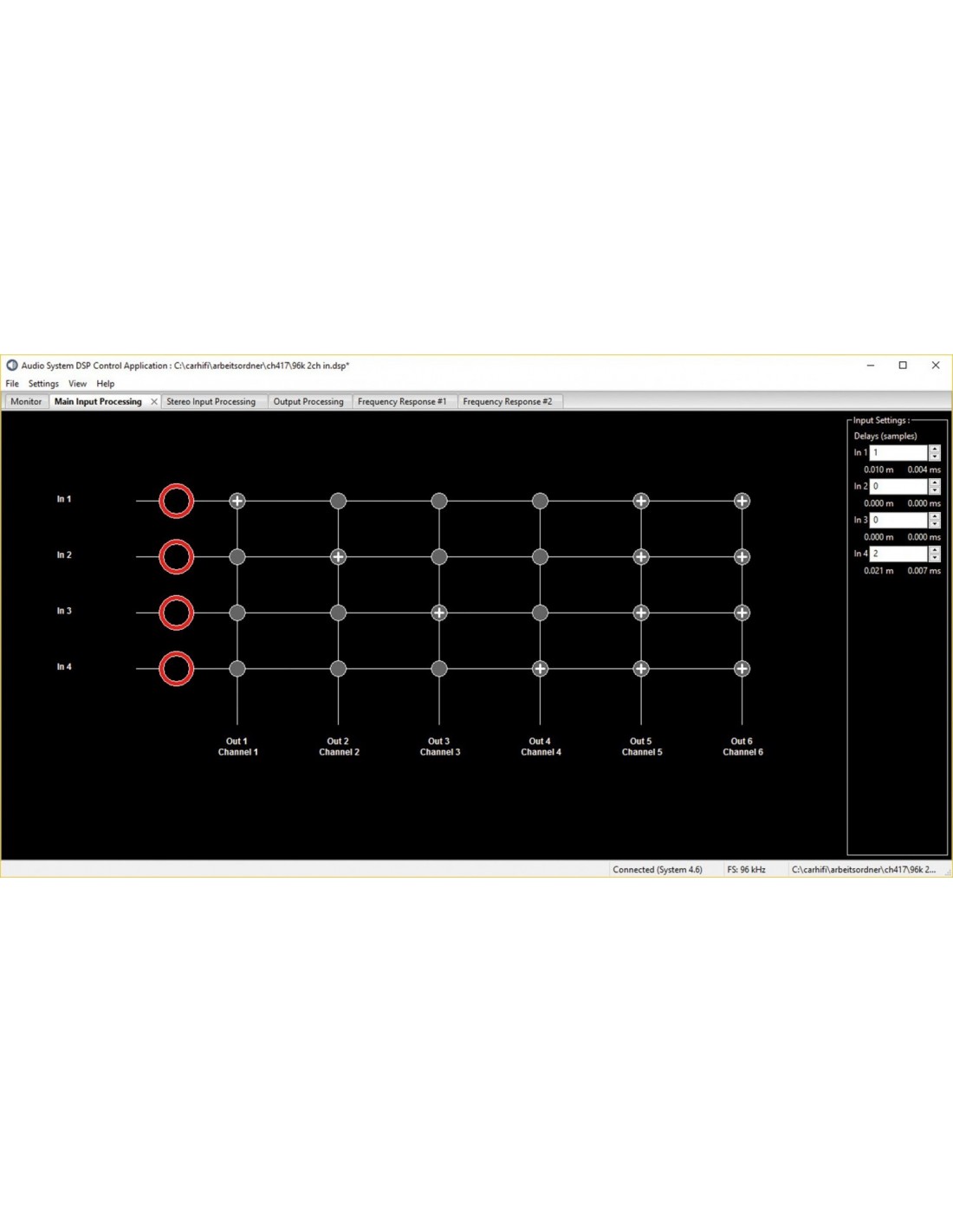

Intuitive GUI
Dual core chip with 250MHz processing power
Sampling rate 96kHz (192kHz optional)
Frequency range: 10-44000 Hz
Signal-to-noise ratio digital: 108 dB, analog: 102 dB
Crosstalk attenuation greater than 92 dB
Start/Stop capable up to 6 volts/5sec
Operating voltage 9.6-18 volts
Operating temperature from -20C° to +80C°.
Dimensions Audio System DSP 4.6:
180x160x45mm
